Everhot 16 Plate Heat Exchanger 3x8 Side ViewEverhot 16 Plate Heat Exchanger 3x8 Top ViewEverhot Heat Exchanger Layout

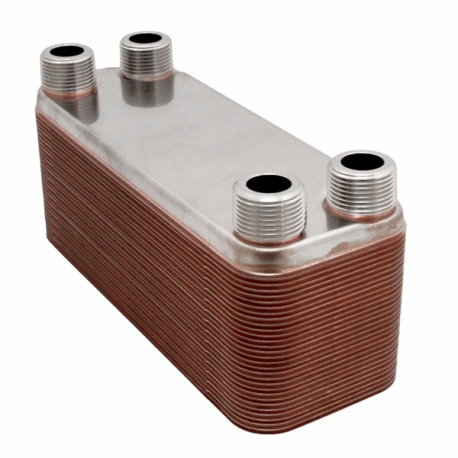

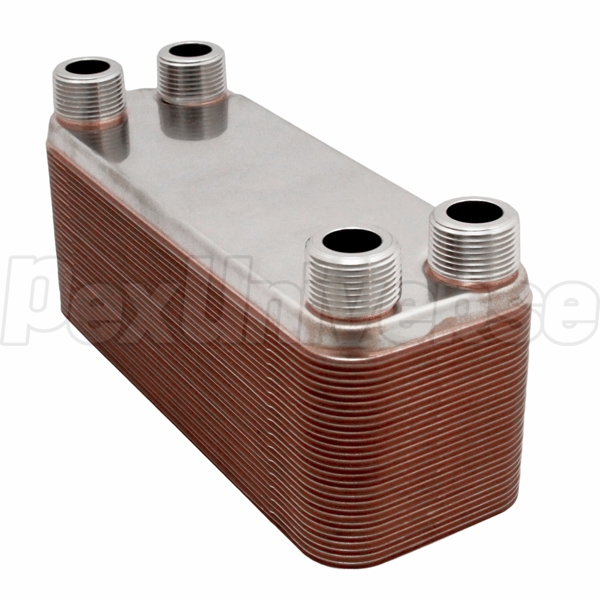

Everhot 16 Plate Heat Exchanger 3x8

16-Plate, 3" x 8" Brazed Plate Heat Exchanger with 3/4" MNPT Ports

Everhot

Brand: Everhot

Mfr Part#: BT3x8-16

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$89.95 / each & Free Shipping
  • Description
  • Reviews (1)
  • FAQs (1)

Everhot Heat Exchanger is designed for use in a variety of liquid-to-liquid heat transfer applications, where a reliable, efficient and compact heat exchanger is needed.



The BT Series designed for the following application types:




Features:

  • 100% Factory tested;
  • Warrantied by the manufacturer;
  • 316L Stainless Steel Construction;
  • 99.9% pure Copper Brazed;
  • Feature Male NPT Connections (standard);

Technical Specifications:

  • Flow Rate: 6.2 GPM max.
  • Connections: 3/4" Male Threaded
  • Dimensions: 3" x 8"
  • Max BTU output: up to 60,000 BTU/hr
16-Plate, 3" x 8" Brazed Plate Heat Exchanger with 3/4" MNPT Ports has an average 4.0 out of 5 rating based on 1 user review.
0 of 1 people found this review helpful.

Seems fine.
By Semi Handy (But Not Pro) (from Burlington, ON) on 1/9/2012
Works well. Replaced an old heat exchanger that plugged as result of having a new well drilled and connected. (A lot of rust went through in the process, plugging the old heat exchanger). Only problem was that the new heat exchanger is an inch longer -- meaning 2 of the 4 joints had to be resoldered. Now its in place, working well.
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Is this unit rated for domestic water supply?
Read 1 answer
It does not have an approval for potable water use, however since it's main components are 316L stainless steel (plates) and 99%+ pure copper (used for brazing), it meets the potable water requirements.
Answered on 10/17/2016 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
