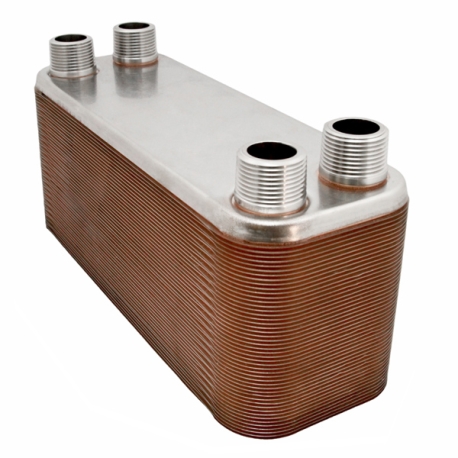

20-Plate, 4-1/4" x 12" Brazed Plate Heat Exchanger with 1" MNPT Ports

Everhot

Brand: Everhot

Mfr Part#: BT4x12-20

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$158.00 / each & Free Shipping
  • Description
  • Reviews (2)
  • FAQs

Everhot Plate Heat Exchanger is designed for use in a variety of liquid-to-liquid heat transfer applications, where a reliable, efficient and compact heat exchanger is needed.





The BT Series designed for the following application types:

· Radiant Heating and Snow Melt (Glycol to Water) Systems;
· Wood Furnaces;
· Domestic Hot Water;
· Solar & Geothermal Heating;
· Shell and Tube Heat Exchanger Replacements;
· Beer & Wort;





All BT Series models are:

· 100% Factory tested;
· Warrantied by the manufacturer;
· 316L Stainless Steel Construction;
· 99.9% pure Copper Brazed;
· Feature Male NPT Connections (standard);





Design Parameters:

· Design Pressure: 435 psi
· Design Temperature: -256oF / 437oF





Technical Specifications:

Flow Rate: 40 GPM max.
Connections: 1" Male Threaded
Dimensions: 4.25" x 12.12" x 2.24"
Max BTU output: up to 250,000 BTU/hr





Cross-Reference & Replacement Information:

This model is a direct replacement for ITT Bell & Gosset "Brazepak" Plate Heat Exchanger models BP410-20, BP411-20 and BP412-20.

20-Plate, 4-1/4" x 12" Brazed Plate Heat Exchanger with 1" MNPT Ports has an average 5.0 out of 5 rating based on 2 user reviews.

Works Very Well
By Matt (from Vicksburg, MI) on 9/4/2012
I use this in conjunction with an indoor wood boiler during the heating season. I have a circ pump circulating water from my water heater through this HX. When my boiler water is at 185 degrees, my water heater regenerates in about 5 minutes--that's about half the time it takes when it is running on propane!
Was this review helpful?  Yes / No

good value
By Chris (from MD) on 8/7/2012
Looked around for heat exchangers everywhere. Best price was here. Recieved product but have not installed yet. Like the quality.
Was this review helpful?  Yes / No
