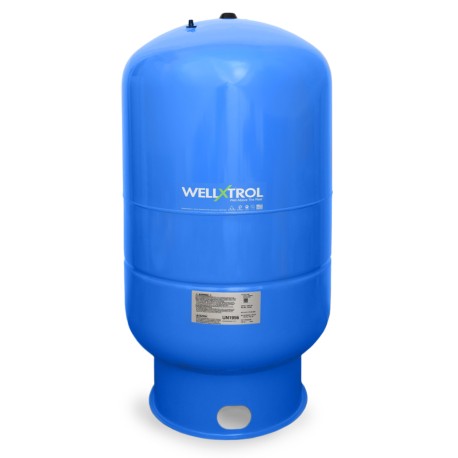

Well-X-Trol WX-302 Well Tank (86.0 Gal Volume)


Brand: Amtrol

Mfr Part#: 150S1

Model: WX-302

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$667.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs

Amtrol WX-302 is 86.0 gallons Stand Model of Well-X-Troll searies well expansion tank designed for use with shallow and deep well water pumps. Equipped with the thickest diaphragm that provides extra strength and flexibility. Polypropylene tank liner provides 100% corrosion resistance and complies with NSF International Standard for clean and safe water storage.


Materials of Construction:

  • Shell: High Strength Steel;
  • Diaphragm: Heavy Duty Butyl;
  • Liner: Polypropylene;
  • System Connection: Stainless Steel;
  • Coating: Tuf-Kote Coating Technology.



  • Height x Diameter: 47" x 26" (1194mm x 660mm);
  • System Connection Centerline: 2-1/16" (52mm);
  • Stand Diameter: 20-1/2" (521mm);
  • Shipping Weight: 123 lbs (56kg).

Technical Specifications:

  • Tank Volume: 86.0 Gal (326 Lit);
  • Maximum Acceptance Factor: 0.54;
  • Maximum Operating Temperature: 200°C;
  • Maximum Working Pressure: 150 PSIG (10.3 bar);
  • Maximum Relief Valve Setting: 125 PSIG (8.6 bar);
  • System Connection (NPTM): 1-1/4".


7 years manufacturer's warranty.
