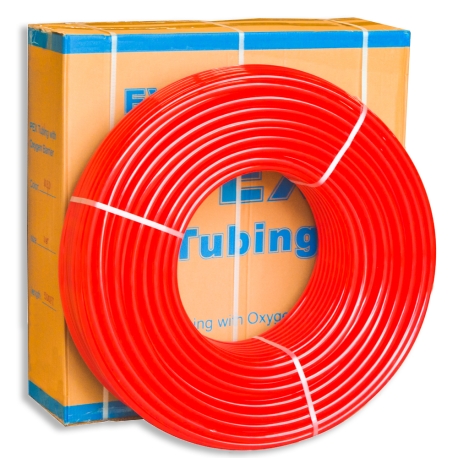

3/4" x 300ft Oxygen Barrier PEX Tubing
300ft roll of 3/4" PEX Tubing with Oxygen Barrier for use in radiant heating systems. This product meets/exceeds ASTM F876/877, CSA B137.5, DIN 4726 standards and backed by a 25 year manufacturer warranty. Certified for use in radiant floor heating applications. UPC listed by IAPMO. PPI pressure rated at: 79psi @ 200F, 100psi @ 180F, 160psi @ 73F Weight: 37.0 lbs Box dimensions: 30" x 30" x 10"
3/4" PEX Tubing with Oxygen Barrier can be used for the following heating applications:
1. Structural Concrete Slabs (Rebar or wire mesh reinforced, 4-6" thick). Slab-On-Grade Systems (larger garages, warehouses and other storage and commercial facilities). 3/4" PEX Tubing is secured on top of the reinforcement with wire ties, zip ties or clips.
2. Snow Melt Systems (reinforced structural slabs). Similar to radiant heated slabs, but does not require insulation and requires a proper drainage system.
3. Copper tube finned baseboard radiators, cast iron and aluminum radiators.
4. Fan coil units and water to air heat exchnagers.
Everhot Oxygen Barrier PEX Tubing can be installed using either Crimp type connection system (Crimp Tool, Crimp-style PEX Fittings and Copper Crimp Rings) or Clamp/Cinch type connection system (Clamp Tool, Crimp-style PEX Fittings and Stainless Steel Clamps). Also compatible with Push-Fit connection system (such as SharkBite), Viega Press type system and Compression type PEX fittings.
This product is a replacement for:
Watts (RadiantPEX): PB032121-300
Viega (ViegaPEX): 11457
Zurn (ZurnPEX): QHR4PC300FX
PEX Tubing colors and packaging may vary by manufacturer.
3/4" PEX Tubing with Oxygen Barrier is the most popular size for all snow melt projects. According to RPA Standard Guidelines, 500ft is the recommended circuit length for the 3/4" Oxygen Barrier PEX Tubing, when used for radiant floor heating applications. For snow melt applications, 300ft length is considered more appropriate.
Pex and Pex Universe
I have used the Pex ¾ inch Oxy barrier tubing before, needed more and ordered from Pex Universe, very please with their availability, pricing and shipping method FedEX Grd They exceeded my expectations
good prduct, easy to work with.
we are moving some old cast iron radiators. pex makes this job much quicker. I might mention it is also way more cost efficient as well.
Works like it supposed to
For infloor heating. Was adequately flexable for installation
Item as described.
No problems at all
Cant go wrong
I have used 600' of this pipe for a base board heating system in my basement. Pipe is a little ridged but so are almost all 3/4" PEX pipes. Price is great.
How much expanson per foot with hot water passing thru it? Are expanson loops needed?
Read 1 answer
The expansion ratio depends on the temperature rise (delta T) in the system. Approximate formula is as follows:
Total expansion in inches = (delta T) * (PEX pipe length) * 0.001
A 100ft loop of 3/4" oxygen barrier PEX at 70F temperature rise will expand 100*70*0.001 = 7", or about 0.006" per ft.
Expansion loop is unnecessary as long as PEX is installed with a sufficient slack to allow the normal expansion and contraction to occur.
If making an expansion loop is necessary, it should be done in a manner to avoid the trapping of air.
Answered on 3/31/2015 by PexUniverse Customer Service
Can Glycol be used as the fluid for this Pex tubing in application with hot water fin radiators?
Read 1 answer
Yes, as long as it is Propylene Glycol.
Answered on 2/4/2013 by PexUniverse Customer Service
