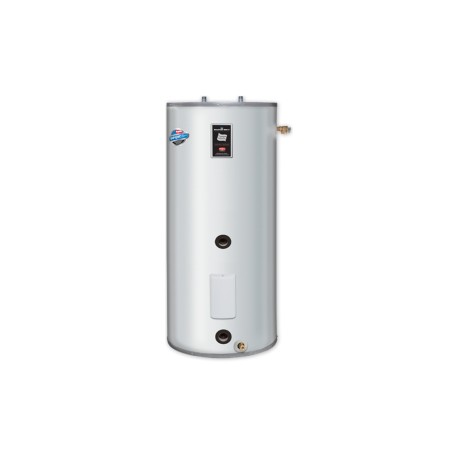

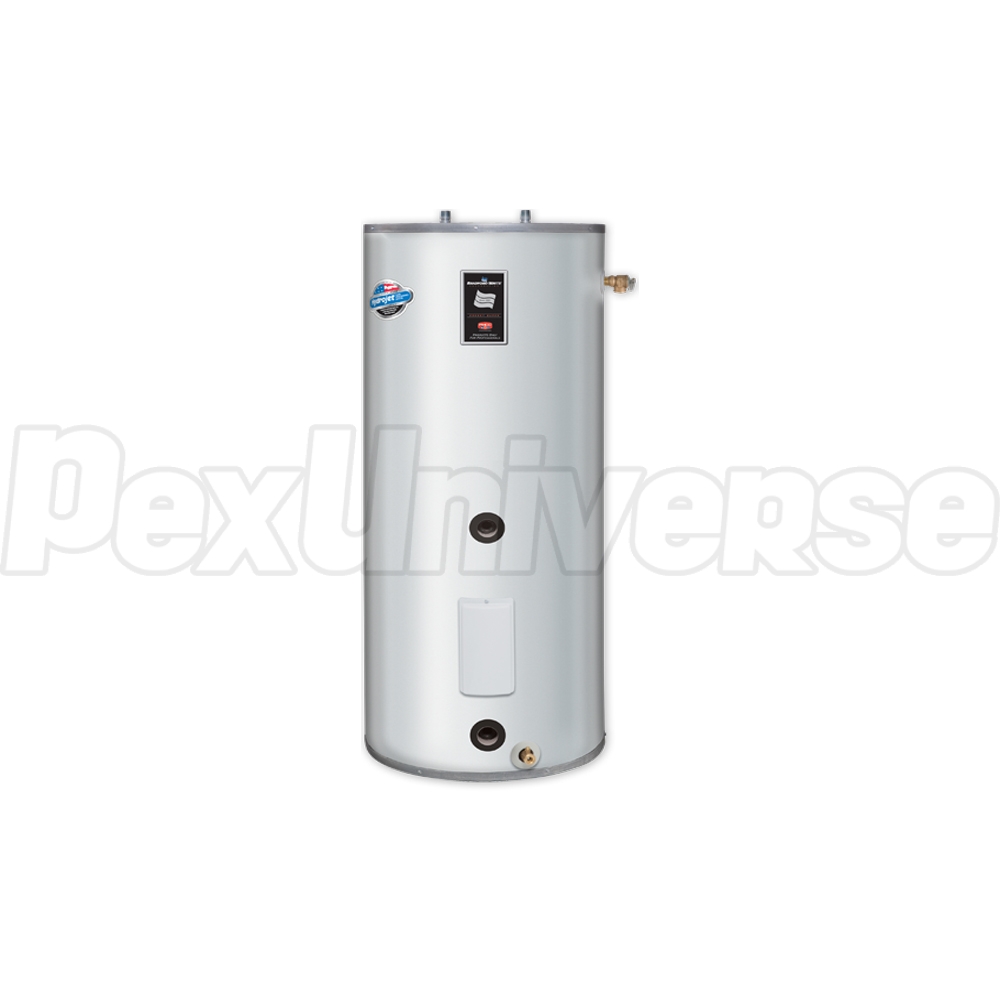

DW-2-65L PowerStor2 Indirect Water Heater, 57.0 Gal

Bradford White

Brand: Bradford White

Mfr Part#: DW-2-65-L

Usually ships: within 2-3 business days
Qty Price
$1,985.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs

Bradford White DW-2-65-L is a 57-gallon, PowerStor2 (double-wall coil) series indirect domestic hot water heater model. Comes with surface mount thermostat, T&P relief valve and (2) aluminum anode rods. 2" non-CFC tank insulation ensures minimal heat loss @ only 0.7°F / hr.


Features:

  • Double-wall heat exchanger;
  • Vitraglas enamel lining helps to extend tank and heat exchanger life;
  • Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank;
  • 2" Non-CFC foam covers the sides and top of the tank, reducing heat loss;
  • (2) Protective magnesium anode rods.

Technical Specifications:

  • Domestic Water Capacity (Gallons): 57;
  • Heat Exchanger Type: Double-Wall, Single Coil;
  • 1st Hour Rating, AHRI (180°F Boiler water temp): 148 Gal @ 135°F;
  • Continuous Draw Rating, AHRI (180°F Boiler water temp): 98 GPH @ 135°F;
  • 1st Hour Rating, DOE (200°F boiler water, 50°F potable water): 96 Gal @ 140°F; 138 Gal @ 115°F;
  • Continuous Draw Rating, DOE (200°F boiler water, 50°F potable water): 0.9GPM @ 140°F; 1.6GPM @ 115°F;
  • Standby Heat Loss Rating, AHRI (180°F Boiler water temp): 0.7 °F/Hr;
  • Min Heat Req. Rate, AHRI (180°F Boiler water temp): 65,000 BTU/Hr;
  • Min. Heat Source Flow Rate, AHRI (180°F Boiler water temp): 8.0 GPM;
  • Anode(s): 2 Aluminum Rods;
  • Max Supply Water Temperature: 240°F;
  • Potable Water Connections: 3/4" NPT;
  • Boiler (Heat Exchanger) Supply and Return Connections: 3/4" NPT;
  • Drain Connection: 3/4" NPT;
  • Max Working Pressure: 150 psi;
  • Dimensions (Diameter x Height): 22" x 59";
  • Insulation Thickness: 2";
  • Weight (lbs): 235.

Warranty:

Limited lifetime tank and heat exchanger warranties / 6-year limited warranty on component parts
