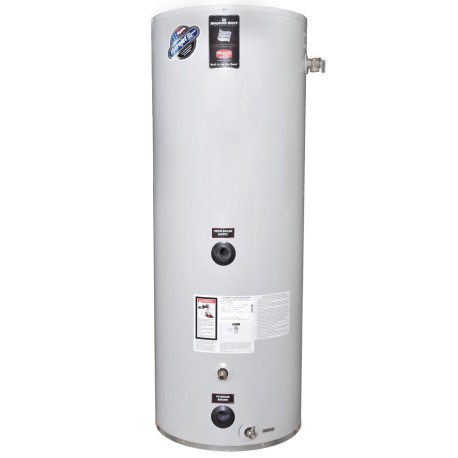

Bradford White SW-2-120-L is a 110-gallon, PowerStor (single-wall coil) series indirect domestic hot water heater model. Comes with immersed adjustable Honeywell aquastat, T&P relief valve and (3) aluminum anode rods. 2" non-CFC tank insulation ensures minimal heat loss @ only 0.4°F / hr.
Features:
- Single-wall heat exchanger
- Vitraglas enamel lining helps to extend tank and heat exchanger life
- Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank
- 2" Non-CFC foam covers the sides and top of the tank, reducing heat loss
- (3) Protective magnesium anode rods.
Technical Specifications:
- Domestic Water Capacity (Gallons): 110
- Coil Water Volume (Gallons): 2.7
- Heat Exchanger Type: Single Coil
- 1st Hour Rating, AHRI (180°F Boiler water temp): 325 Gal @ 135°F
- Continuous Draw Rating, AHRI (180°F Boiler water temp): 235 GPH @ 135°F
- Standby Heat Loss Rating, AHRI (180°F Boiler water temp): 0.4 °F/Hr
- Min. Heat Req. Rate, AHRI (180°F Boiler water temp): 175,000 BTU/Hr
- Min. Heat Source Flow Rate, AHRI (180°F Boiler water temp): 13.7 GPM
- 1st Hour Rating, DOE (200°F boiler water, 50°F potable water): 357 Gal @ 140°F
- 507 Gal @ 115°F
- Continuous Draw Rating, DOE (200°F boiler water, 50°F potable water): 4.2GPM @ 140°F
- 6.7GPM @ 115°F
- Anode(s): 3 Aluminum Rods
- Max Supply Water Temperature: 240°F
- Potable Water Connections: 1" NPT
- Boiler (Heat Exchanger) Supply and Return Connections: 3/4" NPT
- Max Working Pressure: 150 psi
- Dimensions (Diameter x Height): 28-1/4" x 62-1/2"
- Insulation Thickness: 2"
- Weight (lbs): 370.
Warranty:
Limited lifetime tank and heat exchanger warranties / 6-year limited warranty on component parts
