5/8" OD Compr. x 3/8" OD Compr. Angle Stop Valve (1/4-Turn), Lead-Free

BrassCraft

Brand: BrassCraft

Mfr Part#: G2CR19X-C

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
x1
$5.75 / each
x10 $55.50 / box
(10 x $5.55 / each)
  • Description
  • Reviews
  • FAQs

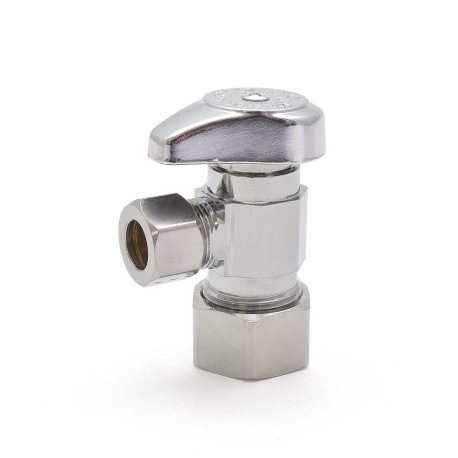

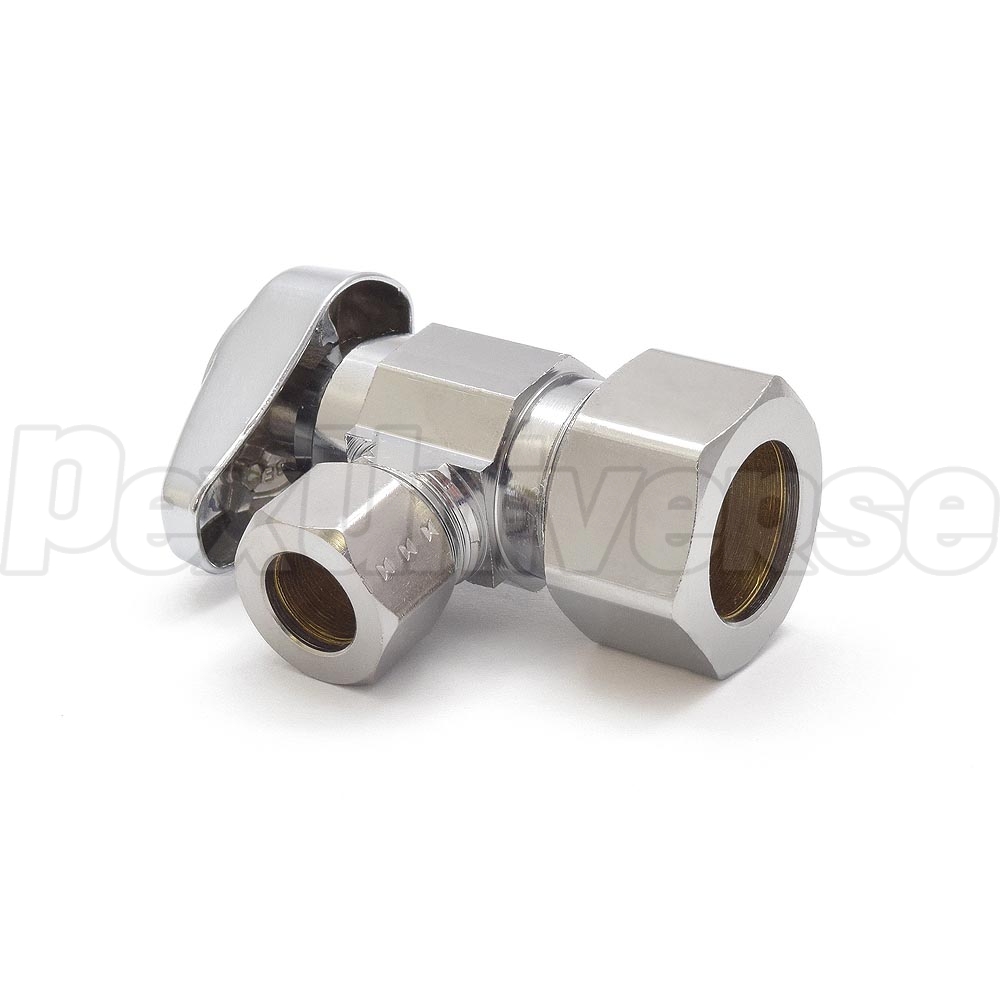

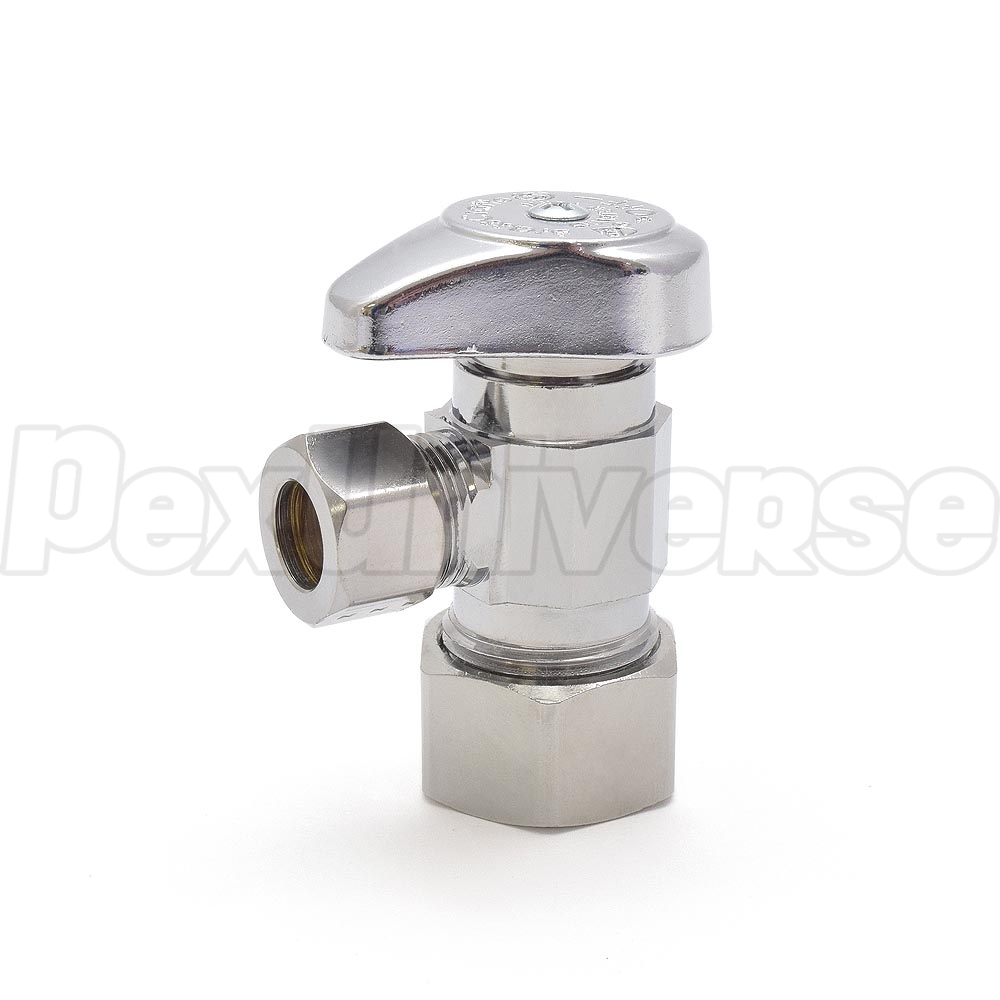

BrassCraft G2 series 1/4-Turn Ball Compression Type Angle Stop Valve.



Materials of Construction:



  • Body: No-Lead brass;
  • Stem Barrel: Santoprene;
  • Stem Shaft: Glass-filled Polypropylene;
  • O-ring: Rubber;
  • Handle: Zinc die cast (chrome plated);
  • Handle Screw: Zinc-plated steel;
  • Compression Nut: Brass (chrome plated);
  • Compression Sleeve: Brass.




Features:

  • One-piece shut-off mechanism provides smooth on-off operation without freeze ups even after long periods of non-use;
  • Positive 1/4 turn shut off;
  • Full-flow operation with no waterway obstructions;
  • Corrosion-resistant handle is plated in an attractive chrome finish;
  • Machined one-piece brass body provides strength, durability, and long-lasting performance;
  • Easy-to-remove handle with screw attachment helps protect against accidental operation during rough-ins;
  • 100% Leak tested;
  • No Lead.

Technical Specifications:

  • Closing: 1/4 Turn;
  • Inlet: 5/8” OD (1/2” Nominal) Sweat;
  • Outlet: 3/8” OD (1/4"" Nominal) Compression;
  • Valve Type: Angle;
  • Includes: 5” Bell Escutcheon;
  • Temperature: 40°F to 140°F;
  • Maximum Pressure: 125 PSI.
