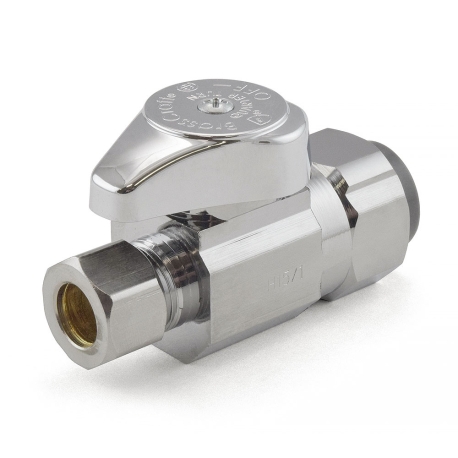

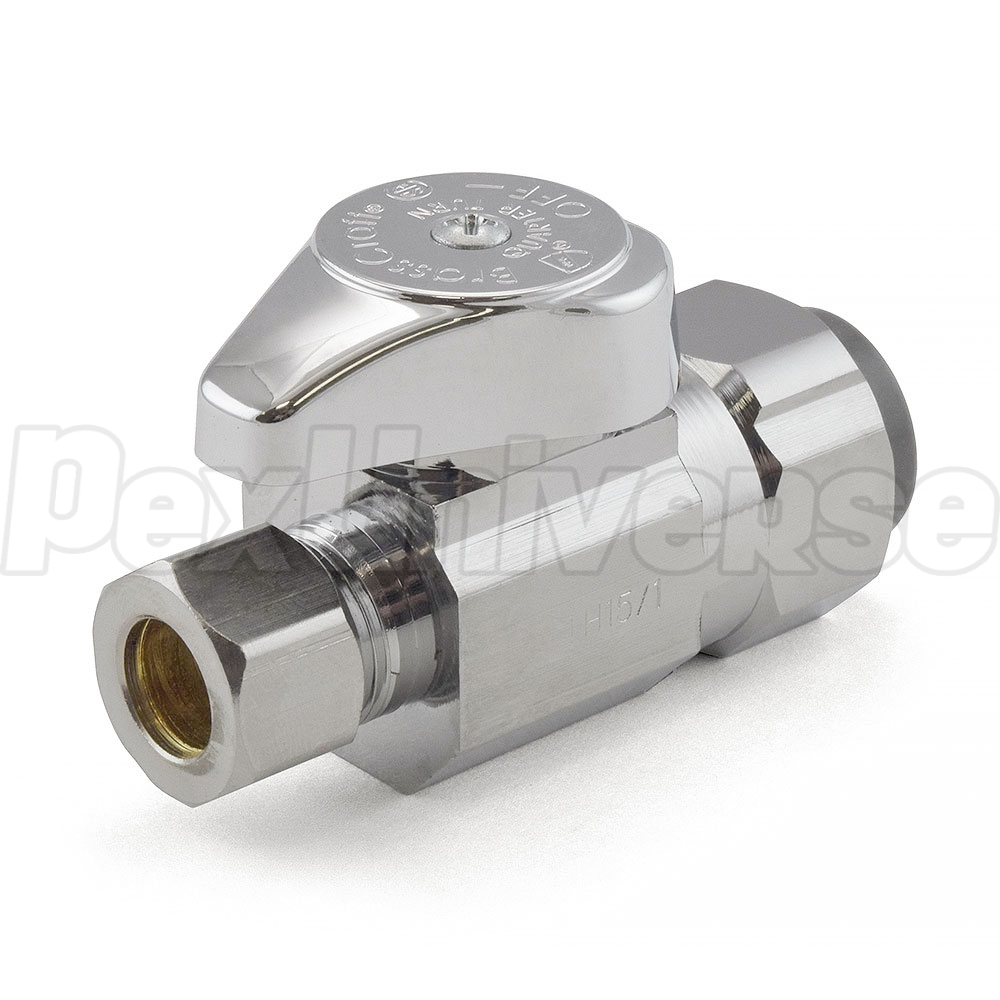

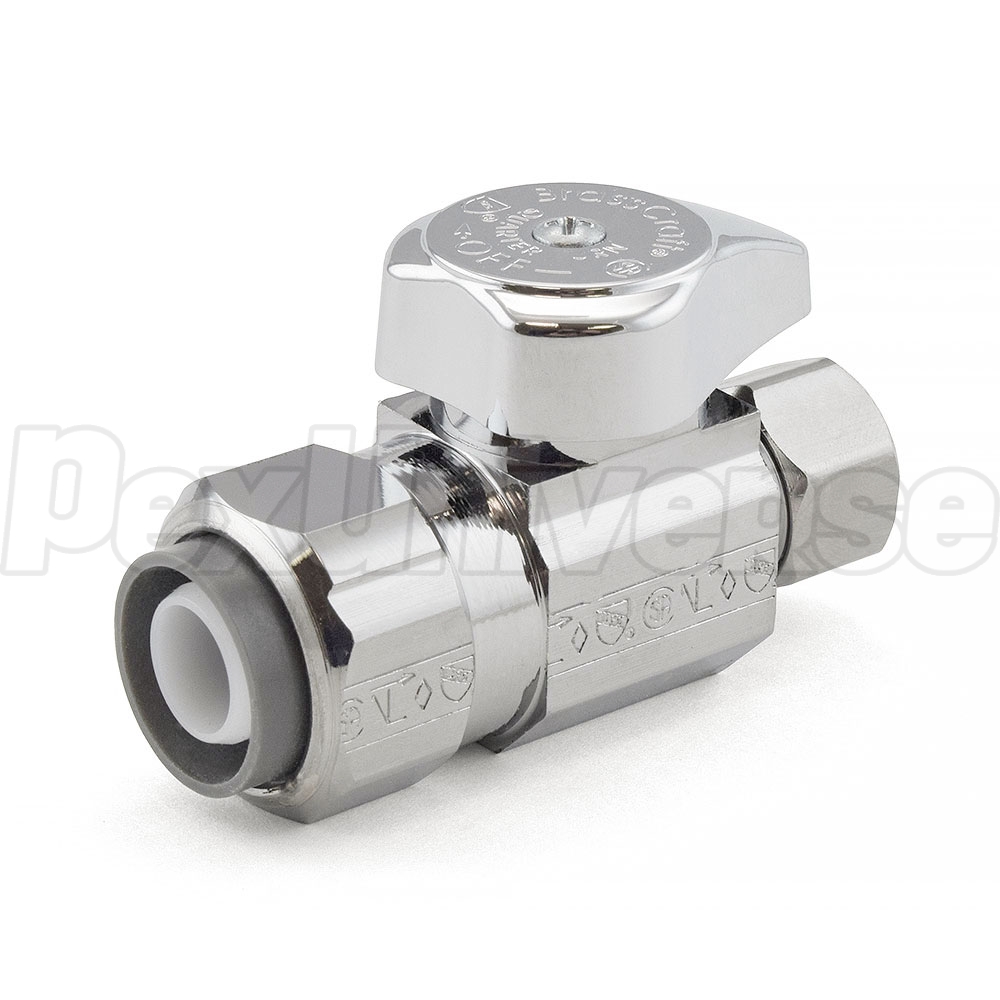

1/2" Push Connect x 3/8" OD Compr. Straight Stop Valve (1/4-Turn), Lead-Free
Brand: BrassCraft
Part#: G2PS14X-C

BrassCraft G2 series 1/4-Turn Ball Push Connect Inlet (Compression Outlet) Straight Stop Valve.

Materials of Construction:
  • Valve Body: Compliant brass;
  • Stem Barrel: Santoprene;
  • Stem Shaft: Glass-filled polypropylene;
  • Stem O-ring: EPDM;
  • Gripper Ring: Stainless steel;
  • PushConnect O-Ring:Viton & Nitrile rubber;
  • Tube Stiffener: Stainless steel;
  • Locking Clip: Nylon;
  • Removal Flange: Glass-filled nylon:
  • Handle: Zinc die cast;
  • Screw: Zinc-plated steel;
  • Compression Nut & Sleeve: C36000 brass.

Features:
  • Compatible with PEX, copper and CPVC
  • Dual O-rings. Viton and Nitrile o-rings both provide chemical resistance
  • the Viton o-ring adds heat resistance & the Nitrile o-ring abrasion resistance
  • Pre-inserted tube stiffener is “installation ready” for a faster connection
  • Locking clip adds security to connection while allowing removal if needed
  • Captive removal flange permits easy removal from tube
  • One-Piece shut-off mechanism provides smooth on-off operation without freeze ups even after long periods of non-use
  • Positive 1/4 turn shut-off
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • 100% leak tested
  • Compliant stops available for California and Vermont “low-lead” requirements.

Technical Specifications:
  • Closing: 1/4 Turn
  • Inlet: 5/8” OD (1/2” Nominal) PushConnect
  • Outlet: 3/8” OD (1/4"" Nominal) Compression
  • Valve Type: Straight
  • Temperature: 40°F to 140°F
  • Maximum Pressure: 125 PSI.
