5/8" OD Compr. x 3/8" OD Compr. Straight Stop Valve (1/4-Turn), Lead-Free

BrassCraft

Brand: BrassCraft

Mfr Part#: KTCR14X-C

Availability: In Stock
Usually ships: within 1 business day
Qty Price
x1
$8.95 / each
x10 $87.00 / box
(10 x $8.70 / each)
  • Description
  • Reviews
  • FAQs

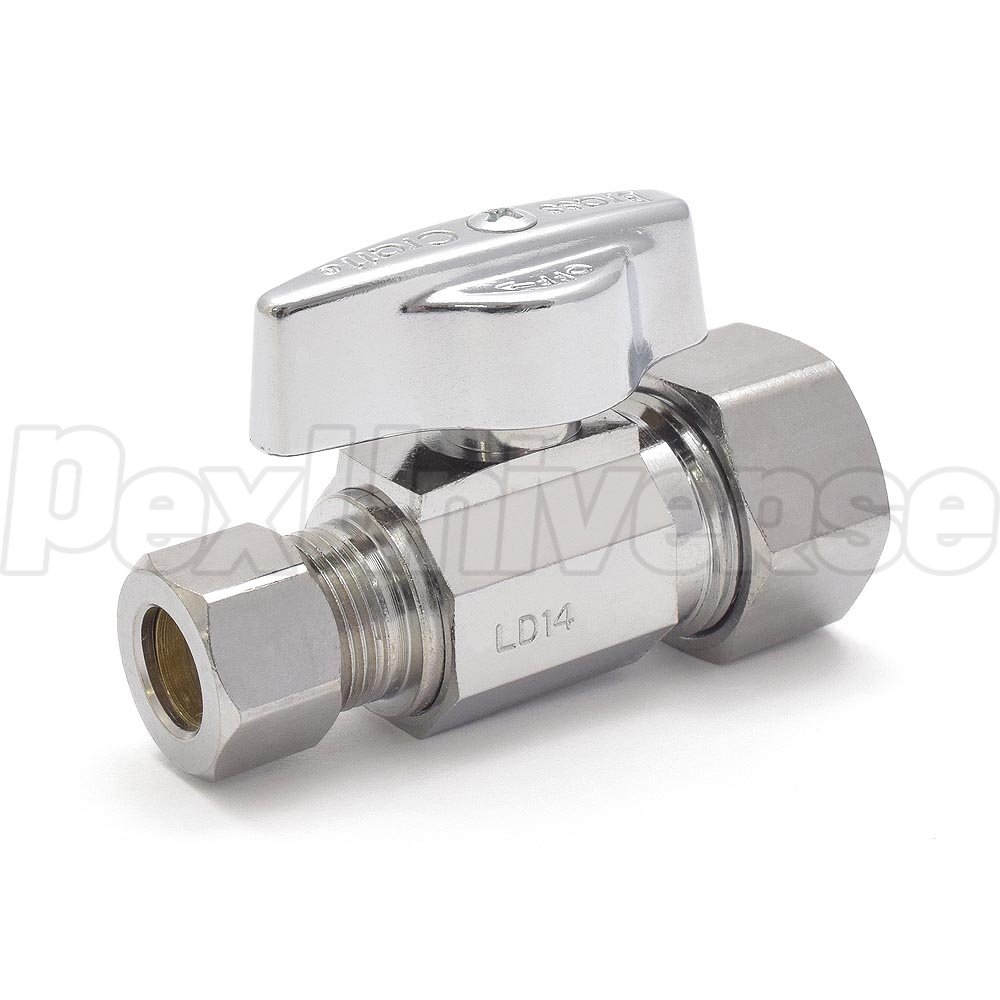

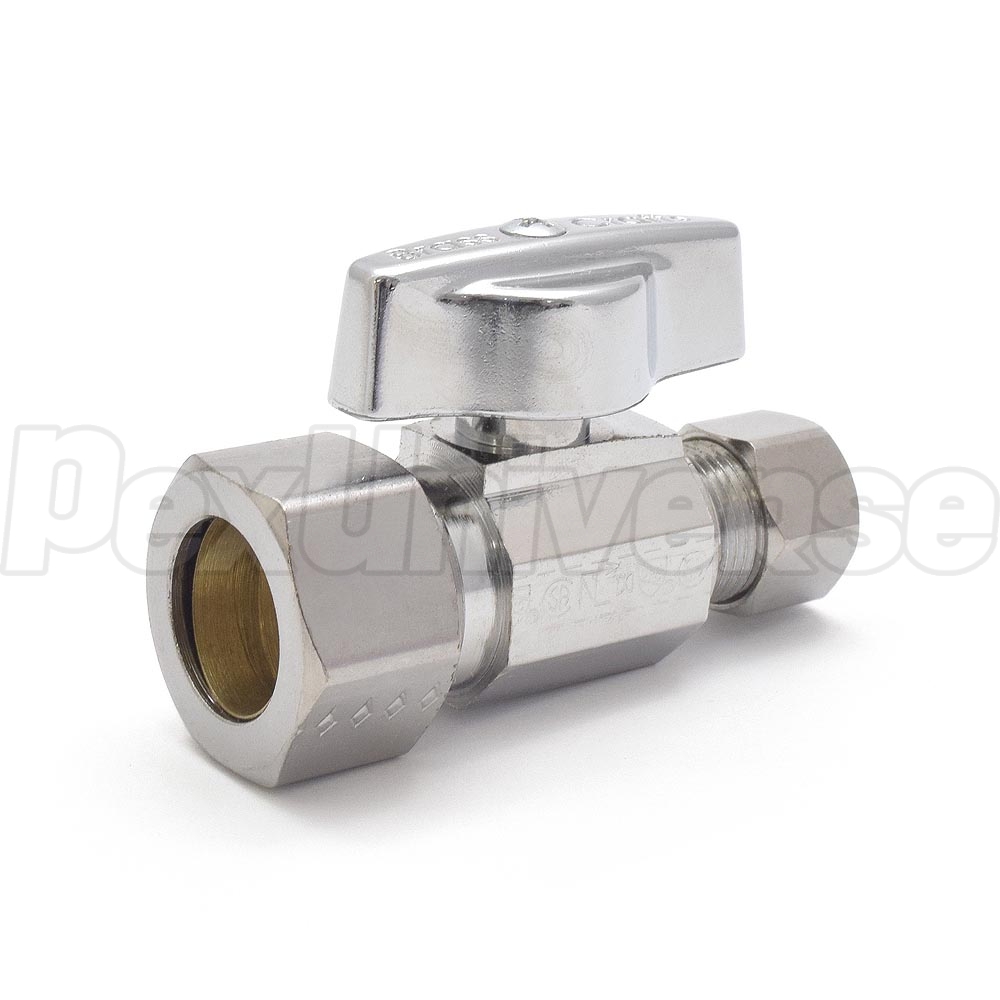

BrassCraft KT series 1/4-Turn Ball Compression Type Straight Stop Valve. KT series ball stop valves can be used for recirculating water in systems that produce continuous use temperatures above 115°F.



Materials of Construction:



  • Body: No-Lead brass or No-Lead brass (chrome plated);
  • Stem: No-Lead brass or No-Lead brass (chrome plated);
  • Seat: PTFE;
  • Ball: No-Lead brass, precision machined;
  • Stem O-ring: Rubber;
  • Handle: Zinc (die cast plated, ABS plated) or Polycarbonate;
  • Screw: Zinc-plated steel;
  • Compression Sleeve: Brass; Compression Nut: Brass or brass (chrome plated).




Features:

  • Precision-machined brass ball is specially engineered and mated with PTFE seats to provide smooth operation without freeze ups even after long periods of non-use;
  • Two high-performance o-rings withstand high temperatures and corrosion from harsh water environments;
  • Machined one-piece brass body provides strength, durability and long-lasting performance;
  • Brass stem is assembled from the inside out with two o-rings to ensure safe, reliable performance;
  • Plated stem provides corrosion resistance and prevents o-ring damage after long periods of non-use;
  • Exclusive, plated metal handle is designed for durability, corrosion resistance & a sleek appearance;
  • Easy-to-remove handle with screw attachment protects accidental stop operation during rough-ins;
  • 100% leak tested;
  • No Lead.

Technical Specifications:

  • Closing: 1/4 Turn;
  • Inlet: 5/8” OD (1/2” Nominal) Compression;
  • Outlet: 3/8” OD (1/4"" Nominal) Compression;
  • Shape; Straight;
  • Temperature: 40°F to 180°F;
  • Maximum Pressure: 125 PSI.
