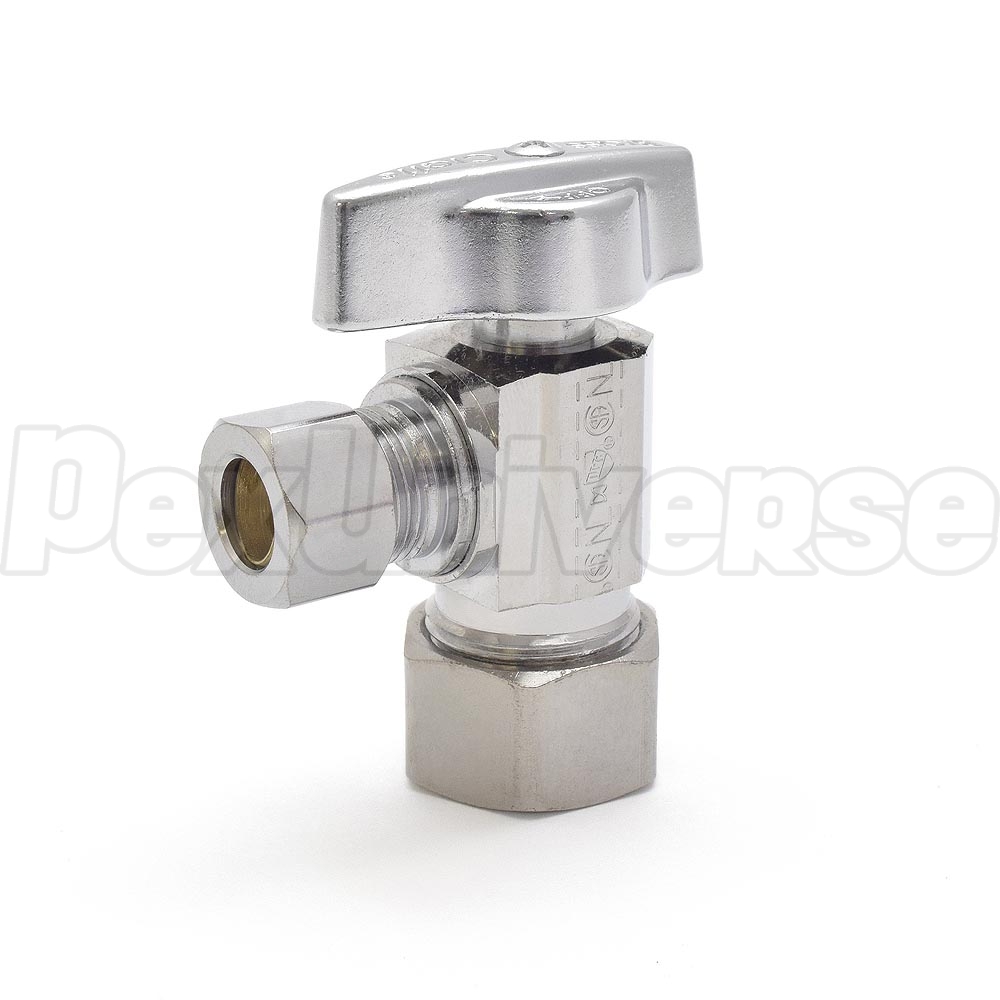

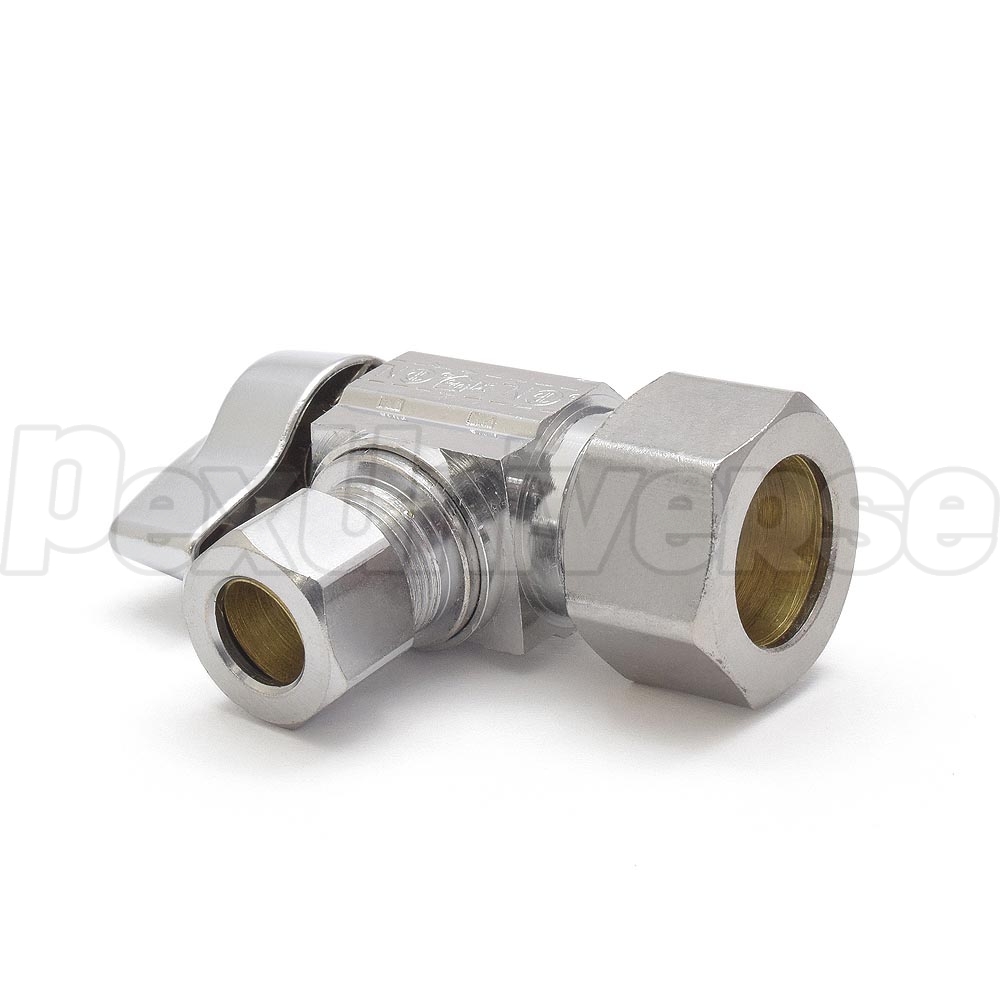

5/8" OD Compr. x 3/8" OD Compr. Angle Stop Valve (1/4-Turn), Lead-Free

BrassCraft

Brand: BrassCraft

Mfr Part#: KTCR19X-C

Availability: In Stock
Usually ships: within 1 business day
Qty Price
x1
$8.50 / each
x10 $82.50 / box
(10 x $8.25 / each)
  • Description
  • Reviews (2)
  • FAQs

BrassCraft KT series 1/4-Turn Ball Compression Type Angle Stop Valve. KT series ball stop valves can be used for recirculating water in systems that produce continuous use temperatures above 115°F.



Materials of Construction:



  • Valve Body: Compliant brass;
  • Stem: Compliant brass, plated;
  • Seats: PTFE;
  • Ball: Compliant brass, precision machined;
  • Stem O-ring: Viton & Nitrile;
  • Handle: Zinc die cast;
  • Handle Screw: Zinc-plated steel;
  • Compression Sleeve: C36000 brass;
  • Compression Nut: C36000 brass.




Features:

  • Precision-machined brass ball is specially engineered and mated with PTFE seats to provide smooth operation without freeze ups even after long periods of non-use;
  • TWO high-performance o-rings withstand high temperatures and corrosion from harsh water environments;
  • Machined one-piece brass body provides strength, durability and long-lasting performance;
  • Blow-out proof brass stem is assembled from the inside out with two o-rings to ensure safe, reliable performance;
  • Plated stem provides corrosion resistance and prevents o-ring damage after long periods of non-use;
  • Patented, chrome plated metal handle is designed for durability, corrosion resistance & a sleek appearance;
  • Easy-to-remove handle with screw attachment protects accidental stop operation during rough-ins;
  • 100% leak tested;
  • Compliant KT Stops available for California and Vermont “low-lead” requirements.

Technical Specifications:

  • Closing: 1/4 Turn;
  • Inlet: 5/8” OD (1/2” Nominal) Compression;
  • Outlet: 3/8” OD (1/4"" Nominal) Compression;
  • Valve Type: Angle;
  • Temperature: 40°F to 180°F;
  • Maximum Pressure: 125 PSI.
5/8" OD Compr. x 3/8" OD Compr. Angle Stop Valve (1/4-Turn), Lead-Free has an average 5.0 out of 5 rating based on 2 user reviews.

Steel core
By Verified Buyer (from Califoria) on 6/8/2015
This valve is a better version than Brass Craft G series. Stainless steel core vs. plastic.
Was this review helpful?  Yes / No

Stop Valve with PTFE (Teflon) seal (KTCR19X-C)
By Verified Buyer (from Silicon Valey, California) on 4/23/2015
This is a very good quality valve with PTFE (Teflon) seal. The PTFE seal is the only seal that should be used in valves but it is rare this days. Other types of sealants will be damaged by chloramine that is in the water and will require costly periodic replacements.Beware that there is another valve with similar part number that is not using PTFE seal (look for part number starting with K).
Was this review helpful?  Yes / No
