6-branch Brass Manifold Set for Radiant Heating

6-branch Brass Radiant Heat Manifold Set w/ 1/2" PEX adapters

Brand: Rifeng

Mfr Part#: BSM006

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$194.95 / each & Free Shipping
  • Description
  • Reviews (1)
  • FAQs (2)

1/2" PEX adapters are included by default. For other size adapters (free upgrade) make a note at checkout.

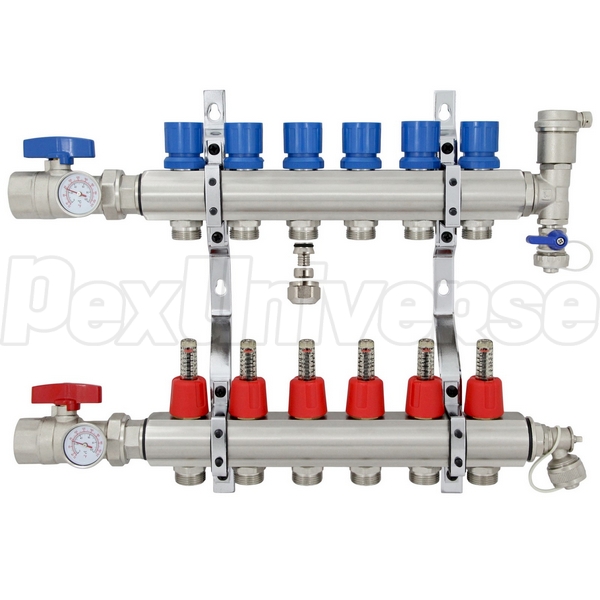

6-branch Deluxe Radiant Manifold Set. Pre-assembled. Nickel-plated finish and all-brass construction.



Each set comes with the following standard components:

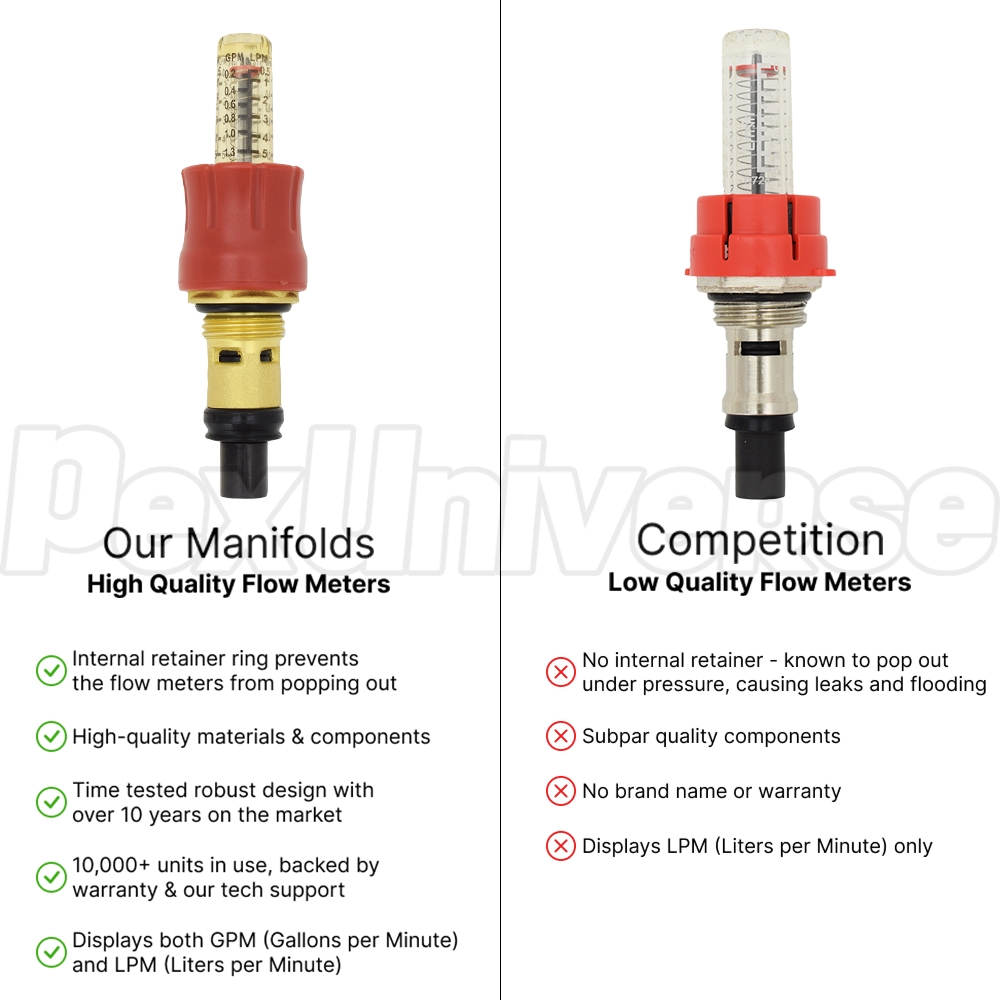

(1) Supply side radiant manifold w/ (6) adjustable flow indicators and (6) outlets for PEX tubing.



(1) Return side radiant manifold w/ (6) balancing valves and (6) outlets for PEX tubing.



(2) 1" threaded, quarter turn shut-off ball valves - one for supply manifold and one for return.



(2) Temperature gauges - one for supply and one for return manifolds to monitor supply and return water temperatures (F & C reading).



(2) Air vents to eliminate air from the system - on both supply and return manifolds (air vent caps included for pressure testing purposes).



(2) Drain/fill valves with 3/4" garden hose (drain hose) connection and a cap - on each manifold.



(12) Compression adapters for 1/2" PEX tubing are included - no purchase necessary. Other size adapters (3/8", 5/8") can be purchased separately.



(2) Mounting brackets.



Applications:

Radiant floor heating, snow melting.



Technical specifications & compatibility:

Total number of PEX outlets: 12;

Distance OC (On Center) between PEX outlets: 2";

Overall height when installed: 14.5"

Overall width when installed (with shut-off valves): 18.75"

Distance between supply and return manifolds (on center): 8.25"

Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)



Other suggested components:

For pressure testing purposes, use a Pressure Test Kit (SKU# TESTKIT).

6-branch Brass Radiant Heat Manifold Set w/ 1/2" PEX adapters has an average 5.0 out of 5 rating based on 1 user review.

brass manifold set
By George P. (from Illinois) on 3/16/2013
appears to be an excellent product with quality machining, but have not put it in use as yet.
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Is this manifold compatible with the pex al pex tubing?
Read 1 answer
Yes and we have adapters for 1/2" PEX-Al-PEX. You can make a request to change standard 1/2" PEX adapters with PEX-Al-PEX adapters at the Checkout in the Order Comments box.
Answered on 8/15/2013 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
Can the unit be assembled with the supply/return on the right hand side instead of the left hand side as pictured?
Read 1 answer
Yes, it can easily be done.
Answered on 7/11/2012 by PexUniverse Customer Service
