7-branch Brass Manifold Set for Radiant Heating

7-branch Brass Radiant Heat Manifold Set w/ 1/2" PEX adapters

Brand: Rifeng

Mfr Part#: BSM007

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$218.95 / each & Free Shipping
  • Description
  • Reviews
  • FAQs (1)

1/2" PEX adapters are included by default. For other size adapters (free upgrade) make a note at checkout.

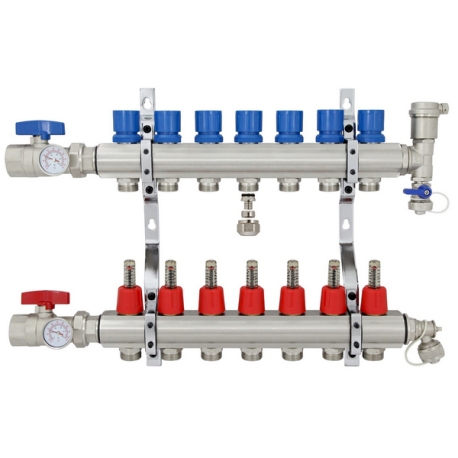

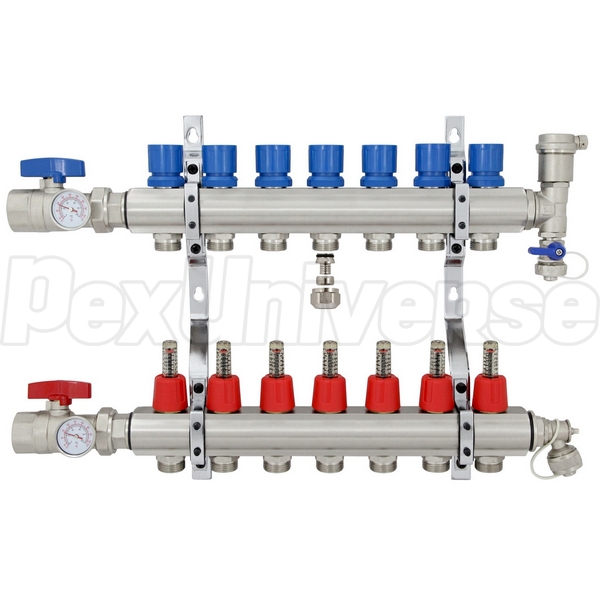

7-branch Deluxe Radiant Manifold Set. Made from brass with nickel plated finish. Comes pre-assembled.



The following components are standard in every manifold set:

(1) Supply radiant manifold w/ (7) flow indicators and (7) outlets for PEX tubing.



(1) Return radiant manifold w/ (7) balancing valves and (7) outlets for PEX tubing.



(2) 1" threaded inlet, 1/4-turn shut-off valves - one for supply manifold and one for return (red and blue).



(2) Temperature gauges - one for supply and one for return manifold to monitor incoming and outgoing and water temperatures.



(2) Automatic air vents to eliminate air from the system - on both supply and return manifolds (air vent caps included for pressure testing purposes).



(2) All-in-one drain & fill valves with 3/4" garden hose (drain hose) connection and a cap - on each manifold.



(14) Compression adapters for 1/2" PEX tubing - included, no purchase necessary. Adapters of other sizes (3/8", 5/8") can be purchased separately.



(2) Wall mounting brackets.



Technical specifications & compatibility:

Total number of PEX outlets: 14;

Distance OC (On Center) between PEX outlets: 2";

Overall height when installed: 14.5"

Overall width when installed (with shut-off valves): 20.75"

Distance between supply and return manifolds (on center): 8.25"

Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)



Other suggested components:

For pressure testing purposes, use a Pressure Test Kit (SKU# TESTKIT)

No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Would this be considered one zone? Would you still need a zoning pump or just a circulation pump?
Read 1 answer
In a basic configuration which you see on the website, the manifold can service several loops, which can be dedicated to separate zones (i.e. 3 for bedroom, 4 for living room, etc.). However, all of these "zones" are controlled by a single circulator (either a regular circulator or a zoning circulator) and a single 24V thermostat (for example, 007-F5 pump + SR501-4 relay + TH4110D1007 thermostat). If you wish to separate the manifold into independent zones, where each one is controlled by a separate thermostat, you will need to replace the manual balancing valves with actuators (SSM101). These can be further wired to a zone control module (Taco ZVC), which is an intermediate between the zone (room) thermostats and zone valves (actuators). You will still need a circulator pump, but will be able to create independent zone control on a single manifold.
Answered on 10/21/2015 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
