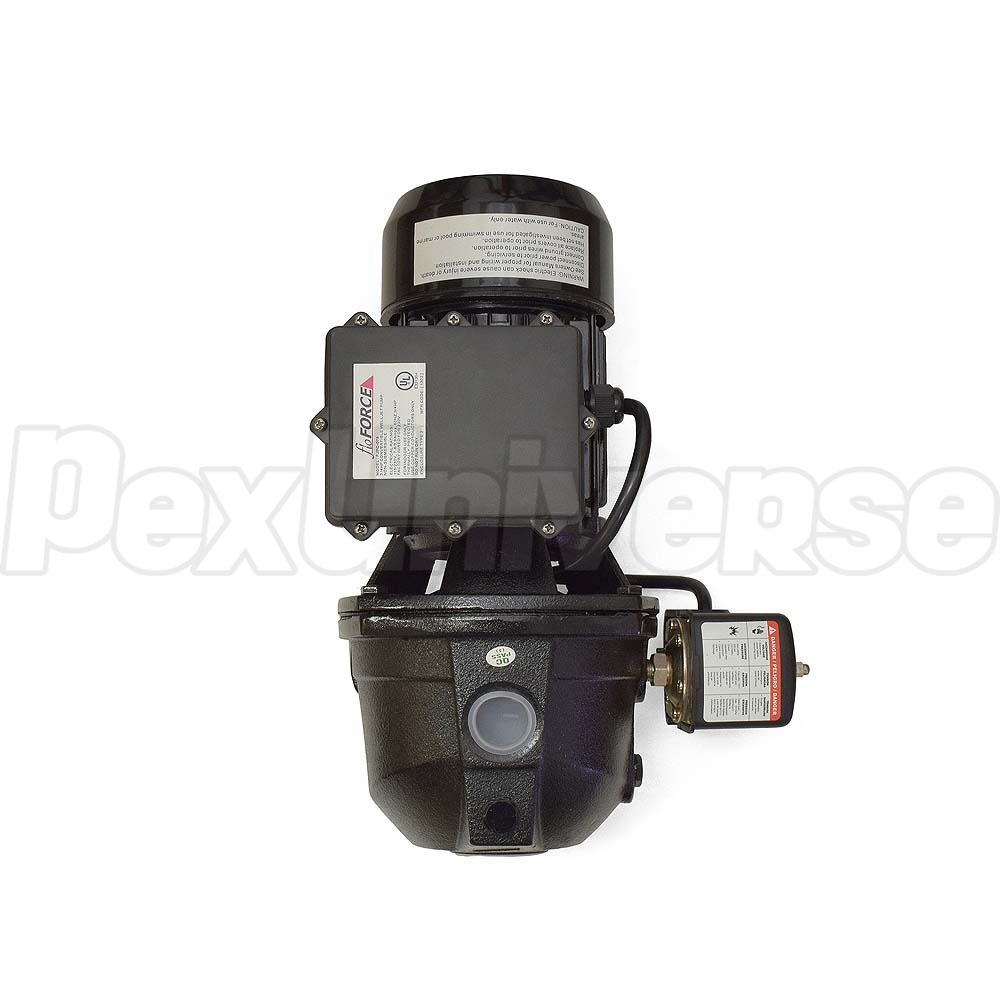

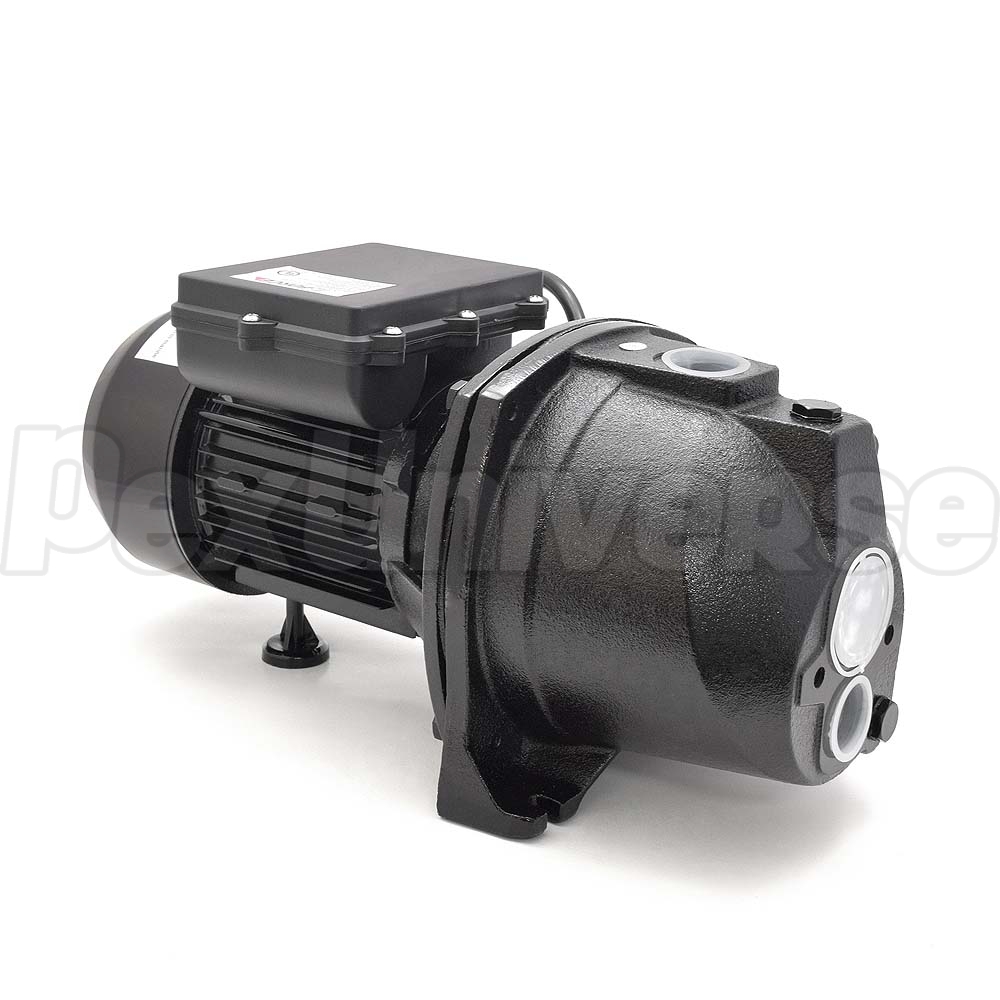

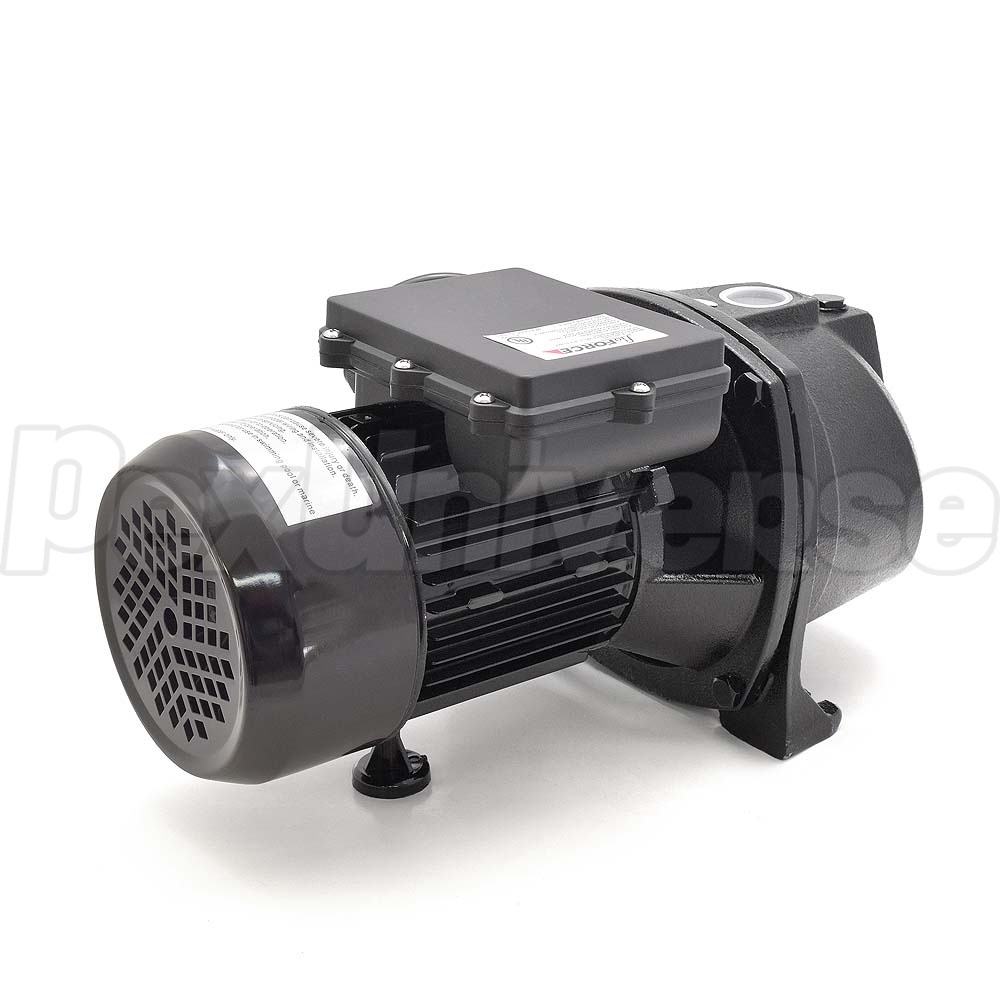

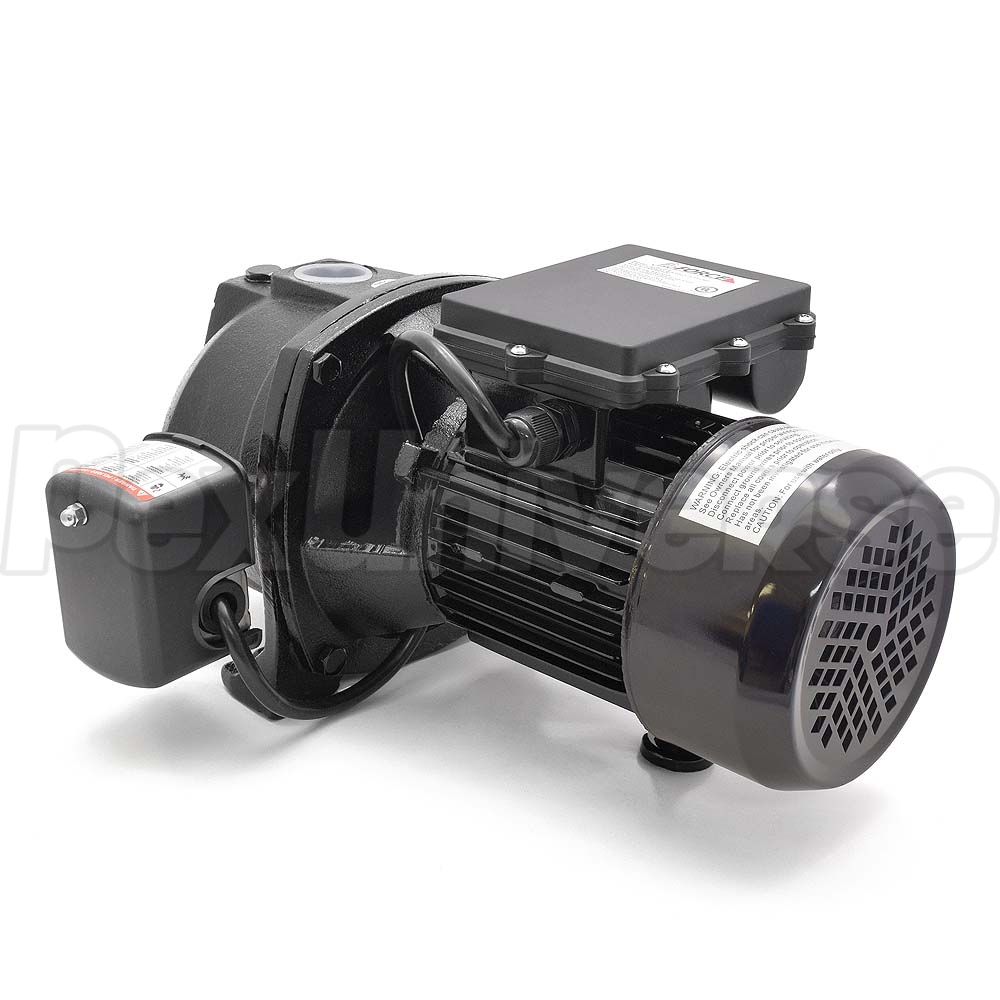

FloForce FJPC-100 Convertible Jet Pump
Click on image to enlarge
FloForce FJPC-100 Convertible Jet Pump AssemblyFloForce FJPC-100 Convertible Jet Pump AssemblyFloForce FJPC-100 Convertible Jet Pump AssemblyFloForce FJPC-100 Convertible Jet Pump Ejector

1 HP Deep Well Jet Pump w/ Pressure Switch, 115V/230V, Cast Iron

FloForce

Brand: FloForce

Mfr Part#: FJPC-100


Availability: In Stock
Usually ships: within 1 business day
Qty Price
$169.00 / each + Free Shipping
Add to cart
McAfee SECURE sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams
  • Description
  • Literature
  • Reviews
  • FAQs



FloForce FJPC-100 is a 1 HP Convertible Jet Pump with 115/230V dual voltage capability. Used for a wide range of residential, agricultural and irrigation applications.



Unlike shallow well jet pumps which have jet ejector permanently located in the pump, convertible jet pumps feature a removable jet ejector assembly which can either be located at the pump (shallow well type assembly) or placed in the water well, "converting" the pump to a deep well pump. The later assembly is used for wells up to 82ft in depth and is also common for areas with varying water table. Convertible jet pumps are suited for all well types, including drilled, dug and sand-point wells as well as ponds, lakes and similar water sources.

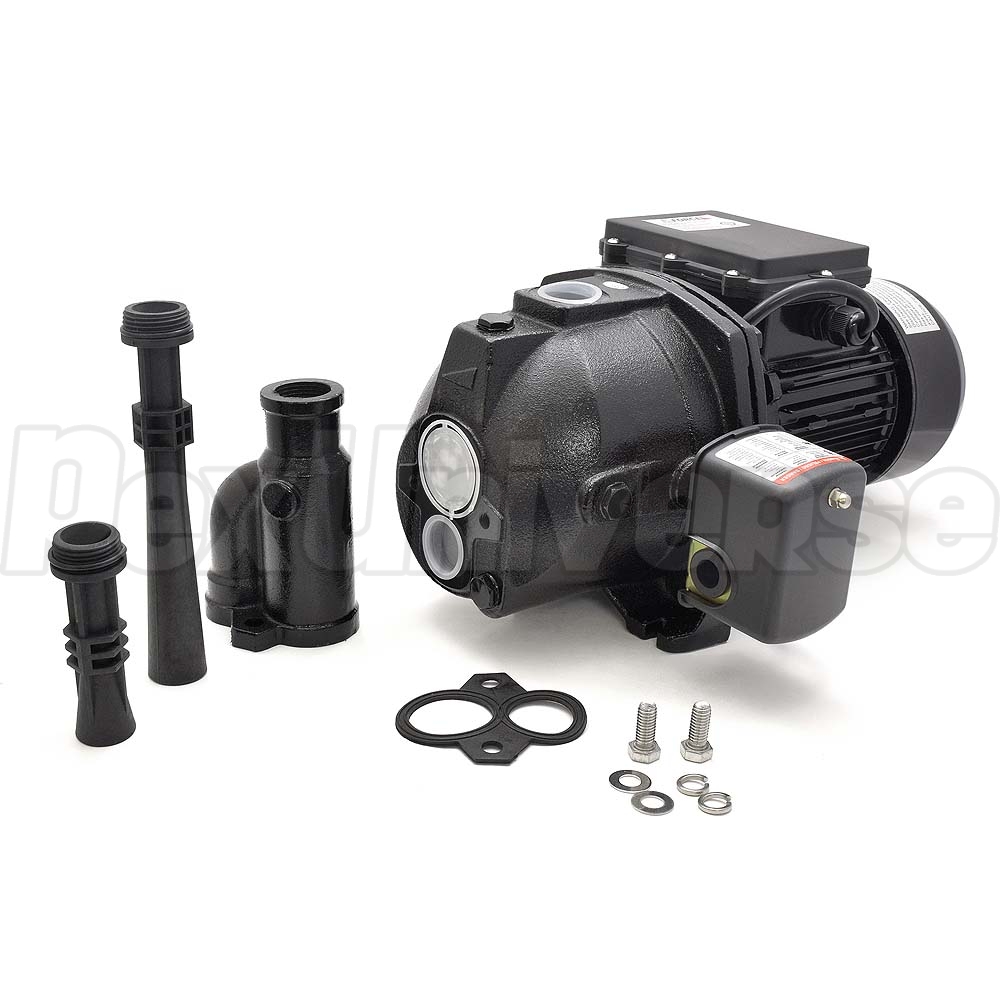

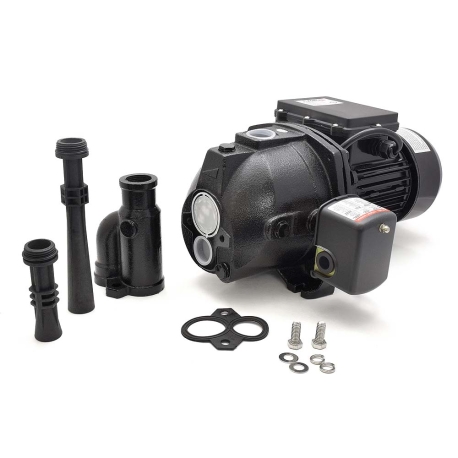

Jet ejector assembly is included with this pump model as shown on the picture. Other components typically required for installation (not included) are foot valve (SKU# 527T06) and pressure gauge (SKU# 356-100PK1). A complete selection of Amtrol Well-X-Trol well tanks is also available.



This well jet pump features a 1-1/4" NPT suction inlet and 1" NPT outlet. In addition, the pump includes (3) 1/4" NPT ports with plugs: top - for priming, bottom - for drainage, side - for pressure gauge (optional). Jet pump voltage is factory set to 230V and can easily be changed to 115V by turning the switch from 230V to 115V position (see installation manual). Pressure switch is factory set to 20-40 psi range and can be adjusted to operatre at 30-50 psi if needed (instructions located on switch cover).






Features:

  • For well depth: 0-82ft (0-25ft - shallow well assembly, 25-82ft - deep well assembly);
  • Permanent split capacitor motor with high starting torque;
  • Simplified wiring;
  • Built-in thermal overload protection;
  • Dual voltage capability (115/230V);
  • Adjustable pressure switch;
  • Durable cast iron volute;
  • Carbon/ceramic mechanical seal, stainless steel shaft;
  • Self-priming (after housing filled);
  • Replaces similar models from Grundfos, Little Giant, Goulds, Wayne, Dayton and many others.

Technical Specifications:

  • Horsepower: 1 HP;
  • Flow rate: 13.5 GPM;
  • Shut Off Head: 164';
  • Suction line: 1-1/4" NPT;
  • Discharge line: 1" NPT;
  • Voltage: 115/230V (factory set at 230V);
  • Hertz: 60 Hz;
  • Amps: 10/5 A;
  • Pressure switch settings: 20-40 psi (adjustable to 30-50 psi);
  • Ambient temperature: up to 104F;
  • Weight: 37 lbs;
  • UL listed for USA.
1 HP Deep Well Jet Pump w/ Pressure Switch, 115V/230V, Cast Iron has an average 5.0 out of 5 rating based on 1 user review.

FLOFORCE FJPC-100 JET PUPM
By JAMES S. (from GLOUCESTER VA) on 10/4/2012
RECEIVED JET PUMP EARLY THEN EXPECTED, WAS VERY PLEASED HOW WAS PACKED FORPROTECTION OF PUMP. AFTER OPENING AND INSPECTED WAS IMPRESSED AS TO THEHIGH QUALITY OF THIS PUMP. HAVE INSTALLED SEVERAL OTHER BRANDS THAT WERE MUCH HIGHER PRICED THAT DID NOT HAVE THE QUALITY OF THIS PUMP. WILL BE INSTALLING SHORTLY AND I AM POSITIVE THAT ALL WILL FUNCTION VERY WELL.
