Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)

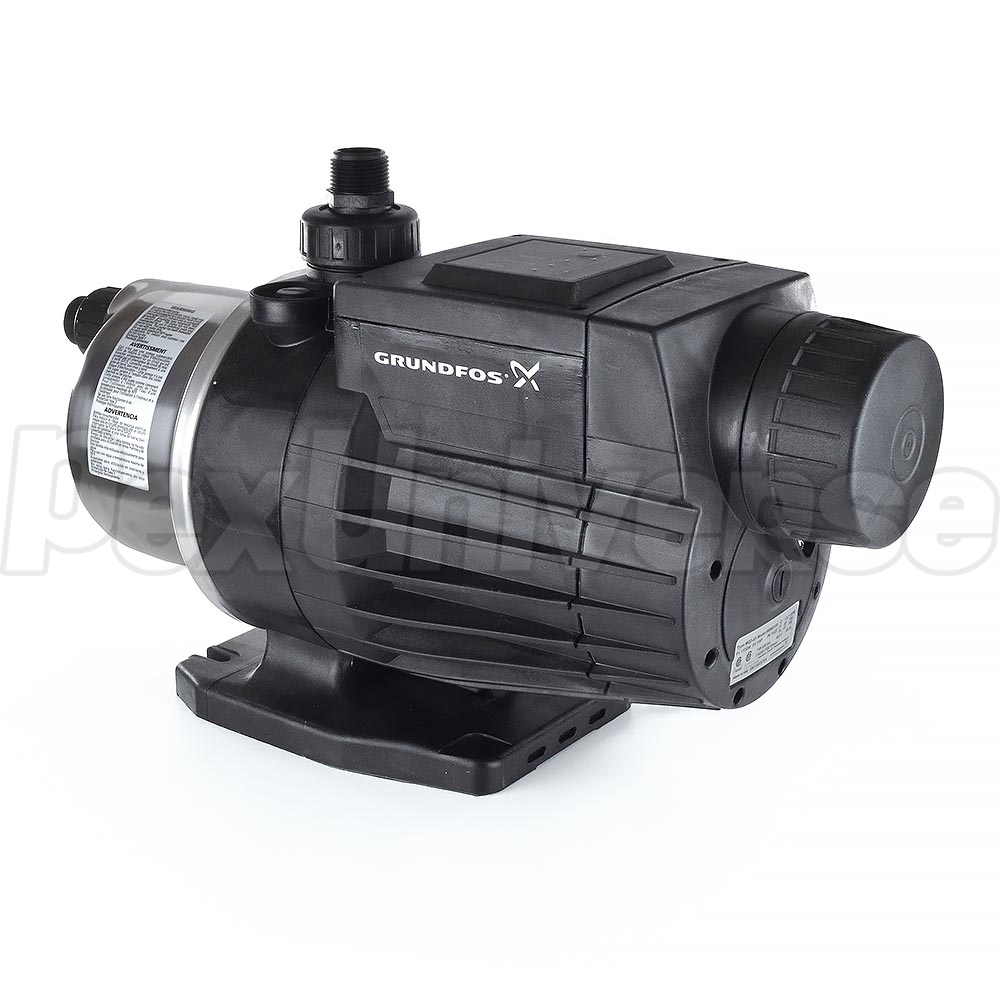

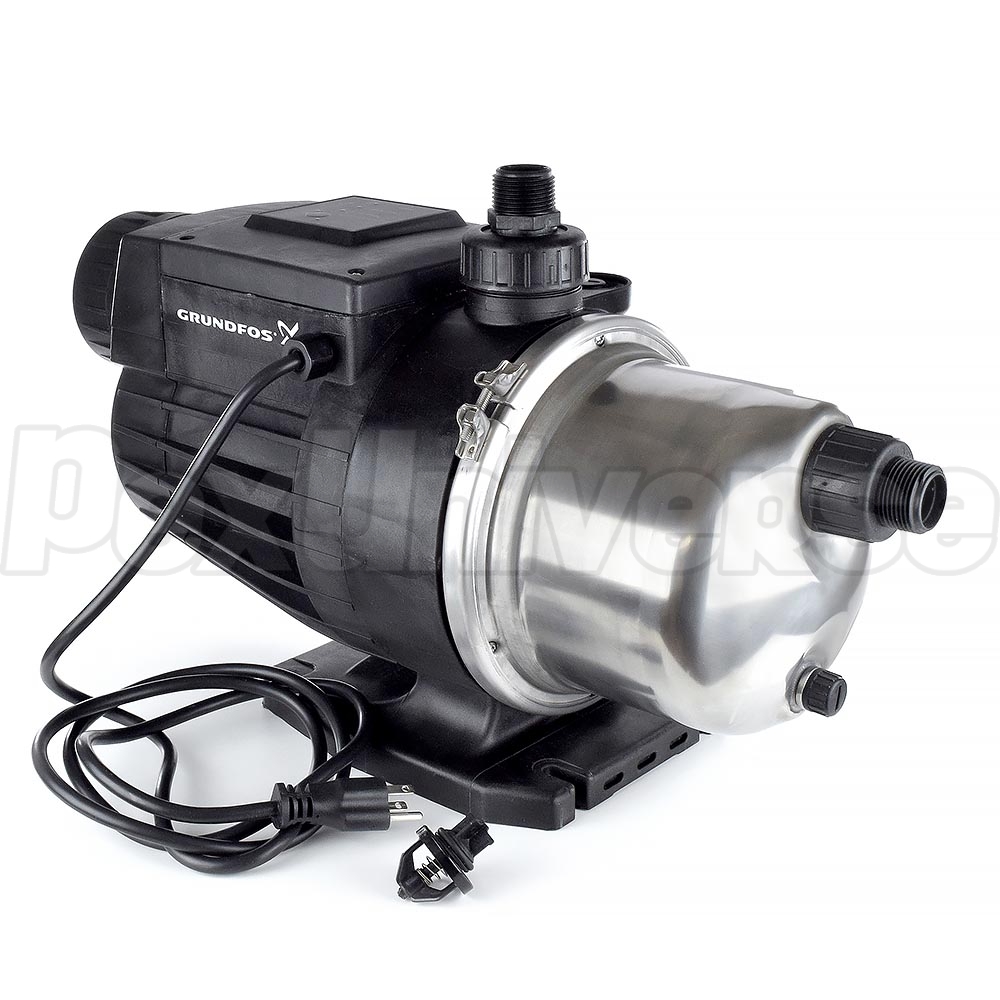

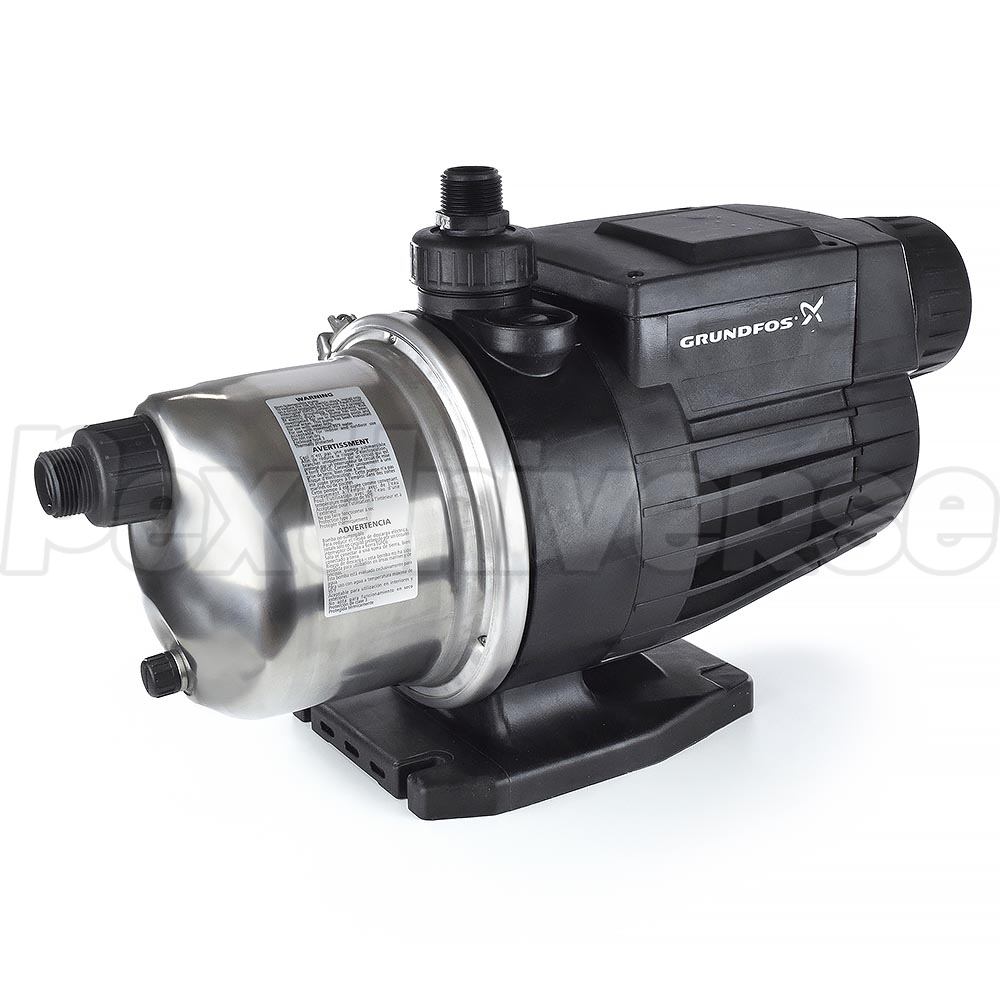

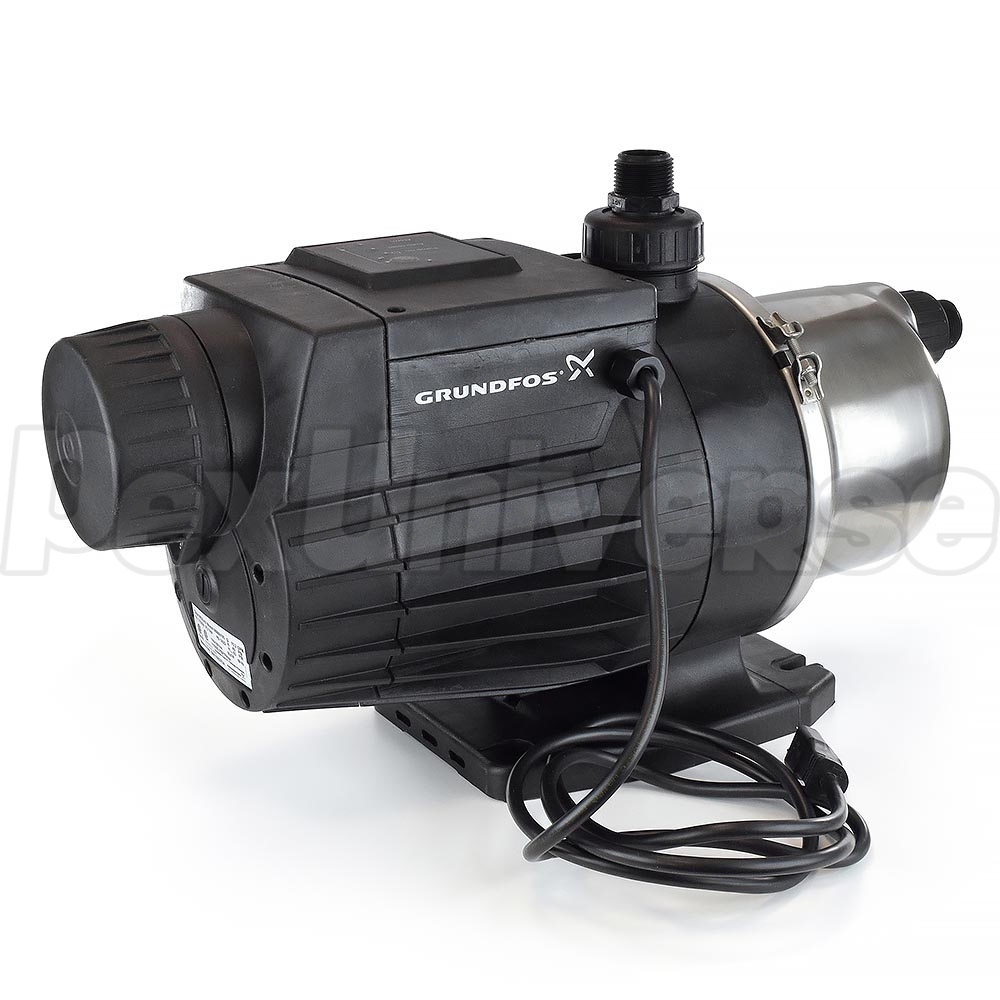

Grundfos MQ3-45 Booster Pump
Click on image to enlarge
Grundfos MQ3-45 Booster Pump AccessoryGrundfos MQ3-45 Booster Pump Curve

Available For US Only









Availability: In Stock
Usually ships: within 1 business day
Qty Price
$461.95 / each + Free Shipping
Add to cart McAfee SECURE sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams
  • Description
  • Literature
  • Reviews
  • FAQs

Grundfos MQ3-45 1HP Booster Pump (96860195) is a compact, all-in-one flow-based pressure boosting system, designed for domestic water supply applications. The Grundfos MQ3, with it's smart operation is both easy to install and reliable.

Grundfos MQ3-45 Booster Pump is ideal for pressure boosting from water storage tanks or from city water supply (maximum 45 psi inlet pressure) and is rated as high as 91.9ft of head. The Grundfos MQ3-45 is also a self-priming multistage centrifugal pump. It can selfprime from a well depth of down to 26 feet within a maximum time of 5 minutes.



  • Complete system;
  • Low noise;
  • Built-in protective functions;
  • Automatic reset;


Technical Specifications of Grundfos MQ3-45:

  • Voltage: 115V;
  • Liquid temperature range: 32 .. 95 F;
  • Rated flow: 13.2 US gpm;
  • Rated head: 91.9 ft;
  • Shaft seal: BVBP;
  • Maximum operating pressure: 109 psi;
  • Approvals on nameplate: UL,CUL;
  • Pump housing: POM + 25% glass fiber;
  • Impeller: PPO + 20% glass fiber-PTFE;
  • Range of ambient temperature: 32 .. 113 F;
  • Maximum operating pressure: 109 psi;
  • Pipe connection: 1" NPT;
  • Power input - P1: 1000 W;
  • Main frequency: 60 Hz;
  • Rated voltage: 1 x 110-120 V;
  • Rated current: 9.2 A;
  • Enclosure class (IEC 34-5): 54;
  • Insulation class (IEC 85): B;
  • Length of cable: 6.56 ft;

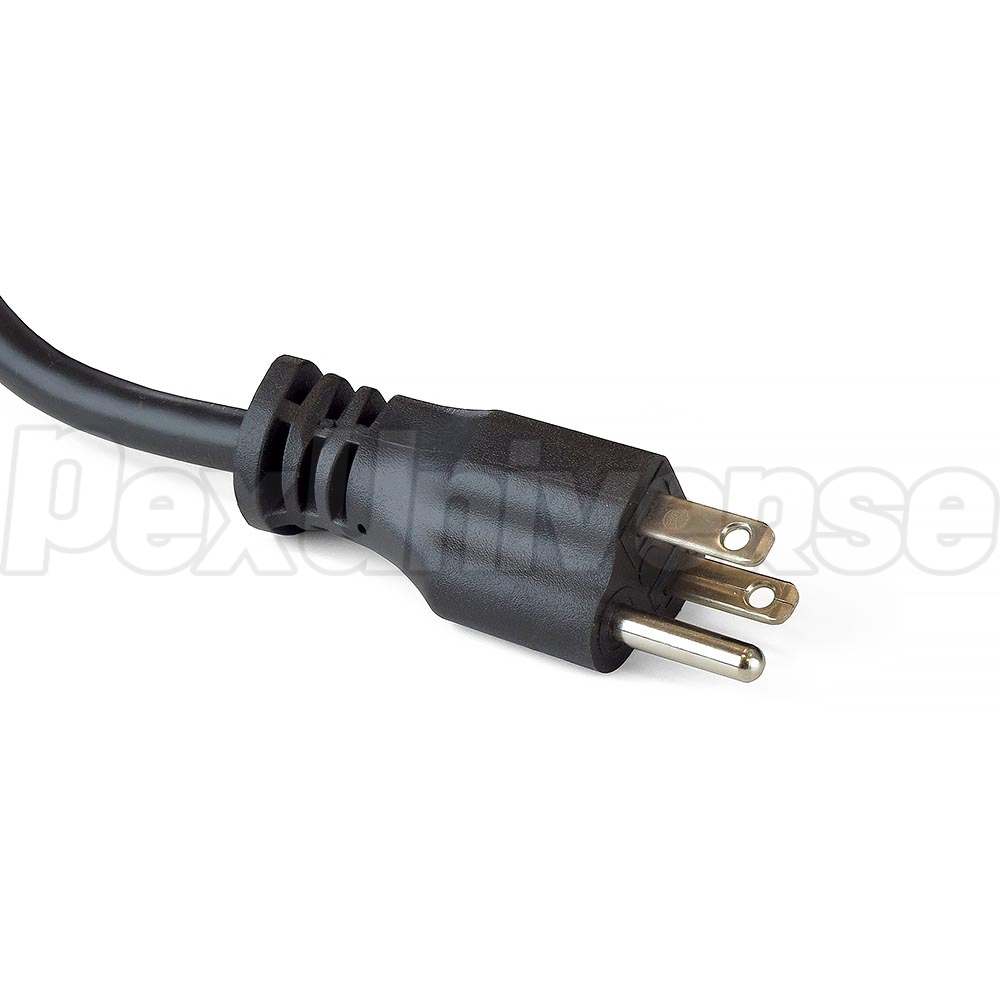

  • Type of cable plug: NEMA;
  • Net weight: 28.7 lb;
  • Gross weight: 34.2 lb;
  • Shipping volume: 1.94 ft3;
Average 4.8 rating based on 16 reviews.
grundfos pump
By Leo G. (from Utopia, Texas) on 7/5/2014
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
Great pump...2nd for my rain water collection system. Let it rain....pressure is amazing in my cabin better than my city home! The first pump is still humming along...installing 2nd pump in new bathhouse and guest room.
grundfosmq3 pump
By Rudy R. (from CA) on 11/4/2013
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
This is the third pump I have used and so far the best. I had it installed professionally but after watching the pro do it I''m sure anyone can.Rudy Resendez
By Ruth D. (from Chelan, Washington) on 5/31/2013
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
came in the mail when said, love having water pressure again, easy to install, and price was better than any where else, excellent very happy with the results.
Works great!
By Rod K. (from Ripon, CA) on 3/23/2013
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
I received the MQ3-45, and installed it to resolve my low water pressure from my city connection. My lawn sprinklers would not work properly using the city water, but they work fantastic, now that I've installed the Grundfos MQ3-45!! The pump was easy to install, and works as advertised...wish I had done this a long time ago. Thanks.
By Paul S. (from Middletown RI) on 7/28/2012
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
Had my first pump installed in 2006 by professional. Two months ago it started stopping intermittently. I called Grundfos, spoke to a plumbing supply company and no one could actually tell me how to trouble shoot it or what may be wrong. It was answers like, I think it may be this or that.I found a pump at (what a great company) for $418 with no tax and free shipping. It was delivered the next day and I had it installed in 15 minutes.I anyone needs a pump for parts, let me know.
Good while it lasts
By Dean R. (from Coupland, Texas) on 4/9/2012
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
I just purchased my 2nd Grunfos MQ3 in a 10 year period. Actually my 3rd pump (Grundfos replaced my 1st one free of charge due to a pressure switch issue covered under warranty).This pump works very well with my rain water collection system which services the entire house. It is very easy to install and runs flawlessly......until it dies, which you should expect after around 5 years.
Great pump!!
By jaymac15 (from Philadelphia, PA) on 2/2/2012
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
Changed my old pump out for this new Grundfos, wow wha a difference! it's so quite, has a faster response time to fluctuations in pressure. My shower no more trickles its a waterfall. I actually have no bad things to say about this product. Thanks John
By JEFF DAPLUMBER (from CHICAGO) on 1/17/2012
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
Easy to install and works well.
By John (from Livonia, NY) on 1/8/2012
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
I'm using this pump in a home that is on a village water supply but the water pressure was only 32 psi. I also installed a water pressure control valve in front of the pump to be able to adjust the output pressure from the pump. This combination worked well.
So far So good
By Drag Racer (from Bethlehem Pa.) on 11/30/2011
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
When they say "plug and play" they mean it. Simple to install. Much quieter then previous pump
good pump
By vbub101 (from Decatur Tennessee) on 10/31/2011
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
This makes my second Grundfos pump the last one lasted six years before it started messing up.
Highly recommend!
By Rich in Austin (from Austin, TX) on 10/17/2011
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
The Grundfos MQ3-45 is a great inline pump. I"m using it to provide water from my rain water collection tanks to my pool and house. I have the pump near the tanks with more than 200 ft of 1" pipe to the house and pool. It's no problem for this pump which delivers 60+ psi water pressure no problem. It's easy to hook up and run and very quiet. The auto off feature is also nice for maintaining pressure and protecting against running dry. The only feature its lacking is the ability to control the water pressure level from the pump itself. I'm using an external pressure regulator. Ordering from PEX was easy and fast!
I highly recommend this pump
By Osprey (from Puerto Penasco, Sonora, Mexico) on 9/26/2011
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
This is our total house water pump from our 5K L underground tank and it works great.Our special hydro pressure R/O system can keep it busy till the R/O tank fills after use but once I figured out why the pump was going on 12 sec. off 60 sec.and repeated, no problem.Looking to have years of trouble free service.
Great pump, price, fast shipping
By John W. (from Scotts Valley, CA) on 9/19/2011
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
This is 2nd pump. First one ran house flawlessly 5 years 24x7. Think the pressure sensor is faulty or needed service. Bought this as backup and will get first serviced.
Booster pump 1 hp Grundfos MQ3-45
By Tim (from Centerville Ga.) on 7/2/2011
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
[...]The pumps works excellent I have three showers in my house and it keeps the pressure up while everyone gets a shower. My city pressure was about 30 to 35 psi.Now I have a solid 65 psi and above. I installed the pump in same room as my washing machine. It runs very quiet when I shut the door you can bearly hear it. Its great to take a good shower I have a double headed shower nozzle now.
Grundfos mq pump
By Greg the homeowner (from Arlington, washington) on 6/12/2011
Review for: Grundfos MQ3-45 Booster Pump, 1HP, 115V (96860195)
Easy to install for the simplest mind. Boasts excellent pressure. Extemely reliable for the past 4 years. Quiet and small. Plumbers hate this thing cause it saves the homeowner tons of money and problems.
Indicate an email address where you wish to receive the answer to your question.
Enter the characters (without spaces) shown in the image.
I have an MQ3-45 pump installed to boost my water pressure. The pump worked fine until winter when I turned on my whole house humidifier. It is low flow and causes the pump to short cycle. It turns on for approximately 5 seconds and off for about 60 seconds. Is there an adjustment to correct this?
Read 1 answer
If you can limit the water supply to the humidifier so that it's under 0.3 GPM, the pump will not turn on. Otherwise you'll need to install an in-line well tank (such as Well-X-Trol by Amtrol).
Answered on 12/27/2013 by PexUniverse Customer Service
Is this mark III version?
Read 1 answer
Answered on 12/10/2013 by PexUniverse Customer Service
What is the warranty period?
Read 1 answer
The warranty is 24 months from the date of installation, but no more than 30 months from the date of manufacture. We honor manufacturer warranties and if your pump fails within this period, contact our Customer Service for a replacement.
Answered on 12/5/2012 by PexUniverse Customer Service
