UP15-100F Circulator Pump, 1/25 HP, 115V Grundfos

UP15-100F Circulator Pump, 1/25 HP, 115V

Brand: Grundfos

Part#: 59896300

Model: UP15-100F

This product has been discontinued. No direct replacement is available at this time.

Description

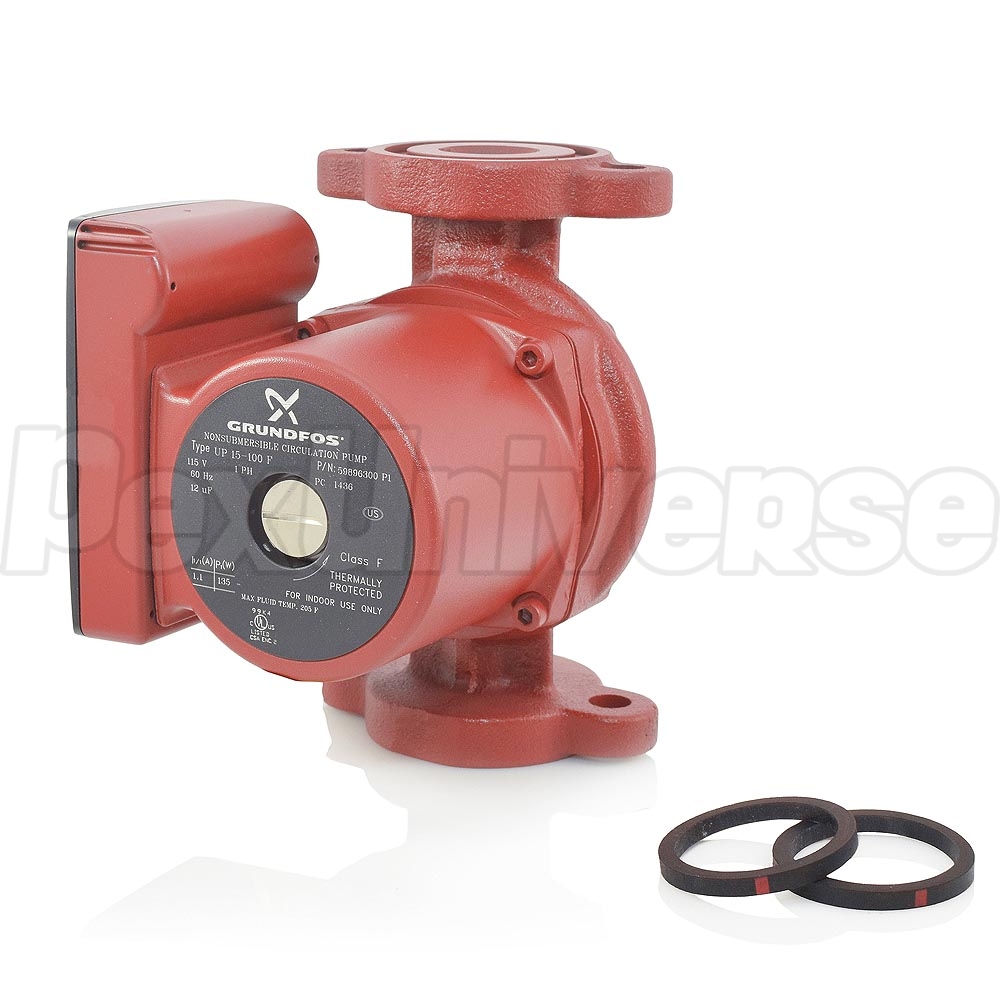

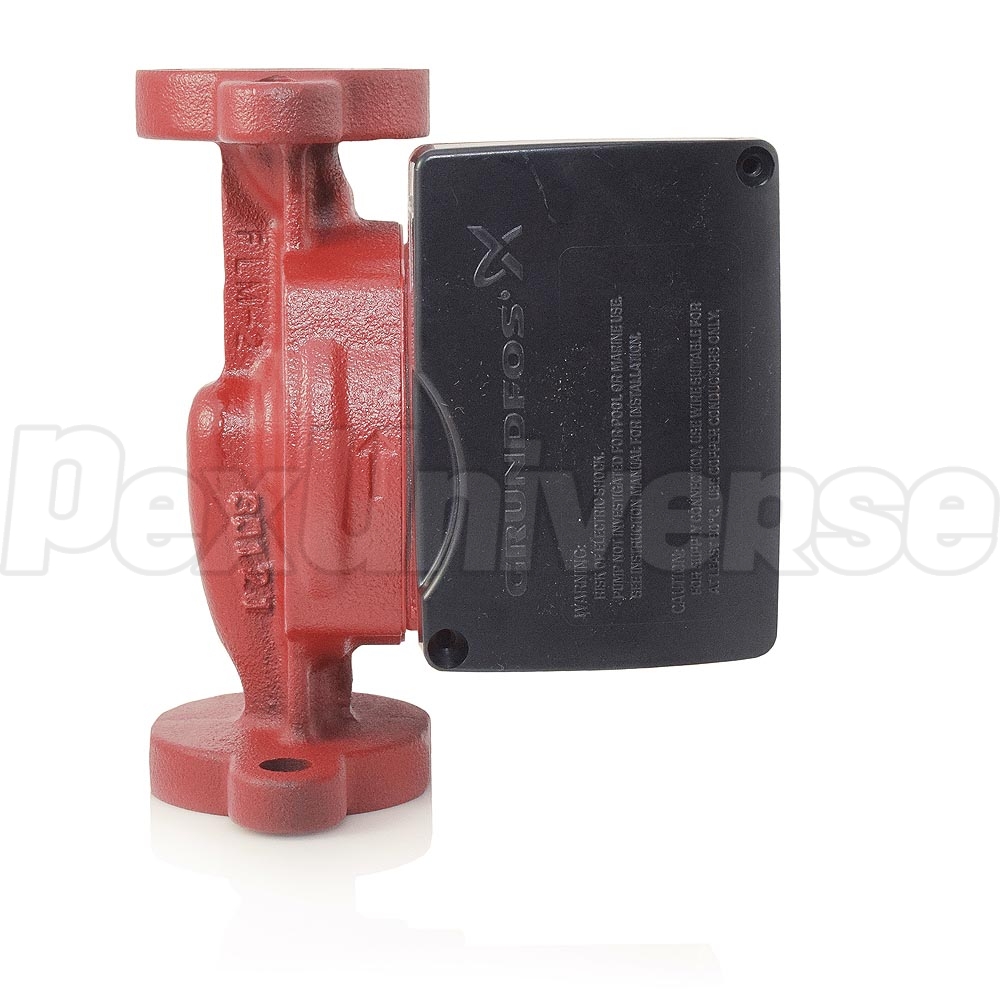

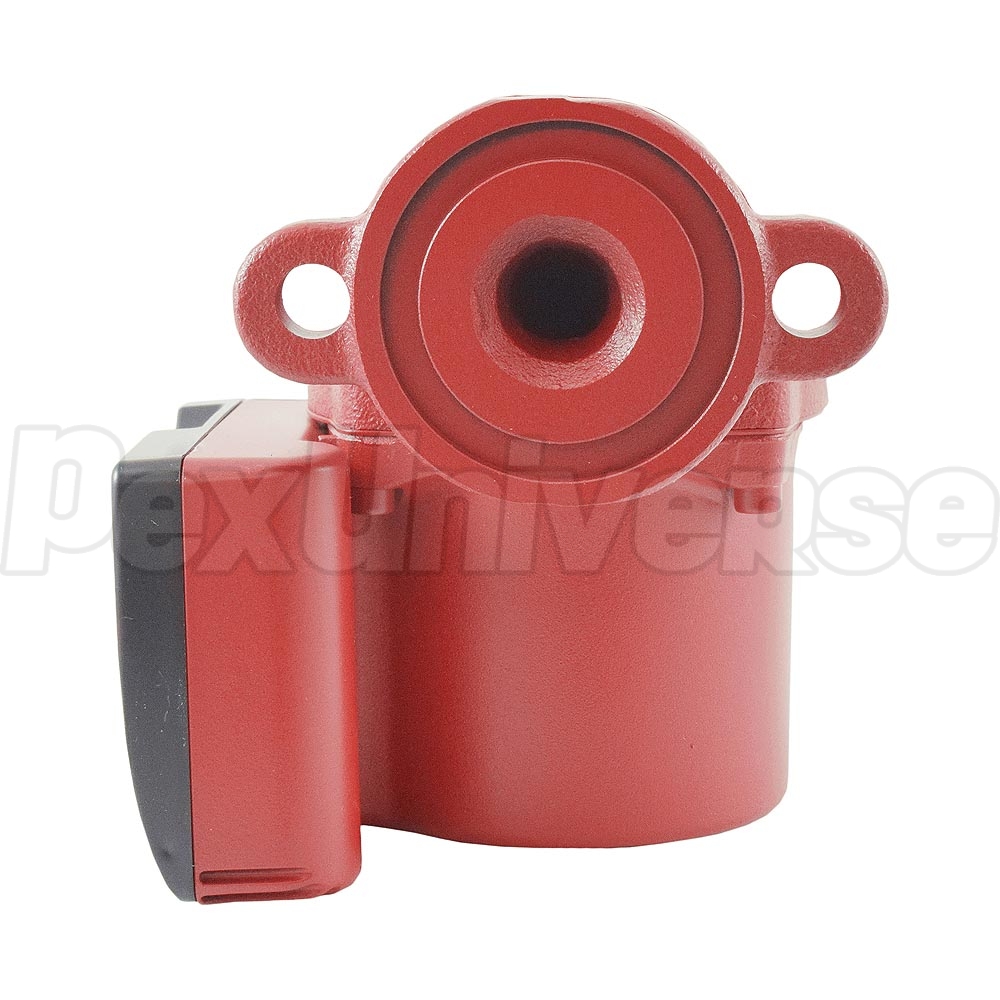

Grundfos UP15-100F model (Grundfos# 59896300) is a 1/25HP, high-head Cast Iron Circulator Pump specifically designed for applications with high pressure drop. Suitable for use with closed loop heating applications, including radiant heating, baseboards, fan coils and many others.

Features:

Ceramic shaft and radial bearings
Carbon axial bearing
Stainless steel rotor can and bearing plate
Corrosion-resistant impeller, Composite, PES
Cast iron pump housing

Technical Specifications:

Speed Number: 1

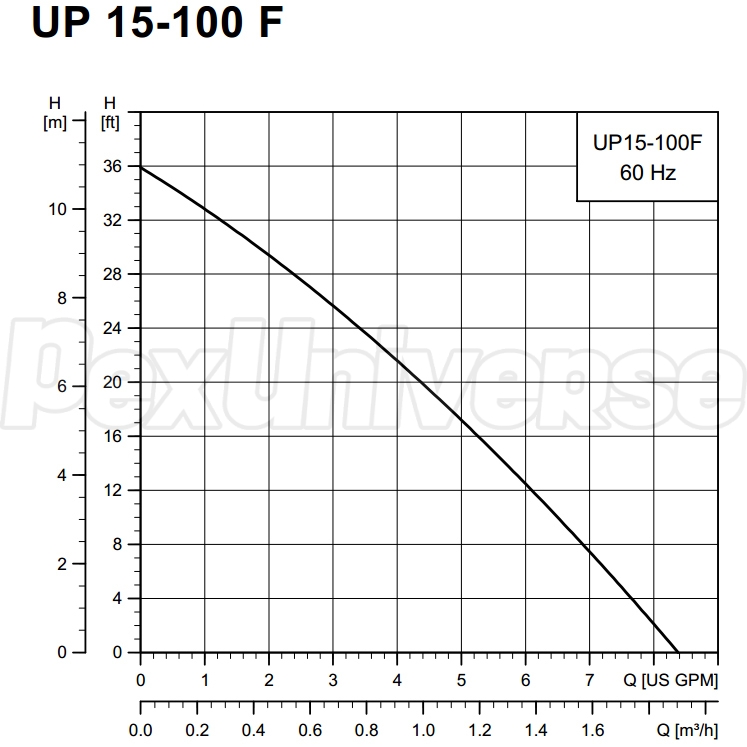

Max flow: 8.37 US gpm
Head max: 36.1 ft
Liquid temperature range: 35.6 - 204.8 F
Maximum operating pressure: 145 psi
Approvals on nameplate: UL, CSA
Pump housing: Cast iron
Pump housing: EN-JL1030
Pump housing: ASTM 30 B
Impeller: Composite, PES
Maximum ambient temperature: 104 F
Ambient max at 176 F liquid: 176 F
Maximum operating pressure: 145 psi
Flange standard: USA Oval
Type of connection: C.I. Flange
Pipe connection: 3/4", 1", 1-1/4", 1-1/2" (GF 15/26)
Pressure stage: 10
Port-to-port length: 6-1/2"
Number of poles: 2
Max. power input: 135 W
Rated power - P2: 0.04 HP
Main frequency: 60 Hz
Voltage: 115V
Current in speed 3: 1.1 A
Insulation class (IEC 85): F
Gross weight: 6.75 lbs

Warranty:
2 years from date of installation.
