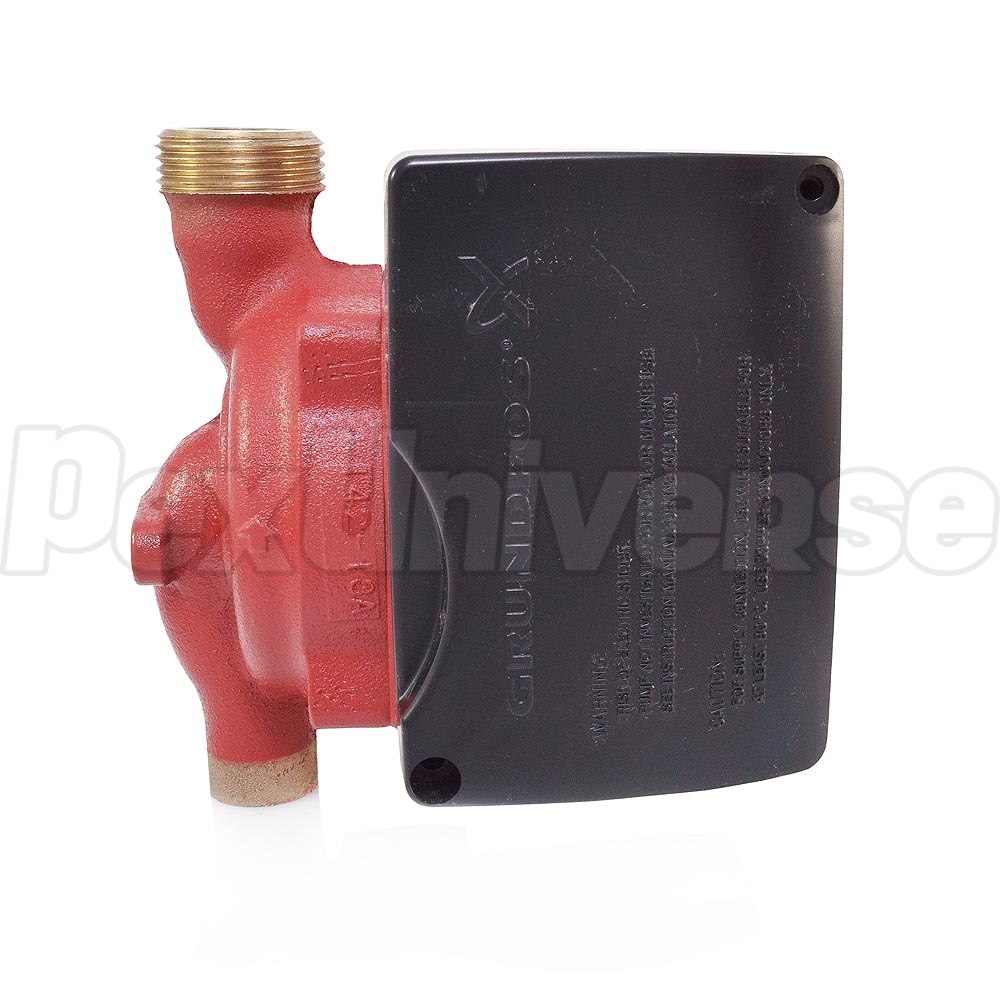

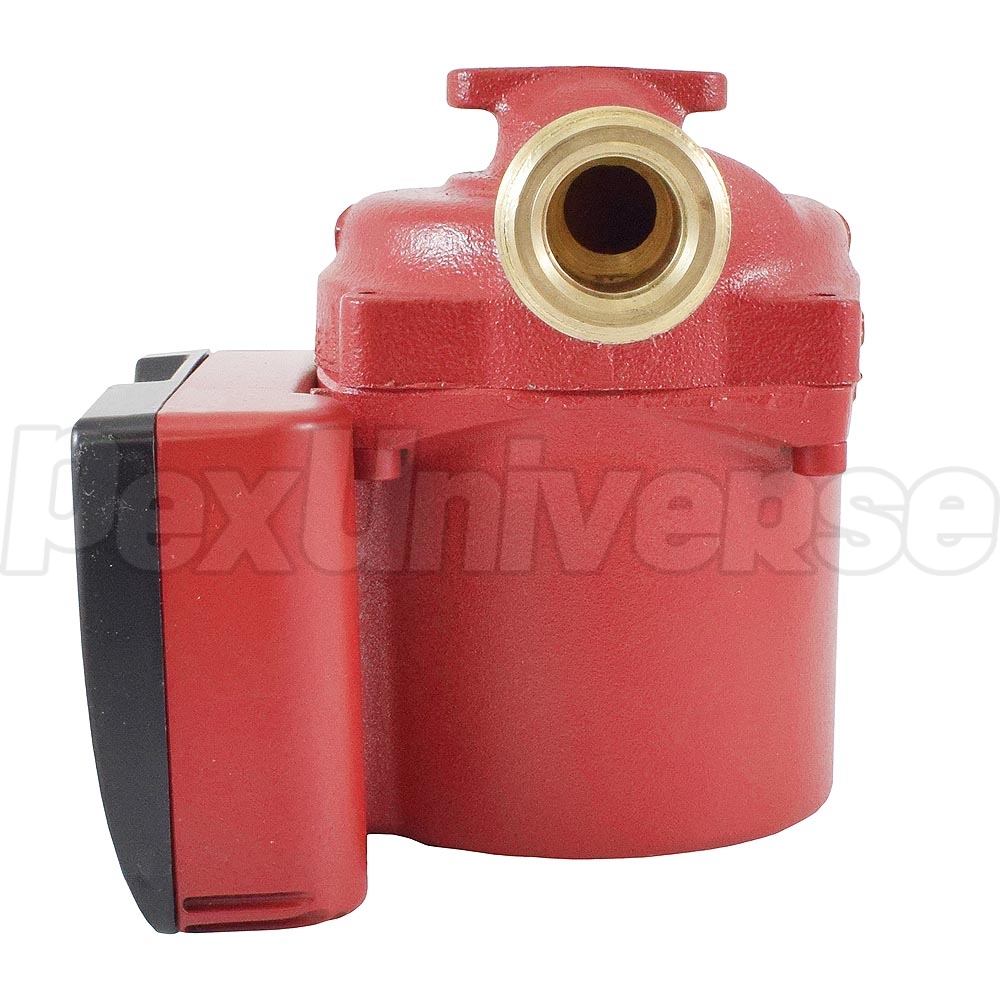

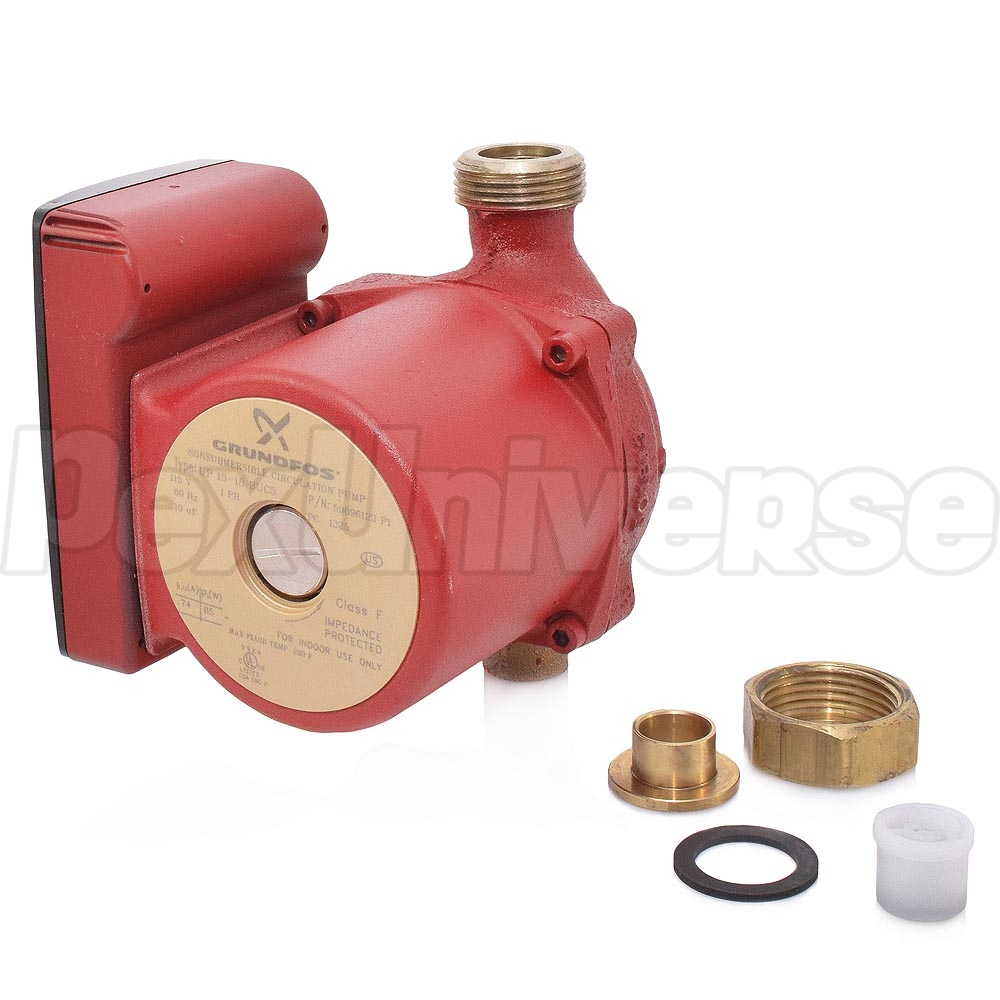

UP15-18BUC5 Bronze Circulator Pump w/ IFC, 1/2" Sweat (Union), 1/25 HP, 115V

Grundfos

Brand: Grundfos

Mfr Part#: 59896123

Model: UP15-18BUC5

UPC#: 632514000230

Availability: In Stock
Usually ships: within 1 business day
Qty Price
x1
$206.95 / each & Free Shipping
x2 $391.90 & Free Shipping
(2 x $195.95 / each)
  • Description
  • Literature
  • Reviews
  • FAQs

Grundfos UP15-18BUC5 is a 1/25HP Bronze Circulator Pump (Grundfos SKU# 59896123) with 1/2" sweat inlet and 1/2" sweat union outlet with built-in check valve. Grundfos UP15-18BUC5 is well suited for applications such as domestic hot water recirculation, radiant heating, solar and many others. Bronze circulator housing protects the pump from corrosion, while built-in check valve performs better compared to regular in-line check valves.



Features:

  • Ceramic shaft and radial bearings;
  • Carbon axial bearing;
  • Stainless steel rotor can and bearing plate;
  • Corrosion-resistant impeller, Composite, PES;
  • Bronze pump housing;
  • Integral Check Valve;



Technical Specifications of Grundfos UP15-18BUC5:

  • Speed Number: 1;

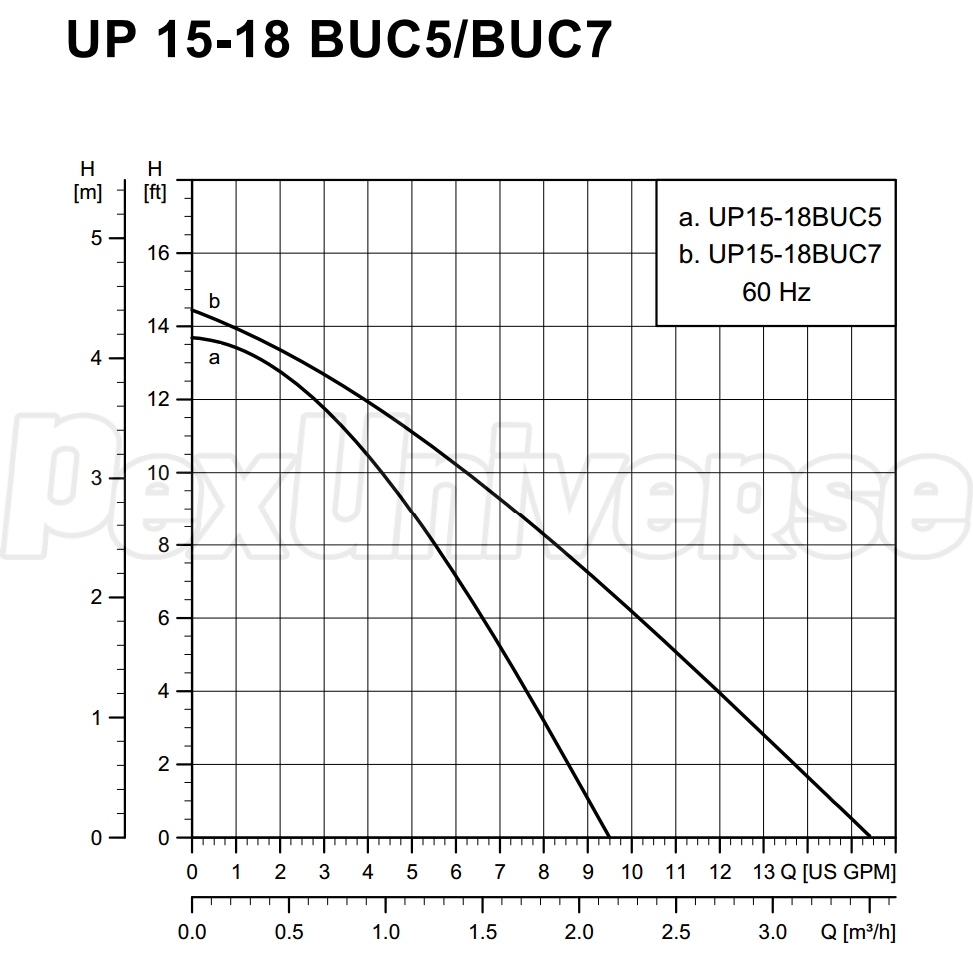

  • Max flow: 14.5 US gpm;
  • Head max: 14.4 ft;
  • Liquid temperature range: 35.6 .. 230 F;
  • Maximum operating pressure: 145 psi;
  • Approvals on nameplate: UL, CSA;
  • Pump housing: Bronze;
  • Pump housing: DIN W.-Nr. 2.1176.01;
  • Impeller: Composite, PES;
  • Maximum ambient temperature: 104 F;
  • Ambient max at 176 F liquid: 176 F;
  • Maximum operating pressure: 145 psi;
  • Flange standard: USA Sweat;
  • Type of connection: Bronze Sweat;
  • Pipe connection: 1/2" Sweat;
  • Pressure stage: 10;
  • Port-to-port length: 6 1/2";
  • Number of poles: 2;
  • Max. power input: 60 W;
  • Rated power - P2: 0.04 HP;
  • Main frequency: 60 Hz;
  • Voltage: 115V;
  • Current in speed 3: 0.55 A;
  • Capacitor size - run: 8mF/180 V;
  • Insulation class (IEC 85): F;
  • Gross weight: 7.25 lb;



Manufacturer's warranty:

2 years from date of installation.
