Grundfos UP15-29SUC/TLC Stainless Steel Circulator Pump, 1-1/4" Union, 1/8HP, 115V, Timer & Line Cord (59896777)

Grundfos UP15-29SUC/TLC is a 1/8HP Stainless steel Circulator Pump (Gundfos SKU# 59896777) with a removable Integral Check Valve, 1-1/4" (GU125) union connections, Timer and 6-foot Power Cord. Grundfos UP15-29SUC/TLC is perfectly suited for recirculation applications thanks to the built-in timer and unnecessary wiring is eliminated by plugging the circulator directly into the electrical outlet. Stainless steel construction of the UP15-29SUC/TLC model allows to use it in applications such as radiant, solar, hydronic, chilled water cooling, domestic hot water recirculation and many others.

Features:

• Ceramic shaft and radial bearings;
• Carbon axial bearing;
• Stainless steel rotor can and bearing plate;
• Corrosion-resistant impeller, Composite, PES;
• Stainless steelpump housing;
• Union connection;
• Check valve;
• Line cord;
• Timer;

Technical Specifications of Grundfos UP15-29SUC/TLC:

• Speed Number: 1;

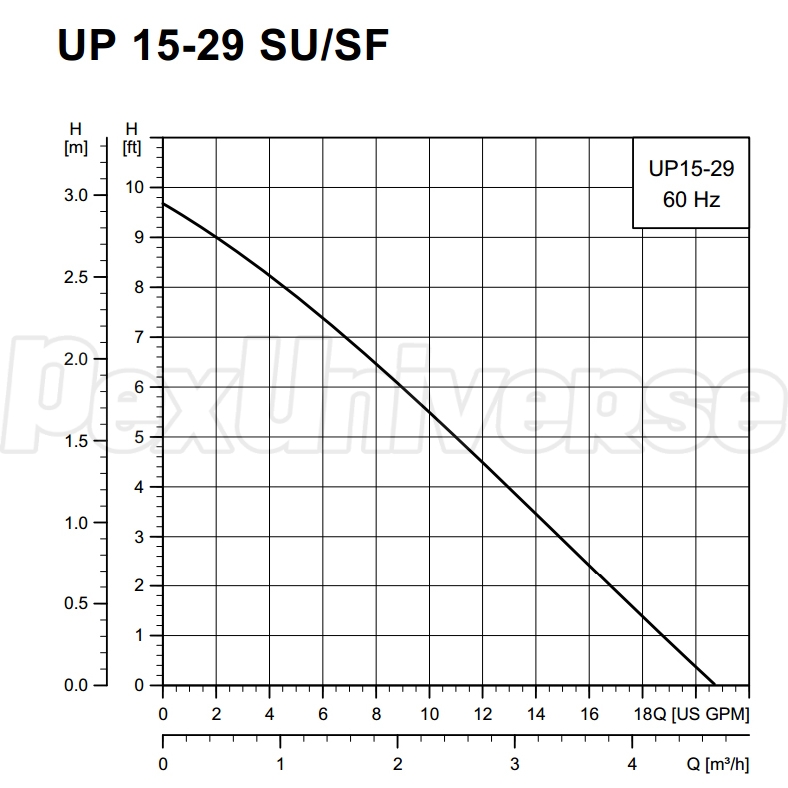

• Max flow: 20.7 US gpm;
• Head max: 9.84 ft;
• Liquid temperature range: 35.6 .. 150 F;
• Maximum operating pressure: 145 psi;
• Approvals on nameplate: UL, CSA;
• Pump housing: Stainless steel;
• Pump housing: DIN W.-Nr. 1.4301;
• Pump housing: AISI 304;
• Impeller: Composite, PES;
• Maximum ambient temperature: 104 F;
• Ambient max at 176 F liquid: 176 F;
• Maximum operating pressure: 145 psi;
• Flange standard: USA Threaded;
• Type of connection: S.S. Union;
• Pipe connection: 1 1/4" NPSM;
• Pressure stage: 10;
• Port-to-port length: 5.87";
• Number of poles: 2;
• Max. power input: 87 W;
• Rated power - P2: 0.121 HP;
• Main frequency: 60 Hz;
• Voltage: 115V;
• Current in speed 3: 0.75 A;
• Capacitor size - run: 10 mF/180 V;
• Insulation class (IEC 85): F;
• Gross weight: 6.2 lb;

Manufacturer's warranty:

2 years from date of installation.

Documentation:

Grundfos UP15-29SUC/TLC (59896777) Technical data (pdf)

Grundfos UP15-29SUC/TLC (59896777) Installation Manual

Grundfos UP15-29SUC/TLC (59896777) Secondary Installation Manual
