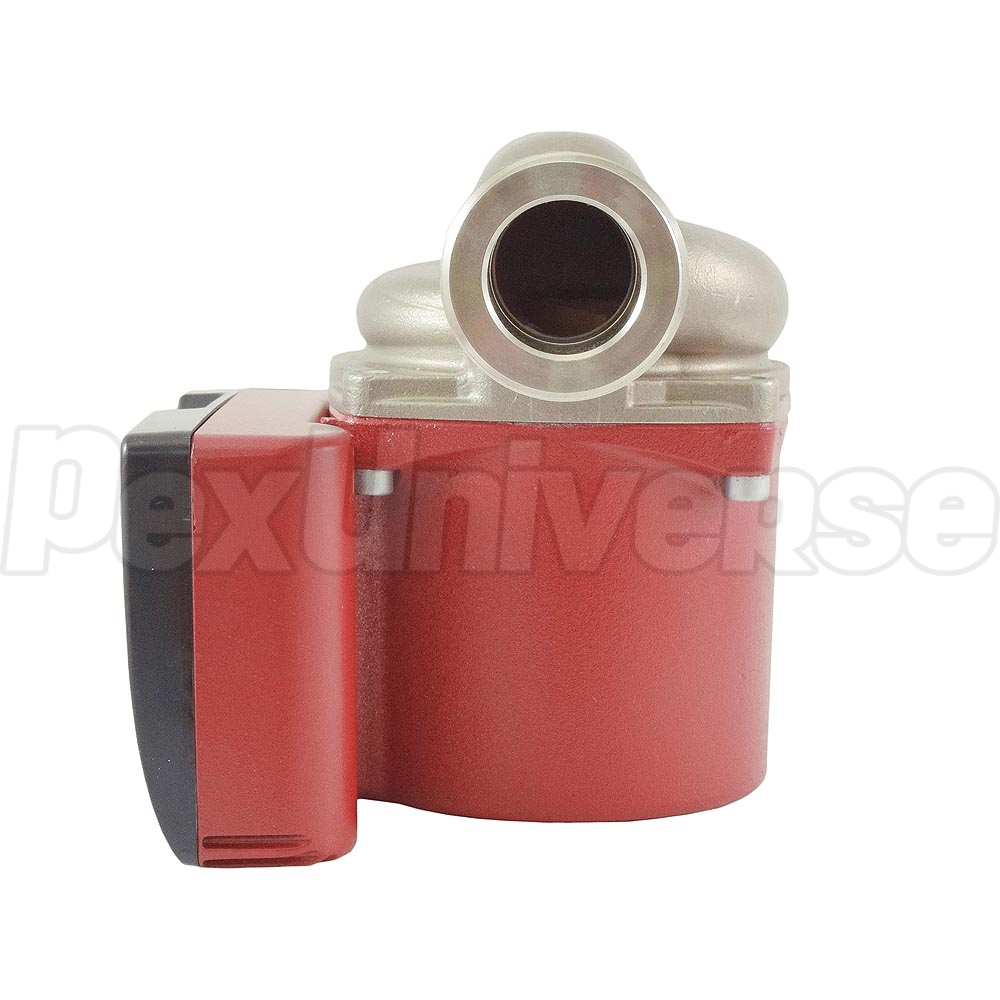

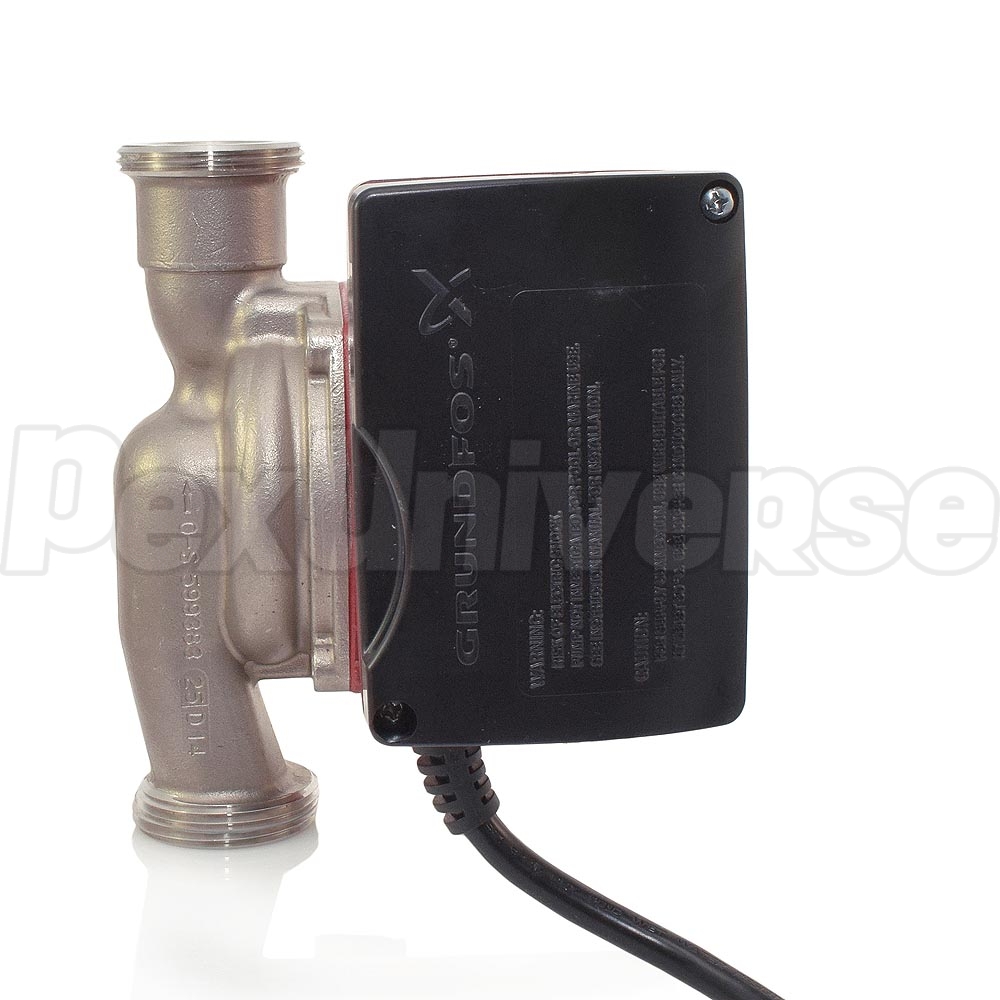

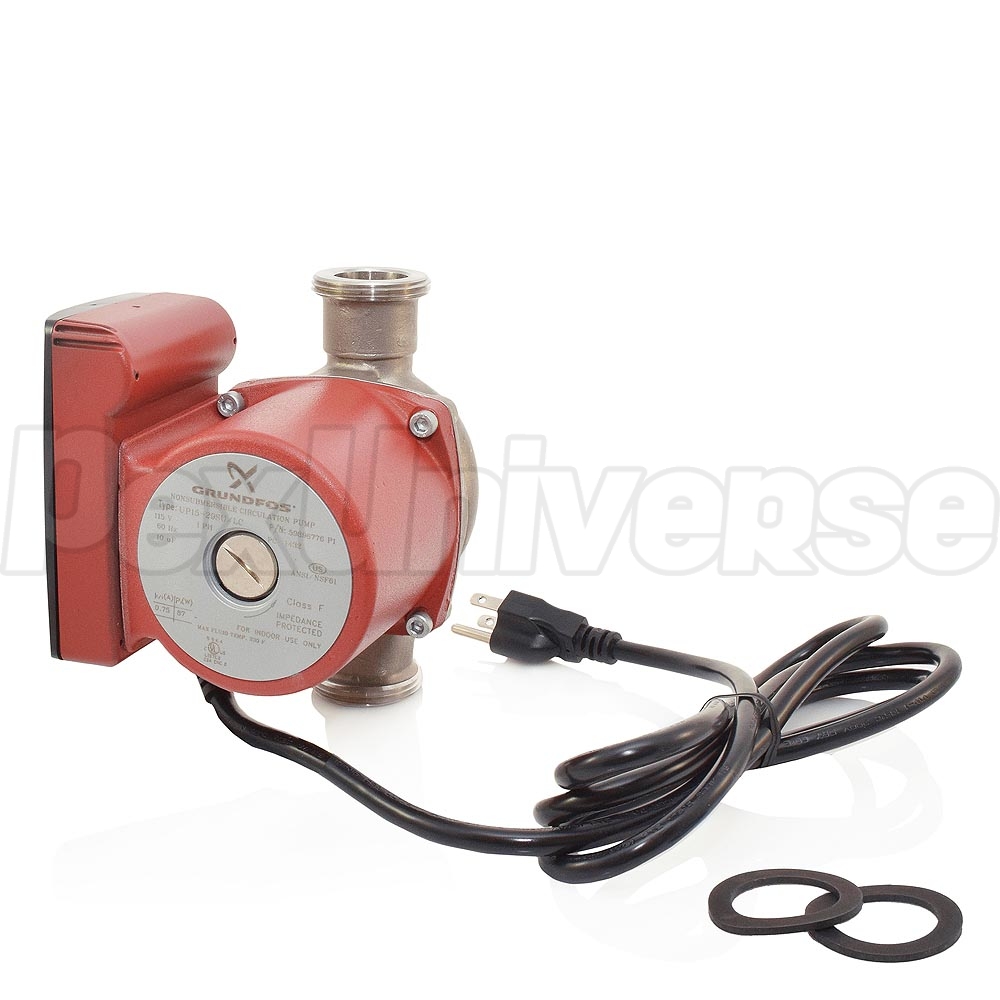

Grundfos UP15-29SU/LC Stainless Steel Circulator Pump, 1-1/4" Union, Line Cord, 1/6HP, 115V (59896776)

Grundfos UP15-29SU/LC (59896776) model is a stainless steel circulator pump with 1-1/4" union connections and a line cord. Stainless steel housing of the UP15-29SU/LC model makes it suitable for a wide range of open and closed loop applications, while line cord allows to plug the circulator directly into the electrical outlet, eliminating unnecessary wiring.

Grundfos UP15-29SU/LC Features:

• Built-in motor protection for longer life;
• Whisper-quiet operation for sound sensitive installations;
• Engineered to meet the needs of residential hot water and heating systems;
• Includes (2) Gaskets;

Technical Specifications of Grundfos UP15-29SU/LC:

• Voltage: 115V;
• Amperage: 0.42 Amps;
• Hertz: 60 Hz;
• Phase: 1;
• Watts: 97W;
• Max Pressure: 145 psi;
• Max Temperature: 230F;
• Min Temperature: 36F;

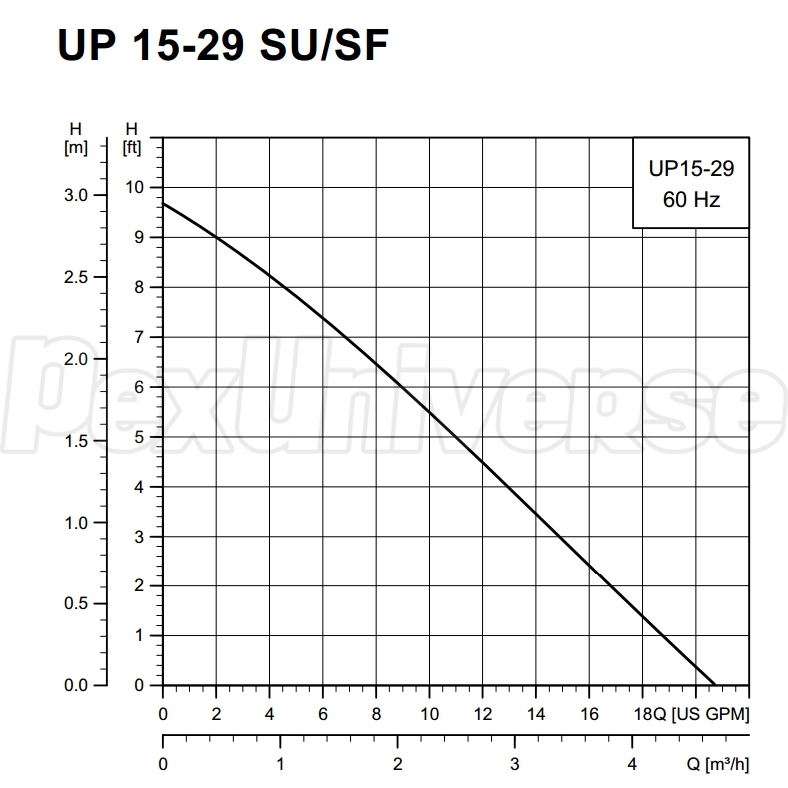

• Flow Range: 0-20.5 GPM;
• Head Range: 0-9.7 ft;
• Horse Power: 1/6HP;
• Body: Stainless Steel;
• Connections: 1-1/4" Union;

Manufacturer's warranty:

2 years from the date of installation.

Documentation:

Grundfos UP Series Product Guide (pdf)

Grundfos Stainless Steel UP(S) (pdf)

Grundfos UP15-29SU/LC (59896776) Technical data (pdf)

Grundfos UP15-29SU/LC (59896776) Installation Manual

Grundfos UP15-29SU/LC (59896776) Secondary Installation Manual
