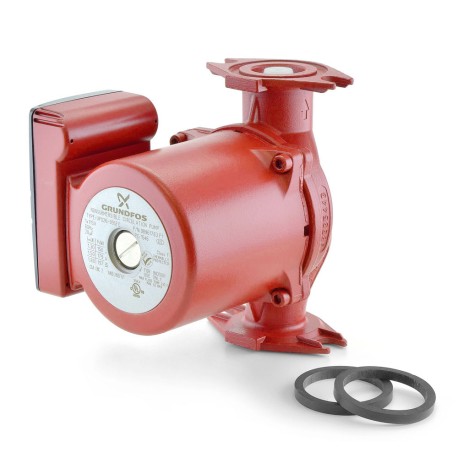

UPS26-99SFC 3-Speed Stainless Steel Circulator Pump w/ IFC, 1/6 HP, 115V
Brand: Grundfos
Part#: 98961763
Model: UPS26-99SFC

The Grundfos UPS26-99SFC (98961763) model incorporates a three speed motor for increased versatility, a built-in check valve and a stainless steel housing for enhanced corrosion resistance. The wet rotor design allows it to be virtually silent while operating, while built-in motor protection assures long life of the circulator. Performance parameters (flow rates and pressure drop) of the Grundfos UPS26-99SFC model make it well suited for a wide range of applications.

Applications: used in both closed and open loop systems, hydronic and fan coil heating, hot water recirculation systems, solar heating, radiant heating systems, and many others


Features:
  • Built-in motor protection for longer life and better performance
  • Whisper-quiet operation for sound sensitive installations
  • Stainless Steel body
  • Includes (2) Gaskets (O-rings)
  • UL/CSA listed.

Technical Specifications:
  • Voltage: 115V
  • Amperage at Speed 1: 1.3 Amps
  • Amperage at Speed 2: 1.5 Amps
  • Amperage at Speed 3: 1.8 Amps
  • Hertz: 60 Hz
  • Phase: 1
  • Watts at Speed 1: 150W
  • Watts at Speed 2: 179W
  • Watts at Speed 3: 197W
  • Max Pressure: 145 psi
  • Max Temperature: 230°F
  • Min Temperature: 36°F
  • Flow Range: 0-33 GPM
  • Head Range: 0-29 ft
  • Horse Power: 1/6HP
  • Body: Stainless Steel
  • Connections: Flanged 1/2", 3/4", 1”, 1-1/4”.

Warranty:
2 years from the date of installation.
