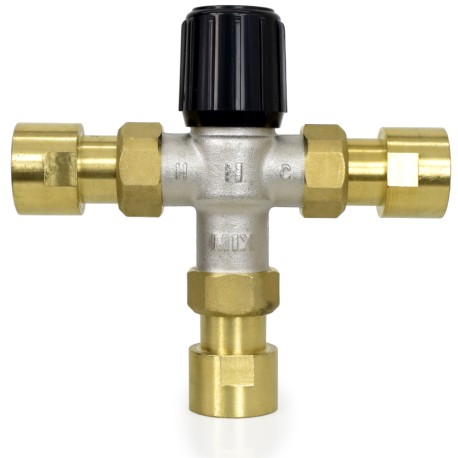

Honeywell 1" NPT Union Mixing Valve, 70-180F heat only

1" Union Threaded Mixing Valve (For Heating Only), 70-180F

Honeywell

Brand: Honeywell

Mfr Part#: AM102R-UT-1

UPC#: 085267825511

Availability: Out Of Stock
Usually ships: Upon availability
Qty Price
$94.95 / each
  • Description
  • Literature
  • Reviews
  • FAQs

Honeywell AM102R-UT-1 Mixing Valve has 1" NPT Union connections and 70-180F Temperature Range. This HEATING ONLY Honeywell Mixing Valve is NOT intended for potable water usage.

Teflon coated spool and body of Honeywell AM102R-UT-1 prevent mineral build-up and extend valve life.

The Honeywell AM-1 series offers scalding protection, bacteria growth control and designed for easy maintenance and element replacement.



Features:

  • HEATING ONLY (Not for potable usage);
  • Temperature limit at any point;
  • Flow reduction in seconds if cold water supply is interrupted;
  • Proportional valve (simultaneous control of hot and cold water);
  • High performance thermoplastic proportioning shuttle;
  • Straight through design (hot and cold at the same level);
  • Lockable hand wheel for accurate temperature control;
  • Constant water temperature under changing operating conditions;
  • Reliable performance at minimum flow of 0.5 gpm;
  • Max. pressure 150 psi (1034 kPa);
  • Max temperature 212 F (100 C);
  • Nickel-plated brass construction, EPDM O-rings;
  • Designed for easy maintenance and element replacement.
  • Tamper resistent design;
  • Valve trapping not required;
  • U.S. Patent No. 6,079,625;



Technical Specifications of Honeywell AM102R-UT-1:

  • Connection Type: Union NPT;
  • Connection Size: 1" (DN25);
  • Operating Temperature Range: 70F to 180F;
  • Capacity (Cv): 3.9 Cv;
  • Max Flow GPM: 16;
  • Min Flow Rate: 0.5;
