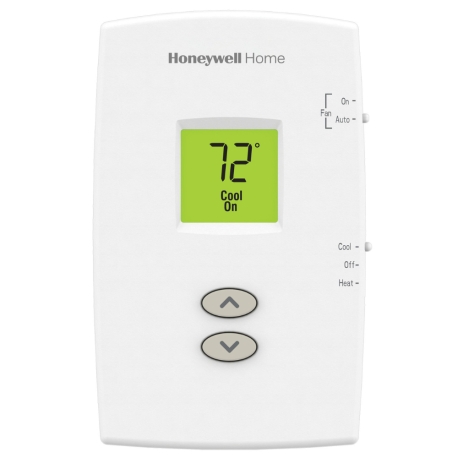

PRO 1000 Non-Programmable Vertical Thermostat, 1H/1C

Honeywell

Brand: Honeywell

Mfr Part#: TH1110DV1009

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$21.95 / each
  • Description
  • Literature
  • Reviews
  • FAQs

PRO 1000 Vertical Non-Programmable Thermostat.


Technical Specifications:

  • Application: 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat;
  • Dimensions (Height x Width x Depth): 4 11/16" x 2 7/8" x 1 1/8" (120mm x 74mm x 28mm);
  • Mounting: Vertical;
  • Electrical Ratings: 20 to 30 Vac or 750 mV;
  • Frequency: 50 Hz, 60 Hz;
  • Stages: 1 Heat/1 Cool;
  • Color: Premier White;
  • Setting Temperature Range: 40°F to 90°F (4.5°C to 32°C) (Heat), 50°F to 99°F (10°C to 37°C) (Cool);
  • Switch Positions (System): HEAT-OFF-COOL;
  • Switch Positions (Fan): AUTO-ON;
  • Terminal Designations: R, RC, C, W, Y, G, O, B;
  • Power Method: Dual Powered: Battery or Hardwire;
  • Display Size: 1.32 sq in.;
  • Changeover: Manual;
  • Operating Humidity Range: 5 to 90% RH, non-condensing;
  • Cycles per Hour: Heating 2 - 6 CPH, Cooling 2 - 6 CPH;
  • Cool Current: 0.02 A to 1.0 A (running);
  • Heat Current: 0.02 A to 1.0 A (running).
