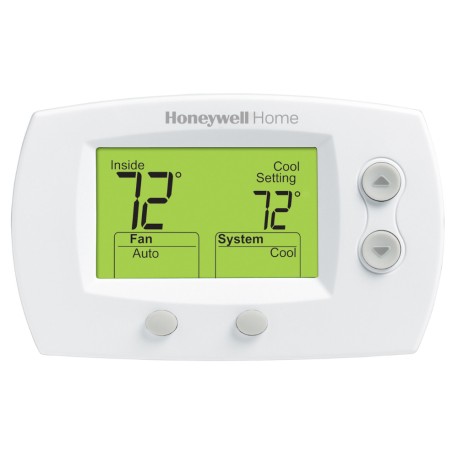

Honeywell Focus PRO 5000 Thermostat, Digital, Non-Programmable, 2H/2C

FocusPRO Non-Programmable Thermostat w/ Standard Display, 2H/2C


Brand: Honeywell

Mfr Part#: TH5220D1003

UPC#: 085267261975

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$45.95 / each
x4 $175.80 / box
(4 x $43.95)
Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

Honeywell TH5220D1003 Focus PRO 5000 Thermostat(Non-Programmable) for Up to 2 Heat/2 Cool Conventional Systems and Up to 2 Heat/1 Cool Heat Pumps.

Honeywell Focus PRO 5000 Thermostat offers the perfect blend of features, performance, energy savings and value. With the largest backlit screen in its class and an easy-to-read digital display, Honeywell TH5220D1003 prominently displays both room and set temperature.



  • Non-programmable digital thermostat;
  • Large, clear, backlit display - easy to read in various lighting conditions;
  • Display size options - available in large screen or standard;
  • Precise comfort control (+/- 1F) - maintains consistent comfort to the highest level of accuracy;
  • Easy change battery door - flip out door allows for easy battery replacement without removing or disassembling the thermostat;
  • Dual-powered (battery and/or hardwire);


Technical Specifications of Honeywell TH5220D1003:

  • Mounting: Horizontal;
  • Changeover: Auto/Manual Selectable;
  • Color: Premier White;
  • Stages: Up to 2 Heat/2 Cool;
  • Power Method: Dual Powered: Battery or Hardwire;
  • Terminal Designations: Rc, R, W (O/B), W2 (AUX), Y, Y2 (E), G, L, C;
  • Switch Positions (Fan): AUTO-ON;
  • Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.HEAT;
  • Switch Type: Relay;
  • Accuracy: +/-1F;
  • Dimensions: 3 9/16" High X 5 13/16" Wide X 1 1/2" Deep;
  • Setting Temperature Range: Heat: 40F to 90F; Cool: 50F to 99F;
  • Electrical Ratings: 20 to 30 Vac or 750 mV;
  • Frequency: 50 Hz;
  • Frequency: 60 Hz;
  • Cycles per Hour: Heating 1-12 CPH; Cooling 1-6 CPH;
  • Cool Current: Y = 0.02 A to 1.0 A running;
  • Cool Current: Y2 = 0.02 A to 1.0 A running;
  • Heat Current: W = 0.02 A to 1.0 A running;
  • Heat Current: W2 (AUX) = 0.02 A to 0.5 A running;
  • Heat Current: E = 0.02 A to 1.0 A running;
  • Fan Current: 0.02 A to 0.5 A running;
  • Sensor Element: Thermistor;
  • Operating Humidity Range (% RH): 5 to 90% RH, non-condensing;
  • Comments: Standard display size 3.75 sq inch;
  • Display Size: N/A;
  • Voltage: 20 to 30 Vac or 750 mV;
