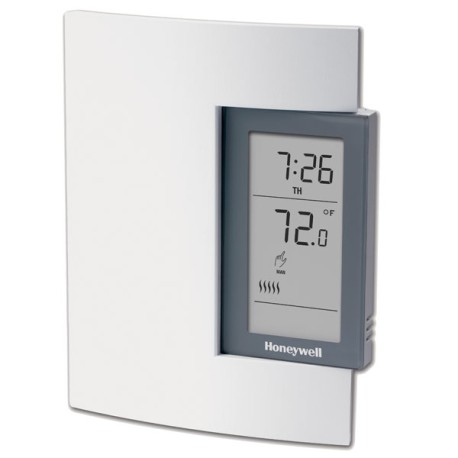

LineVoltPRO Programmable Multi-Application Electric Heat Thermostat

Honeywell

Brand: Honeywell

Mfr Part#: TL8100A1008

Availability: In Stock
Usually ships: within 1 business day
Qty Price
x1
$42.75 / each
x4 $166.00 / box & Free Shipping
(4 x $41.50 / each)
  • Description
  • Literature
  • Reviews (2)
  • FAQs (2)

Honeywell TL8100A1008 LineVoltPRO 8000 Multi-Application Thermostat features 7-day programming and offers the energy savings of a programmable control for a wide variety of applications.

The Honeywell TL8100 LineVoltPRO 8000 Hydronic Thermostat can be used to control 2-way zone valves, 3-way zone valves or circulator pumps in both line volt and low volt applications.



Applications:

Baseboards, Convectors, Fan-forced Heaters, Radiant Ceilings, Central Heating (Conventional).



Specifications of Honeywell TL8100A1008:

  • Programmability 7-Day Program;
  • Color White;
  • Power Method 2 X AA (LR6) batteries;
  • Terminal Designations R, W, (X, C, optional remote input);
  • Dimensions 3.3" X 3.1" X 0.5";
  • Mounting Vertical;
  • Electrical Ratings Maximum Load: 5 A (resistive), 2 A (inductive) @ 24 VDC, 120 Vac, 240 Vac; Compatible with millivolt systems;
  • Electrical Connections Screw terminals;
  • Operating Temperature Range (F) 32 F to 122 F;
  • Setting Temperature Range (F) 40 F to 85 F;
  • Differential Temperature (F) 0.1 F;
  • Stages 1 Heat;
  • Sensor Element Thermistor;
  • Operating Humidity Range (% RH) 0% to 95%, non-condensing;
  • Approvals, Underwriters Laboratories Inc Approved;
  • Comments Pump Protection (for hot water heating);
  • Used With: Aube CT240-02 Telephone Controller;
  • Voltage Millivolt Compatible;
  • Voltage 24 Vdc;
  • Voltage 120 Vac;
  • Voltage 240 Vac;
  • Switch Type: Relay;
  • Accuracy 0.5 C;
LineVoltPRO Programmable Multi-Application Electric Heat Thermostat has an average 5.0 out of 5 rating based on 2 user reviews.
1 of 1 people found this review helpful.

Great for radiant floor heat
By Watcher (from Portland, OR) on 12/22/2011
"I was already familiar with these but I needed more than my normal supplier had available. So thank you Pex Universe. The output on these is a simple SPDT dry relay. They are rated for low voltage or line voltage applications as long as the current is within their limits. They are battery powered for the thermostat's operation. Our use of them has the batteries lasting at least a couple of years normal service. We like these for simple radiant floor heat installations. They have a lot of flexibility for heat only applications. They look nice and are easy to install and set up. The best feature is the pump exercise function which helps prevent off-season pump seizing. Most thermostats can't do that and the ones that I know of that can cost more. These won't work for heat/cool applications nor do they allow operating a fan as a seperate function. But within those limitations, these are a great little device. And for a Honeywell, very reasonably priced."
Was this review helpful?  Yes / No

Awesome t stat
By Momchil, Lic Plumber (from Sacramento,CA) on 8/16/2016
8 months later-still with original batteries!So many functions,easy to use and set.
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Are these thermostats suitable for a hot water heating/hydronic system? We are considering them to replace the old Honeywell mechanical mercury switched thermostats for each zone.
Read 1 answer
These are Line Voltage thermostats and are intended mostly for electric baseboard or fan-forced heater applications. Most hot water heating applications utilize conventional 24V thermostats, such as Honeywell's PRO, FocusPRO, VisionPRO or Prestige series.
Answered on 4/24/2015 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
How to turn it off
Read 1 answer
The unit does not have an On/Off switch. If you do not have an in-line power switch for the thermostat, you can turn off the heat by programming the "Vacation" setting to a lowest desired temperature and use it instead. The details are in the manual.
Answered on 3/27/2015 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
