Manual Sump/Effluent Pump, 10' cord, 1/3 HP, 115V Liberty Pumps
Manual Sump/Effluent Pump, 10' cord, 1/3 HP, 115V
Brand: Liberty Pumps
Part#: 250
This product has been discontinued. No direct replacement is available at this time.

Description

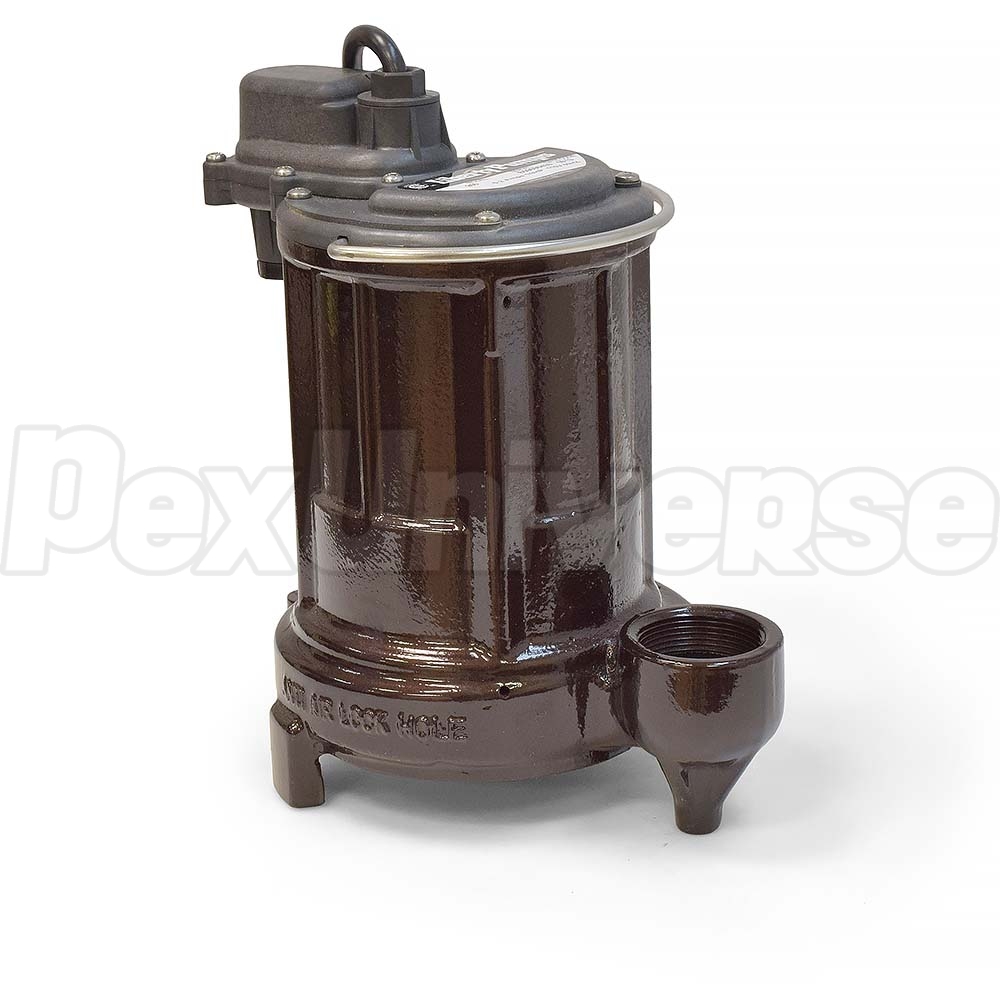

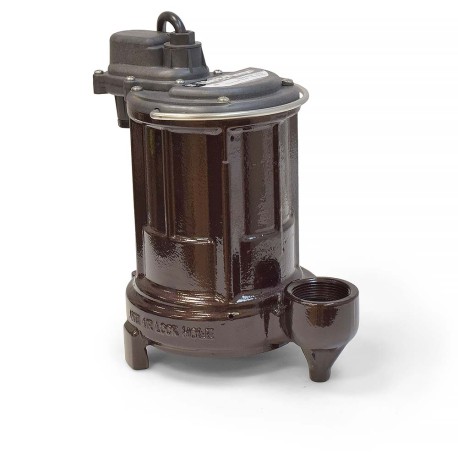

Liberty Pumps 250 is a 1/3HP Manual Submersible Sump/Effluent Pump with 10ft quick-disconnect power cord. This Liberty Pump features a unique one-piece cast iron housing and thermally protected & permanently lubricated motor. Efficient motor design of this Energy Saving Liberty Pump reduces electrical usage by up to 40%.

Liberty Pumps 250 has 1-1/2" NPT discharge, 1/2" solids-handling, and 18' shut-off head. It is intended to be run using an approved liquid level control or approved motor control with a correct rating that matches motor input in full load amperes. Regardless of the control type, be sure that when the pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged.

For added protection, consider the addition of a backup pump such as Liberty's SJ10 SumpJet, as well as an alarm such as Liberty's ALM-2 in applications where loss of pump function could result in property damage. If an alarm is used, it must be connected to a separate electrical circuit.

CAUTION: Do not let the pump run dry.


Applications:
  • De-watering
  • Sump
  • Effluent

Features:
  • Rugged 1/3 HP motor, oil filled with thermal overload protection
  • 1/2" solids handling
  • 1-1/2" discharge
  • Hermetically sealed motor and switch cavities, and permanently lubricated bearings
  • Liberty's UNI-BODY casting - a solid, onepiece housing that eliminates the lower motor seal ring found on other pumps
  • Epoxy powder coat finish

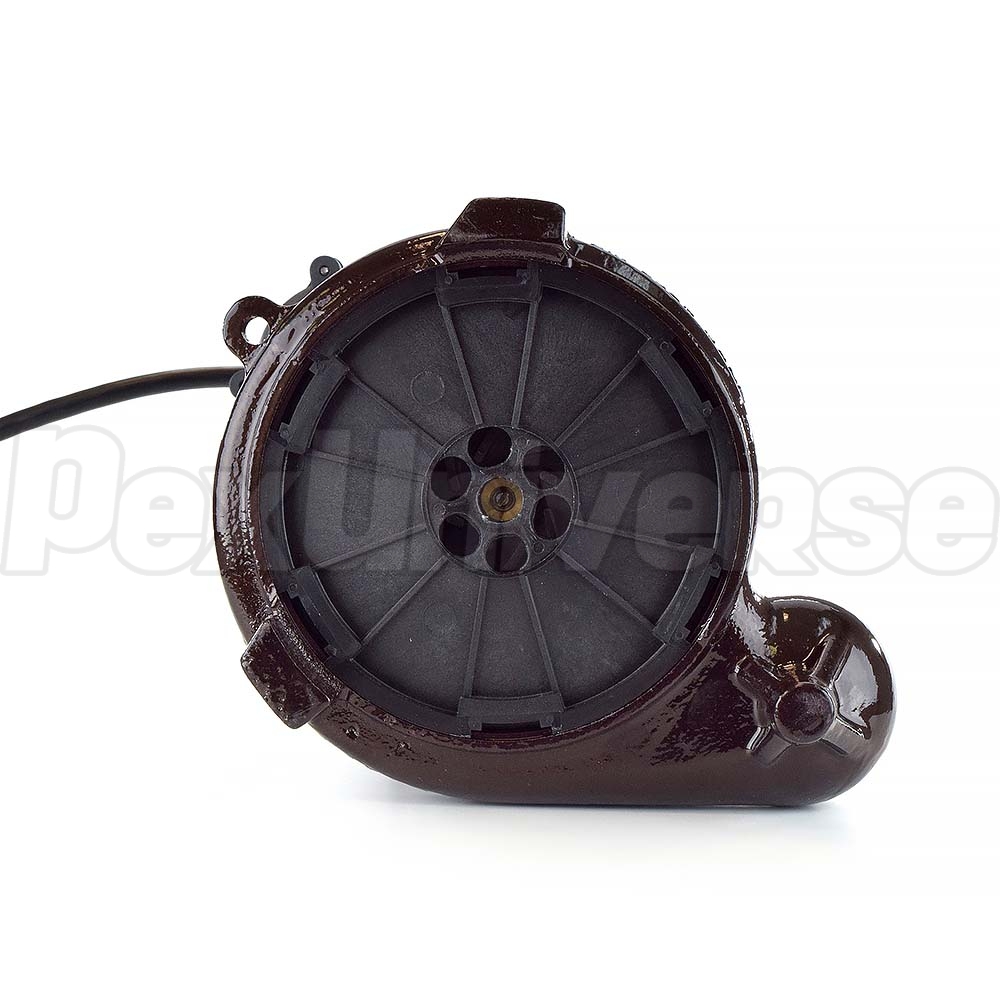

  • Vortex style impeller for superior solids-handling. Made of high temperature engineering polymer

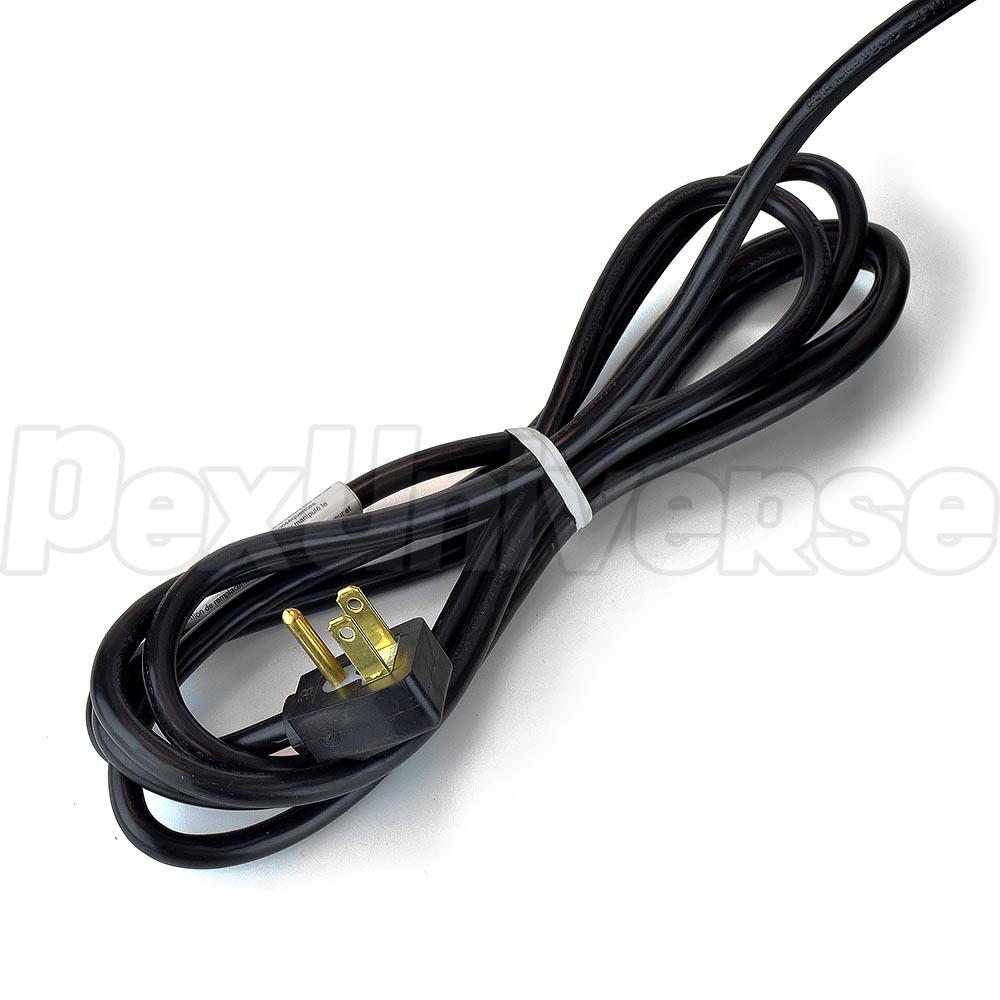

  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
  • Fasteners - all non-corrosive stainless steel
  • 416 stainless steel rotor shaft

Technical Specifications:
  • Horsepower: 1/3 HP
  • Cord length: 10'
  • Discharge: 1-1/2"
  • Solids Handling: up to 1/2"
  • Shut-off Head: 18'
  • Voltage: 115V
  • Amps: 5.2
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 10.5"
  • Width: 9.6"
  • Weight: 23 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
