Manual Sump/Effluent Pump, 25' cord, 1/2 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: 280-2

UPC#: 671812105186

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$221.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

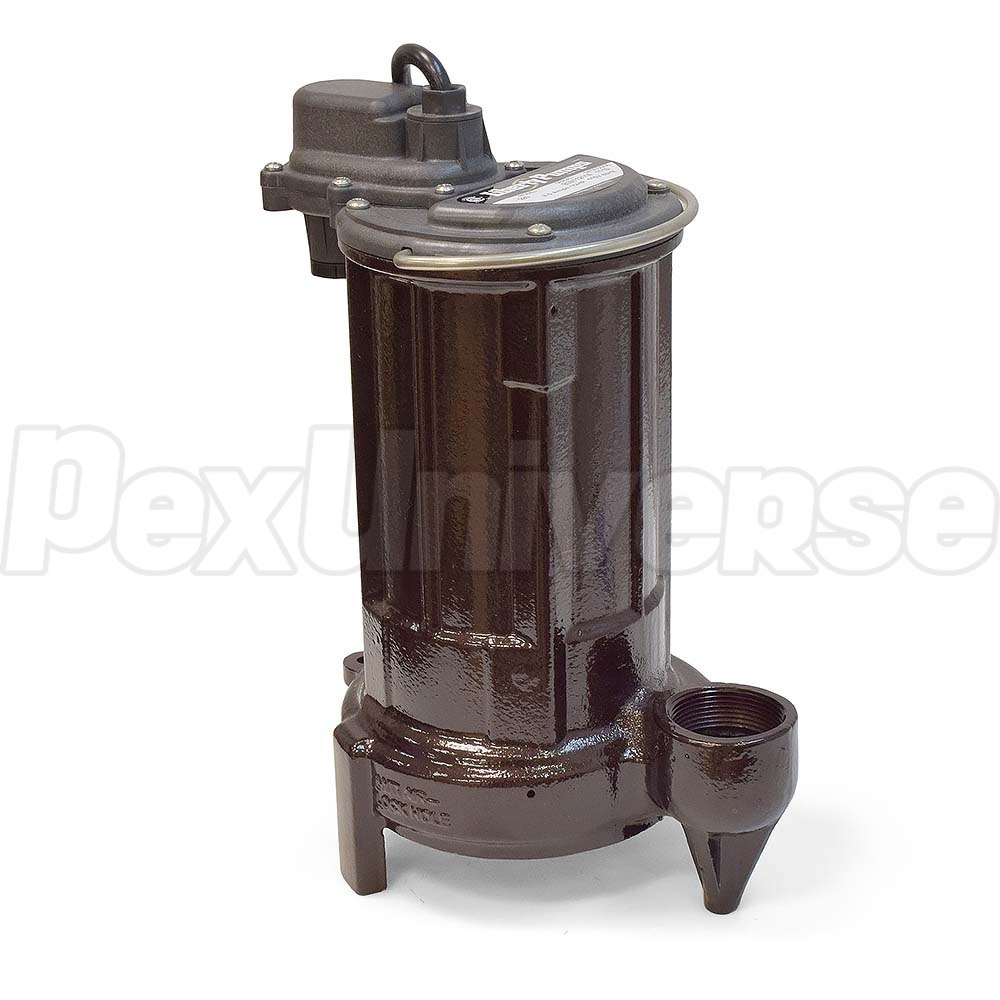

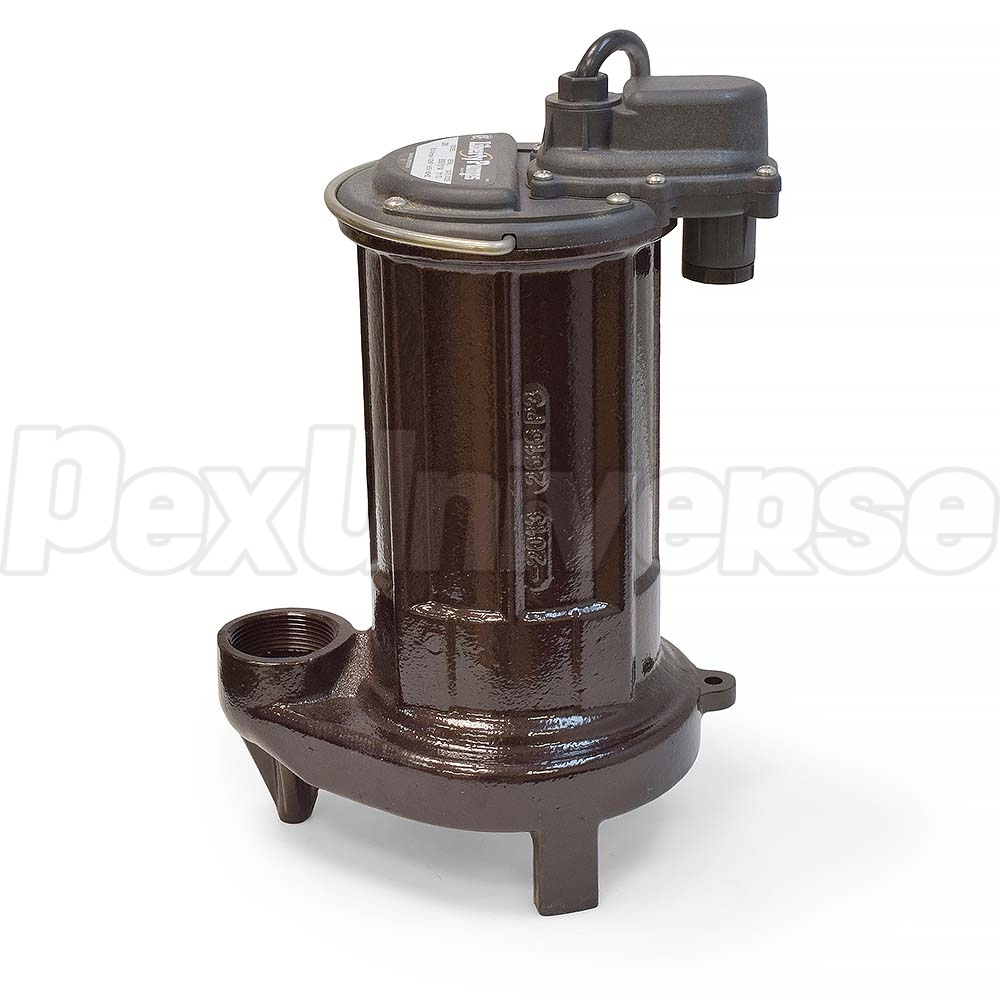

Liberty Pumps 280-2 is a 1/2HP Manual Submersible Sump/Effluent Pump with 25ft quick-disconnect power cord. This Liberty Pump features a unique one-piece cast iron housing and thermally protected & permanently lubricated motor.

Liberty Pumps 280-2 has 1-1/2" NPT discharge, 3/4" solids-handling and 37' shut-off head. It is intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. Regardless of the control type, be sure that when the pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged.



Use for De-watering, Sump and Effluent Applications.



For added protection, consider the addition of a back-up pump such as Liberty's SJ10 SumpJet, as well as an alarm such as Liberty's ALM-2 in applications where loss of pump function could result in property damage. If an alarm is used, it must be connected to a separate electrical circuit.



CAUTION: Do not let the pump run dry.


Features:

  • Vortex style impeller permitting passage of solids up to 3/4";
  • 416 stainless steel rotor shaft;
  • Permanently lubricated upper and lower ball bearing;
  • Carbon and ceramic mechanical face seal;
  • Epoxy powder coat finish;
  • All fasteners - corrosion-resistant stainless steel;
  • 1-1/2" Discharge;

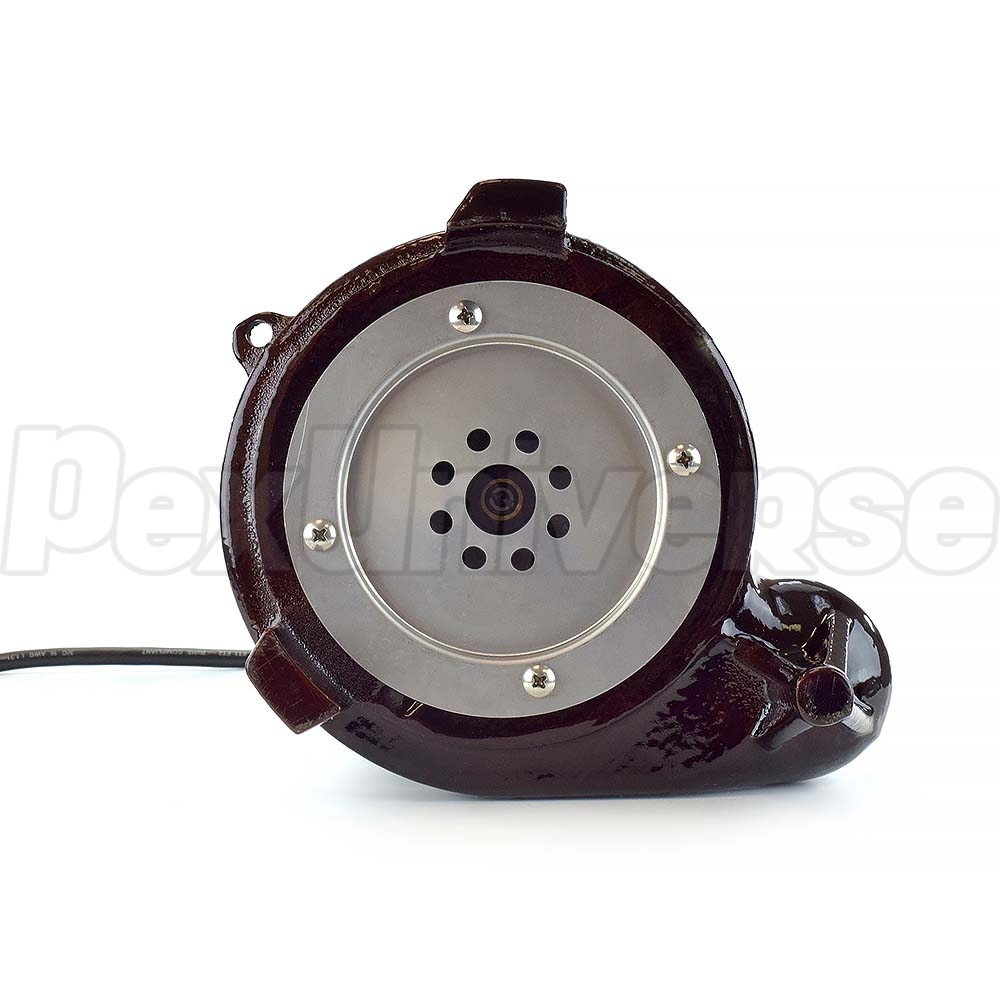

  • Stainless steel bottom screen - easily removable;

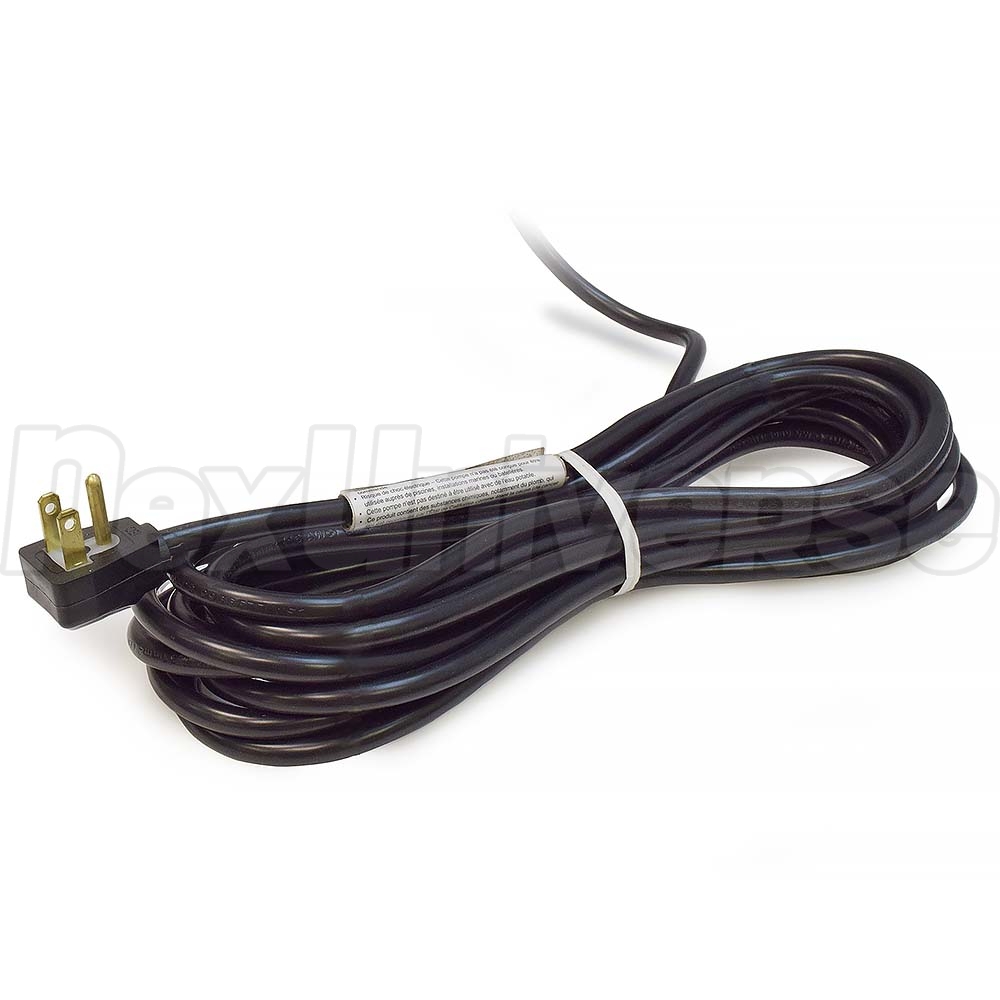

  • Quick-disconnect 25' standard power cord;
  • Maximum fluid temperature: 140°F;

Technical Specifications:

  • Horsepower: 1/2 HP;
  • Cord length: 25';
  • Discharge: 1-1/2";
  • Solids Handling: up to 3/4";

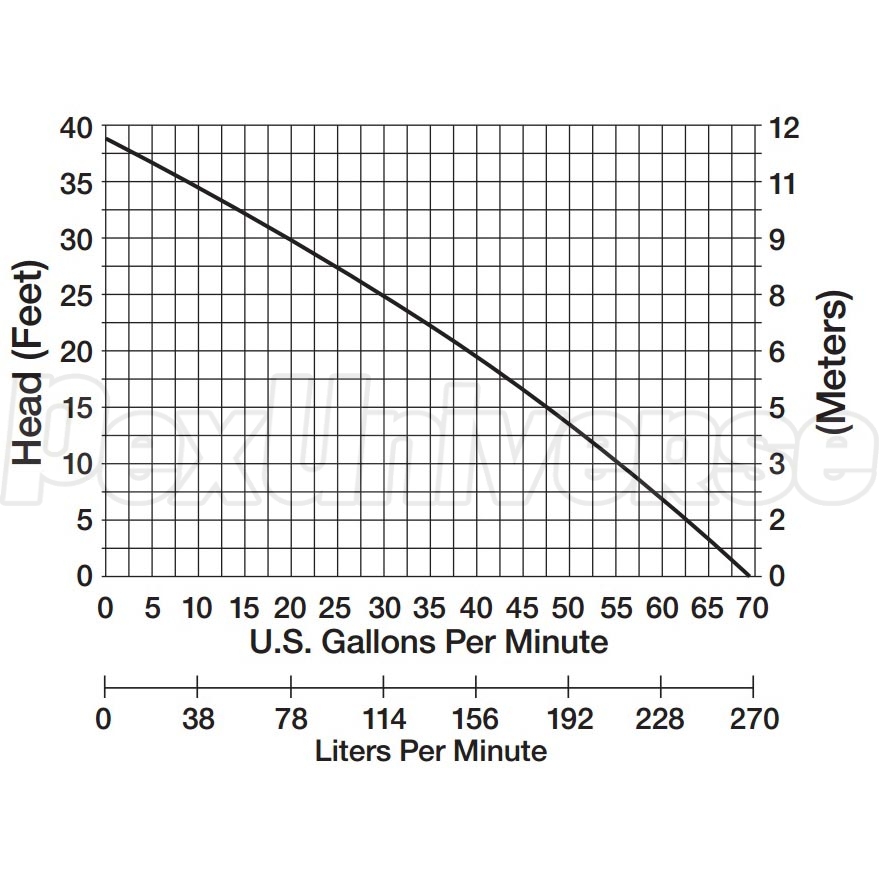

  • Shut-off Head: 37';
  • Voltage: 115V;
  • RPM: 3450;
  • Amps: 8.5;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Maximum fluid temperature: 140°F;
  • Height: 13";
  • Width: 10";
  • Weight: 29 lbs.;
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications;
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications;
