Liberty Pump Effluent 281-2 curves
Liberty Pump Effluent 281-2

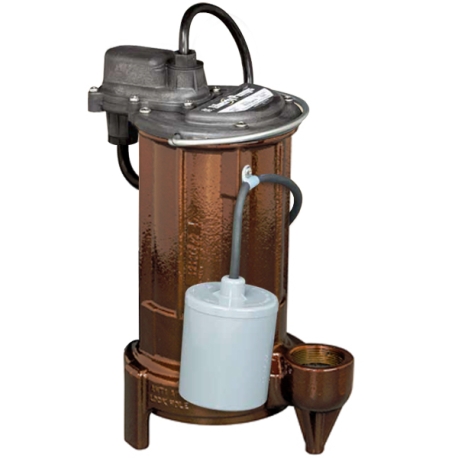

Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 25' cord, 1/2 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: 281-2

UPC#: 671812105209

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$234.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

Liberty Pumps 281-2 is a 1/2HP Automatic Submersible Sump/Effluent Pump with wide-angle quick-disconnect float switch (mercury-free, mechanically activated) and 25ft power cord. This Liberty Pump features a unique one-piece cast iron housing and thermally protected & permanently lubricated motor.

The switch of this pump is factory-preset and is not adjustable. Turn-on level of the switch is 13-1/2" and turn-off level is 7". Other pumping differentials may be obtained by tethering the switch cord to the discharge pipe. NOTE: A minimum cord length of 3-1/2" from the tether point to the top surface of the float is required for proper switch operation. If using a differential other than the factory setting, be sure that when the pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged.

Liberty Pumps 281-2 has 1-1/2" NPT discharge, 3/4" solids-handling and 37' shut-off head.



Use for De-watering, Sump and Effluent Applications.



For added protection, consider the addition of a back-up pump such as Liberty's SJ10 SumpJet, as well as an alarm such as Liberty's ALM-2 in applications where loss of pump function could result in property damage. If an alarm is used, it must be connected to a separate electrical circuit.



CAUTION: Do not let the pump run dry.


Features:

  • Vortex style impeller permitting passage of solids up to 3/4";
  • 416 stainless steel rotor shaft;
  • Permanently lubricated upper and lower ball bearing;
  • Carbon and ceramic mechanical face seal;
  • Epoxy powder coat finish;
  • All fasteners - corrosion-resistant stainless steel;
  • 1-1/2" Discharge;
  • Stainless steel bottom screen - easily removable;
  • Quick-disconnect 10' standard power cord;
  • Maximum fluid temperature: 140°F;

Technical Specifications:

  • Horsepower: 1/2 HP;
  • Cord length: 25';
  • Discharge: 1-1/2";
  • Solids Handling: up to 3/4";
  • Shut-off Head: 37';
  • Voltage: 115V;
  • RPM: 3450;
  • Amps: 8.5;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Maximum fluid temperature: 140°F;
  • Height: 13";
  • Width: 10";
  • Weight: 29 lbs.;
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications;
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications;
