Automatic Sump/Effluent Pump w/ Piggyback Wide Angle Float Switch, 25' cord, 1/2 HP, 115V Liberty Pumps
Automatic Sump/Effluent Pump w/ Piggyback Wide Angle Float Switch, 25' cord, 1/2 HP, 115V
Brand: Liberty Pumps
Part#: 283-2
Usually ships: within 5-7 business days

Description

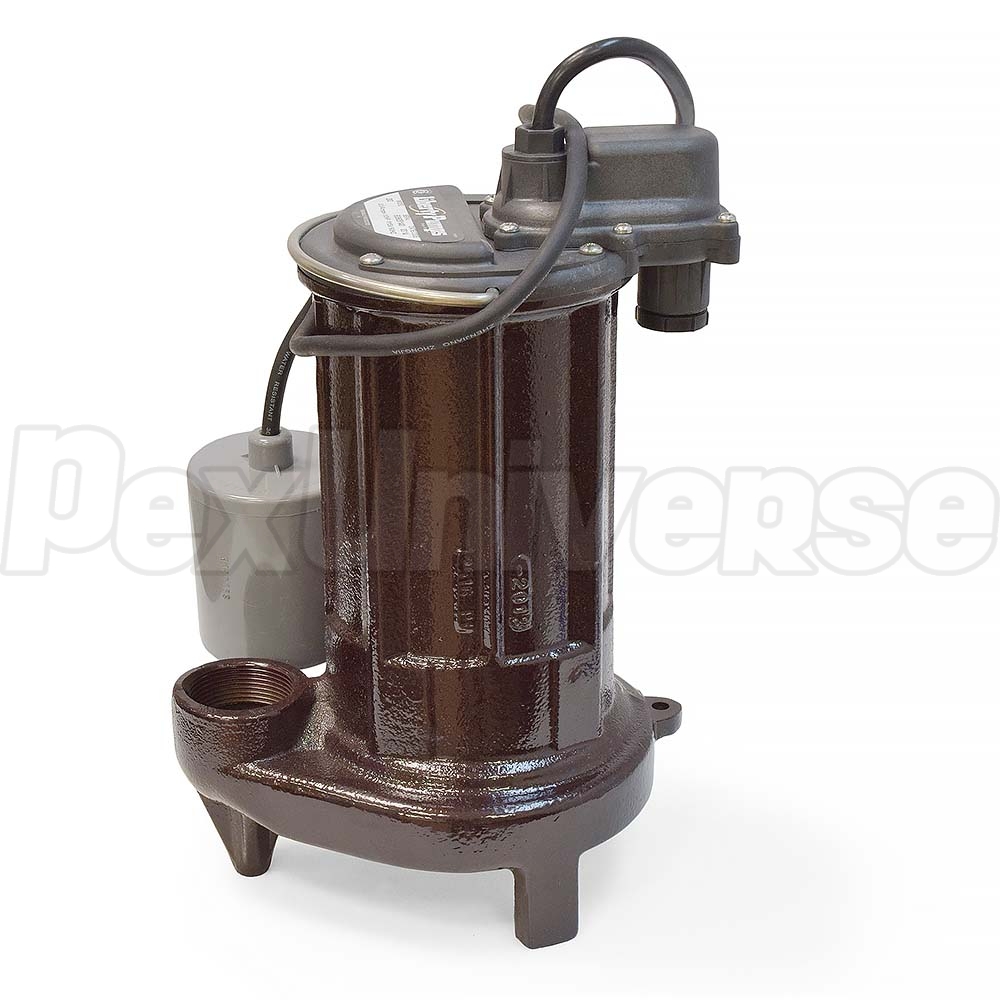

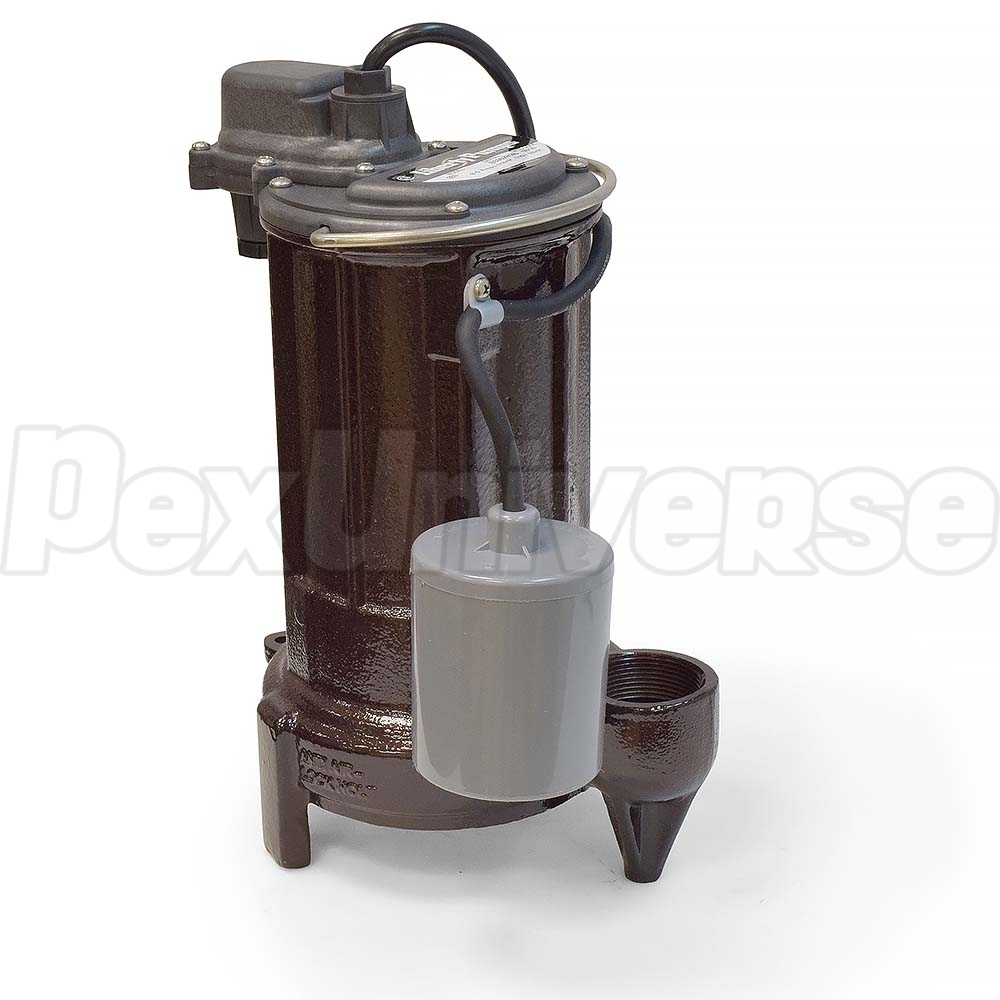

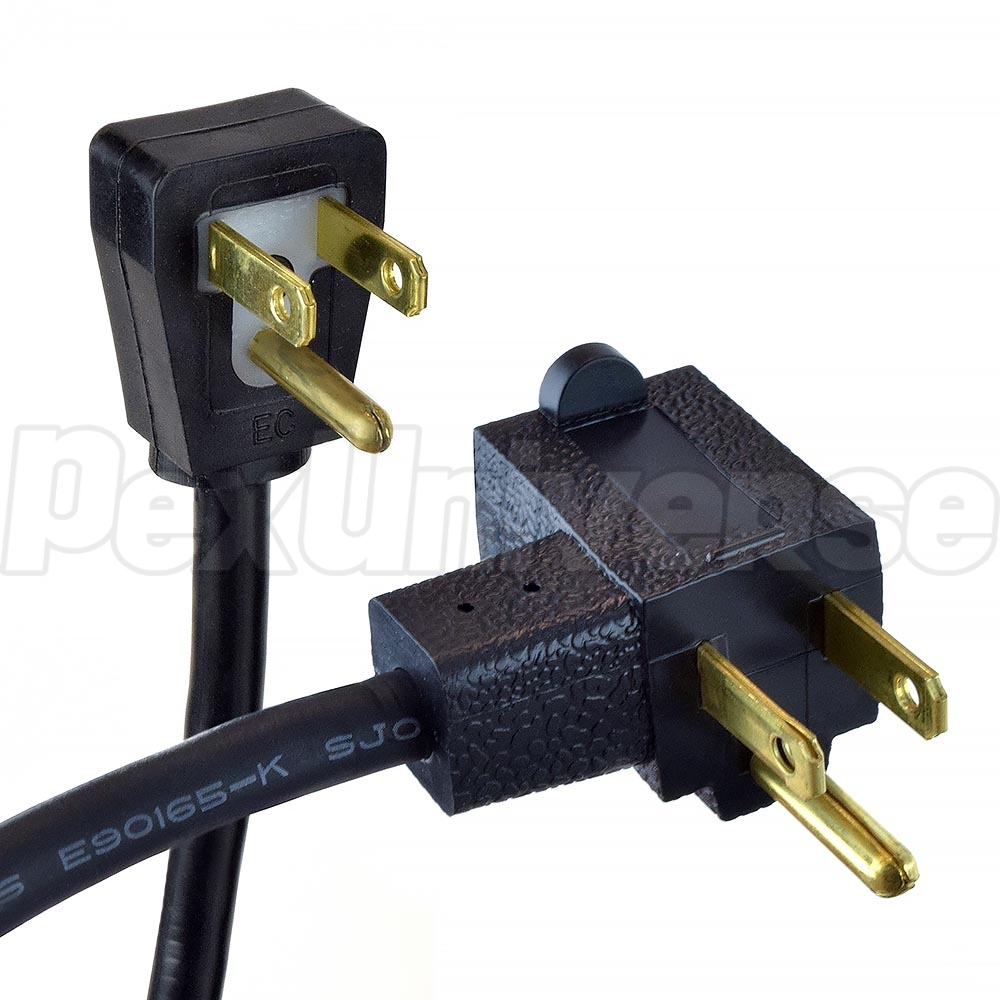

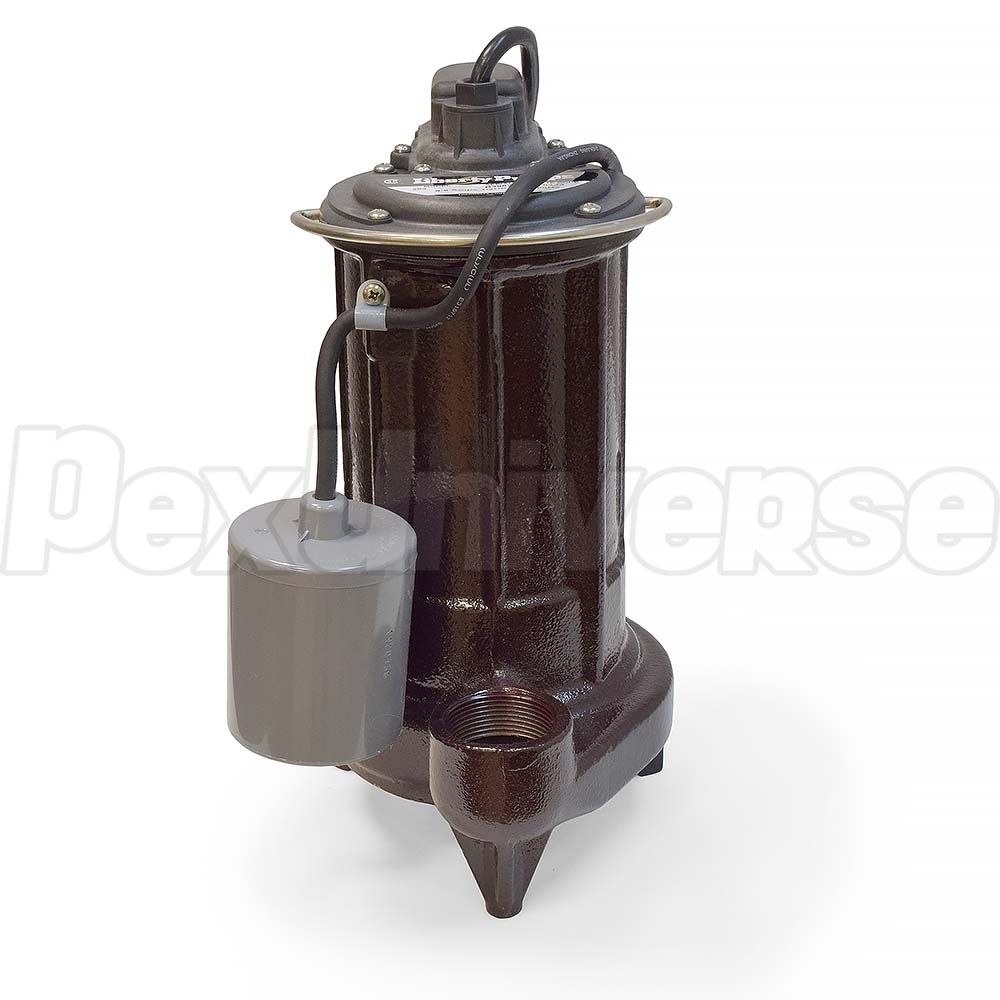

Liberty Pumps 283-2 is a 1/2HP Automatic/Manual Submersible Sump/Effluent Pump with 25ft power cord. It comes factory-equipped with a wide-angle float switch (mercury-free, mechanically activated) mounted to the pump. Turn-on level of the switch is 13-1/2" and turn-off level is 7". This pump has two cords - one to the float switch and the other to the pump motor. The switch cord has a series (piggyback) plug enabling the pump (motor) cord to be plugged into the back of it (see attached files for details). The purpose of this design is to allow temporary manual operation of the pump if desired.

The Liberty Pumps 283-2 has 1-1/2" NPT discharge, 3/4" solids-handling, 37' shut-off head, a unique one-piece cast iron housing and thermally protected & permanently lubricated motor.

For added protection, consider the addition of a back-up pump such as Liberty's SJ10 SumpJet, as well as an alarm such as Liberty's ALM-2 in applications where loss of pump function could result in property damage. If an alarm is used, it must be connected to a separate electrical circuit.

CAUTION: Do not let the pump run dry.


Applications:
  • De-watering
  • Sump Applications
  • Effluent Applications

Features:
  • Vortex style impeller permitting passage of solids up to 3/4"
  • 416 stainless steel rotor shaft
  • Permanently lubricated upper and lower ball bearing
  • Carbon and ceramic mechanical face seal
  • Epoxy powder coat finish
  • All fasteners - corrosion-resistant stainless steel
  • 1-1/2" Discharge

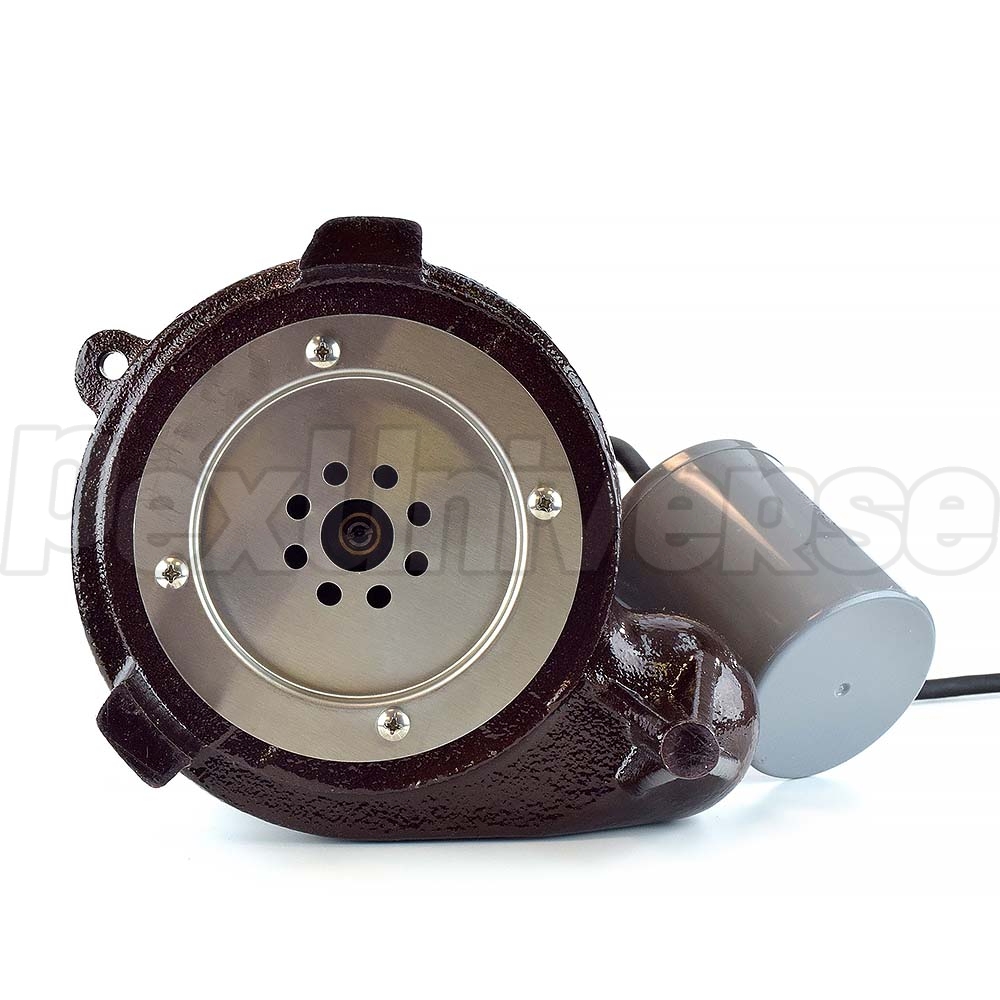

  • Stainless steel bottom screen - easily removable
  • Quick-disconnect 10' standard power cord
  • Maximum fluid temperature: 140°F

Technical Specifications:
  • Horsepower: 1/2 HP
  • Cord length: 25'
  • Discharge: 1-1/2"
  • Solids Handling: up to 3/4"
  • Shut-off Head: 37'
  • Voltage: 115V
  • RPM: 3450
  • Amps: 8.5
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 13"
  • Width: 10"
  • Weight: 29 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
