Automatic Sump/Effluent Pump w/ Vertical Float Switch, 10' cord, 1/2 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: 287

UPC#: 671812002874

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$211.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews (1)
  • FAQs

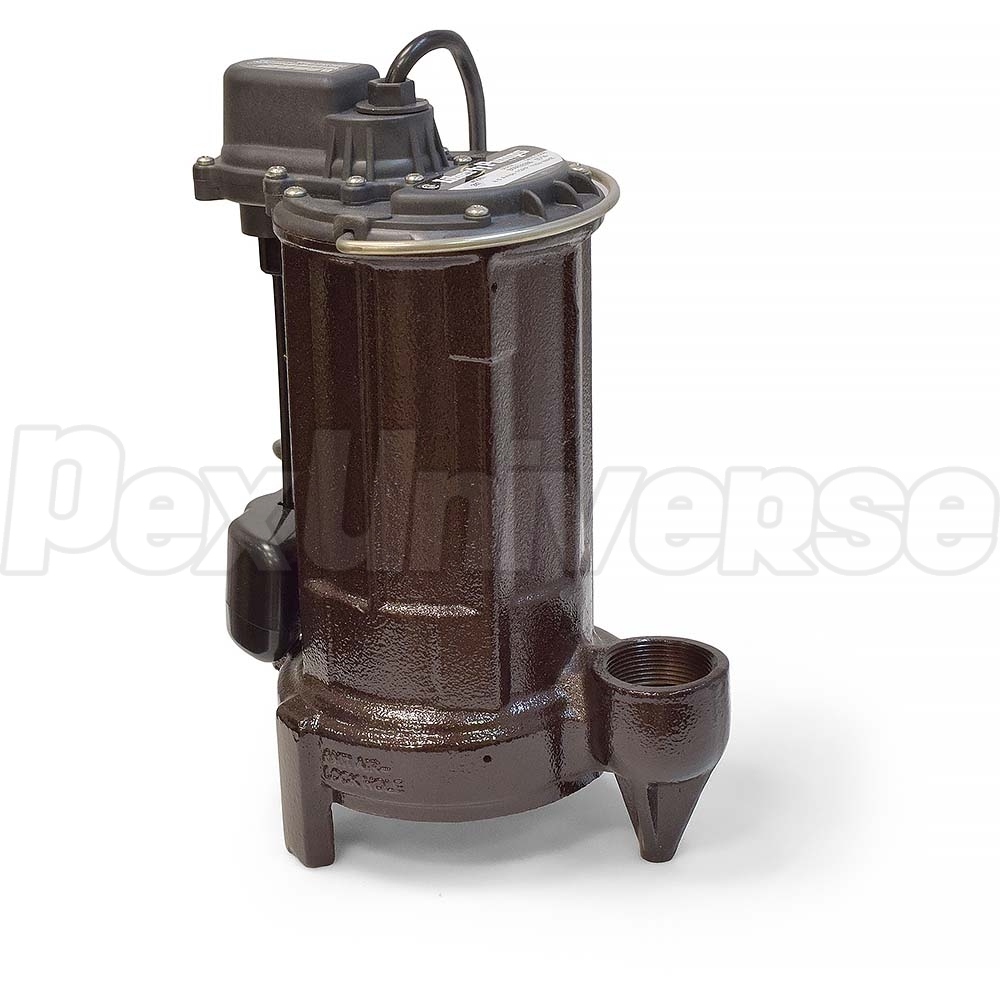

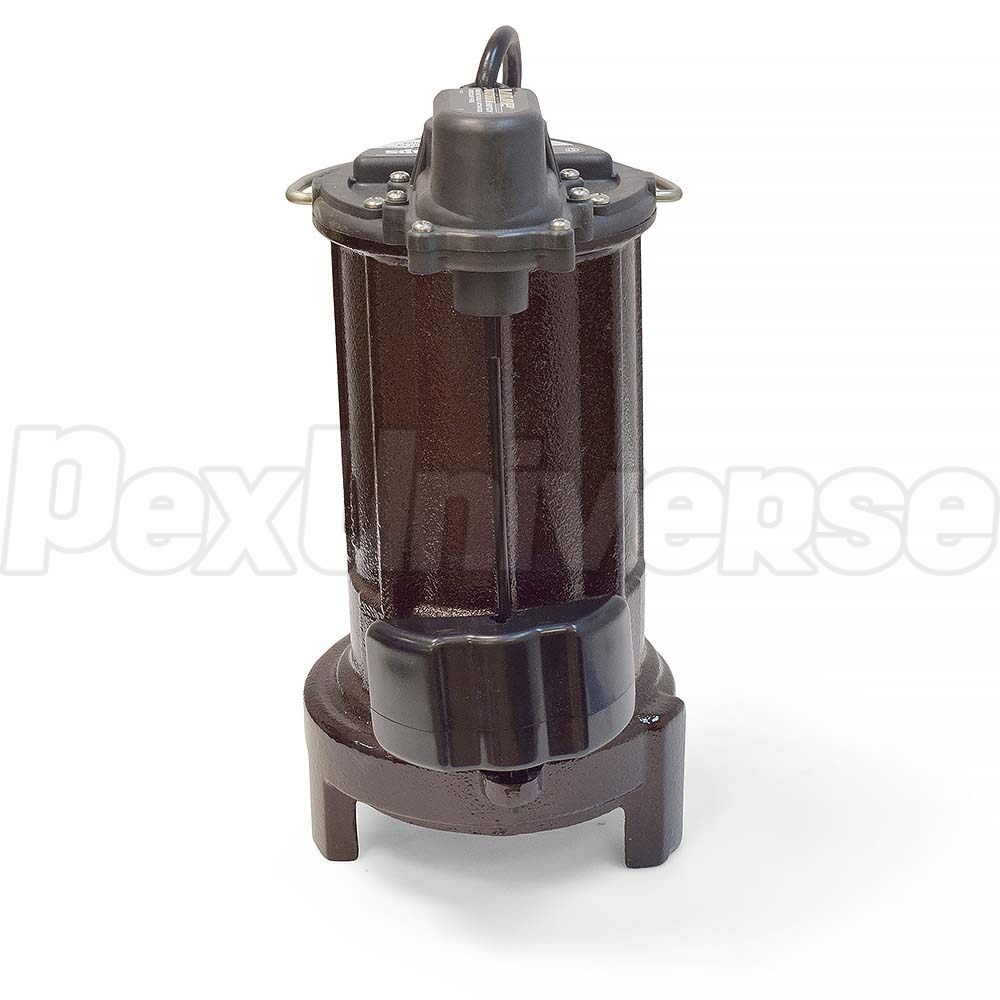

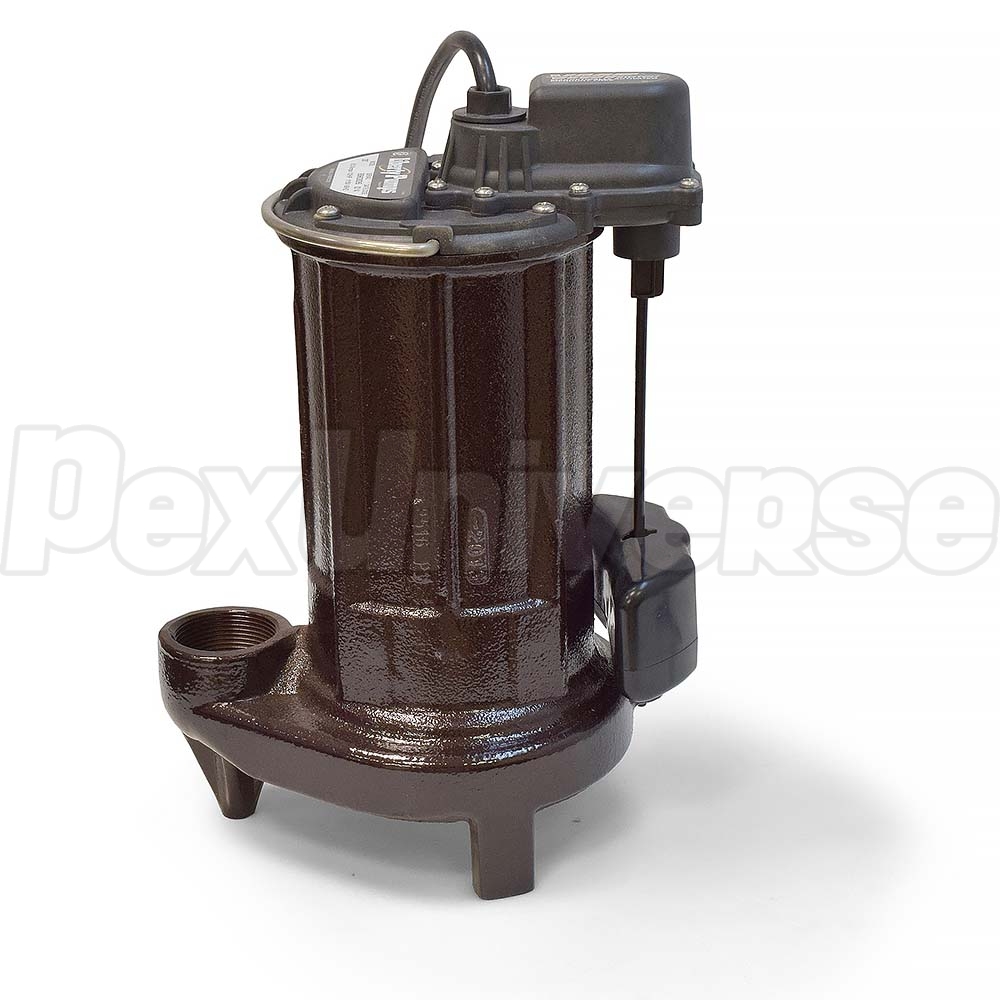

Liberty Pumps 287 is a 1/2HP Automatic Submersible Sump Pump with with magnetically operated vertical float VMF switch and 10ft power cord. Turn-on level of the not adjustable switch is 9-1/2" and turn-off level is 4". This pump can operate in a smaller 10" diameter sump pit.



The Liberty Pumps 287 has 1-1/2" NPT discharge, 3/4" solids-handling, 37' shut-off head, a unique one-piece cast iron housing and thermally protected & permanently lubricated motor.



Liberty Pumps 287 is a 1/2HP Automatic Submersible Sump Pump with with magnetically operated vertical float VMF switch and 10ft power cord. Turn-on level of the not adjustable switch is 9-1/2" and turn-off level is 4". This pump can operate in a smaller 10" diameter sump pit.



The Liberty Pumps 287 has 1-1/2" NPT discharge, 3/4" solids-handling, 37' shut-off head, a unique one-piece cast iron housing and thermally protected & permanently lubricated motor.



For Sump and De-watering Applications only. This Vertical Magnetic Float (VMF) model is not recommended for effluent applications due to their short On/Off cycle. Wide angle float models (Liberty Pumps 281 and 283) are better suited for effluent applications and are easily adjustable for different On/Off levels.



For added protection, consider the addition of a back-up pump such as Liberty's SJ10 SumpJet, as well as an alarm such as Liberty's ALM-2 in applications where loss of pump function could result in property damage. If an alarm is used, it must be connected to a separate electrical circuit.



CAUTION: Do not let the pump run dry.


Features:

  • Vortex style impeller permitting passage of solids up to 3/4";
  • 416 stainless steel rotor shaft;
  • Permanently lubricated upper and lower ball bearing;
  • Carbon and ceramic mechanical face seal;
  • Epoxy powder coat finish;
  • All fasteners - corrosion-resistant stainless steel;
  • 1-1/2" Discharge;

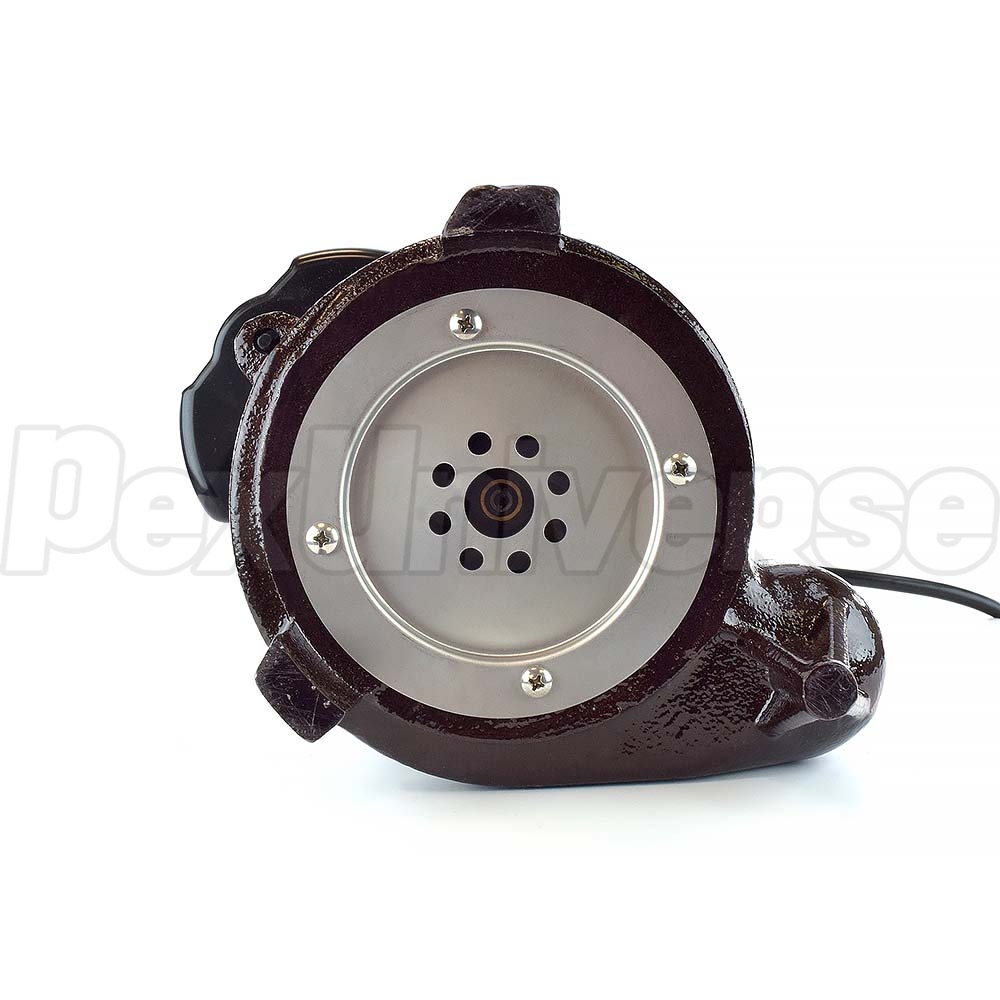

  • Stainless steel bottom screen - easily removable;

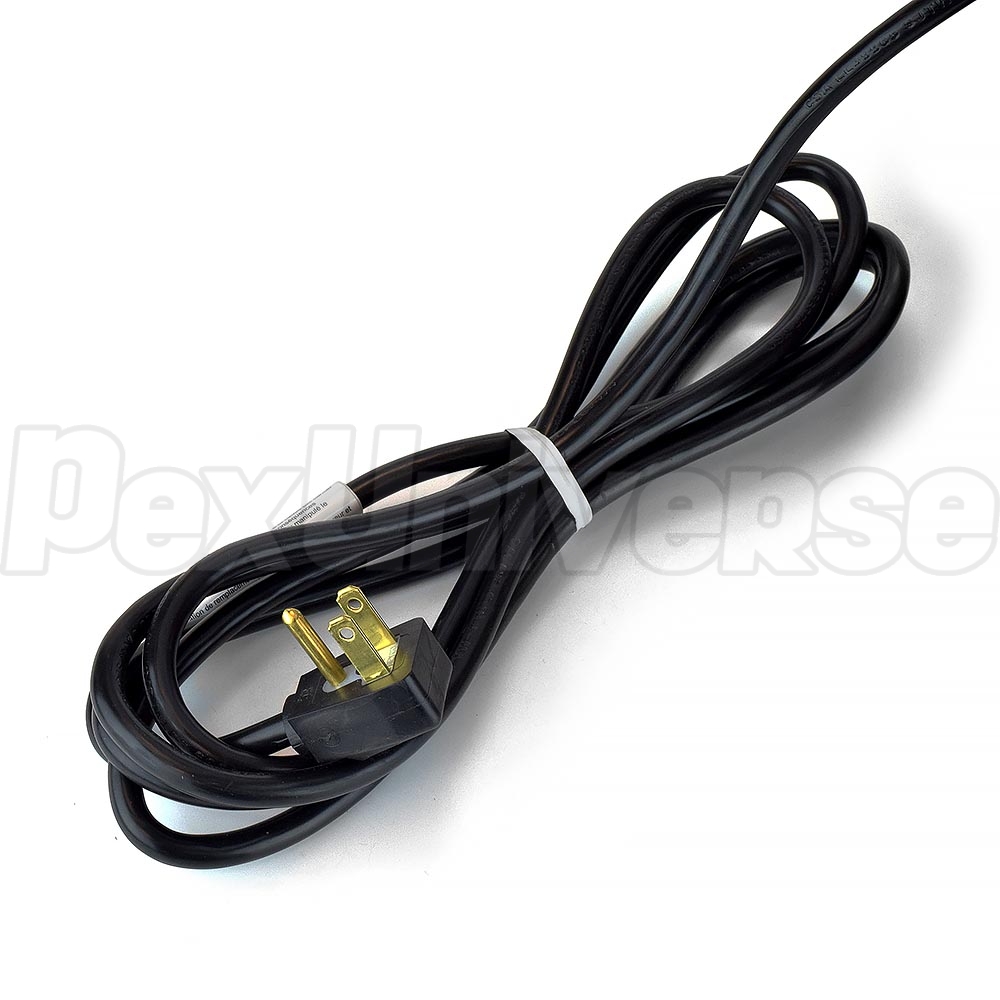

  • Quick-disconnect 10' standard power cord;
  • Maximum fluid temperature: 140°F;

Technical Specifications:

  • Horsepower: 1/2 HP;
  • Cord length: 10';
  • Discharge: 1-1/2";
  • Solids Handling: up to 3/4";

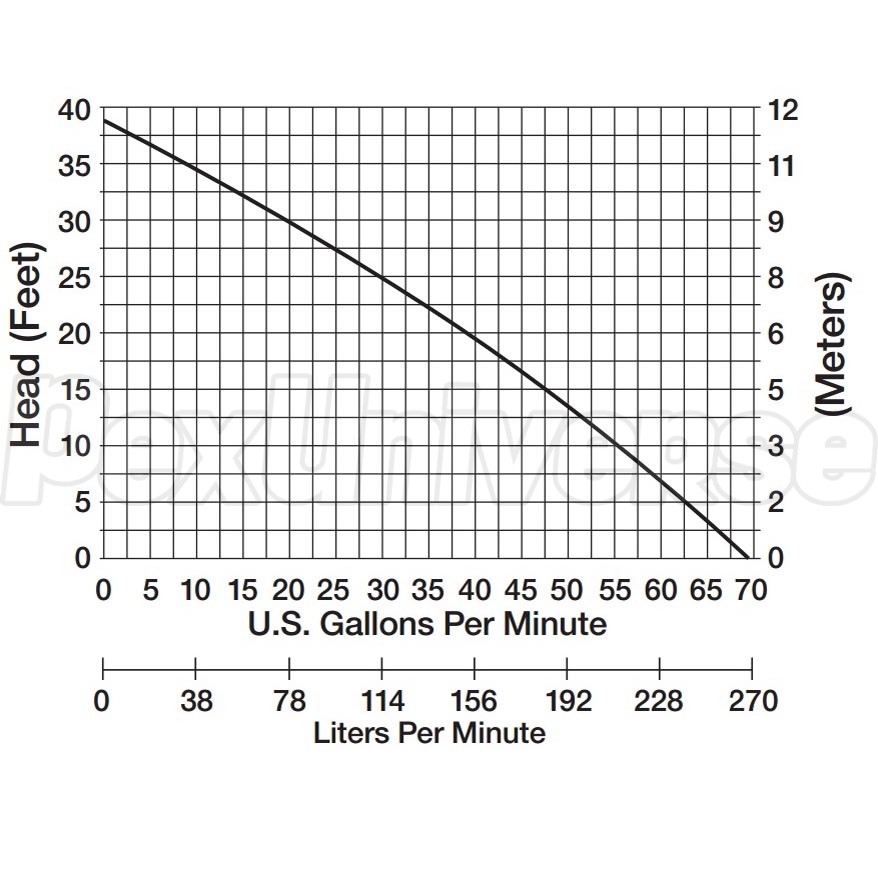

  • Shut-off Head: 37';
  • Voltage: 115V;
  • RPM: 3450;
  • Amps: 8.5;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Maximum fluid temperature: 140°F;
  • Height: 13";
  • Width: 10";
  • Weight: 29 lbs.;
  • Minimum sump pit diameter: 10";
  • Minimum sump pit depth: 14";
Automatic Sump/Effluent Pump w/ Vertical Float Switch, 10' cord, 1/2 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.

Liberty Pumps 287 Automatic Submersible Sump Pump
By Eugene K. (from Camas, WA) on 7/21/2012
Fast Shipping, working as promised.
