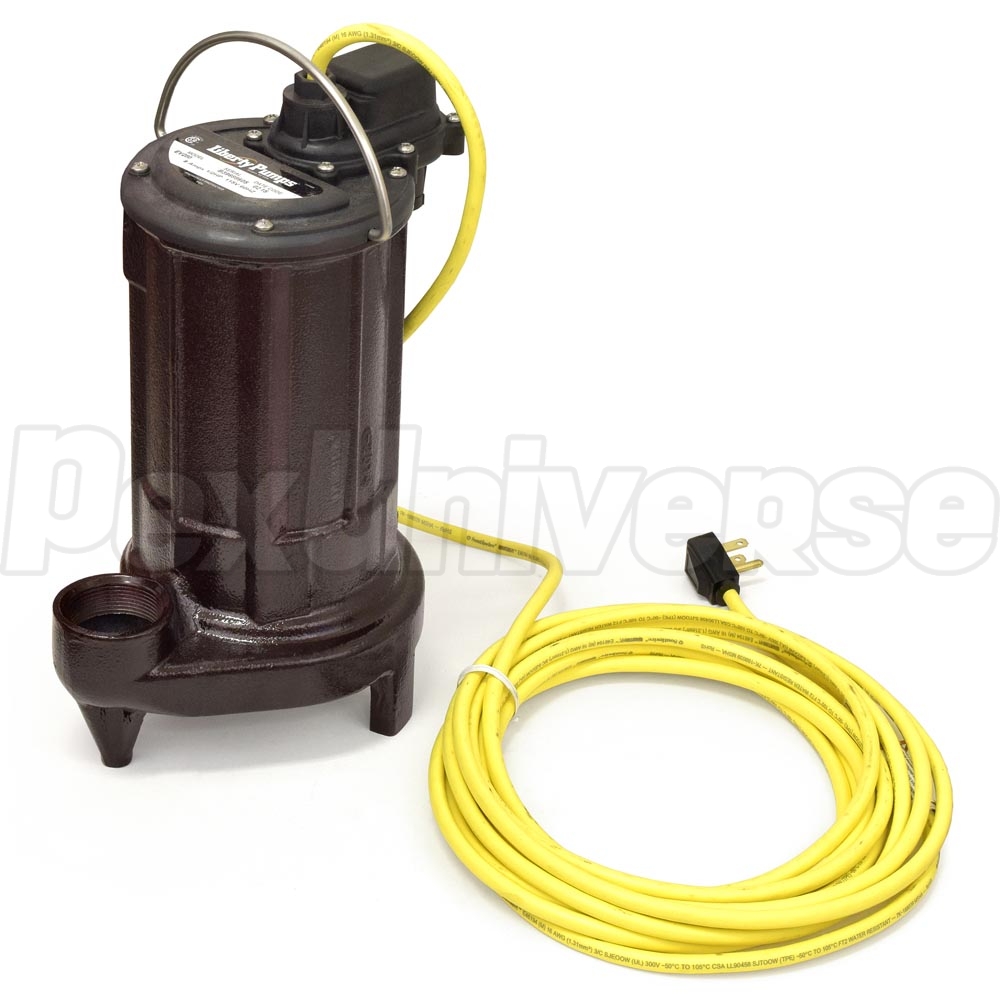

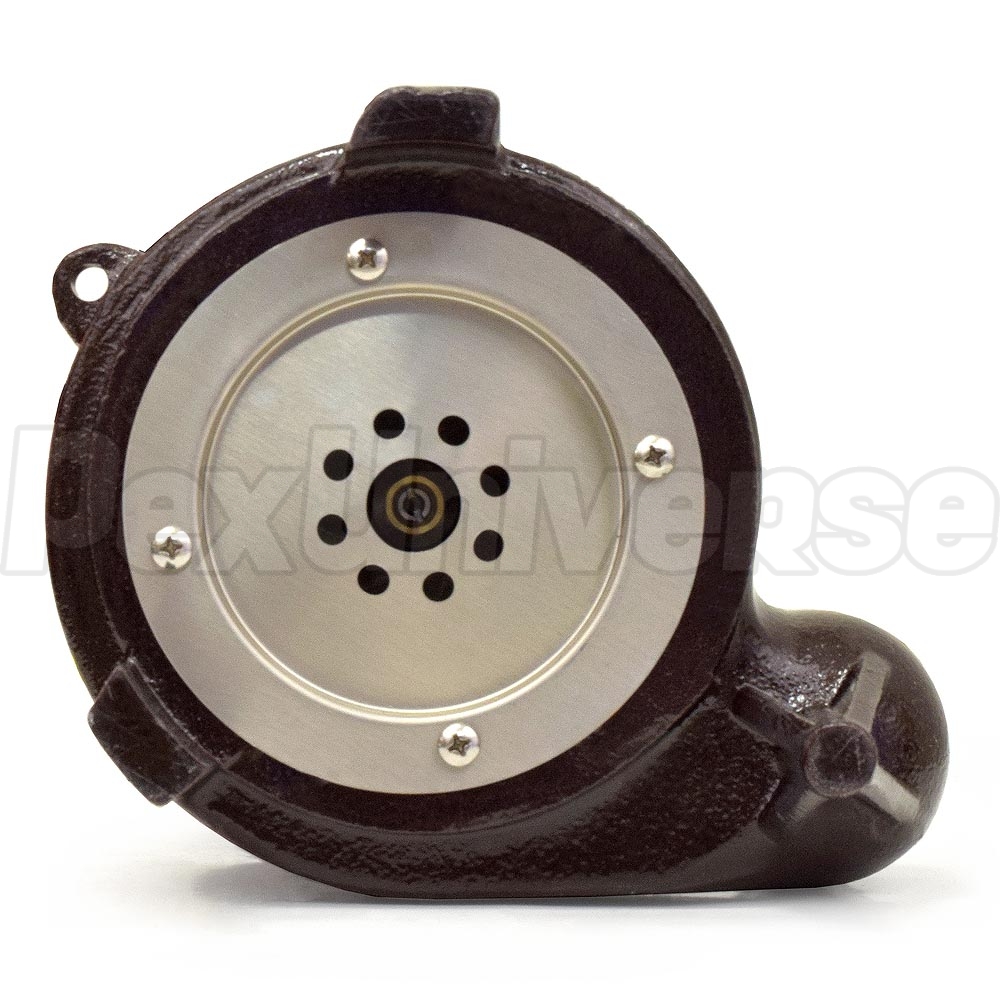

Liberty Pumps ELV280HV Automatic Elevator Sump Pump 1/2HP, 208-230VLiberty Pumps ELV280HV Automatic Elevator Sump Pump Intake 1/2HP, 208-230VLiberty Pumps ELV280HV Automatic Elevator Sump Pump Chart 1/2HP, 208-230V

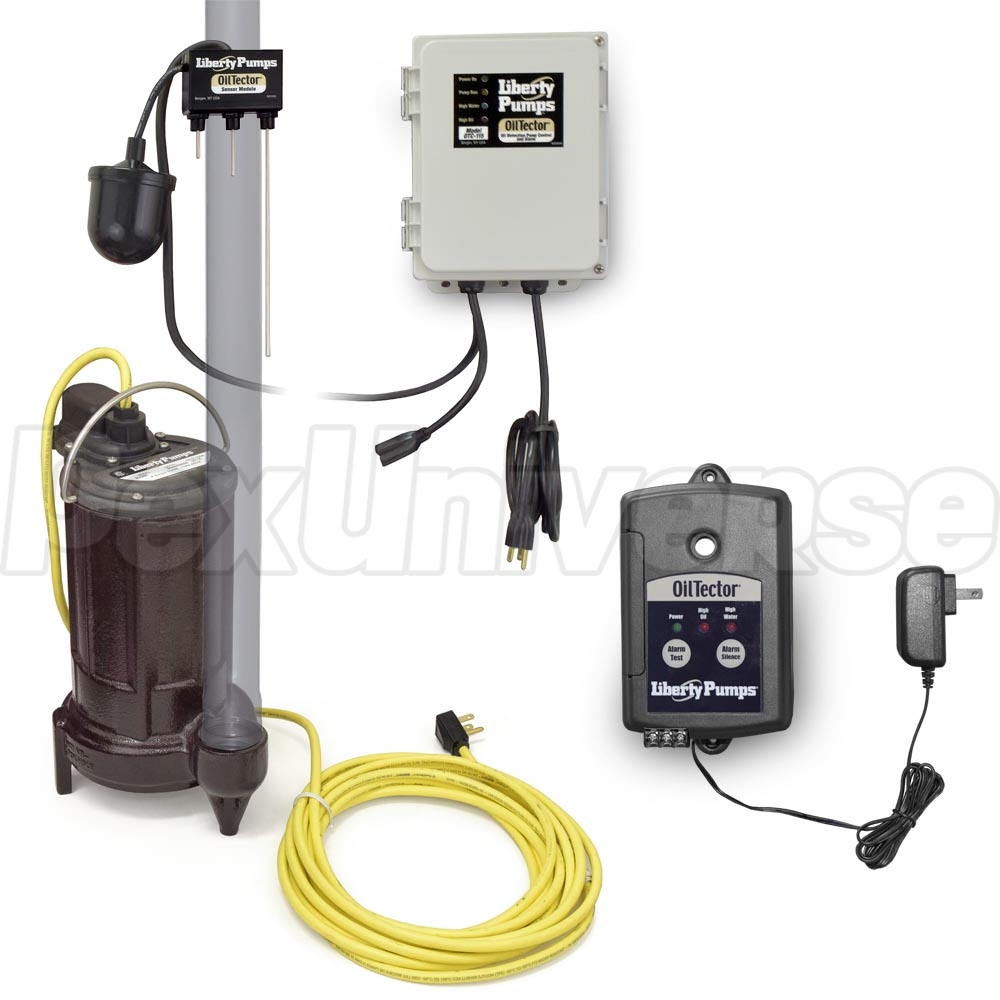

Liberty Pumps ELV280HV Automatic Elevator Sump Pump Set 1/2HP, 208-230V

Automatic Elevator Sump Pump System w/ OilTector Control, 1/2 HP, 230V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: ELV280HV

UPC#: 671812114867

Usually ships: within 5-7 business days
Qty Price
$1,886.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

The Liberty Pump ELV 280HV is a1/2HP, 208-230V elevator sump pump with a 25' ft. power cord. This elevator sump pump is ideal for elevators, garages, transformer vaults, manufacturing facilities and areas where the discharge of oil/hydrocarbons into the environment is prohibited. The Liberty ELV 280HV elevator sump pump can handle solids up to 3/4", has a 1-1/2" discharge and a shut-off head of 37'. It can also reach a maximum flow of 64 GPM at 5' of dynamic head.



This Liberty sump pump is equipped with an OilTector control system, which is designed and approved for safe operation of pumping, alarming and monitoring of elevator sump pits, transformer vaults and other applications where oil and water must be detected. The OilTector cycles the Liberty sump pump only in the water range. Oil and other harmful substances are not discharged into the environment. An alarm is activated in the event of a high water condition or high oil condition. The Liberty ELV 280HV elevator Sump Pump comes with oil resistant power cords and pump components. The OilTector system will activate the Liberty Pump ELV 280HV elevator sump pump to remove water from elevator pits in accordance with ASME17.1. The elevator sump pump will provide pumping of only water - even if an oil condition is detected.


Features:

  • Automatic: Yes with Control;
  • Heavy-duty 1/2 HP cast iron sump pump;
  • 3/4" Solids handling size;
  • Oil resistant SJEOOW cord (25' standard length);
  • Easy, clamp mounted pre-set level sensor holder;
  • No field adjustments required. OilTector will turn pumps on and off, sound the high water alarm and high oil alarm with one easy installation;
  • Control panel with separate pump and control circuits - Nema 1 enclosure;
  • Height 8.75" x Width 6.5" x Depth 5";
  • Plug-in ready pump cord and power to panel cord for quick and easy installation;
  • Remote alarm with additional auxiliary (24 VDC) contacts for connection to building automation system or SCADA system;
  • Audio/visual warning;
  • Power on, Pump Run, High water and High oil lights;
  • ASME17.1 Compliant;

Technical Specifications:

  • Horspower: 1/2 HP;
  • Voltage: 208-230 V;
  • Phase: 1;
  • Full load Amps: 4.6;
  • Locked Rotor Amps: 12.5;
  • Thermal overload temp: 248F;
  • Stator winding class: B;
  • Cord: 25';
  • Discharge: 1-1/2";
