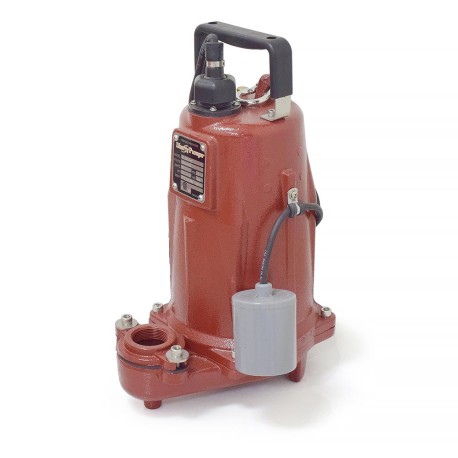

Automatic Effluent Pump w/ Wide Angle Float Switch, 25' cord, 2 HP, 208/230V Liberty Pumps
Automatic Effluent Pump w/ Wide Angle Float Switch, 25' cord, 2 HP, 208/230V
Brand: Liberty Pumps
Part#: FL202A-2
Usually ships: within 5-7 business days

Description

The Liberty Pump FL202A is an automatic submersible effluent sump pump with a 2HP, 230V motor that is enclosed in heavy-cast iron construction. The Liberty FL202A features a wide-angle mechanical float switch, sealed in PVC housing, which has a series (piggyback) plug for manual bypass operation. The switch on this submersible effluent sump pump has a turn-on level of 15" and turn-off level of 8". The Liberty FL202A submersible sump/effluent pump is equipped with a dual sized discharge of 1-1/2" FNPT and 2" FNPT for connection to either size pipe. This effluent sump pump can also handle solids up to 3/4" and has a shut-off head of 130'. These Liberty effluent pumps are designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The Liberty FL202A is built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners.


Features:
  • 3/4" Solids-handling
  • Heavy cast iron construction
  • 2 vane semi-open cast iron impeller
  • 416 stainless steel rotor shaft
  • Dual shaft seals. FL200-Series feature upper unitized silicon carbide, lower Viton double lip
  • Single float, mercury free level control
  • Additional mounting clamp provided for optional switch mounting to pipe
  • Fully adjustable pumping range
  • 2" FNPT threaded discharge with 1-1/2" FNPT flange provided
  • Quick-disconnect power cord - 25' length standard

Technical Specifications:
  • Horsepower: 2HP
  • Cord length: 25'
  • Discharge: 2" FNPT with 1-1/2" FNPT cast iron flange (included)
  • Solids Handling: up to 3/4"

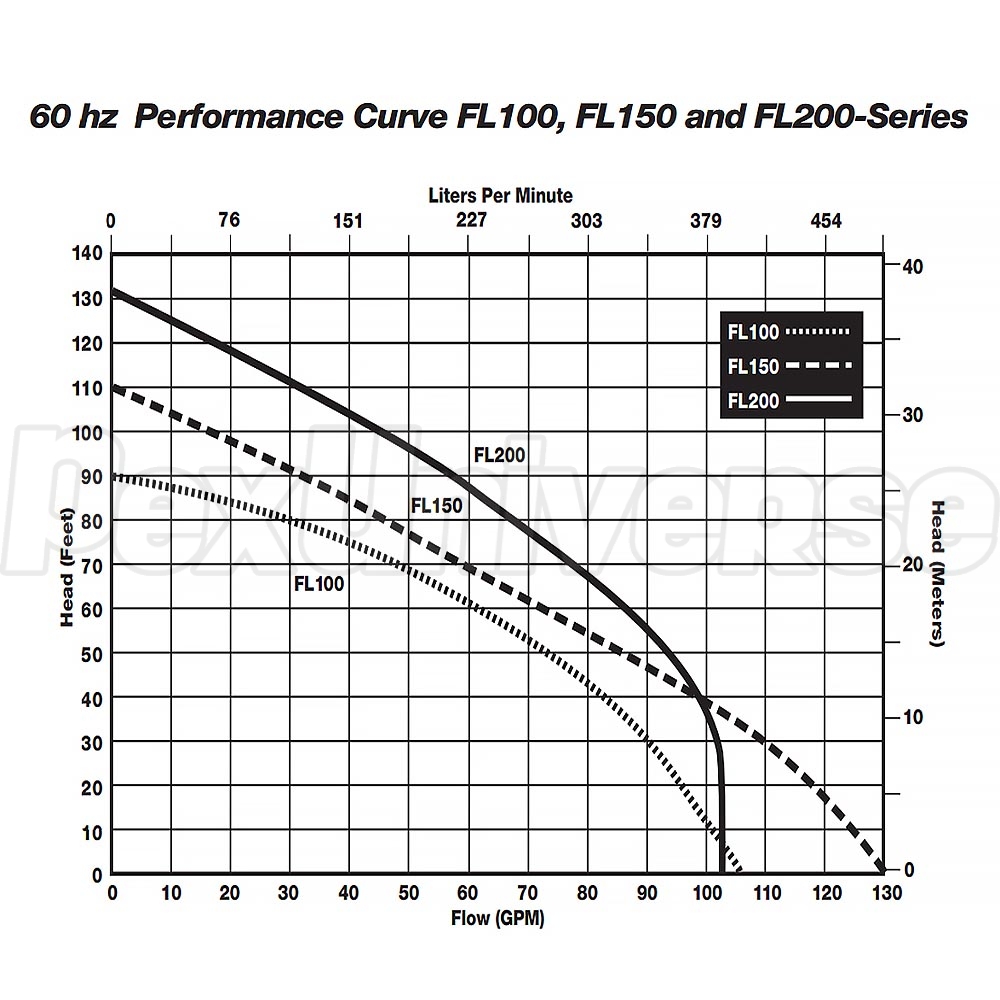

  • Shut-off Head: 130'
  • Voltage: 208-230V
  • RPM: 3450
  • Amps: 15
  • Hertz: 60 Hz
  • Phase: 1
  • Impeller: 2 vane, semi-open design
  • Maximum fluid temperature: 140°F
  • Weight: 82 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
