Liberty Pump Effluent FL202M curves

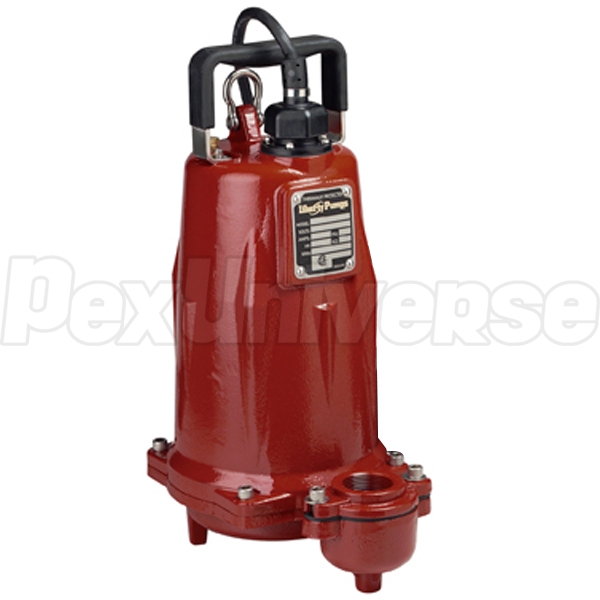

Liberty Pump Effluent FL202M

Manual Effluent Pump, 25' cord, 2 HP, 208/230V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: FL202M-2

UPC#: 671812114799

Usually ships: within 5-7 business days
Qty Price
$895.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Reviews
  • FAQs

The Liberty Pump FL202M is a manual 2HP, 230V submersible effluent sump pump with a motor that is enclosed in heavy-cast iron construction. The Liberty FL202M is intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. Regardless of the control type, be sure that when this effluent sump pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged. These Liberty effluent pumps are designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The Liberty FL202M submersible sump/effluent pump is equipped with a dual sized discharge of 1-1/2" FNPT and 2" FNPT for connection to either size pipe. This effluent sump pump can also handle solids up to 3/4" and has a shut-off head of 130'. The Liberty FL202M is built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners.


Features:

  • 3/4" Solids-handling;
  • Heavy cast iron construction;
  • 2 vane semi-open cast iron impeller;
  • 416 stainless steel rotor shaft;
  • Dual shaft seals. FL200-Series feature upper unitized silicon carbide, lower Viton double lip;
  • Single float, mercury free level control;
  • Additional mounting clamp provided for optional switch mounting to pipe;
  • Fully adjustable pumping range;
  • 2" FNPT threaded discharge with 1-1/2" FNPT flange provided;
  • Quick-disconnect power cord - 25' length standard;

Technical Specifications:

  • Horsepower: 2HP;
  • Cord length: 25';
  • Discharge: 2" FNPT with 1-1/2" FNPT cast iron flange (included);
  • Solids Handling: up to 3/4";
  • Shut-off Head: 130';
  • Voltage: 208-230V;
  • RPM: 3450;
  • Amps: 15;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Impeller: 2 vane, semi-open design;
  • Maximum fluid temperature: 140°F;
  • Weight: 82 lbs.;
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications;
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications;
