Manual Effluent Pump, 25' cord, 1/3 HP, 115V Liberty Pumps
Manual Effluent Pump, 25' cord, 1/3 HP, 115V
Brand: Liberty Pumps
Part#: FL31M-2
Usually ships: within 5-7 business days

Description

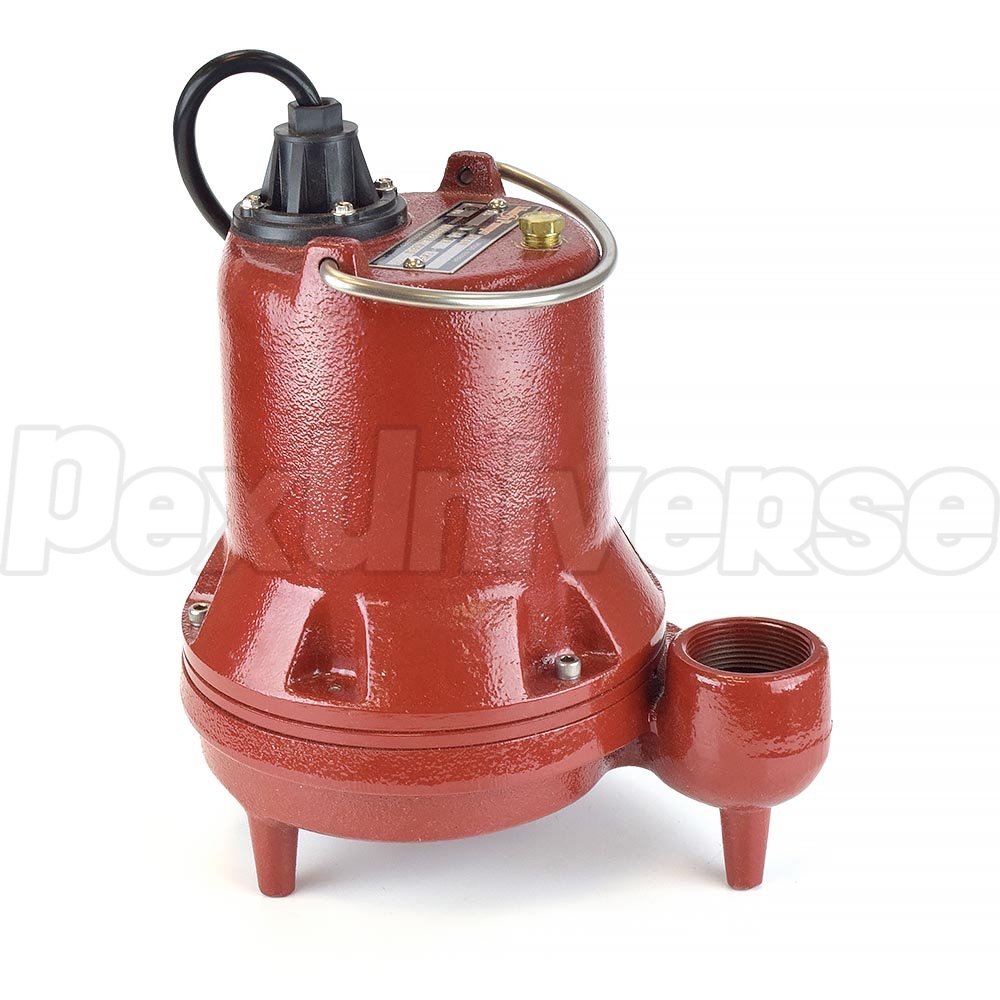

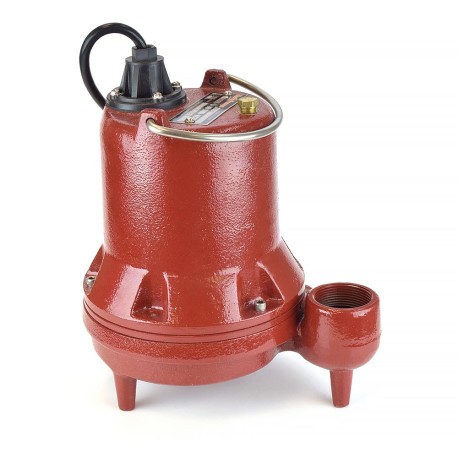

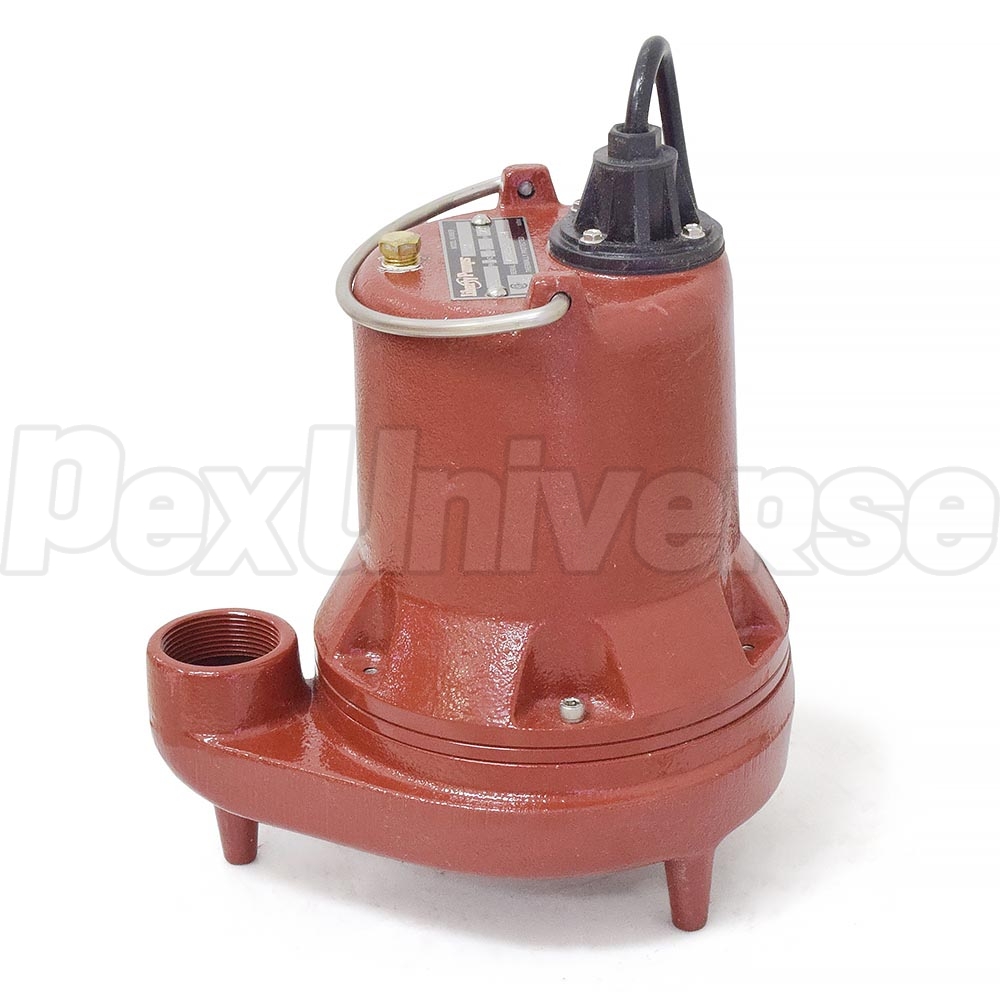

The Liberty Pump FL31M-2 is a manual submersible effluent sump pump with a 1/3HP, 115 V motor and a 25' quick-disconnect power cord. The Liberty FL31M-2 submersible effluent sump pump has a discharge of 1-1/2" NPT. Regardless of the control type, be sure that when the Liberty FL31M-2 effluent sump pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged. The Liberty Pump FL31M-2 features vortex style impeller made of high temperature engineering polymer, which allows for 3/4" solids handling. This sump/effluent pump can handle liquids up 140F and has a 19' shut off head.

This submersible sump/effluent pump is intended to be run using an approved liquid level control or approved motor control. The minimum pit diameter on this sump/effluent pump is 14" in sump conditions and 18" in effluent conditions. The Liberty FL31M-2 was specifically designed for STEP Systems, LPP Systems, Mound Systems, Liquid Waste Transfer and Commercial Sump Applications. This pump should not be run dry.


Features:

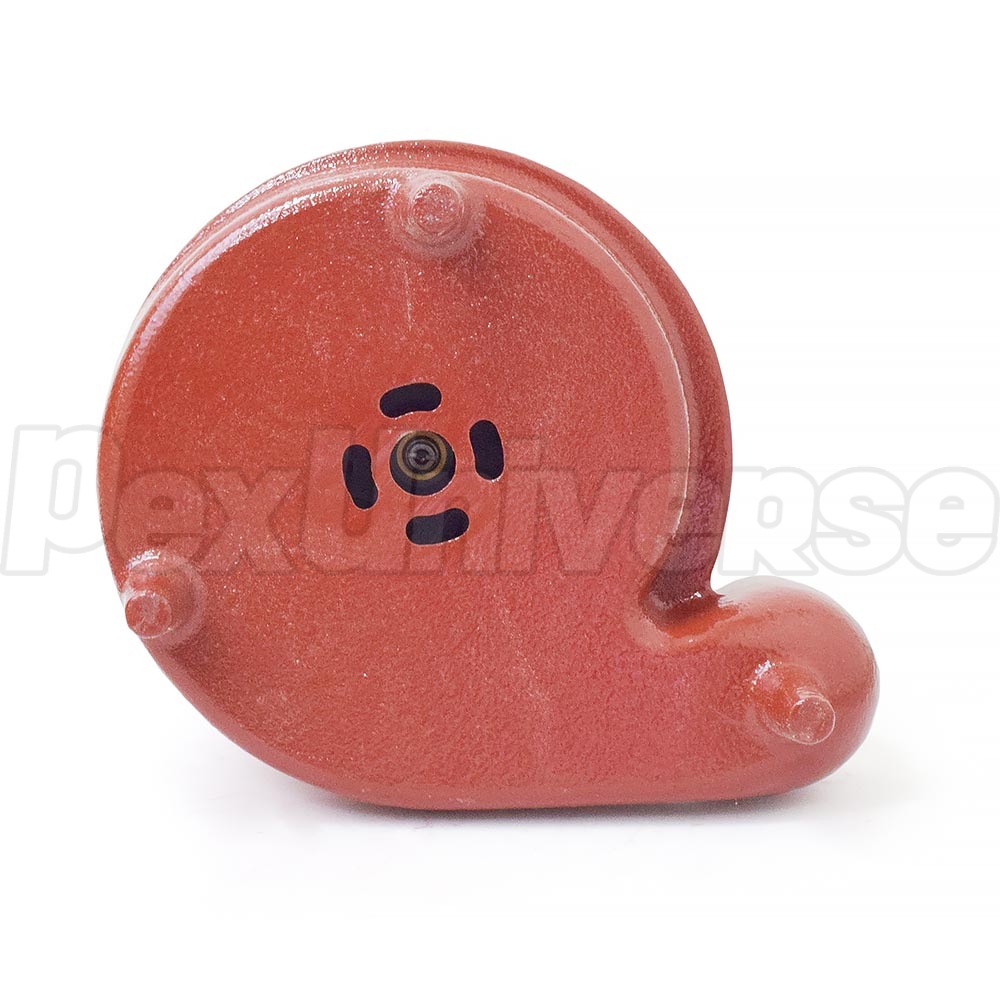

  • Vortex impeller, made of high temperature engineering polymer, permits passage of solids without clogging
  • 416 stainless steel rotor shaft
  • Oil-filled, thermally protected motor
  • Unitized shaft seal
  • 1-1/2" FNPT discharge
  • Quick-disconnect 25' standard power

Technical Specifications:
  • Horsepower: 1/3 HP
  • Cord length: 25'
  • Discharge: 1-1/2" FNPT
  • Solids Handling: up to 3/4"

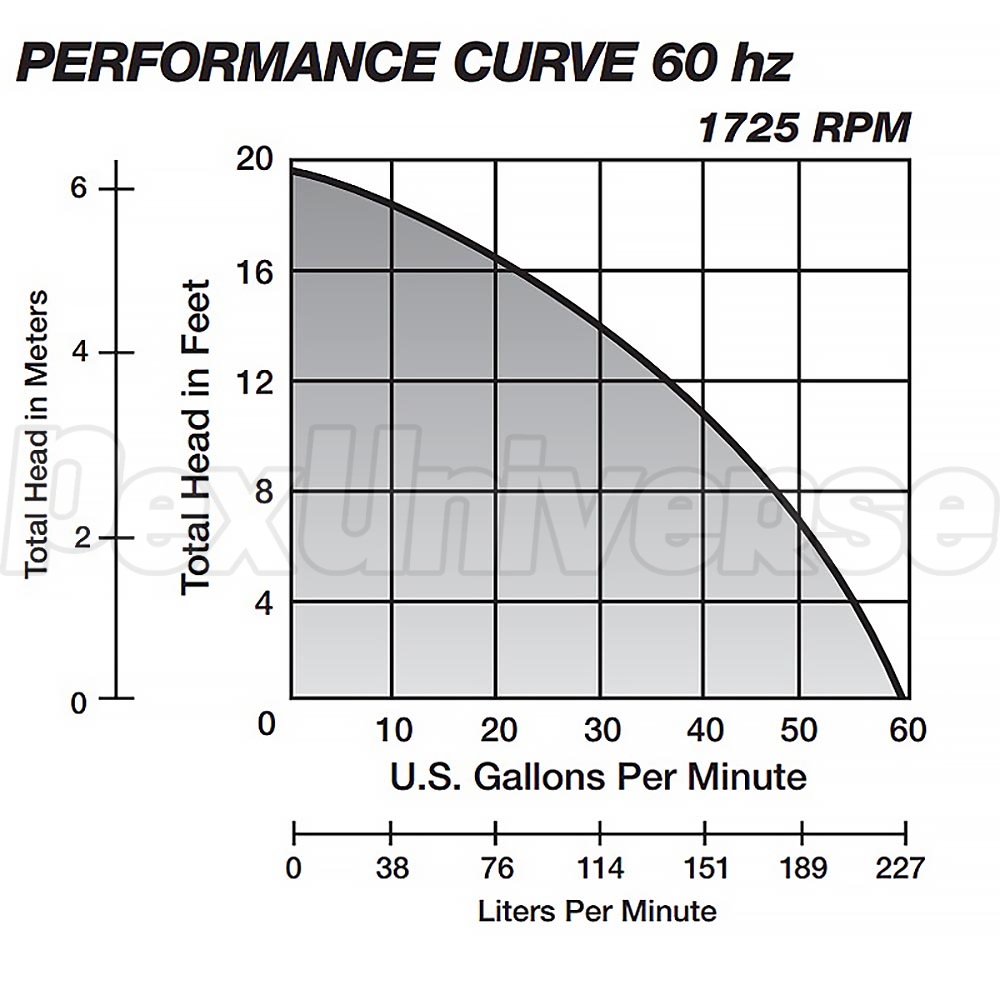

  • Shut-off Head: 19'
  • Voltage: 115V
  • Amps: 12
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 9.6"
  • Width: 9.8"
  • Weight: 32 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
