Automatic Effluent Pump w/ Wide Angle Float Switch, 25' cord, 1/2 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: FL51A-2

UPC#: 671812102963

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$579.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

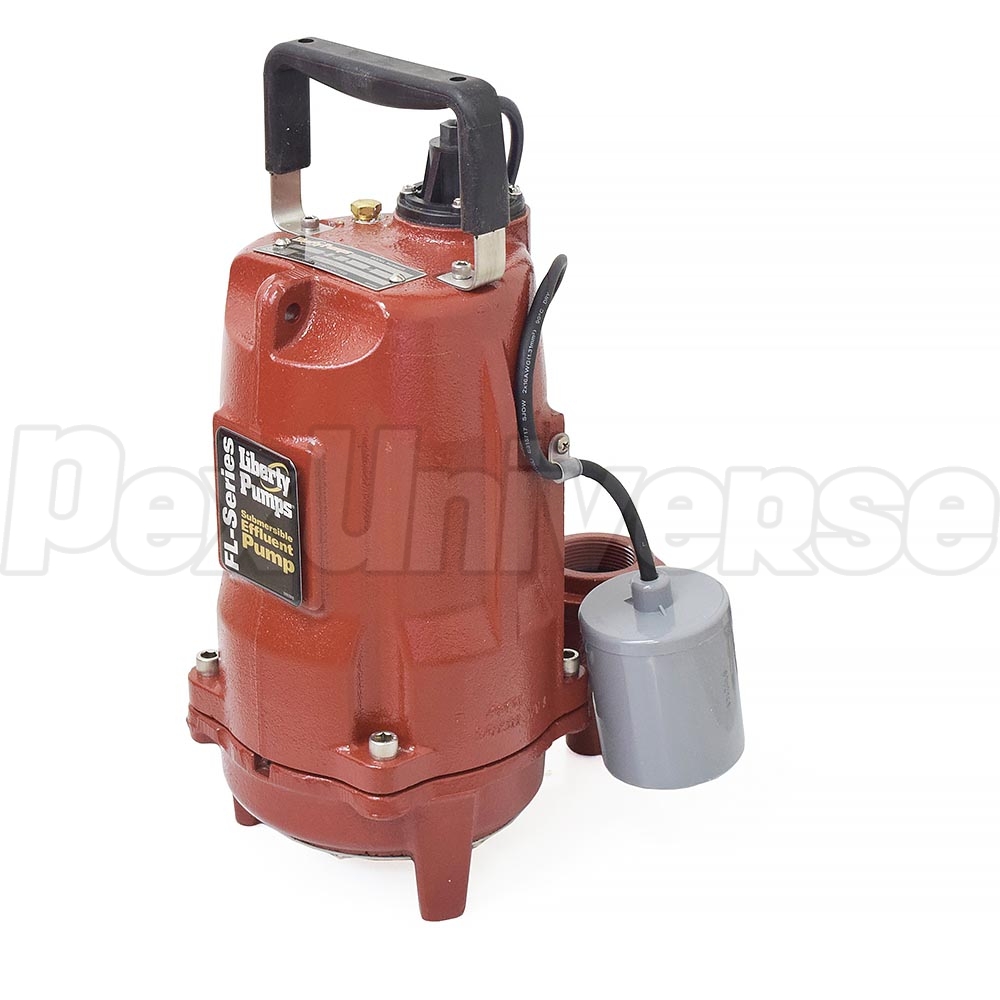

The Liberty Pump FL51A-2 is a 1/2 HP, 115V automatic submersible effluent sump pump with a 25' quick-disconnect power cord. This sump/effluent pump comes with an adjustable, mercury-free switch that has a series (piggy-back) plug for manual bypass operation. The switch has a turn-on level of 12" and turn-off level of 5". This effluent sump pump has a discharge of 1-1/2"FNPT and solid-handling capabilities of 1/2".



The Liberty Pump FL51A-2 automatic submersible sump/effluent pump is ideal for mid-range applications and has a shut-off head of 48'. These effluent sump pumps are designed for STEP systems, liquid waste transfer and higher head de-watering applications.


Features:

  • Semi-open impeller permits passageof solids without clogging;
  • Cast iron construction with all stainless and brass fasteners;
  • 416 stainless steel rotor shaft;
  • Oil-filled, hermetically sealed motors with thermal overload protection;
  • Permanently lubricated upper and lower ball bearings;
  • Unitized, carbon and ceramic shaft seal;
  • Single float, mercury-free level control with series plug for manual bypass operation - standard on automatic models;
  • Adjustable pumping range;
  • 1-1/2" FNPT discharge;

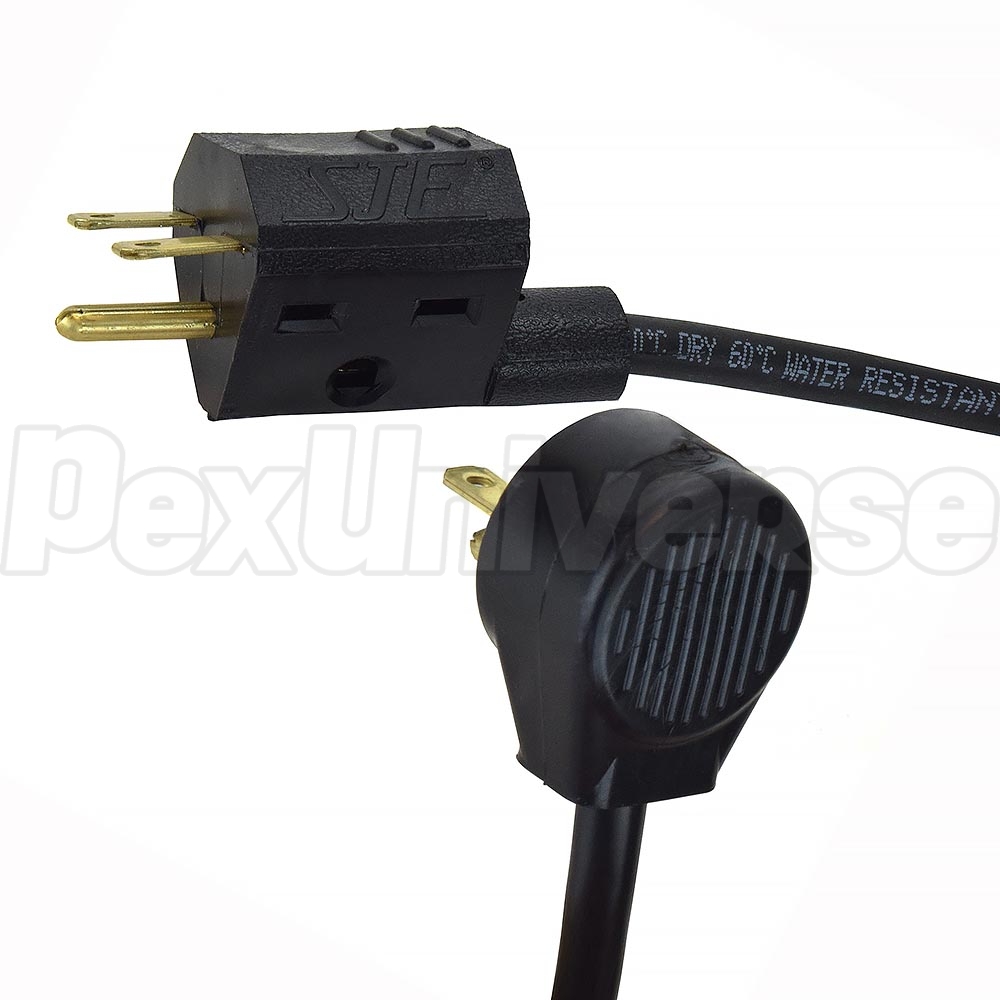

  • Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor;

Technical Specifications:

  • Horsepower: 1/2 HP;
  • Cord length: 25';
  • Discharge: 1-1/2" FNPT;
  • Solids Handling: up to 1/2";
  • Shut-off Head: 48';
  • Voltage: 115V;
  • Amps: 12;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Maximum fluid temperature: 140°F;
  • Height: 13.75";
  • Width: 10.25";
  • Weight: 57 lbs.;
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications;
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications;
