Automatic High Temperature Sump Pump (200F) w/ Wide Angle Float Switch, 25' cord, 4/10 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: HT41A-2

UPC#: 671812103557

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$392.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

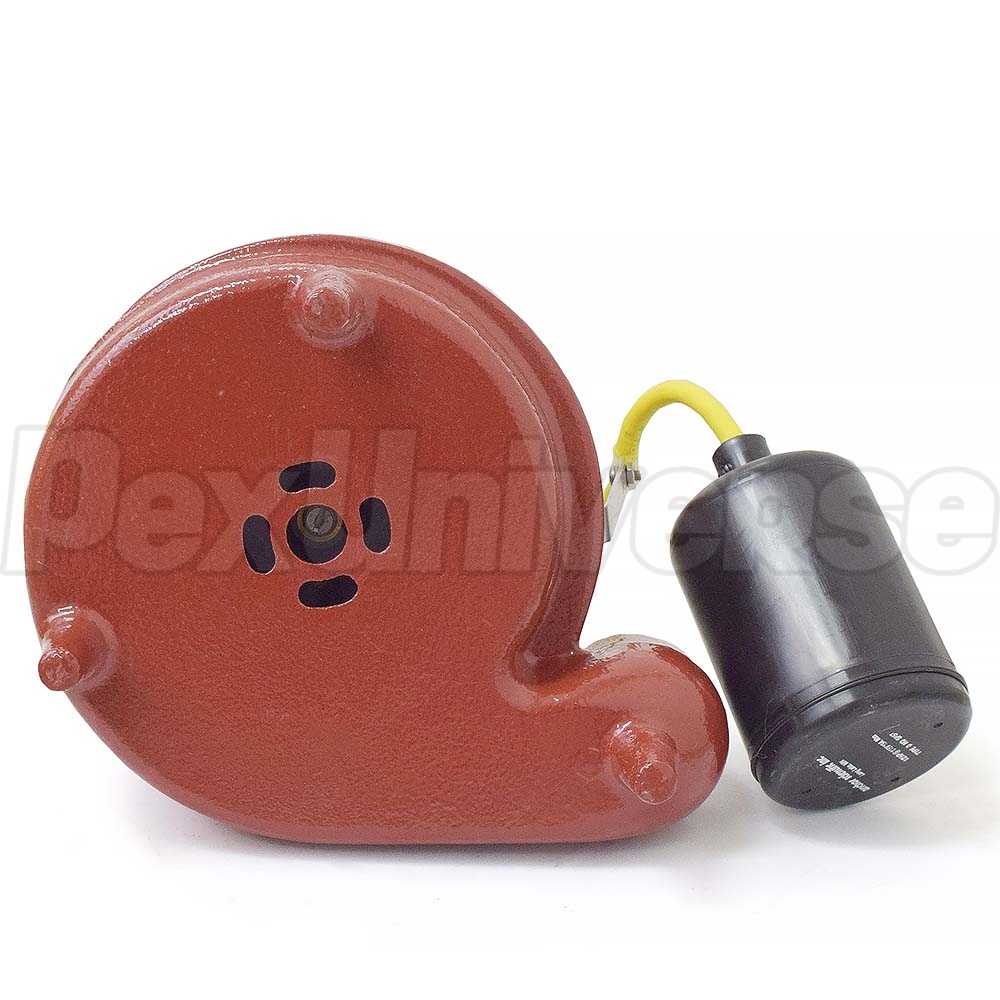

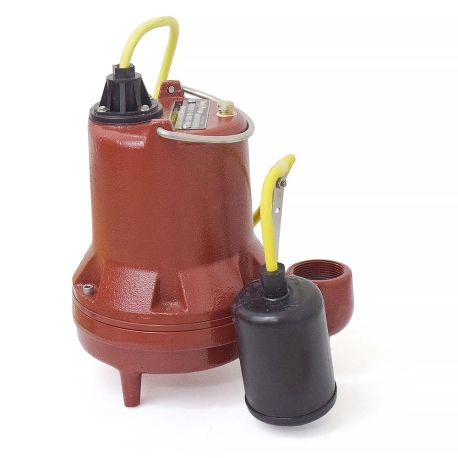

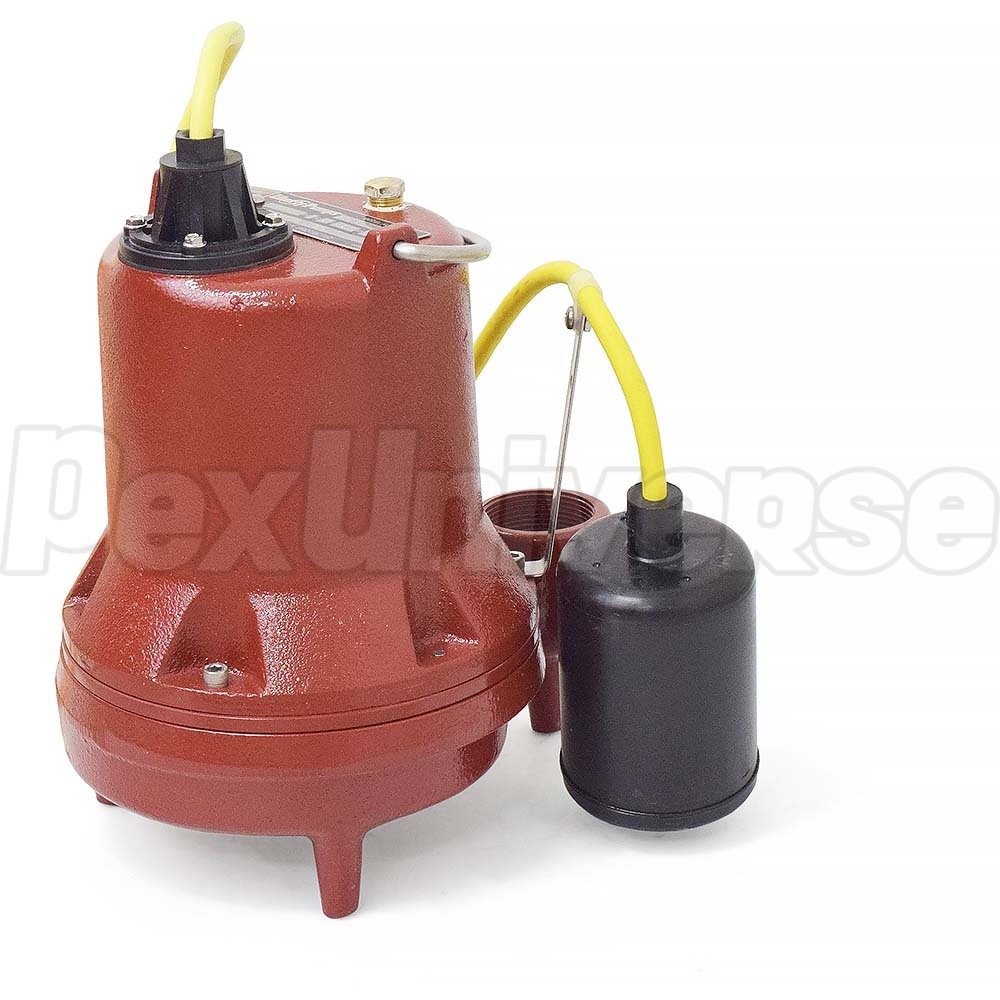

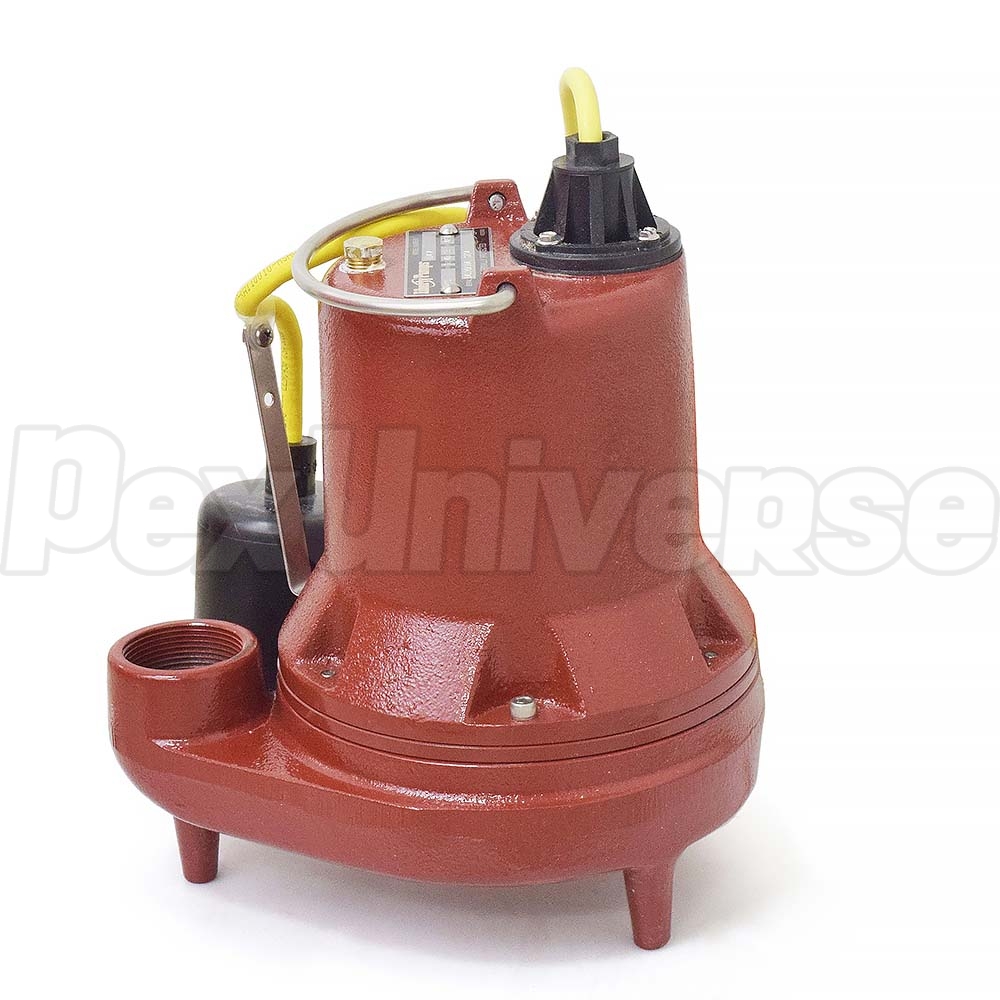

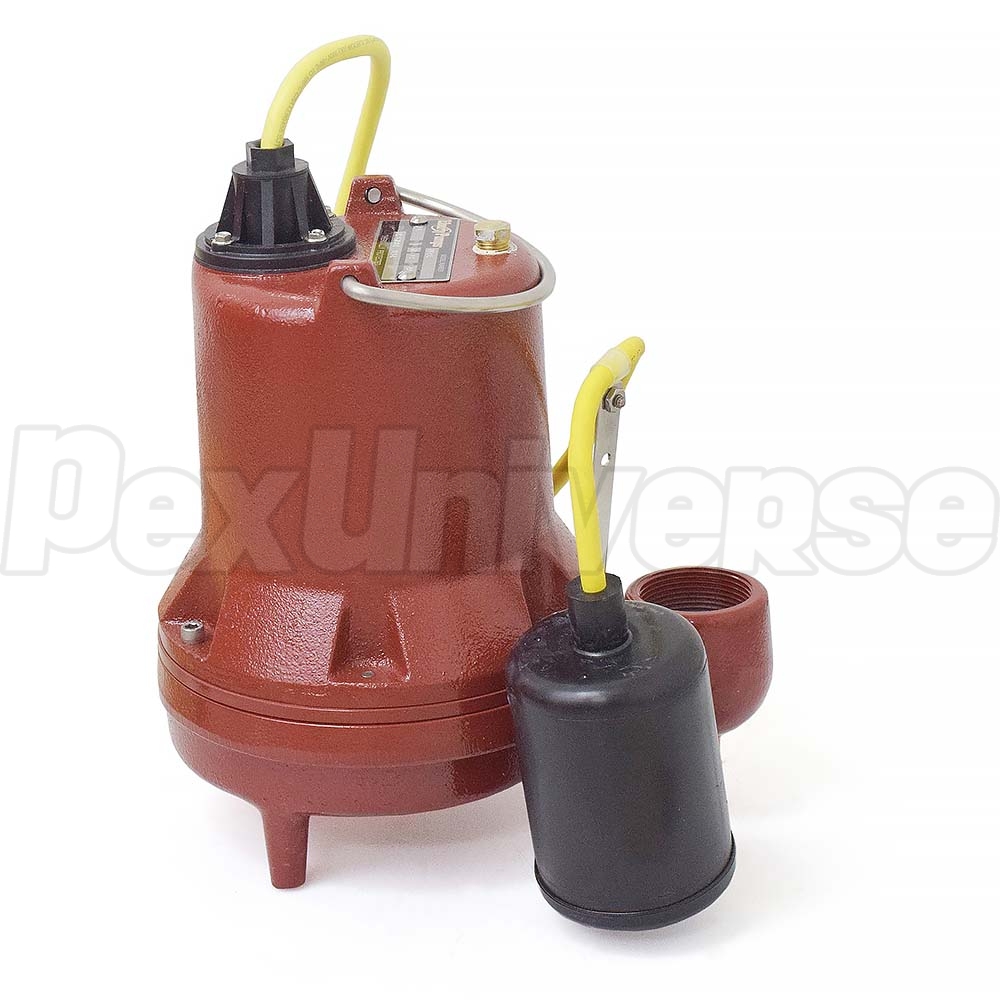

The Liberty HT41A-2 Pump is a high temperature, automatic submersible sump pump with a 4/10HP motor. The Liberty HT41A-2 sump pump is designed for hot-water applications, such as boiler blow-down pits, condensate pits and high temperature water transfer. This Liberty sump pump comes with a 25-ft. power cord and can handle liquid temperatures up to 200 degrees F. It also comes with a series plug for manual by-pass operation.

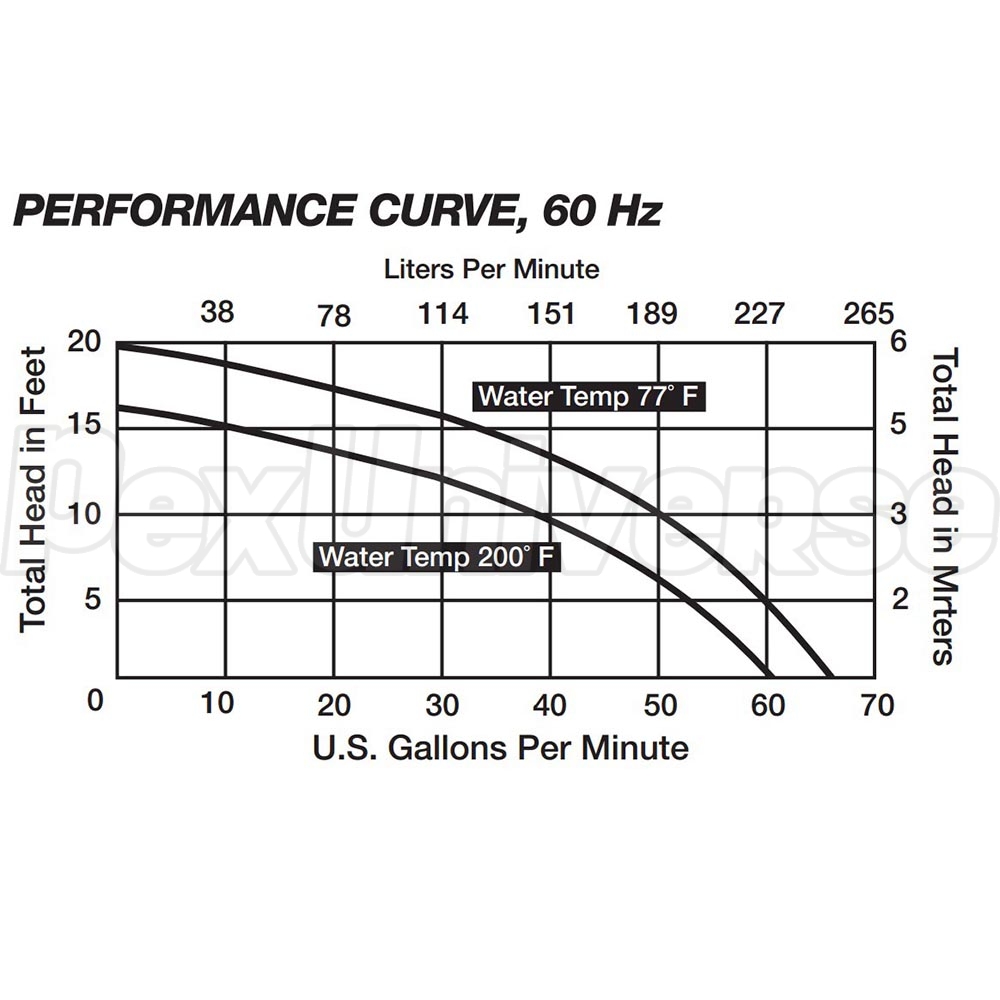

This high temperature, automatic submersible sump pump can handle solids up 3/4" and has a 1-1/2" FNPT discharge. It has a shut-off head of 16' at 200F water temperature and 20' at 77F. The Liberty HT41A-2 high temperature sump pumps can a reach a maximum flow of 59 GPM. This Liberty sump pump also has cast iron construction with all stainless and brass fasteners, and a stainless steel rotor shaft that provides ultimate performance and reliability.


Features:

  • Vortex impeller, made of high temperature engineered thermoplastic, permits passage of solids without clogging;
  • Cast iron construction with all stainless and brass fasteners;
  • 416 stainless steel rotor shaft;
  • Oil-filled, thermally protected motor;
  • Permanently lubricated bearings;
  • Unitized shaft seal;

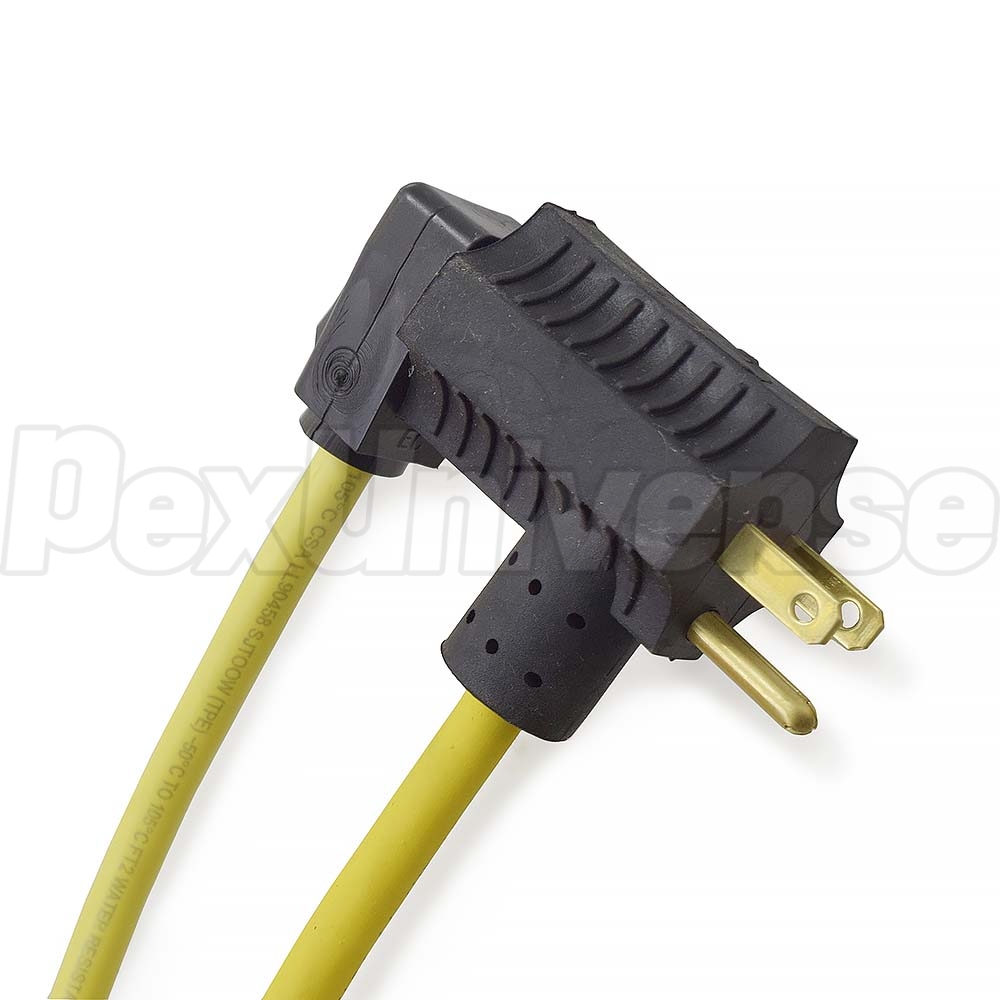

  • 25' U.L. approved power cord with quick disconnect design;
  • 1-1/2" FNPT discharge;

Technical Specifications:

  • Horsepower: 4/10 HP;
  • Automatic: Yes;
  • Discharge: 1 1/2" FNPT;
  • Solids Handling: 3/4";
  • Voltage: 115V;
  • Phase: 1;
  • Full load amps: 12;
  • Locked rotor amps: 23;
  • Thermal overload temp: 302F;
  • Stator winding class: F;
  • Cord lenth: 25';
  • Weight: 39 lbs;
  • Height: 9.6";
  • Major Width: 9.8";
  • Maximum fluid temperature: 200F;
