Manual High Temperature Sump Pump (180F), 10' cord, 1/2 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: HT450

UPC#: 671812114317

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$246.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

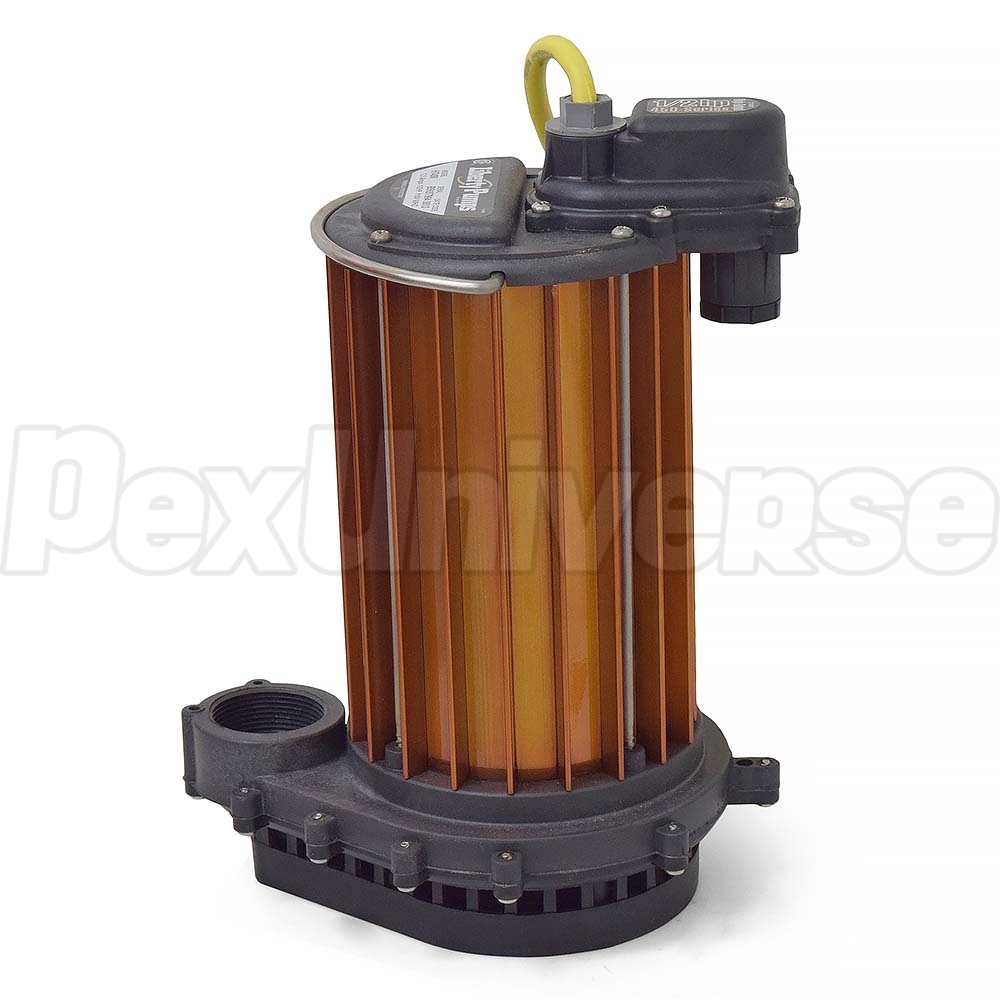

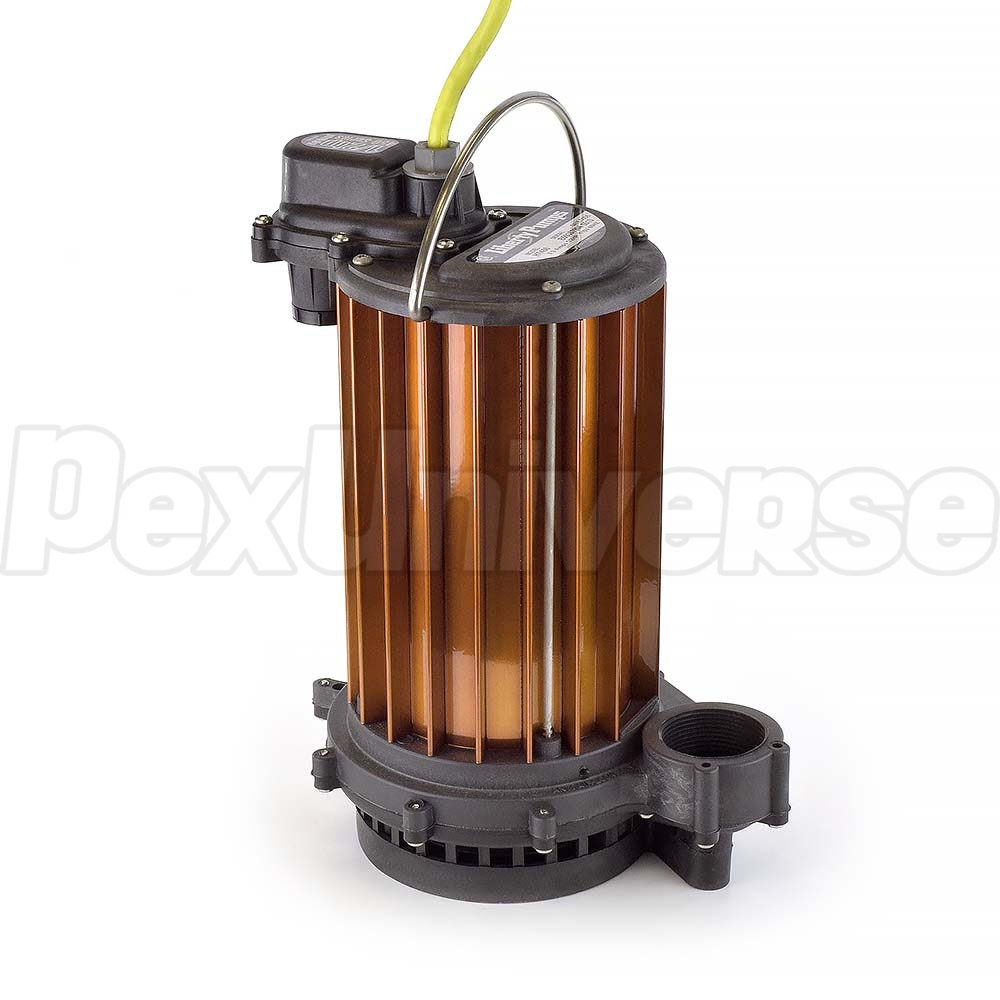

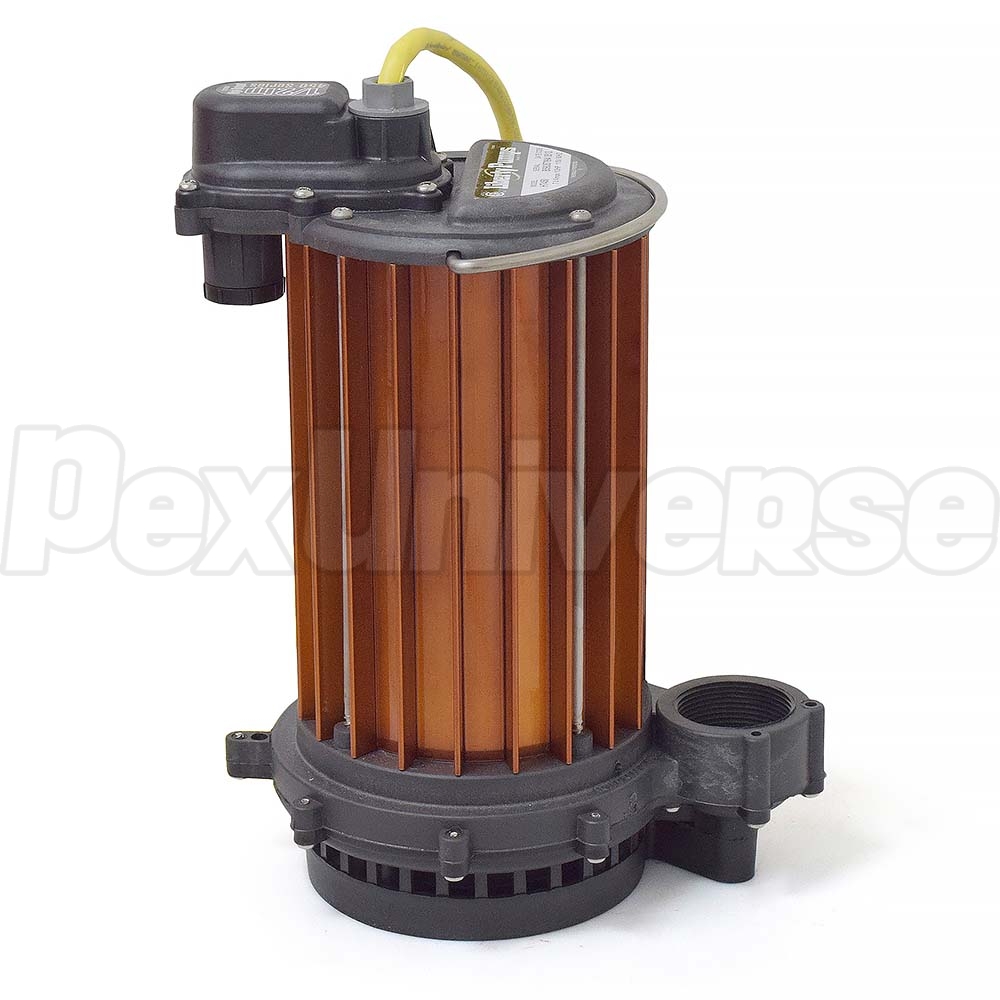

The Liberty Pump HT450 is 1/2HP, high temperature, manual submersible sump pump that can handle liquids up 180 degrees Fahrenheit. This manual sump pump is specifically designed for hot water applications such as boiler blow-down pits, condensate pits and high temperature water transfer. The Liberty Pump HT 450 manual submersible sump pump can handle solids up to 3/4" and have a discharge of 1-1/2" FNPT.

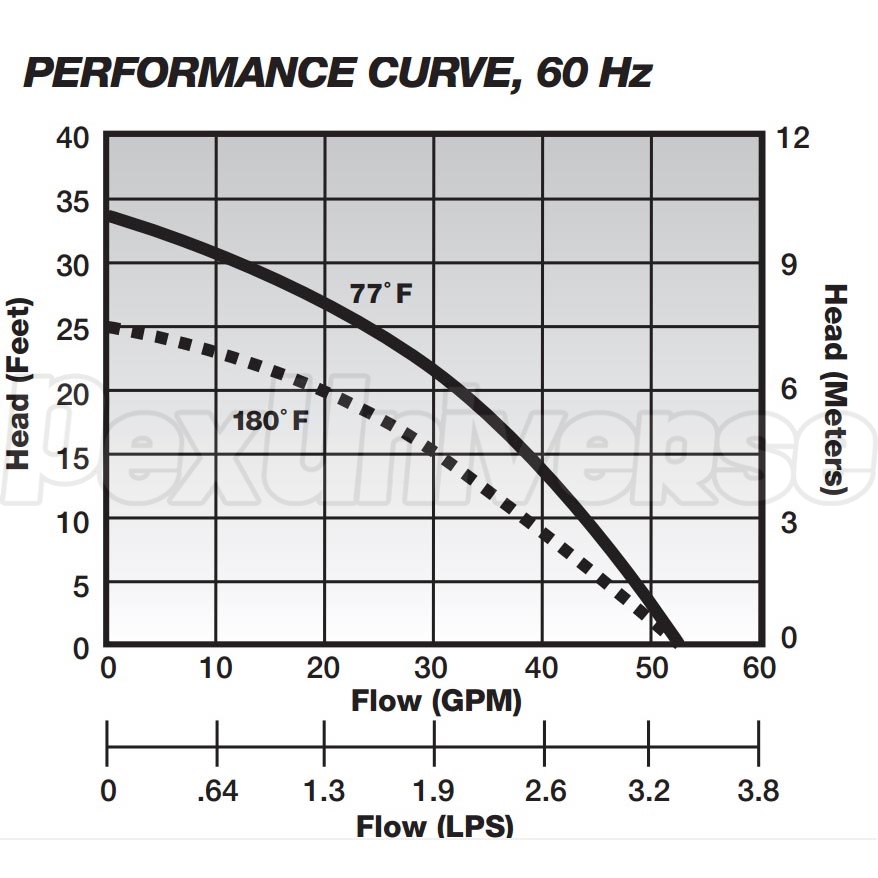

This manual sump pump model can reach a maximum flow of 47GPM and has shut-off head of 25' at 180F and 34' at 77F. The new Liberty HT450 has a powerful, oil-filled, thermally protected motor with permanently lubricated bearings and unitized shaft seal. The Vortex impeller is made of high temperature, engineered thermoplastic that permits passage of solids without clogging on this submersible sump pump. Aluminum construction with all stainless and brass fasteners and a stainless steel rotor shaft provides the Liberty HT 450 with ultimate performance and reliability. The manual HT450 High Temperature Sump Pump is operable by means of a pump control panel.


Features:

  • Vortex style impeller permits passage of solidswithout clogging. Made of high temp engineered thermoplastic.
  • Fiberglass reinforced nylon and powder coated aluminum construction.
  • Stainless steel rotor shaft.
  • All fasteners - non-corrosive stainless steel.

Technical Specifications:

  • Horsepower: 1/2HP;
  • Discharge: 1 1/2";
  • Solids Handling: 3/8";
  • Voltage: 115V;
  • Phase: 1;
  • Full load amps: 7.3;
  • Locked rotor amps: 16;
  • Thermal overload temp: 284F;
  • Stator winding class: F;

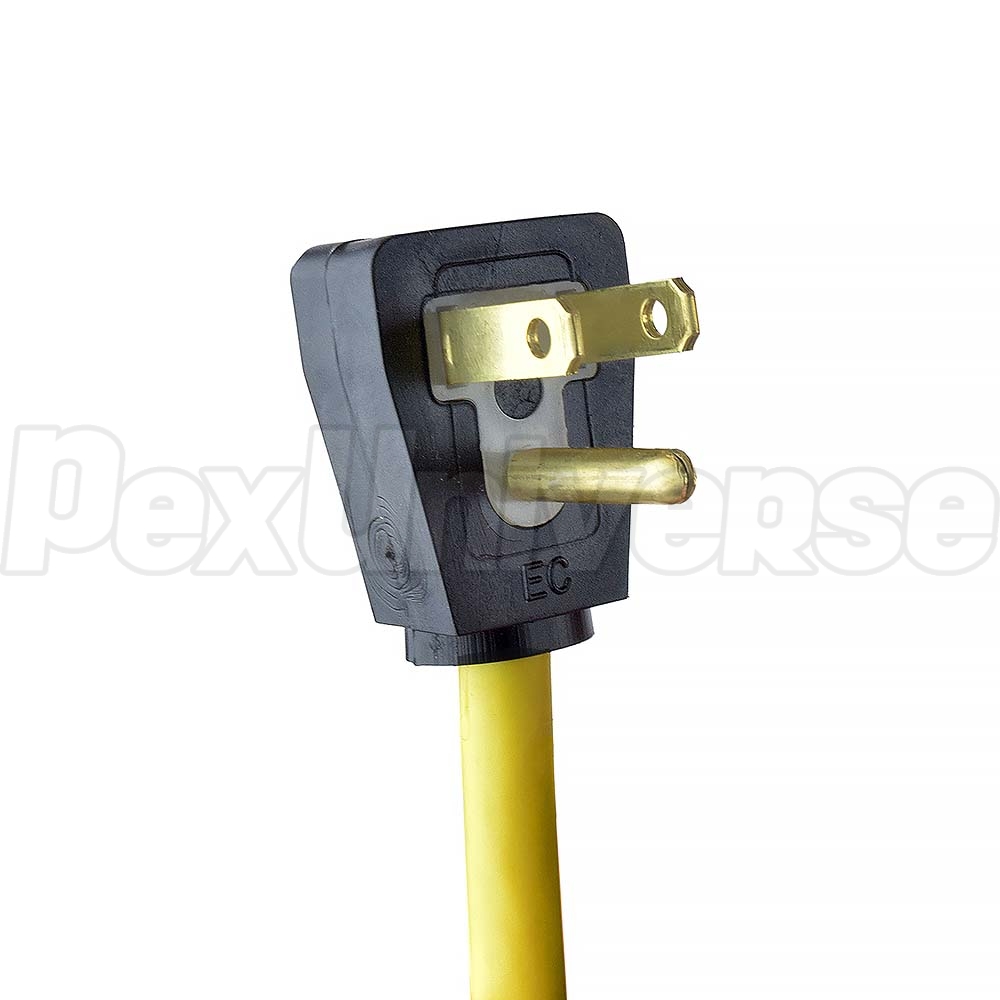

  • Cord lenth: 10';
  • Weight: 12.5 lbs;
  • Height: 12.5";
  • Major Width: 9.6";
