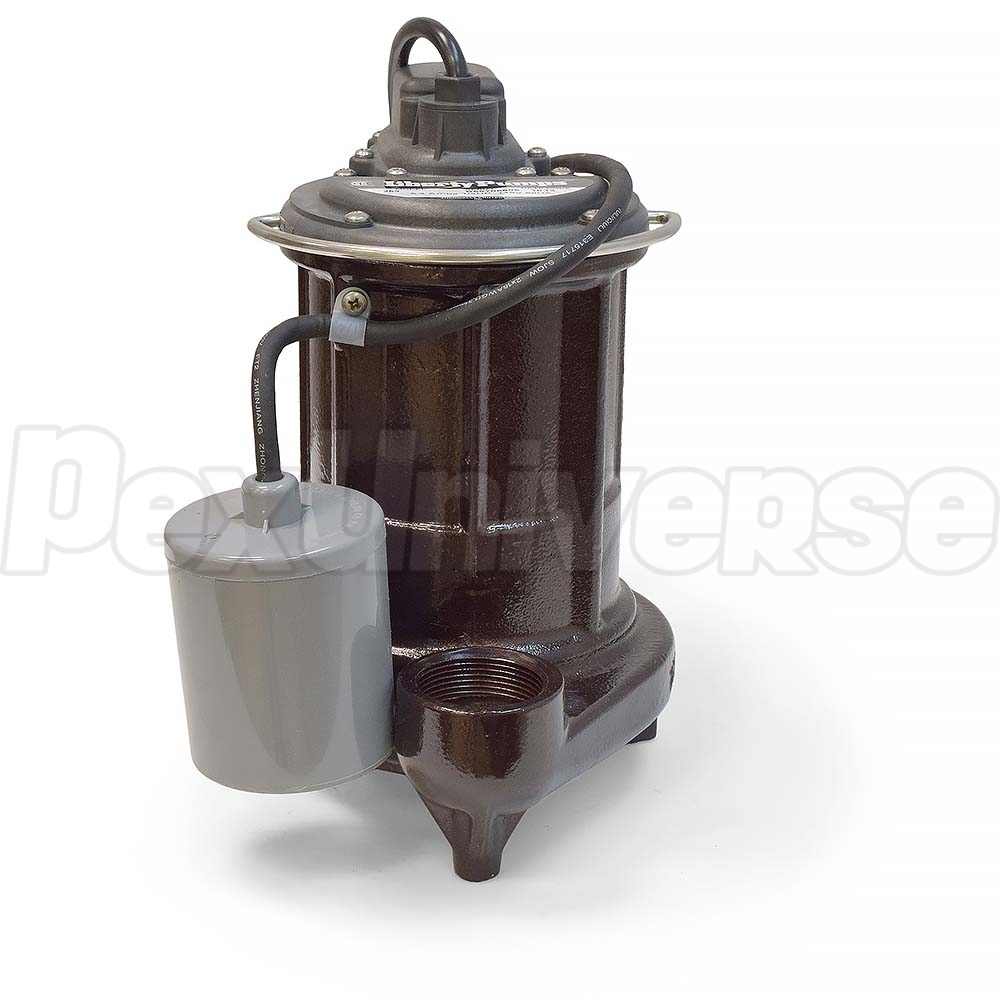

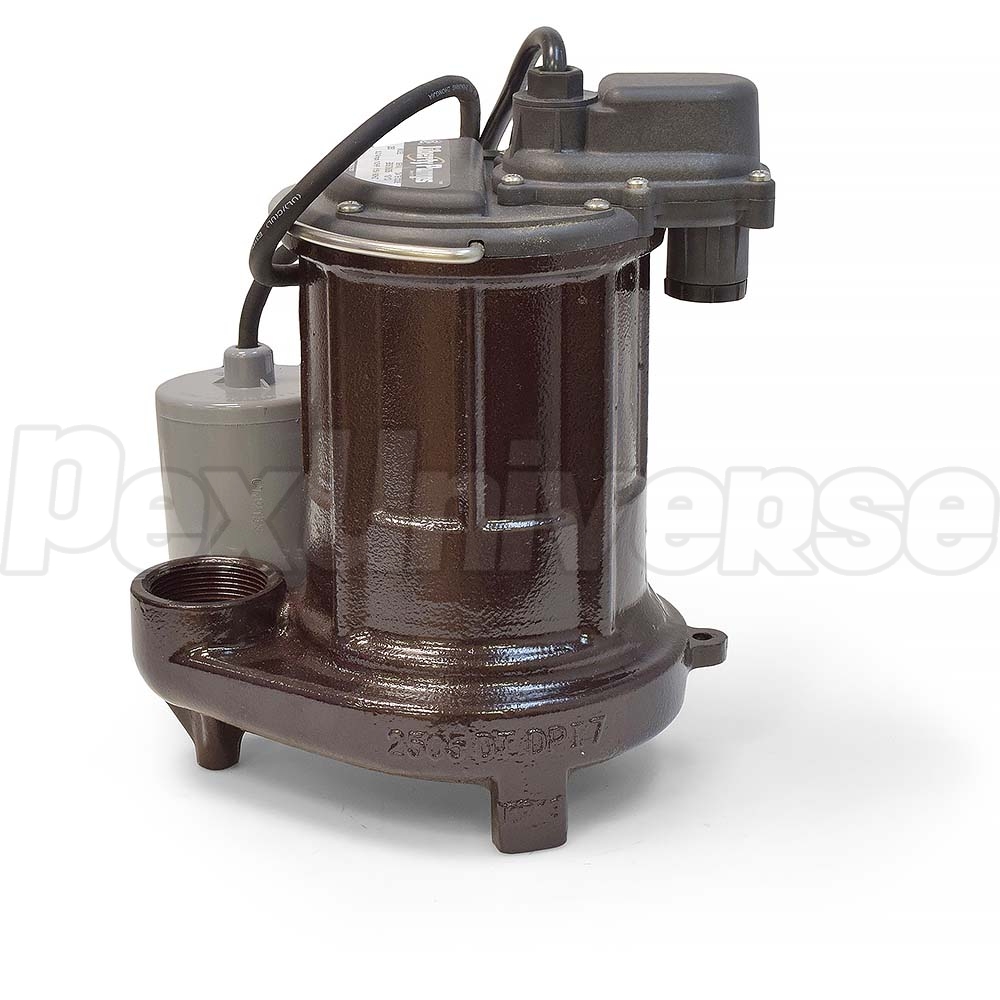

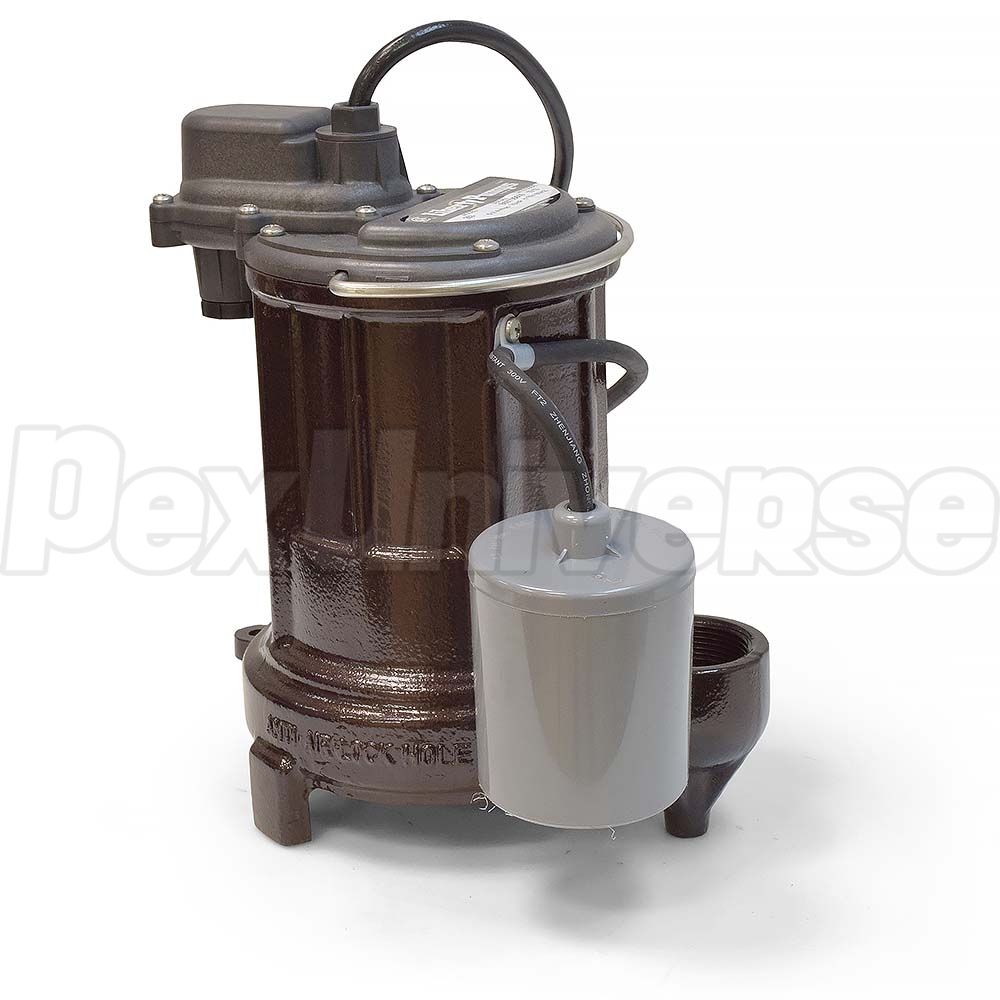

Liberty Pumps 253-3 Automatic Submersible Effluent Sump Pump w/ Wide-Angle Piggyback Float Switch, 1/3HP, 115V, 35' Cord

Liberty Pumps 253-3 Effluent Sump Pump
Click on image to enlarge
Liberty Pumps

Brand:

SKU#:

UPC#:

Liberty Pumps

253-3

671812104059

0
No reviews yet

Usually ships: within 1 - 1.5 weeks
Qty Price
$188.85 / each
Add to cart McAfee SECURE sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams
  • Description
  • Literature
  • Reviews
  • FAQs

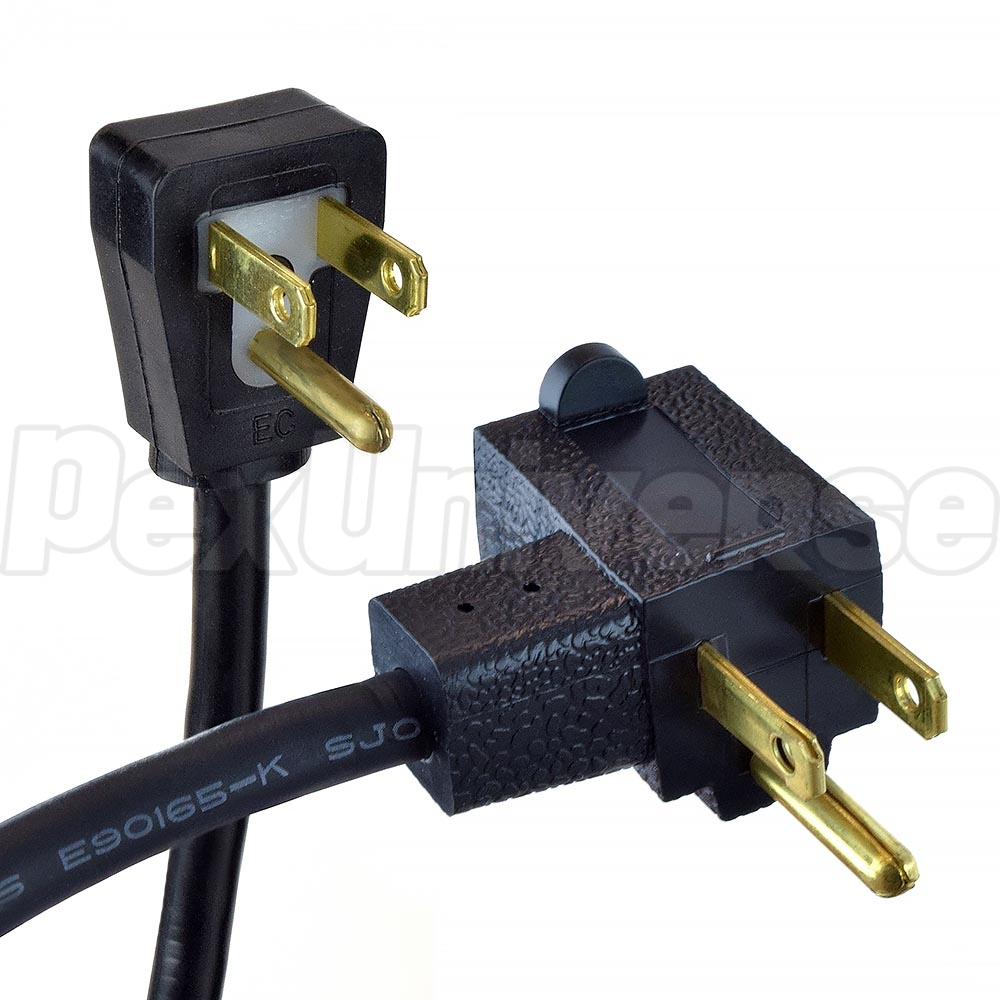

The Liberty Pump 253-3 is an automatic, submersible effluent/sump pump that comes with a 35-ft. power cord and has a shut-off head of 23'. It has a 1-1/2" discharge and can handle solids up to 1/2". This Liberty effluent/sump pump also has a 1/3HP motor that can produce a flow rate of 36 GPM at 10' and includes a wide-angle float switch. This switch has an "ON" level at 11" and "OFF" level at 4.2" and features a piggy-back plug allowing for manual operation. This effluent sump pump is ideal for pumping of drainage, effluent and waste water and other non-explosive/corrosive liquids.



The Liberty 253-3 effluent sump pump operates at 115V, 5.2 Amp and 60 Hz with a maximum fluid temperature of 140F. This Liberty sump/effluent pump is the perfect choice for low-head effluent pumping or basement de-watering applications, as well as liquid waste transfer for residential or commercial applications that require more flow at low-head. The powerful heavy-duty motor on the Liberty 253-3 effluent sump pump comes with a rugged housing and powder coat finish that is completely submersible and will provide years of reliable performance.


Features:

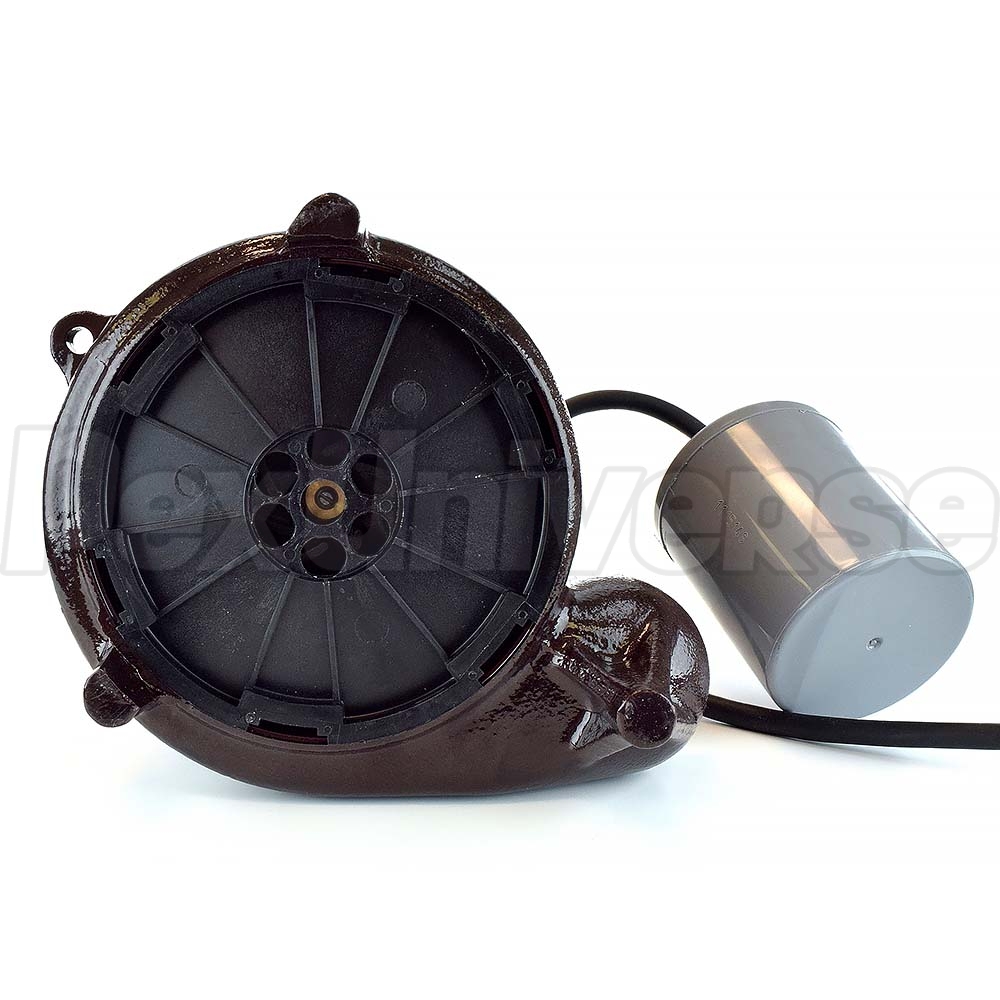

  • Vortex style impeller permitting passage of solids up to 3/4";
  • Cast bronze or cast iron pump housing with protective epoxy coating for corrosion resistance;
  • Oil-filled motor housing for lifetime lubrication and rapid heat dissipation;
  • 1/3 HP shaded pole motor with thermal overload protection;
  • Stainless steel fasteners;
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) for protection against pump failure;
  • Upper and lower sintered sleeve bearings for extended motor life;
  • Automatic operation with piggyback mechanical float switch with "ON" level at 11" and "OFF" level at 4.2";

Technical Specifications of Liberty Pumps 253-3:

  • Discharge Size: 1 1/2" FNPT;
  • Solids Handling Capability: 1/2" dia.;
  • Listing: UL/CSA;
  • HP: 1/3;
  • Volts: 115;
  • Phase: 1;
  • Hertz: 60;
  • Amps: 5.2;

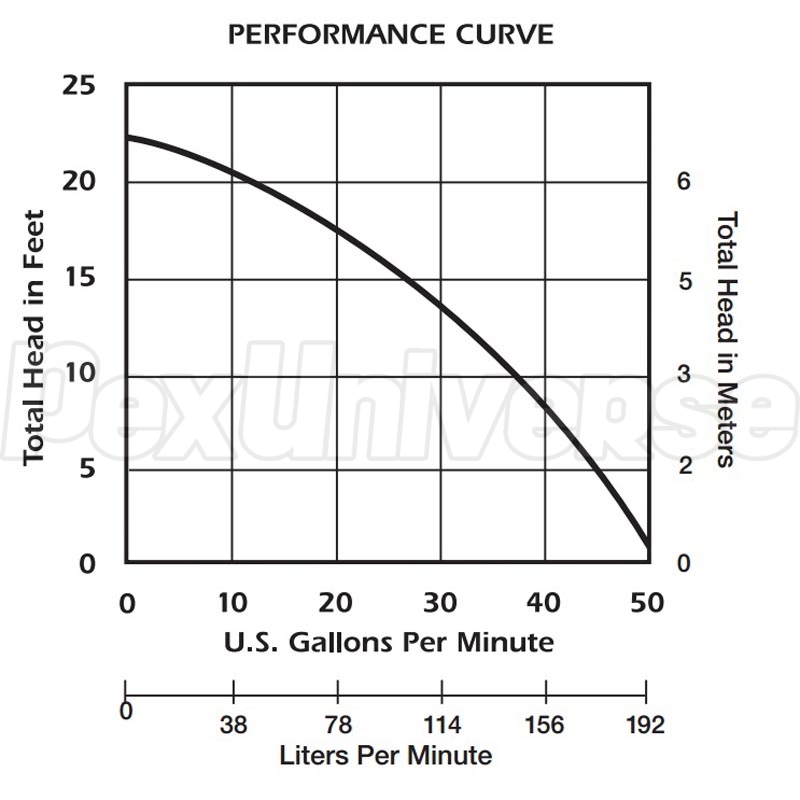

  • Flow @ 5': 45 GPM;
  • Flow @ 10': 38 GPM;
  • Flow @ 20': 14 GPM;
  • Thermal overload temp: 248F;
  • Shut-off Head: 23';
  • Cord Length: 35';
  • Height: 10.5"
  • Major Width: 9.6"
  • Weight: 24 lbs;
