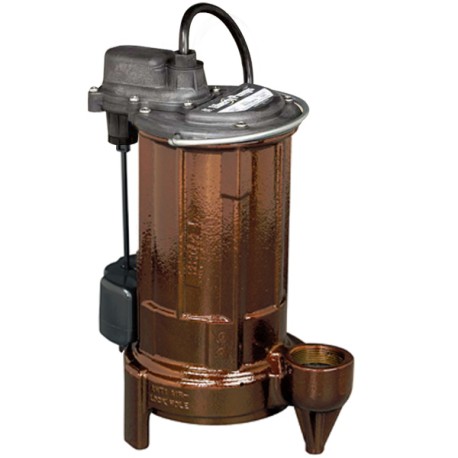

Liberty Pumps 297-2 Effluent Sump Pump

Automatic Sump/Effluent Pump w/ Vertical Float Switch, 25' cord, 3/4 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: 297-2

UPC#: 671812121056

Usually ships: within 5-7 business days
Qty Price
$286.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

The Liberty 297-2 is an automatic, submersible effluent/sump pump that comes with a vertical magnetic float switch. This VMF switch allows this sump effluent pump to operate in sump pits as small as 10". The Liberty 297-2 sump/effluent pump has a 3/4HP, single-phase motor that can reach a max flow of 78GPM at 5' of head. This Liberty sump/effluent pump has a discharge of 1-1/2NPT and can handle solids up 3/4". The Liberty 297-2 will automatically turn on when the water is at 9.5" and automatically shut-off when it reaches 4". This effluent sump pump is best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids. The Liberty 297-2 automatic submersible effluent sump pump has a shut-off of 48' of head and comes with a quick disconnect 25' power cord.



The Liberty 297-2 provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow. Liberty's unique Uni-Body casting will provide years of reliable performance.


Features:

  • Vertical Magnetic Float for smaller (10" dia. sump) pits;
  • Liberty's unique, one-piece "Uni-Body" casting;
  • Permanently lubricated upper and lower bearings;
  • Oil-filled, hermetically sealed motors with thermal overload protection;
  • Stainless steel, removable bottom screen;
  • 416 Stainless steel rotor shaft;
  • All fasteners - corrosion-resistant stainless steel;
  • Semi-Open impeller permitting passage of solids up to 3/4";
  • Epoxy powder coat finish;
  • 1-1/2" Discharge;
  • Stainless steel bottom screen - easily removable;
  • Maximum fluid temperature 140F;

Technical Specifications:

  • Discharge Size: 1 1/2" FNPT;
  • Solids Handling Capability: 3/4" dia.;
  • Listing: UL/CSA;
  • HP: 3/4;
  • Volts: 115;
  • Phase: 1;
  • Hertz: 60;
  • Amps: 10.4;
  • Flow @ 5': 78 GPM;
  • Flow @ 10': 72 GPM;
  • Flow @ 20': 58 GPM;
  • Thermal overload temp: 248F;
  • Shut-off Head: 48';
  • Cord Length: 25';
  • Minimum Sump Diameter: 10";
  • Height: 13";
  • Weight: 31 lbs;
