Liberty Pumps 404 Drain Laundry Bar Pump

Automatic Drain Pump w/ 4.3 Gal Basin, 1-1/2" Connections, 10' cord, 1/3 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: 404

UPC#: 671812113860

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$219.80 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews (1)
  • FAQs (1)

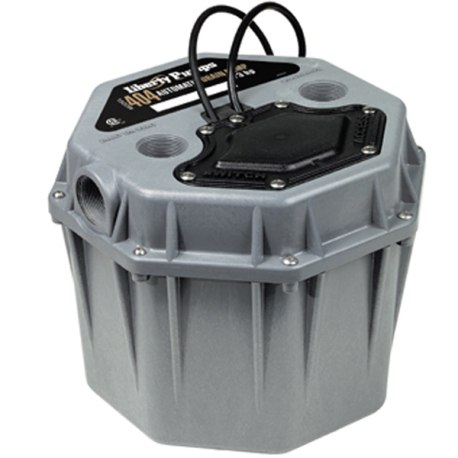

The Liberty Pump 404 is a pre-assembled 1/3HP drain pump with a basin. This drain-pump has 1-1/2" connections and 3/8" solids-handling capabilities. The Liberty 404 drain pumps are designed for wastewater systems and will handle small debris such as laundry lint. These drain pump are applicable to bar sinks, laundry trays, dehumidifiers, utility sinks and gray wastewater drainage below gravity lines.



The Liberty Pump 404 comes equipped with a float switch that has a piggyback plug for temporary manual operation of the pump. The Liberty Pump 404 pre-assembled drain pump has a 1-1/2" discharge. A union must be installed just above the pump to facilitate removal if necessary for cleaning and service. Install a check valve above the union to prevent the backflow of water after each pump cycle. This drain pump's 1-1/2" vent allows extra volume for high suds conditions and to allow proper drainage of the fixture. The Liberty 404 also has two ports, one on the top of the drain pump and one on the side. They can either be used as a vent or inlet (1-1/2"). A trap shall be used between the fixture and the pump, a flange type is recommended.



The Liberty Pump 404 pre-assembled drain pump has a total basin capacity of 4.3 gallons and can handle liquid temperatures up to 140F. Its oil-filled, hermetically sealed motor is equipped with thermal overload protection. This drain pump also has a separate access cover for easy switch inspection. The Liberty 404 drain pump is not intended to be used with chemicals.


Features:

  • Factory pre-assembled, ready to install;
  • Fully automatic operation;
  • Short profile design for compact areas - only 11" tall;
  • Separate access cover for easy switch inspection (QuickTree);
  • Integrally molded rubber gasket for a superior gas-tight seal;
  • Compact design for tight areas;
  • Oil-filled, hermetically sealed motor with thermal-overload protection; 10 ft., 3 wire power cord with grounded plug;
  • Corrosion-resistant polyolefin basin with molded-in connections;
  • Maintenance-free, permanently lubricated sealed bearings;
  • 3/8" Solids-Handling;

Technical Specifications:

  • Horsepower: 1/3 HP;
  • Voltage: 115V;
  • RPM: 3450;
  • Hertz: 60;
  • Ampers: 5a;
  • Maximum Fluid Temperature: 140F;
  • Cord lenth: 10';
  • Inlet: 1-1/2" FPT;
  • Discharge: 1-1/2" FPT;
  • Vent: 1-1/2" FPT;
  • Solids Handling: up to 3/8";
  • Weight: 13 lbs.;
  • Height: 11-1/8";
  • Major Width: 13-3/4";
  • Total Basin Capacity: 4.3 Gallons;
Automatic Drain Pump w/ 4.3 Gal Basin, 1-1/2" Connections, 10' cord, 1/3 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.
0 of 1 people found this review helpful.

Excellemt Product!
By EdOso (from Warren, NJ) on 3/26/2016
Liberty Pumps is a brand that has been around for a long time, and for good reasons! I needed a pump for my basement laundry, and after asking many plumbers, plumbing supply distributors and friends, the answer always came up the same. Get a Liberty pump for reliable, dependable and hassle free convenience. Pex Universe has the BEST price, with fast convenient and FREE shipping.
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
I'm installing the pump 404 to use in a basement bar. I have to zig zag through the bar up the wall (7 ft.) in the ceiling down to the drain; total distance before starting going down to the drain is 18 feet. In that distance I have five 90 degree angles to negotiate. Can I downsize from 1 1/2 inch to one inch along the way to make it easier?
Read 1 answer
Manufacturer's manual calls for a minimum of 1-1/2" pipe in order for the system to function properly and be covered under warranty.
Answered on 12/10/2013 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
