Automatic Effluent Pump w/ Wide Angle Float Switch, 25' cord, 1 1/2 HP, 208/230V Liberty Pumps
Automatic Effluent Pump w/ Wide Angle Float Switch, 25' cord, 1 1/2 HP, 208/230V
Brand: Liberty Pumps
Part#: FL152A-2
Usually ships: within 5-7 business days

Description

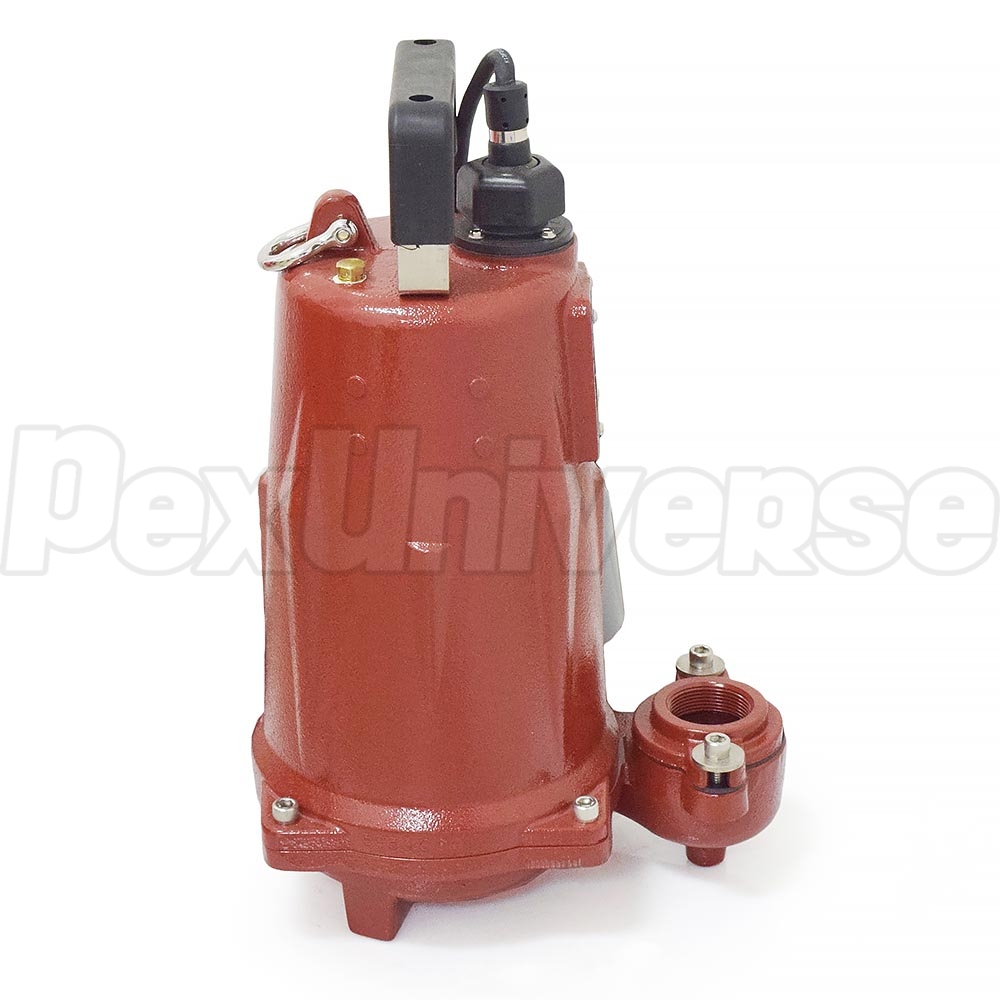

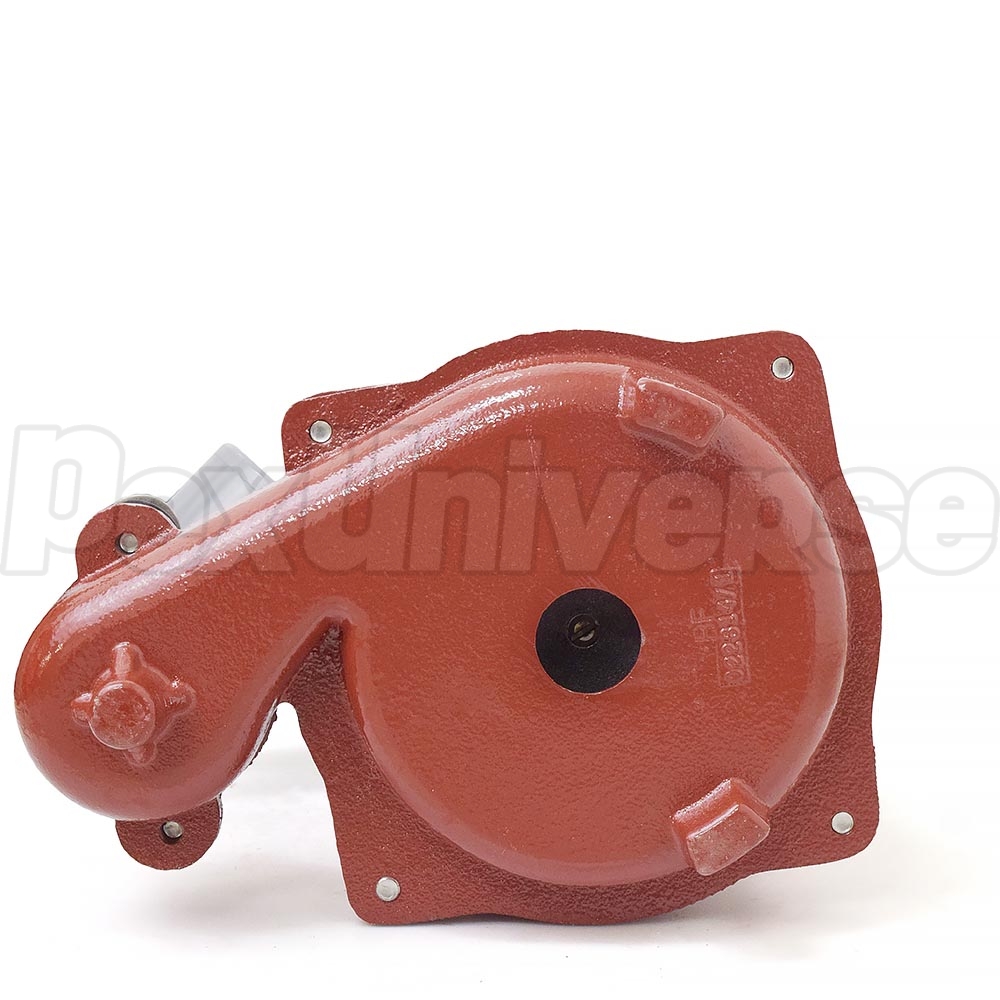

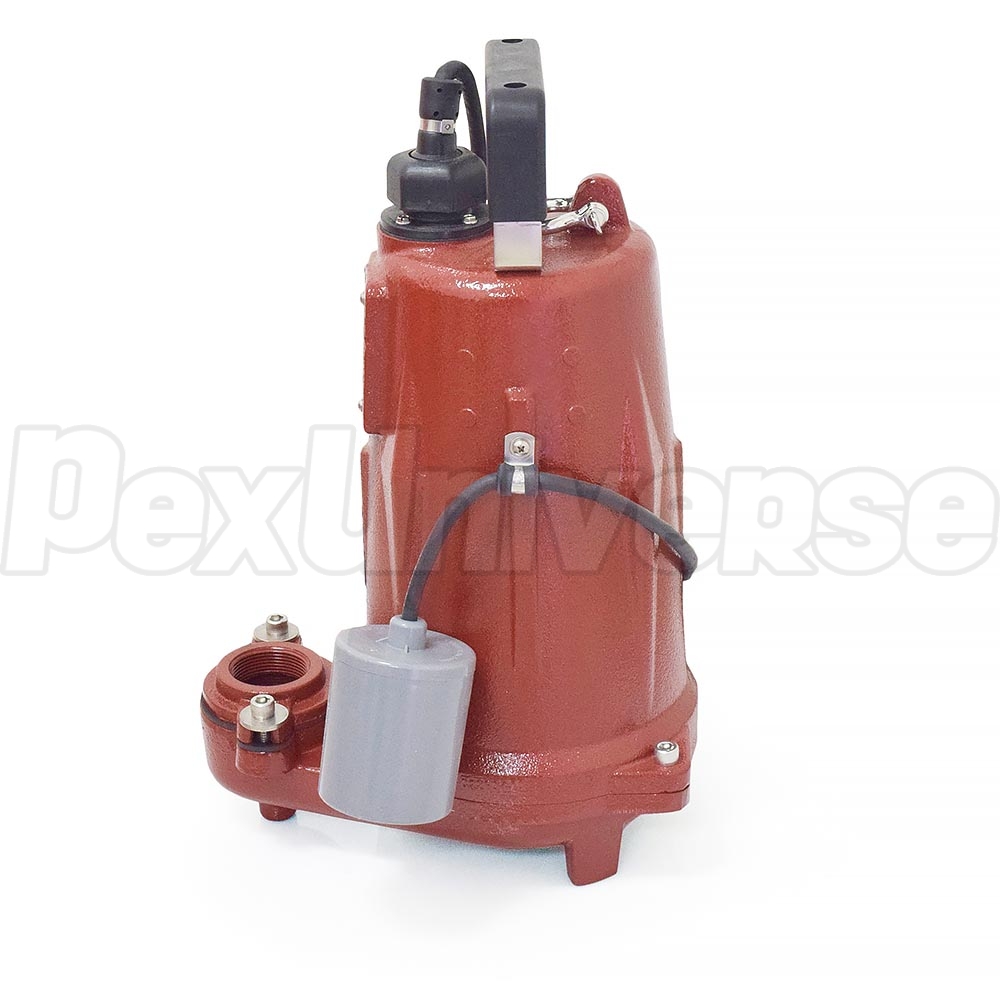

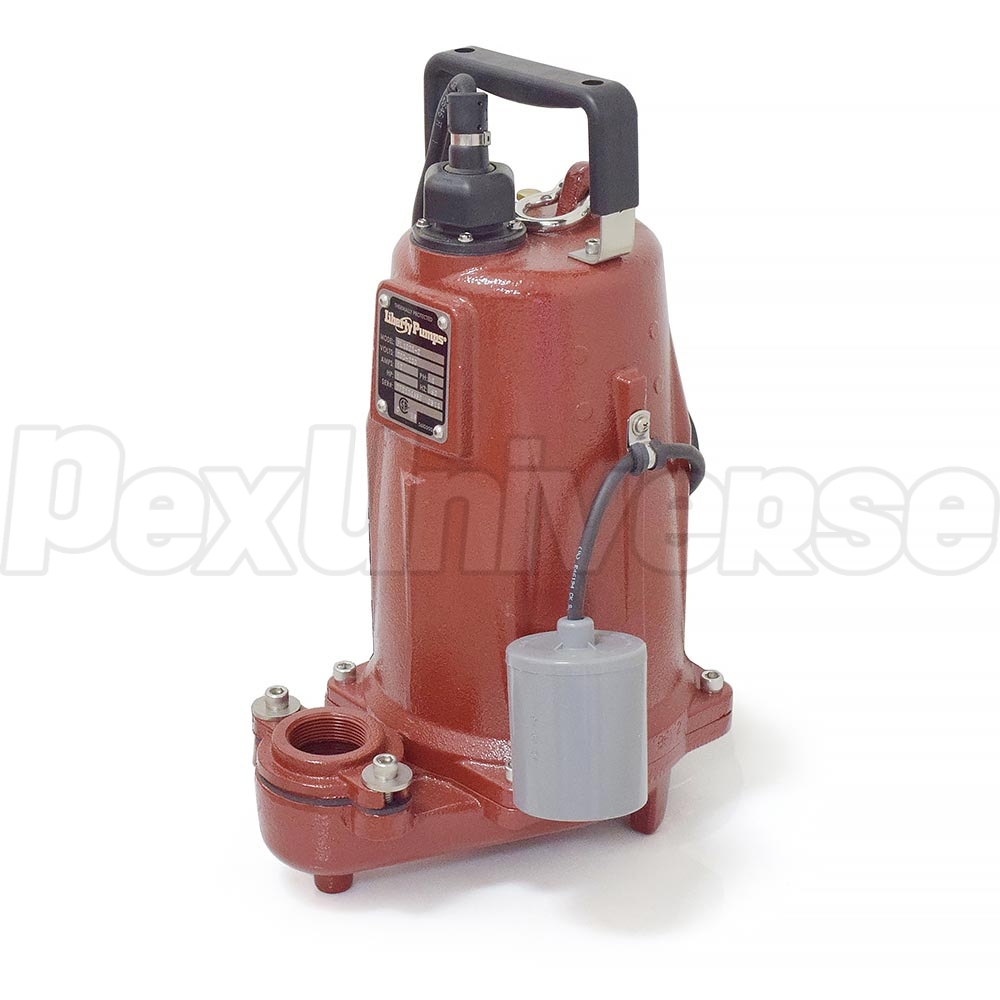

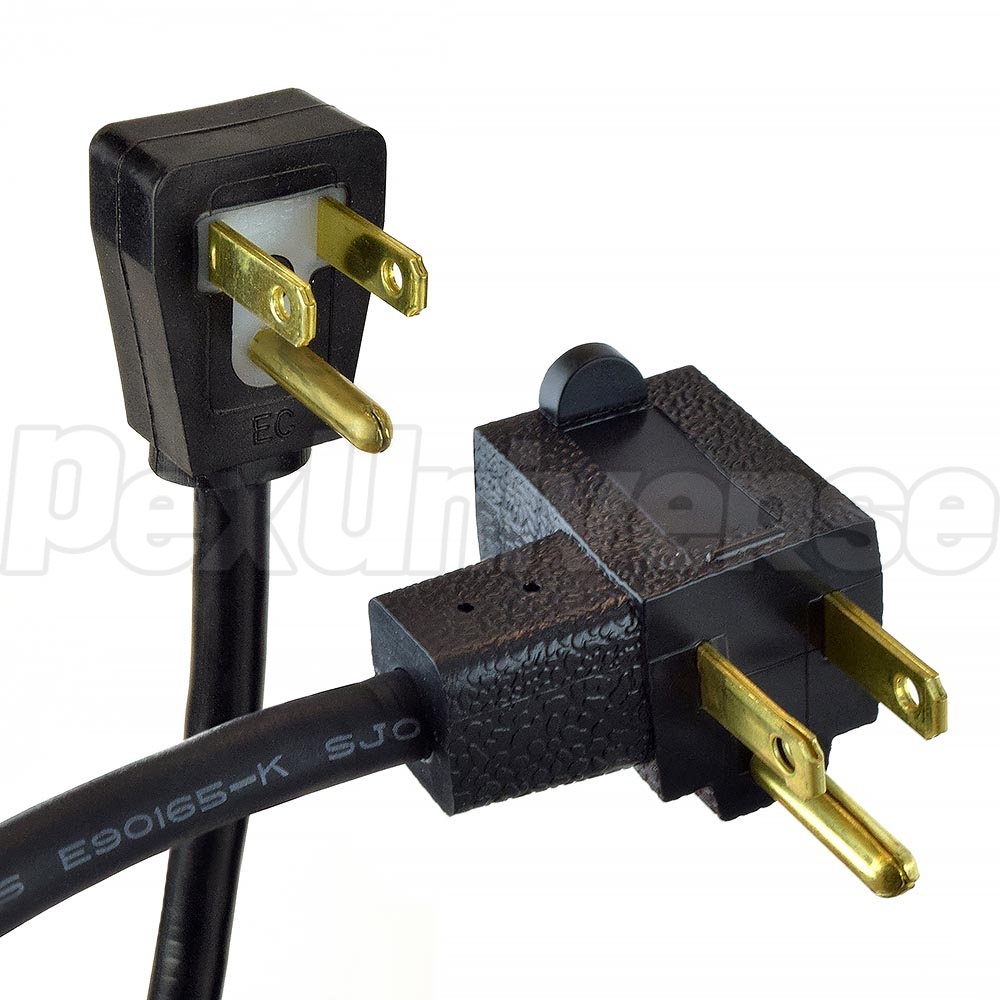

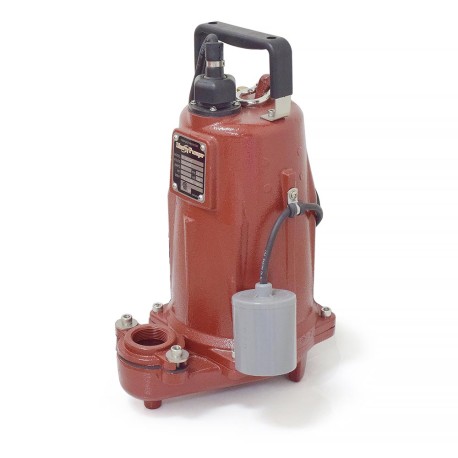

The Liberty Pump FL152A is an automatic submersible effluent sump pump with a 1-1/2HP, 230V motor that is enclosed in heavy-cast iron construction. The Liberty FL152A features a wide-angle mechanical float switch, sealed in PVC housing, which has a series (piggyback) plug for manual bypass operation. The switch on this submersible effluent sump pump has a turn-on level of 15" and turn-off level of 8". The Liberty FL152A submersible sump/effluent pump is equipped with a dual sized discharge of 1-1/2" FNPT and 2" FNPT for connection to either size pipe. This effluent sump pump can also handle solids up to 3/4" and has a shut-off head of 110'. These Liberty effluent pumps are designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The Liberty FL152A is built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners.


Features:
  • 3/4" Solids-handling
  • Heavy cast iron construction
  • 2 vane semi-open cast iron impeller
  • Dual shaft seals
  • Single float, mercury free level control
  • Fully adjustable pumping range
  • 2" FNPT threaded discharge with 1-1/2" FNPT flange provided
  • Quick-disconnect power cord - 25' length standard.

Technical Specifications:
  • Horsepower: 1-1/2 HP
  • Oparation Type: Automatic
  • Switch: Wide Angle Float

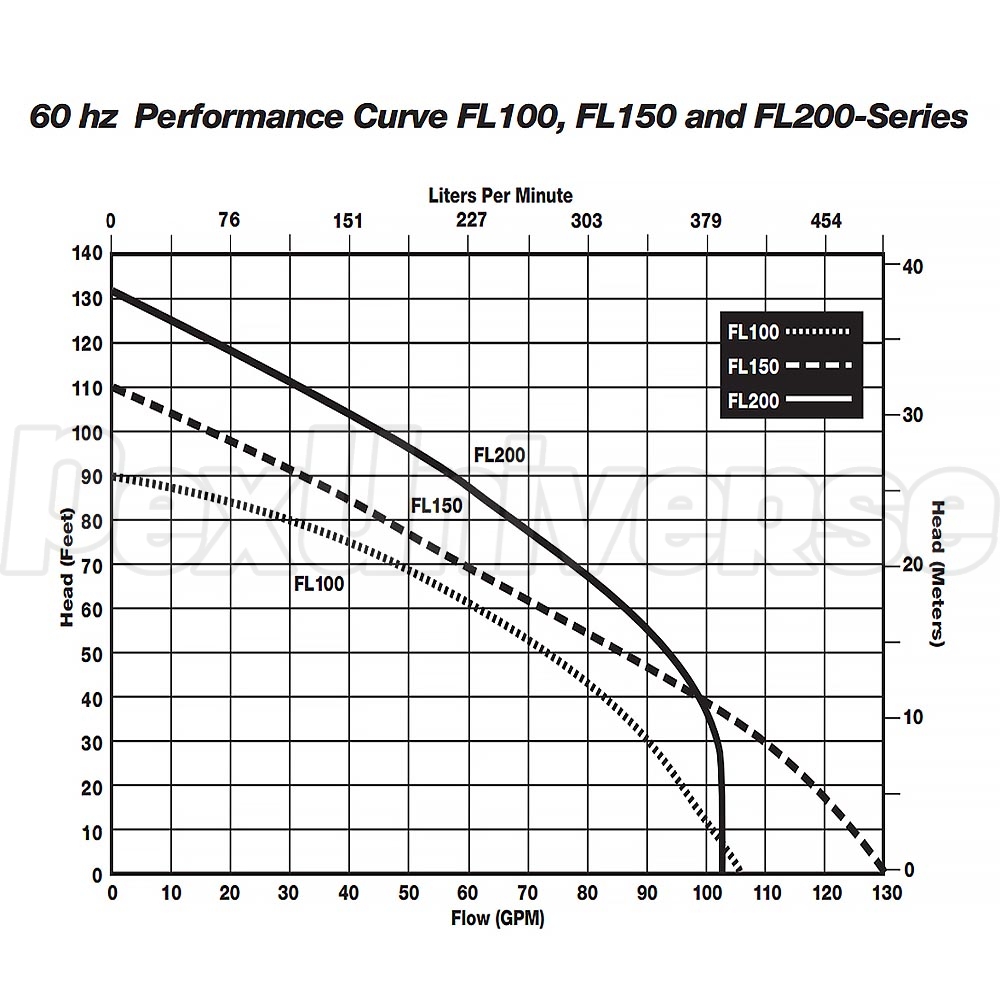

  • Maximum Flow: 127 GPM @ 5' head
  • Maximum Head: 110 ft
  • Discharge: 2" FNPT (1-1/2” FNPT cast iron flange provided)
  • Solids Handling: 3/4"
  • Maximum Fluid Temperature: 140°F
  • Cord Length: 25 ft
  • Construction: Cast Iron
  • Frequency of Revolutions: 3450 RPM
  • Voltage: 208-230V
  • Amperage: 15 A.

Warranty:
3 years manufacturer's warranty
