Manual Sewage Pump, 10' cord, 1 HP, 2" Discharge, 208/230V
Brand: Liberty Pumps
Part#: LE102M2

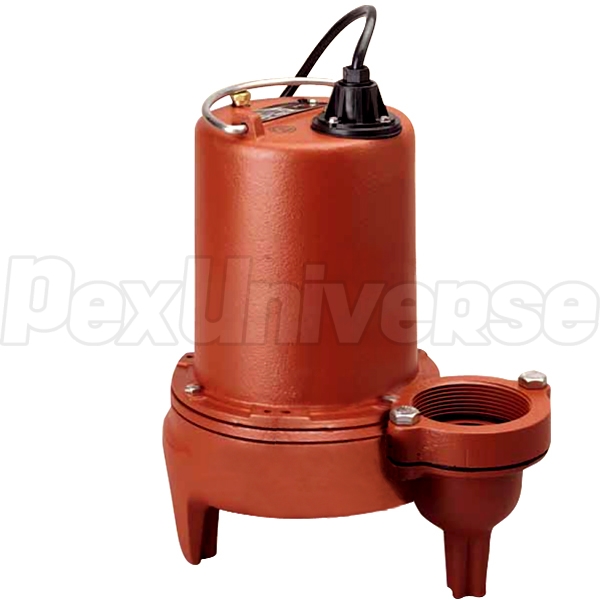

The Liberty Pump LE102M2 is a manual submersible sewage Pump with a 230V, 1HP motor and 10' quick disconnect power cord. The Liberty LE102M2 has a 2" NPT flanged discharge and is intended to be run using an approved liquid level control or approved motor control. The Liberty submersible sewage pump features 2-vane, semi-open impellers that allow passage of 2" solids and has a shut-off head of 36'. This Liberty sewage pump is constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners for years of trouble-free performance.

The Liberty LE102M2 submersible sewage pump should not be ran dry. Be sure that when the Liberty sewage pump shuts off, at least 6" of fluid is left in the basin so the impeller remains submerged. Separate approved pump control device or panel for this submersible sewage pump is requires for automatic operation.


Features:
  • Rugged 2 vane, semi-open cast iron impellers
  • Cast iron housings and volute with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil-filled, hermetically sealed motors
  • Built-in thermal protection on single phase models
  • Permanently lubricated upper and lower ball bearings
  • Unitized shaft seals
  • Single float mechanical level control with series plug for manual bypass operation-standard on single-phase automatic models
  • Adjustable pumping range
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor

Technical Specifications:
  • Horsepower: 1HP
  • Cord length: 10'
  • Discharge: 2" FNPT Flanged
  • Solids Handling: up to 2"
  • Shut-off Head: 36'
  • Voltage: 208-230V
  • Amps: 8
  • Hertz: 60 Hz
  • Phase: 1
  • RPM: 1725
  • Maximum fluid temperature: 140°F
  • Height: 14.1"
  • Width: 12.6"
  • Weight: 64 lbs.
  • Minimum basin diameter: 18"
  • Minimum basin depth: 24"

Warranty:
3 years manufacturer's warranty
