Manual Sewage Pump, 25' cord, 4/10 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: LE41M-2

UPC#: 671812102253

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$267.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

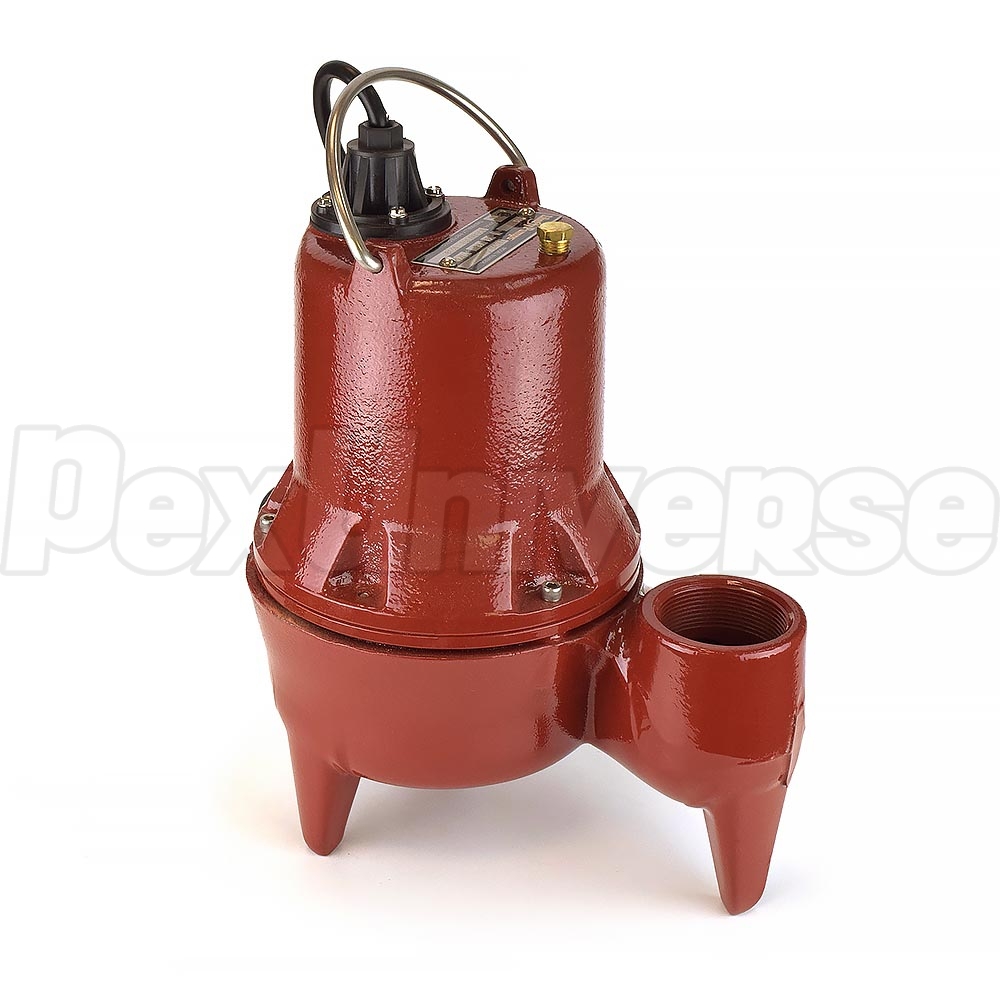

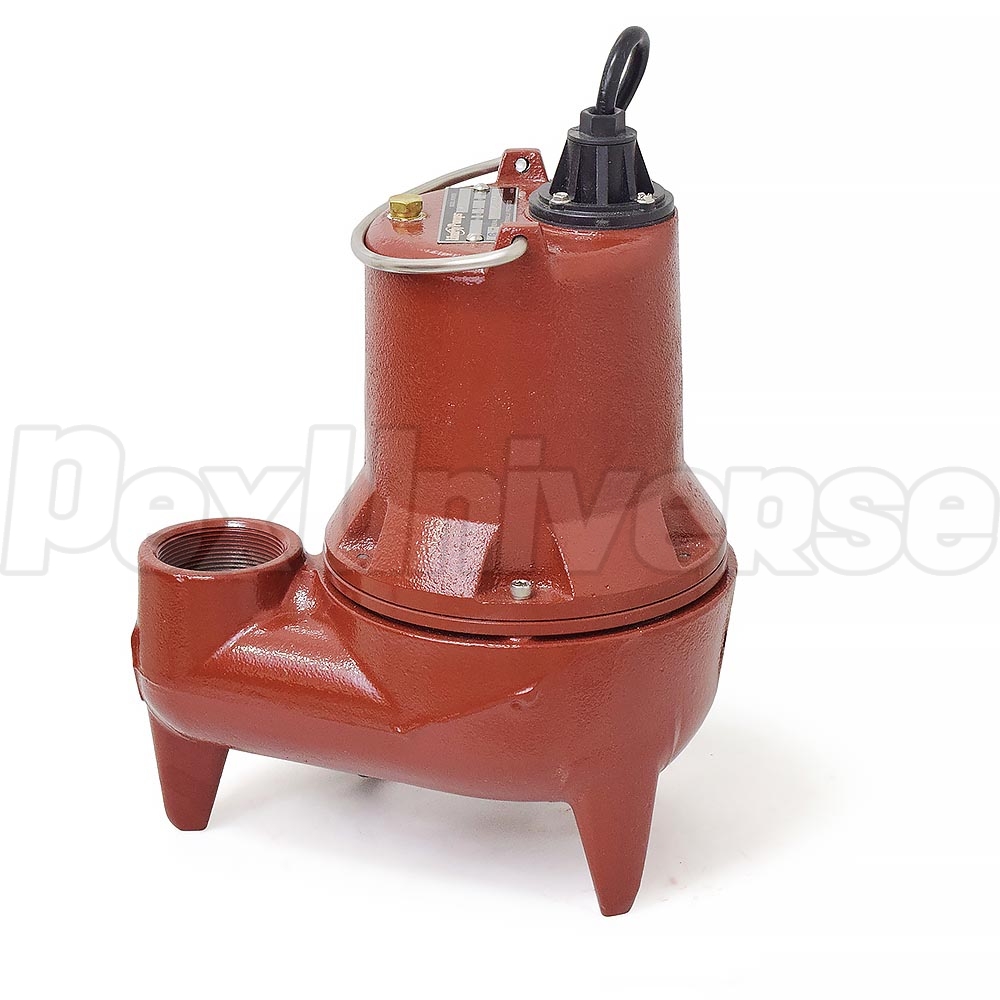

The Liberty LE41M-2 Pump is a 4/10, 115V manual submersible sewage pump with a 25' quick-disconnect power cord. The Liberty Pump LE41M-2 has a shut-off head of 19' and a discharge of 2" FNPT. It can handle solids up to 2" and temperatures up 140F.



This Liberty sewage pump is intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. Do not let the Liberty Pump LE41M-2 manual submersible pump run dry. When the Liberty sewage pump shuts off, at least 6" of fluid has to be left in the basin so the impeller remains submerged. The Liberty sewage pump motor is oil filled and thermally protected. The rotor shaft is made of 416-stainless steel and is supported by lower and upper ball bearings.


Features:

  • Heavy cast iron construction;
  • Oil filled, thermally protected motor;
  • Permanently lubricated ball bearings;
  • Corrosion resistant, vortex style impeller made of high temperature engineering polymer;
  • All stainless steel fasteners and rotor shaft;
  • Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor;

Technical Specifications:

  • Horsepower: 4/10HP;
  • Cord length: 25';
  • Discharge: 2" FNPT;
  • Solids Handling: up to 2";
  • Shut-off Head: 19';
  • Voltage: 115V;
  • Amps: 12;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Maximum fluid temperature: 140°F;
  • Height: 14";
  • Width: 10.75";
  • Weight: 40 lbs.;
  • Minimum basin diameter: 18";
  • Minimum basin depth: 24";
