Manual Sewage Pump, 10' cord, 1/2 HP, 115V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: LE51M

UPC#: 671812101591

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$304.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews (1)
  • FAQs

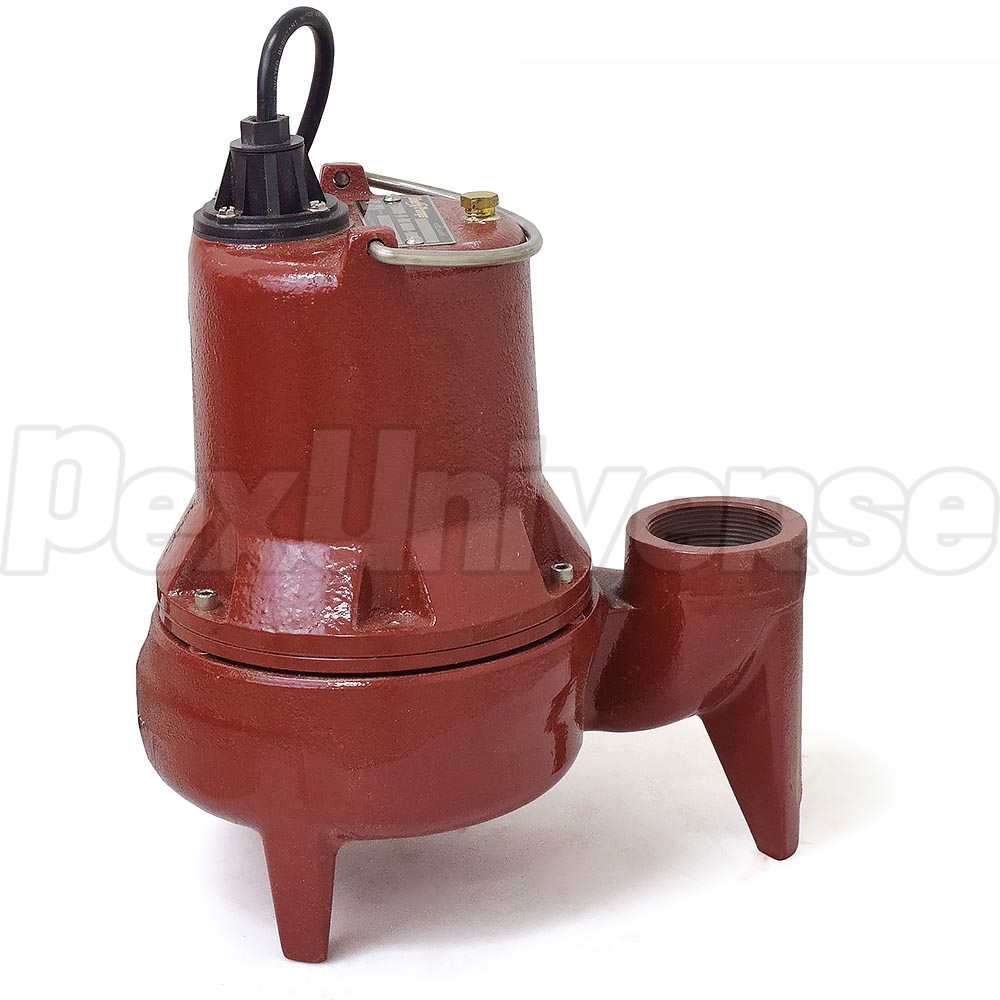

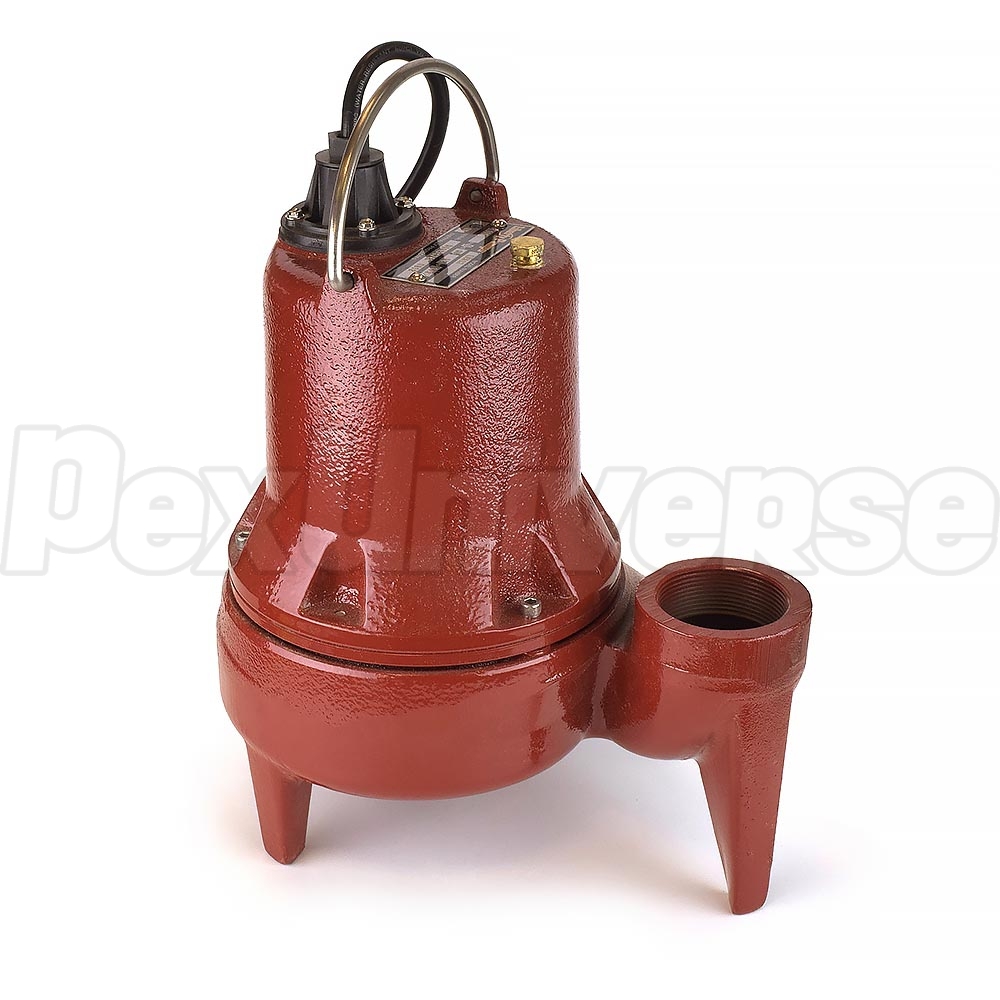

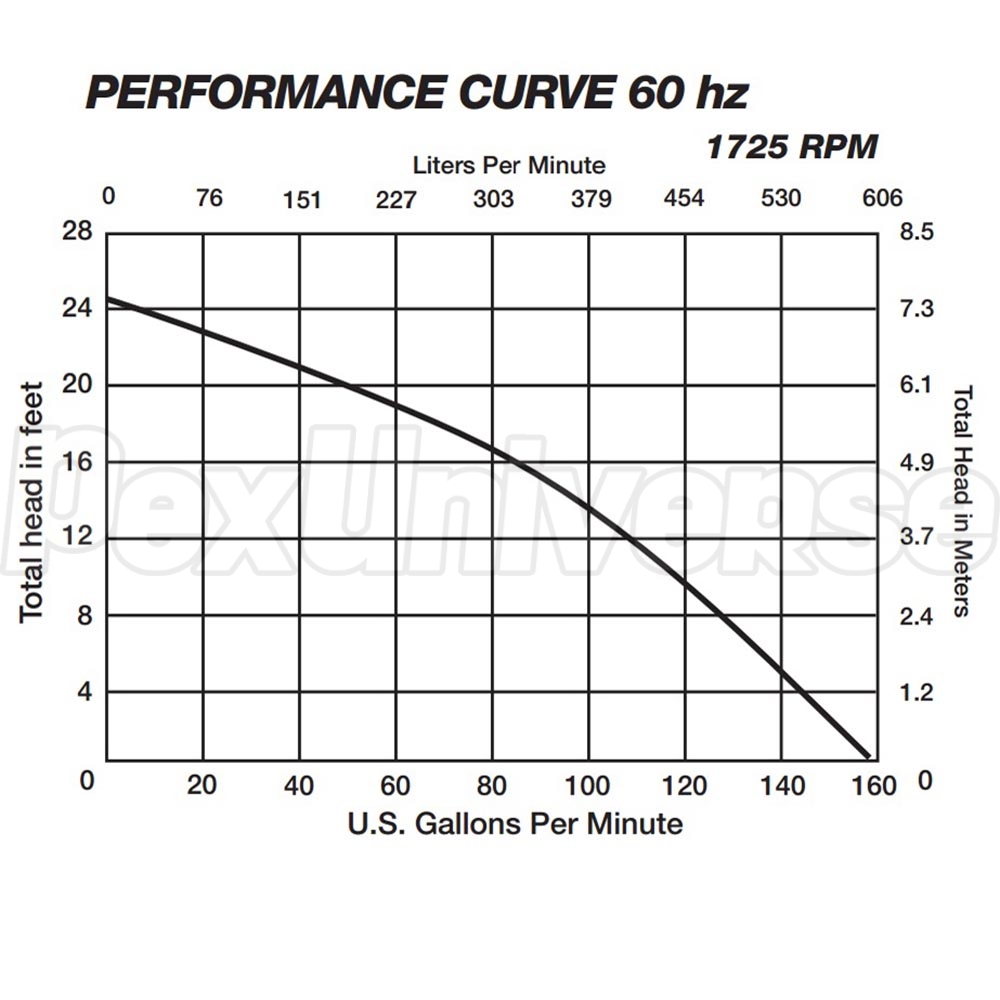

The Liberty Pump LE51M is a manual submersible sewage pump with a 1/2, 115V motor and a 10' quick-disconnect power cord. This Liberty sewage pump is capable of reaching a max flow of 112 GPM at 25' total dynamic head. This sewage pump is intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. Do not let the Liberty Pump LE51M manual submersible pump run dry. When the Liberty sewage pump shuts off, at least 6" of fluid have to be left in the basin so the impeller remains submerged.

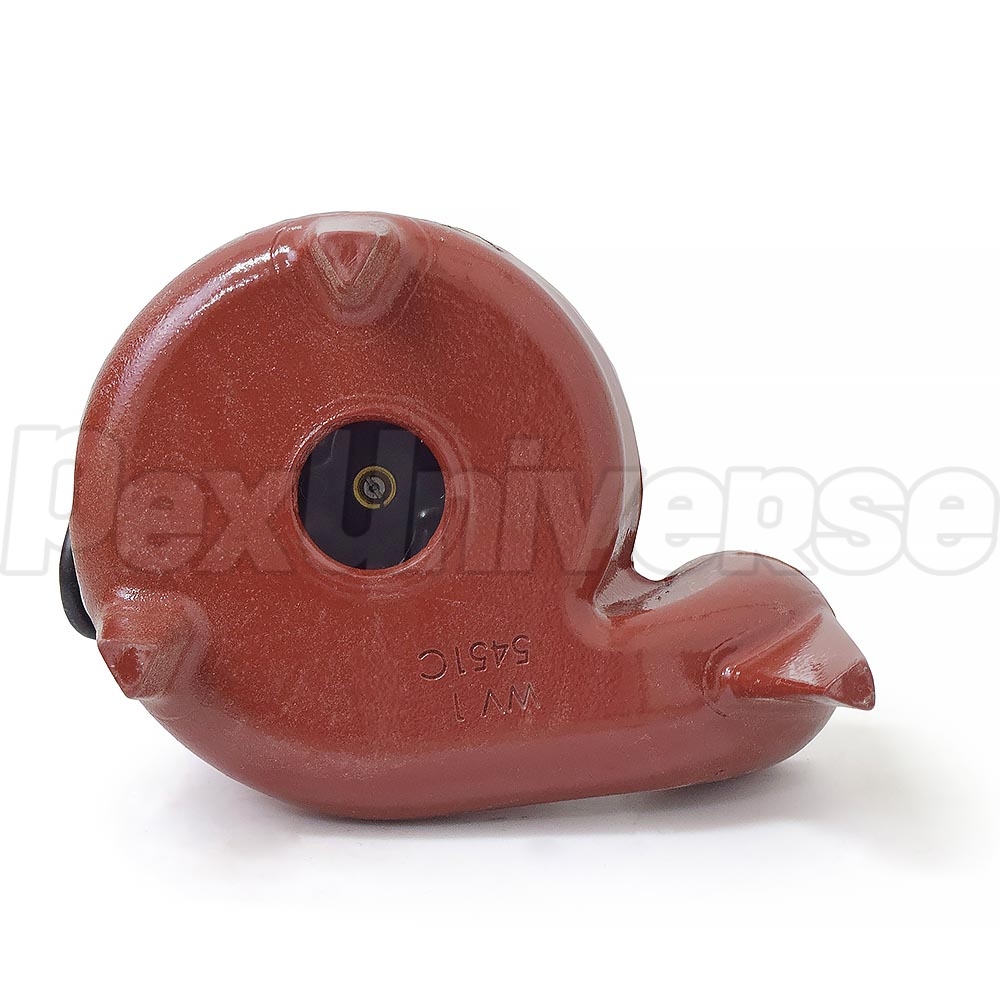

The Liberty LE51M Pump has a discharge of 2" FNPT and a shut-off head of 25'. It features a 2-vane semi open impeller that allows for 2" solids handling. The Liberty sewage pump motor is oil filled and thermally protected. The rotor shaft is made of 416-stainless steel and is supported by lower and upper ball bearings.


Features:

  • Heavy cast iron construction;
  • Oil filled, thermally protected motor;
  • Permanently lubricated bearings;
  • 2-vane, corrosion resistant HYTREL impeller;
  • All stainless steel fasteners and rotor shaft;
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor;

Technical Specifications:

  • Horsepower: 1/2HP;
  • Cord length: 10';
  • Discharge: 2" FNPT;
  • Solids Handling: up to 2";
  • Shut-off Head: 25';
  • Voltage: 115V;
  • Amps: 12;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Maximum fluid temperature: 140°F;
  • Height: 14";
  • Width: 11.75";
  • Weight: 42 lbs.;
  • Minimum basin diameter: 18";
  • Minimum basin depth: 24";
Manual Sewage Pump, 10' cord, 1/2 HP, 115V has an average 4.0 out of 5 rating based on 1 user review.

Smooth running, Solidly Built Pump
By Newbee Homeowner (from Chicago, Il) on 2/2/2016
I bought this pump to replace a Champion CWP 1/2 hp sewage pump. The champion's vertical float failed 1 month into operation so I replaced it with a tethered float. The motor started to go bad 1 year and 1 month after installation the pump was drawing 3 amps more than it should and rumbling (The pit was drained, no load on pump, no obstructions in pump or piping). I talked to a different plumber (one who didn't sell me a stale dated pump) and recommended liberty pumps. The pump is controlled by the tethered float and works very well and is much quieter. The feature that convinced me to buy a liberty pump was the stainless steel shaft. Being in sewage a steel shaft may corrode damaging the seal and bearing which could lead to shortened pump life. Too new to give it 5 stars.
