Manual Sewage Pump, 25' cord, 2" Discharge, 230V
Brand: Liberty Pumps
Part#: LEH202M2-2
Usually ships: within 5-7 business days

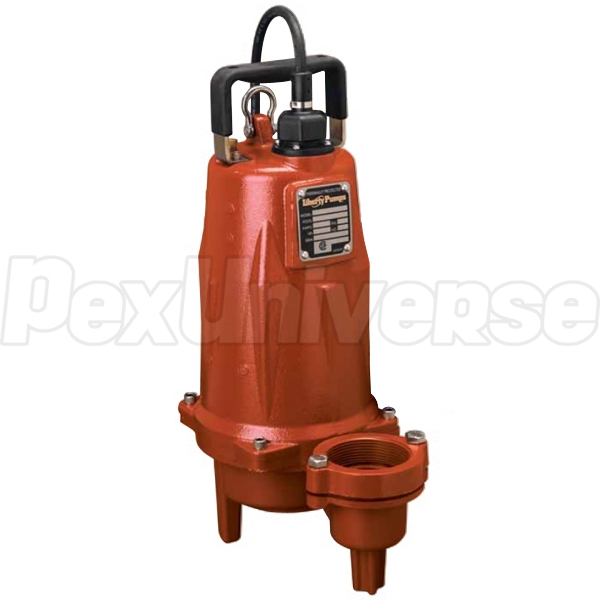

The Liberty Pump LEH202M2 is a manual submersible high head Sewage Pump with a 230V, 2HP motor and 25' quick disconnect power cord. The Liberty LEH202M2 has an 83' shut-off head and a 2" FNPT flanged discharge. These Liberty high head sewage pumps are intended to be run using an approved liquid level control or approved motor control with a correct rating that matches motor input in full load amperes. When the high head sewage pump shuts off, at least 6" of fluid must be left in the basin so the impeller remains submerged. Separate approved pump control device or panel is required for automatic operation.

The Liberty submersible high head sewage pump features 2-vane, semi-open impellers that allow passage of 2" solids. This Liberty high head sewage pump is constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners for years of trouble-free performance. The Liberty LEH202M2 high head sewage pumps must only be used in applications with a minimum of 20'.


Features:

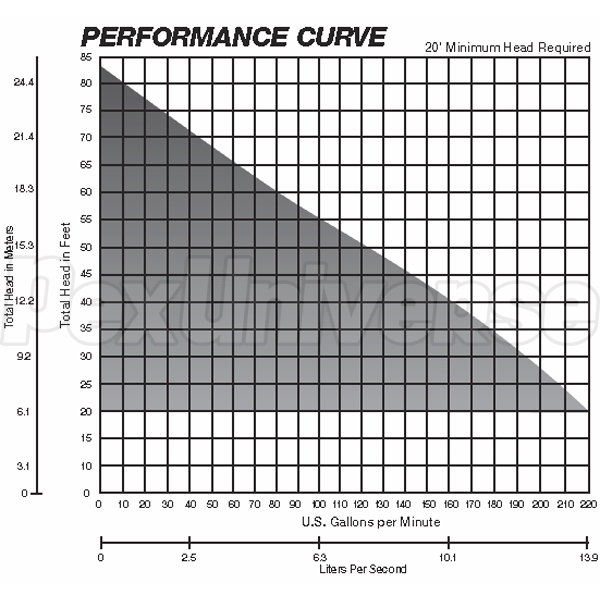

  • 83' Maximum TDH
  • 2HP Oil-filled, hermetically sealed motors
  • Rugged 2 vane, closed cast iron impellers
  • Cast iron housing and volute with all stainless fasteners
  • 416 stainless steel rotor shaft
  • Built-in thermal protection on single phase models
  • Permanently lubricated upper and lower ball bearings
  • Dual shaft seals
  • Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor

Technical Specifications:
  • Horsepower: 2HP
  • Cord length: 25'
  • Discharge: 2" FNPT Flanged
  • Solids Handling: up to 2"
  • Shut-off Head: 83'
  • Voltage: 230V
  • Amps: 18
  • Hertz: 60 Hz
  • Phase: 1
  • RPM: 3450
  • Maximum fluid temperature: 140°F
  • Height: 21"
  • Width: 13"
  • Weight: 95 lbs.
  • Minimum basin diameter: 18"
  • Minimum basin depth: 24"

Warranty:
3 years manufacturer's warranty
