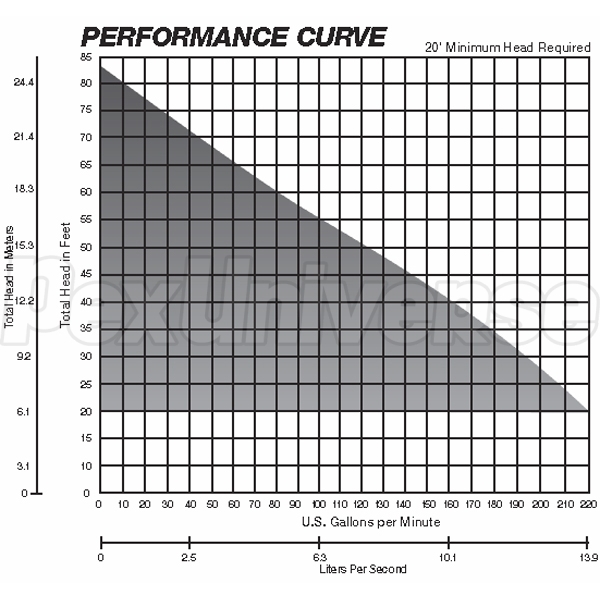

Liberty Pumps LEH204M3 Sewage Pump Performance Curve 2HP

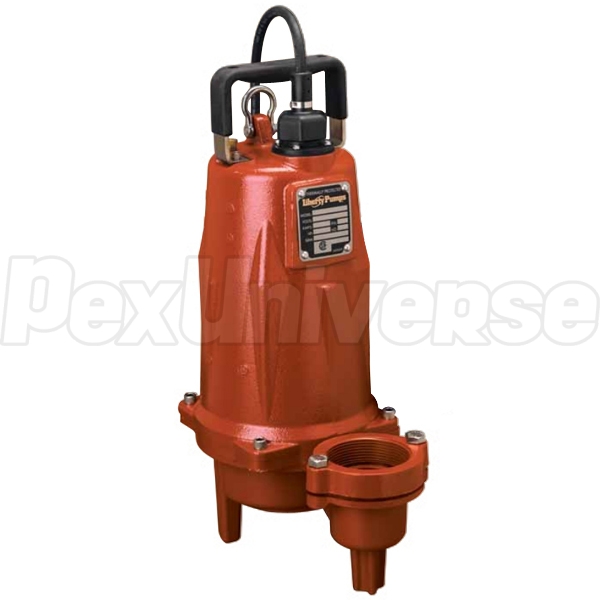

Liberty Pumps LEH204M3 Submersible Sewage Pump 2HP

Manual Sewage Pump, 25' cord, 2 HP, 440/480V, 3-Phase

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: LEH204M3-2

UPC#: 671812115840

Usually ships: within 5-7 business days
Qty Price
$1,266.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Reviews
  • FAQs

The Liberty LEH204M3 Pump is a 3-phase manual submersible high head Sewage Pump with a 440-480V, 2HP motor and 25' quick disconnect power cord. The Liberty LEH204M3 has a 83' shut-off head and a 3" FNPT flanged discharge. These Liberty high head sewage pumps are intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. The Liberty LEH204M3 high head sewage pumps must only be used in applications with a minimum of 20'.When the high head sewage pump shuts off, at least 6" of fluid must be left in the basin so the impeller remains submerged. Separate approved pump control device or panel is requires for automatic operation. The Liberty submersible high head sewage pump features 2-vane, semi-open impellers that allow passage of 2" solids.



3-Phase Liberty high-head submersible sewage pumps require panel for automatic operation. See sewage accessories literature for complete information on all simplex and duplex controls. Check three phase pumps for proper rotation prior to installing pump(s) in basin. To change rotation, reverse any two of the three power leads to the high head sewage pump. This Liberty high head sewage pump is constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners for years of trouble-free performance.


Features:

  • 83' Maximum TDH;
  • 2HP Oil-filled, hermetically sealed motors;
  • Rugged 2 vane, closed cast iron impellers;
  • Cast iron housing and volute with all stainless fasteners;
  • 416 stainless steel rotor shaft;
  • Built-in thermal protection on single phase models;
  • Permanently lubricated upper and lower ball bearings;
  • Dual shaft seals;
  • Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor;

Technical Specifications:

  • Horsepower: 2HP;
  • Cord length: 25';
  • Discharge: 3" FNPT Flanged;
  • Solids Handling: up to 2";
  • Shut-off Head: 83';
  • Voltage: 440-480V;
  • Amps: 6.6;
  • Hertz: 60 Hz;
  • Phase: 3;
  • RPM: 3450;
  • Maximum fluid temperature: 140°F;
  • Height: 21";
  • Width: 13";
  • Weight: 95 lbs.;
  • Minimum basin diameter: 18";
  • Minimum basin depth: 24";
