SX Simplex Control Panel, 120/208/240V, 1-Phase, NEMA 4X, 0-14.9A

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: SXL24=3

UPC#: 671812112009

Usually ships: within 5-7 business days
Qty Price
$500.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

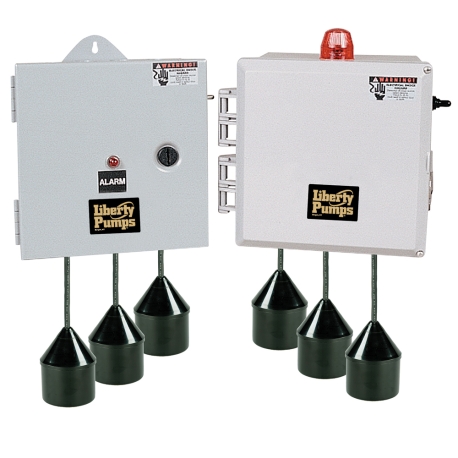

The Liberty SXL24=3 Pump is a 120/208/240V, 14.9 Amp,1 Phase, Simplex Pump Control panel enclosed in a NEMA 4X Enclosure. The Liberty SXL24=3 is most commonly used in sump basins, effluent or sewage pump chambers and lift stations. This Liberty control panel is ideal to provide a reliable means of controlling simplex pump systems in residential or commercial installations. The Liberty SXL24=3 consists of a control panel and 3-pilot-duty float switches. The floats control the pump stop, start and high level alarm functions. The NEMA 4X-ultraviolet stabilized thermoplastic enclosure is for outdoor or indoor use.



The Liberty SXL24=3 utilizes horn and red light indicator designed to be activated when an alarm condition occurs. HOA (hand-off-automatic) Switch offers either hand, off or automatic operations. In hand mode, the pump will not turn on unless safety features are employed. In the automatic mode, the pump will turn on from commands by the float switches. Liberty Simplex Pump Control Panels boast magnetic motor contactor to control the pump by switching hot electrical lines and a sized to application circuit breaker to provide overload protection. The Liberty SXL24=3 Pump Control Panel features pump input power and pump connection terminal block, ground lug, auxiliary contacts. Available with many other options and must be ordered with the proper amp rating matching that of the pump.


Features:

  • Across-the-line magnetic contactor;
  • Test/Auto switch;
  • Terminal block for easy wiring;
  • Circuit breaker;
  • Green pump run indicator light (internal);
  • Red alarm indicator light/audible alarm;
  • Auxilary Contacts;
  • Alarm silence and test switches;
  • Tri 120/208/240V operation on single phase;
  • UL/C-UL listed;

Technical Specifications:

  • Full Load: 0 - 14.9 amps;
  • Cord Length: 20';
  • Voltage: 120/208/240V;
  • Hertz: 50/60 Hz;
  • Phase: 1;
  • Enclosure: NEMA 4X;
  • CABLE: flexible 18 gauge, 2 conductor;
  • FLOAT: High impact PVC (140 degrees F. maximum fluid temperature);
  • Weight: 19 lbs;
  • Height: 12";
  • Width: 10";
  • Length: 6";
