Little Giant VCMX-20UL Condensate Removal Pump Performance Chart
Little Giant VCMX-20UL Condensate Removal Pump, 554520

VCMX-20UL Automatic Condensate Pump w/ 6' cord, 1/30 HP, 115V

Little Giant

Brand: Little Giant

Mfr Part#: 554520

Model: VCMX-20UL

UPC#: 010121120686

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$43.95 / each
  • Description
  • Literature
  • Reviews (1)
  • FAQs

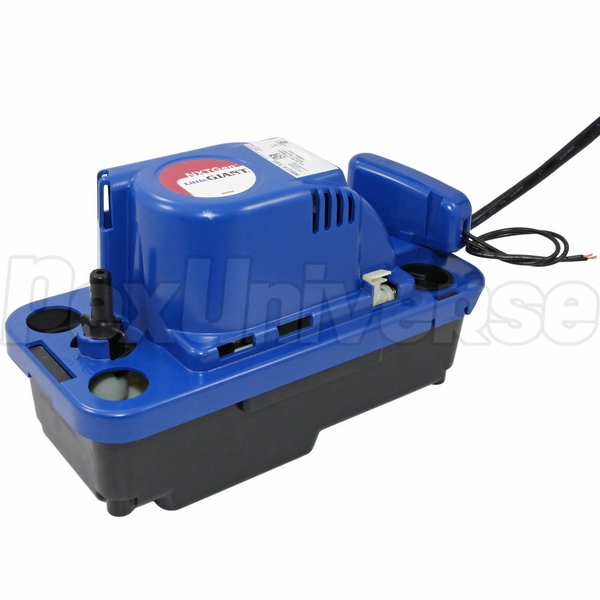

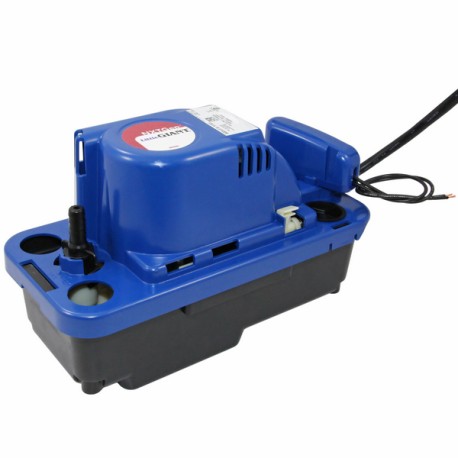

Little Giant VCMX-20UL (554520) Automatic Condensate Removal Pump (X Next Generation) offer greater head capacities than the VCMA Series.
The Little Giant VCMX-20UL features 6ft power cord and slimmer footprint size for flexibility in tight spaces. Also this Little Giant Condensate Pump has 1/2 gal. oil resistant tank and 3/8" 1/4-turn check valve that eliminate the problem of cracked tanks with exposure to oil.

Head (ft) Flow (GPH) Head (m) Flow (LPH)
1 84 0.3 318.0
5 75 1.5 283.9
10 60 3.0 227.1
15 42 4.6 159.0
20 10 6.1 37.9


  • Slimmer Footprint (4.8" x 10.2" x 6.5" size);
  • 1/4-Turn Check Valve;
  • Multiple Brackets;
  • Thermal overload protection;
  • Patent-pending cooling design increases pump life;
  • External Overflow Safety Switch
  • Rubber feet absorb vibration on hard surface installations;
  • External test/run lever for quick and easy drainage of tank for servicing;
  • cCSAus listed;

Technical Specifications:

  • Horsepower: 1/30HP;
  • Tank: Medium;
  • Flow: 84 GPH @ 1';
  • Cord Length: 6';
  • Shut Off: 21';
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Amps: 1.5A;
  • Watts: 93W;
  • Weight: 5 lbs;
  • Height: 6.5";
  • Widht: 4.8";
  • Length: 10.2";
  • Certification: cCSAus;


2 years from the date of installation.
VCMX-20UL Automatic Condensate Pump w/ 6' cord, 1/30 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.
Piece of Cake w/Fast delivery
By Paul (from Mt. Prospect, IL) on 11/8/2011
Fast, Easy instillation - even a klutz could installl it. Competitive price
