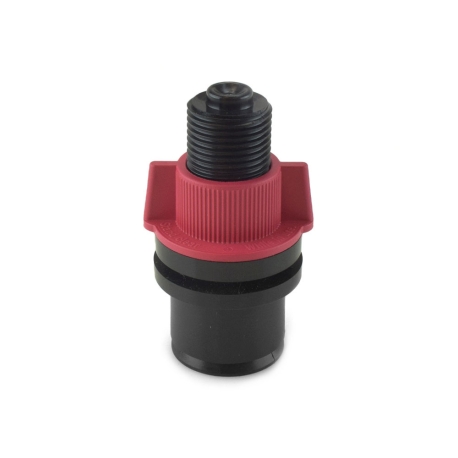

1-1/2" TestTitan, Pipe/FIP Cleanout Mechanical Test Plug Sioux Chief
1-1/2" TestTitan, Pipe/FIP Cleanout Mechanical Test Plug
Brand: Sioux Chief
Part#: 882-1
made in usa
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

TestTitan plug is designed for DWV pressure testing in PVC, ABS and Cast Iron drainage and vent systems. Suitable for installation inside 1-1/2" Schedule 40 (only) PVC pipe, ABS pipe and Cast Iron no-hub pipe, as well as inside FIP (standard female threaded) cleanout - no special adapter needed. Drill or cut off tip to make a hole and connect standard garden hose for water pressure testing where needed.

Warning: as with all pressure testing equipment, follow all applicable codes/procedures, manufacturer reccommendations and wear safety gear when performing DWV drain tests. Stay clear of the test tees, cleanouts and pipe ends while system is under pressure.

Features:
  • Reusable - easy installation and removal
  • For use in both pipe end (barrel/inside) and FIP cleanout threads
  • Use a 9/16" drill bit or cut off the tip to access the hollow stem
  • Hollow, 3/4" male hose thread stem allows to fill/drain through the plug. Connects to a standard garden hose
  • Consists of polypro wingnut, ABS disc, ABS stem and soft PVC gasket
  • Non-slip shoulder prevents spinning
  • 1" wide gasket vs 0.5" in competition
  • Made from 100% corrosion proof material.

Technical Specifications:
  • Size: for 1-1/2" PVC (Sch. 40), ABS, Cast Iron pipe or FIP cleanout
  • Stem, base and disc material: ABS
  • Nut material: PolyPro
  • Gasket material: soft PVC
  • Safe working loads (for pipe): 40 PSI
  • Safe working loads (for cleanout): 40 PSI
  • Overall Diameter: 1.9"
  • Overall Depth: 3.7".
