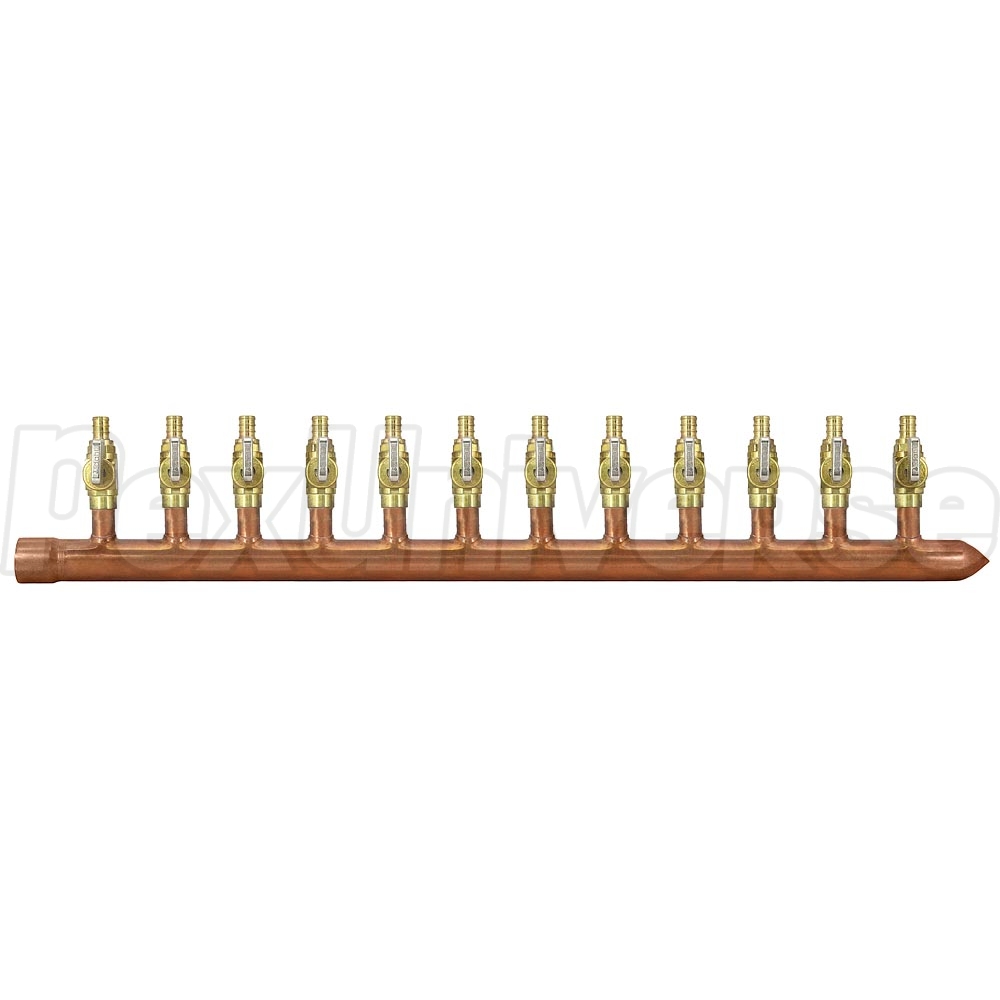

12-port Copper Manifold with 1/2" PEX Valves, 1" Sweat, Closed, Right-Hand

Sioux Chief

Brand: Sioux Chief

Mfr Part#: 672XV1210

UPC#: 739236405432

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$124.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews (3)
  • FAQs (2)

Sioux Chief manifold with 1" sweat inlet and 1/2" PEX, crimp style, 1/4-turn mini brass ball valve outlets.


Features:

  • Lead-free
  • Type L copper trunk
  • Shut-off ball valves made from lead-free brass
  • Compatible with crimp or cinch PEX connection systems
  • cUPC listed
  • Made in the USA

Technical Specifications:

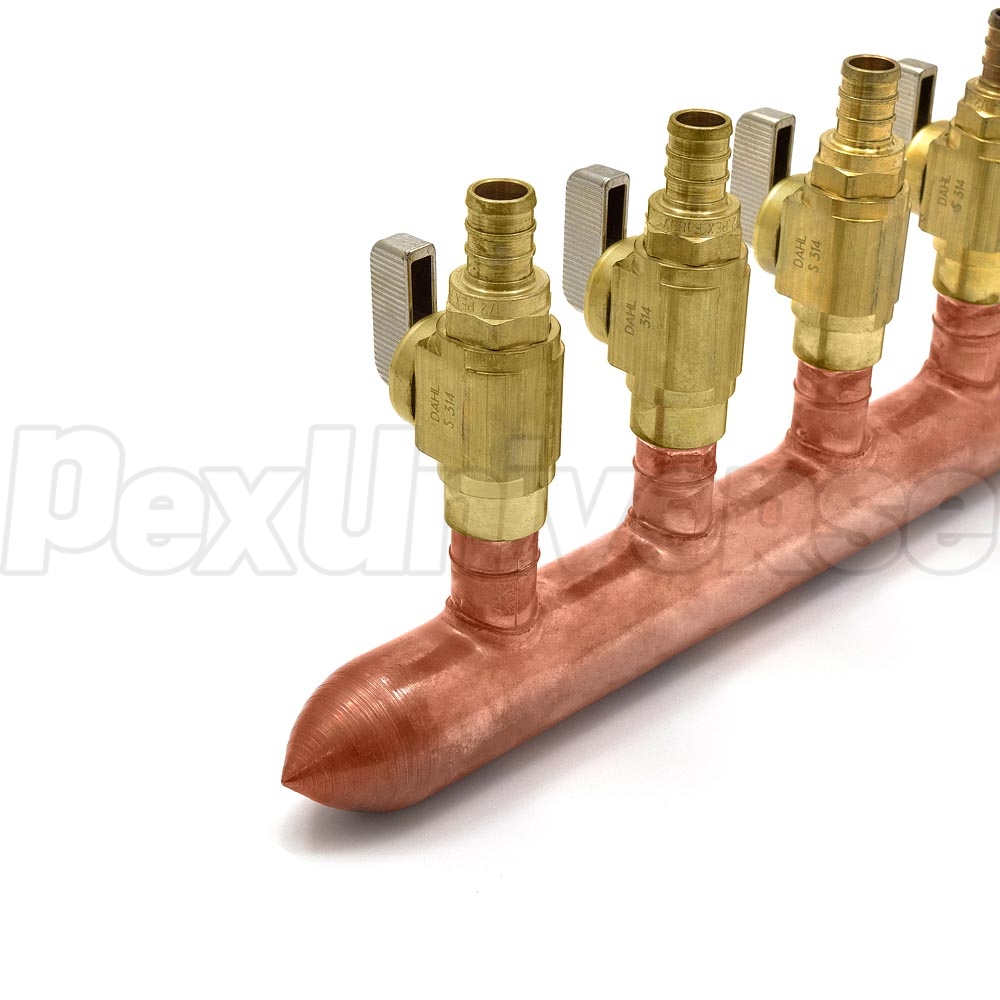

  • Right side version (trunk inlet on the left side, trunk outlet is spin closed)

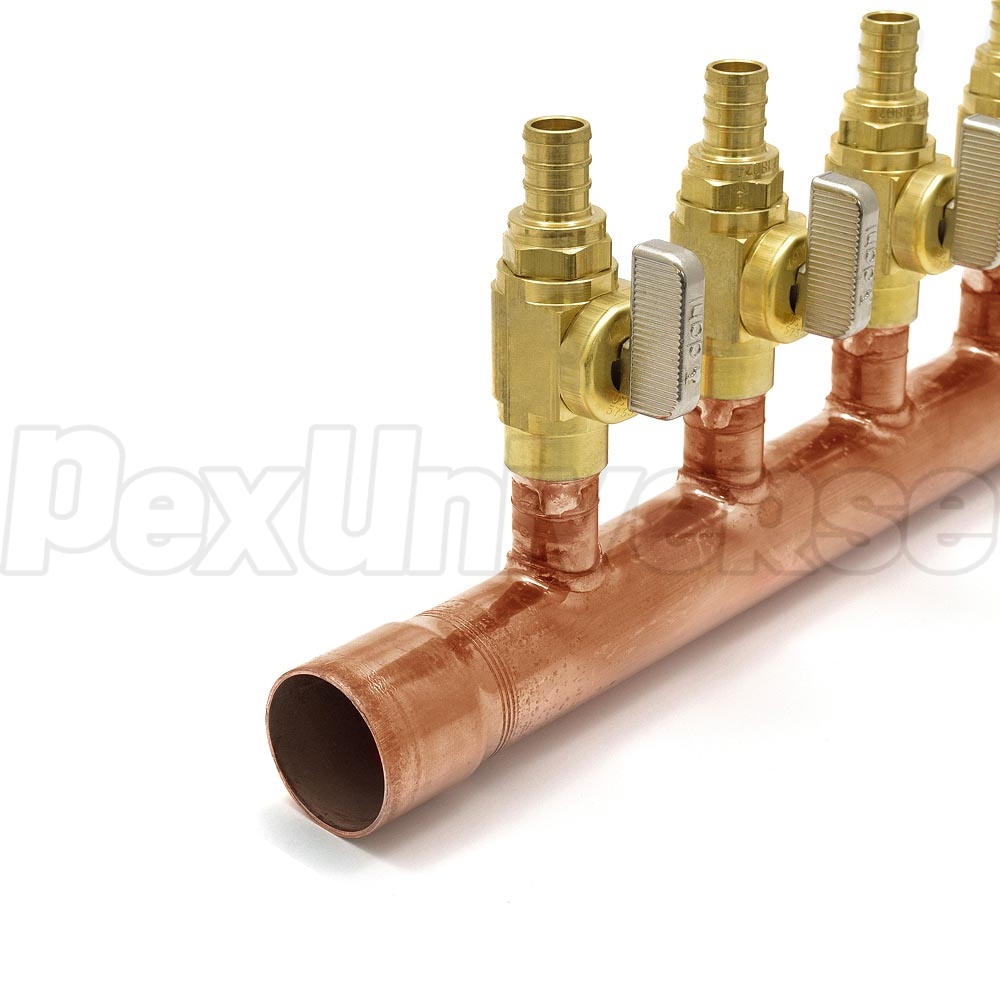

  • Trunk inlet: 1" female sweat (accepts 1" copper pipe)
  • Trunk diameter: 1" copper pipe

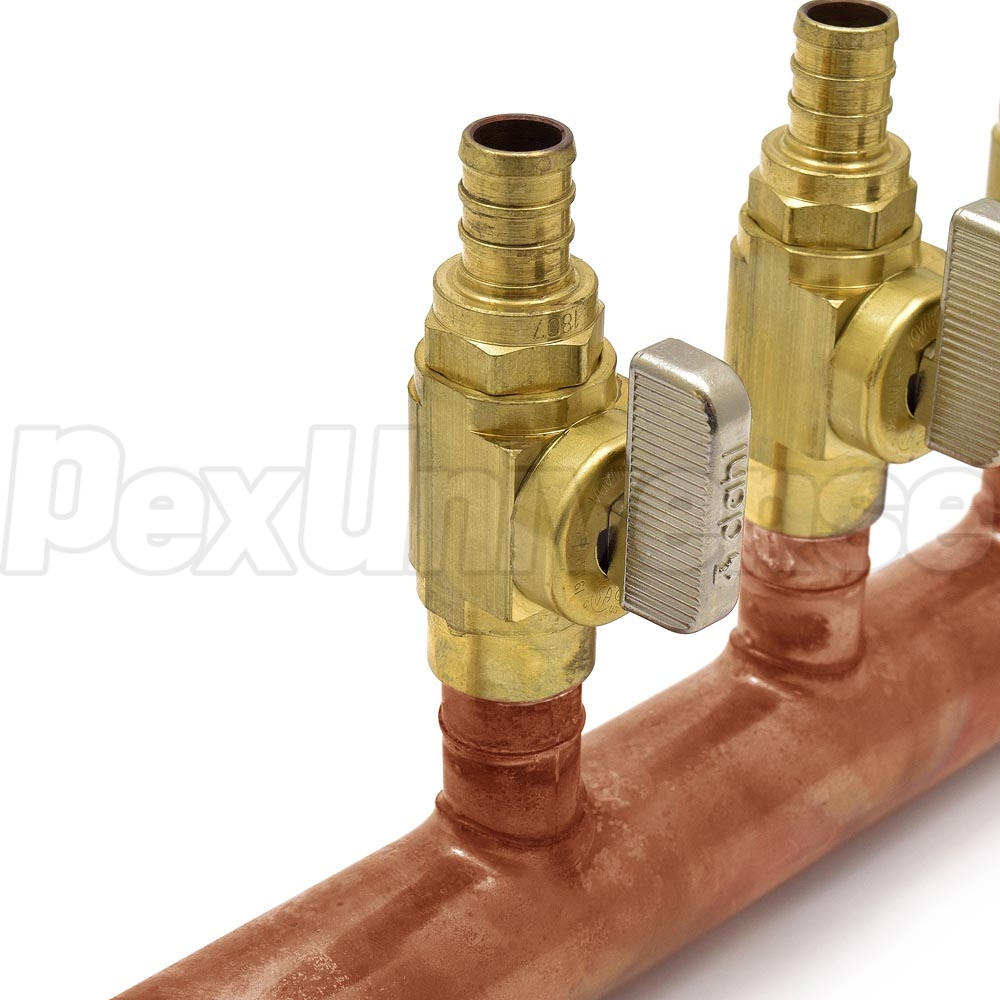

  • Branches: 1/2" PEX, crimp style (1/4-turn ball valves)
  • Number of branches: 12
  • Branch spacing: 2" OC (On Center)
  • Overall size (L x H): 26-1/4" x 4.5"
12-port Copper Manifold with 1/2" PEX Valves, 1" Sweat, Closed, Right-Hand has an average 5.0 out of 5 rating based on 3 user reviews.

sweat vs. pipe ready
By Leslee H. (from Front Royal ,VA) on 2/9/2012
I had email a question and asked if the end of the valves were ready for the pex pipe or did they need to have a fitting sweated on..It was diffcult to see in the picture, Sweated on was the answer BUT when the pipe arrived it was pex pipe ready causing me to order more product that I dont need...Other than that I am pleased with the manifolds
Was this review helpful?  Yes / No

First experience with pex manifolds DIY
By Gia (from NJ) on 6/15/2011
My pipes were 3/4, and the inlet for this manifold was 1 inch, so I had to solder a 3/4-1 bushing. Otherwise, the crimping part was easy. I installed the manifold on a slightly raised surface in order to be able to fit the crimping tool. The greatest thing about this manifold is that it comes with separate valves. So you crimp your pex and then you can check the connection right away by turning on the valve. I have been shopping around for quite some time and I feel this was the best deal because the price is low, valves are included (which btw are ball valves), it was easy to put in place and the water flow is even.
Was this review helpful?  Yes / No

First experience with pex manifolds DIY
By Gia (from NJ) on 6/15/2011
My pipes were 3/4, and the inlet for this manifold was 1 inch, so I had to solder a 3/4-1 bushing. Otherwise, the crimping part was easy. I installed the manifold on a slightly raised surface in order to be able to fit the crimping tool. The greatest thing about this manifold is that it comes with separate valves. So you crimp your pex and then you can check the connection right away by turning on the valve. I have been shopping around for quite some time and I feel this was the best deal because the price is low, valves are included (which btw are ball valves), it was easy to put in place and the water flow is even.
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Is this manifold compliant with the January 4, 2014 "no lead" law, so it can be used as part of the potable water supply system in a home?
Read 1 answer
1 of 1 people found this answer helpful.
Yes. All of the Sioux Chief manifolds we carry are lead-free compliant.
Answered on 12/27/2013 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
IS THIS MANIFOLD COMPATIBLE WITH PEX EXPANSION FITTINGS?
Read 1 answer
1 of 1 people found this answer helpful.
The ends on this manifold are PEX crimp style (ASTM F1807 standard), compatible with either crimp or clamp type connection systems. PEX crimp fittings are also compatible with all 3 types of PEX tubing: A, B or C.
Answered on 7/11/2012 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
