sioux chief 550-FP2

Straight Floor Sleeve Support for 1/2" PEX tubing

Sioux Chief

Brand: Sioux Chief

Mfr Part#: 550-FP2

UPC#: 739236266996

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
x1
$2.95 / each
x25 $70.00 / box
(25 x $2.80 / each)
  • Description
  • Literature
  • Reviews (1)
  • FAQs

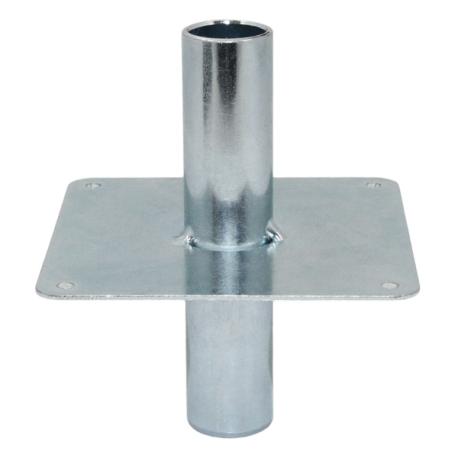

Sioux Chief 550-FP2 tube support shall be used where necessary to support 1/2" PEX tubing every time it exits the floor to connect to a plumbing fixture. Sleeve supports are zinc-plated and are manufactured from 18-gauge steel and shall be rust resistant. Fasteners shall be mounted to subfloor using all four holes provided. PEX tubing shall be inserted straight through support sleeve to provide rigid support as tubing penetrates and exits the floor.



Sioux Chief 550-F2 is a direct replacement for Uponor (Wirsbo) F5140500.


Technical Specifications:

  • Plate dimensions (W x L): 3" x 3"
  • Nailways: 2.5" O.C. (On Center)
  • Overall tube length: 3.5"
  • Tube inner diameter: 0.63" (5/8")

Straight Floor Sleeve Support for 1/2" PEX tubing has an average 5.0 out of 5 rating based on 1 user review.
2 of 2 people found this review helpful.

Great product
By andrew (from Saginaw, MI) on 4/23/2014
These little sleeves are wonderful for finishing out rough plumbing of pex lines to various fixtures. They make the final install clean and neat at the floor, assure the lines are solidly supported for attaching stop valves and final fixture lines.
