Ox Box Gas Outlet Box, 1/2" NPT

Sioux Chief

Brand: Sioux Chief

Mfr Part#: 696-1021GF

UPC#: 739236154361

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
x1
$19.95 / each
x6 $109.50 / box & Free Shipping
(6 x $18.25 / each)
  • Description
  • Literature
  • Reviews (3)
  • FAQs

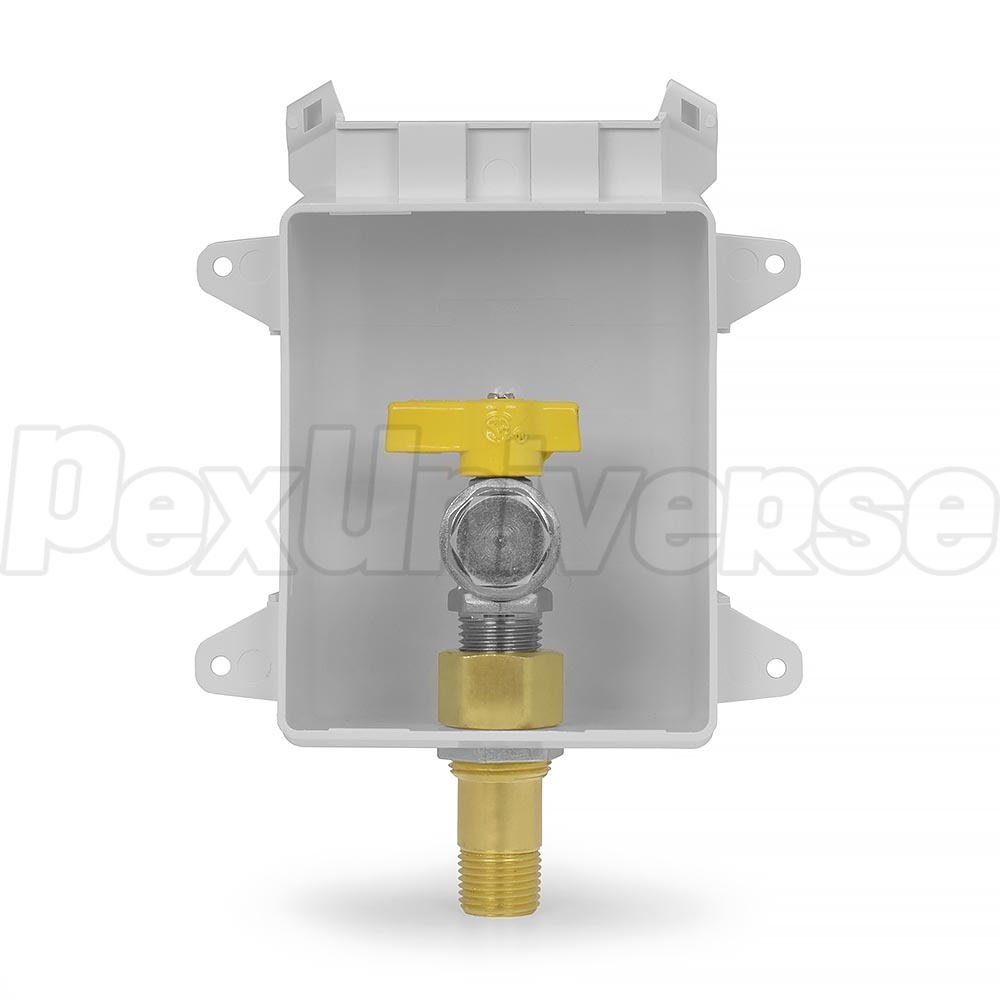

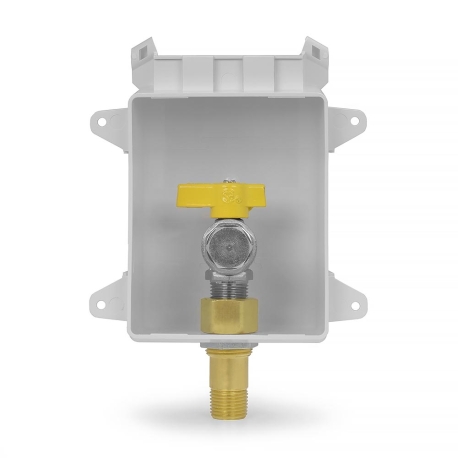

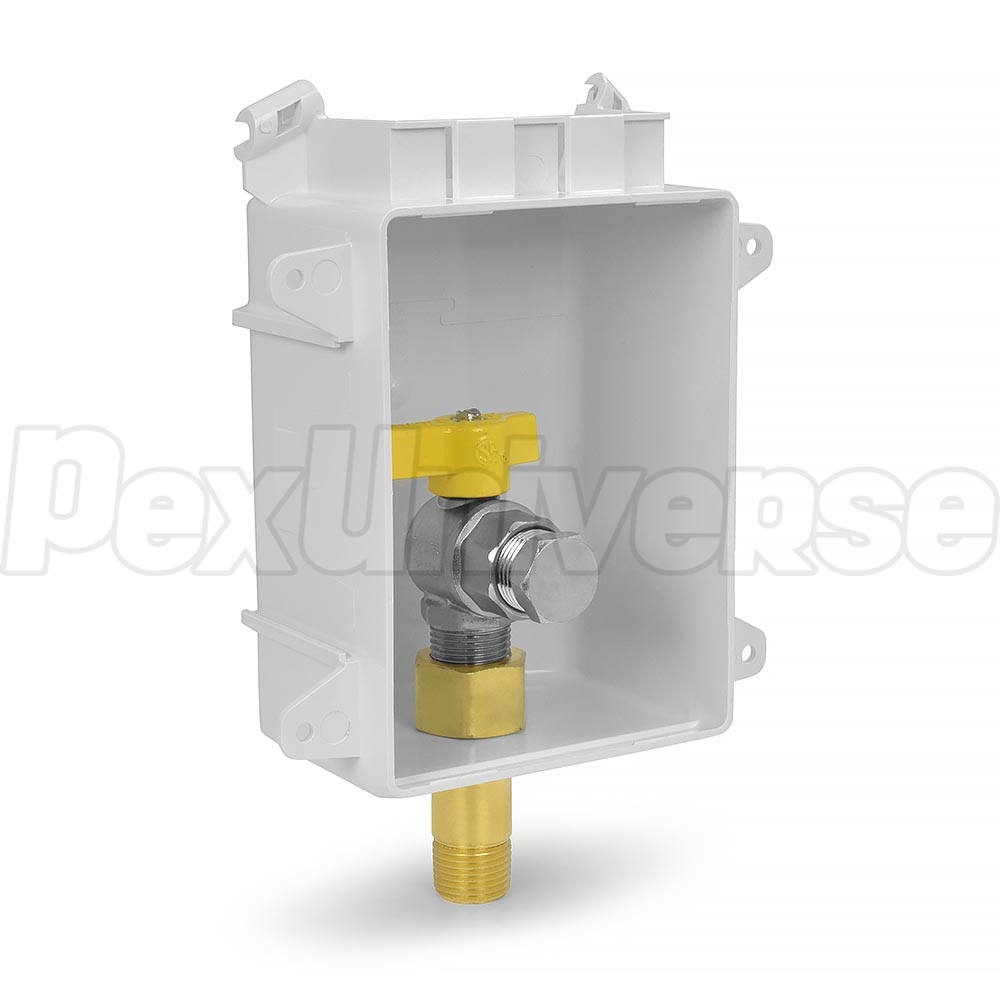

Sioux Chief Ox Box Gas Outlet Box provides a profesionally looking and cost effective solution for any gas appliance installation needs.


Features:

  • 1/4-turn 1/2" NPT ball valve for easy, secure, accessible operation
  • high-impact ABS body for strong and durable installation
  • gas valve is CSA certified to ANSI Z21.15-1997 / CGA 9.1-M97
Ox Box Gas Outlet Box, 1/2" NPT has an average 5.0 out of 5 rating based on 3 user reviews.

Just what I needed
By 100 year old foursquare (from Indianapolis) on 7/7/2016
I ran the gas line in the wall because I didn't know what my clearances behind the range would be, then ran into difficulty enclosing it after the fact. (I know!) The Ox Box Gas Outlet Box is the lifesaver I needed!
Was this review helpful?  Yes / No

Clean Install
By Tim (from Indiana) on 3/18/2014
I like this box for a gas install as it makes for a simple connection and a clean look with minimal outside-the-wall installation for saving space. I use CSST and run it right to this box with a female fitting. Once in the wall, the gas line is protected and you don't have any black pipe to mess with (at least for a stove or dryer).
Was this review helpful?  Yes / No

Exactly what I was looking for...
By Rich (from Scotch Plains, NJ) on 4/25/2012

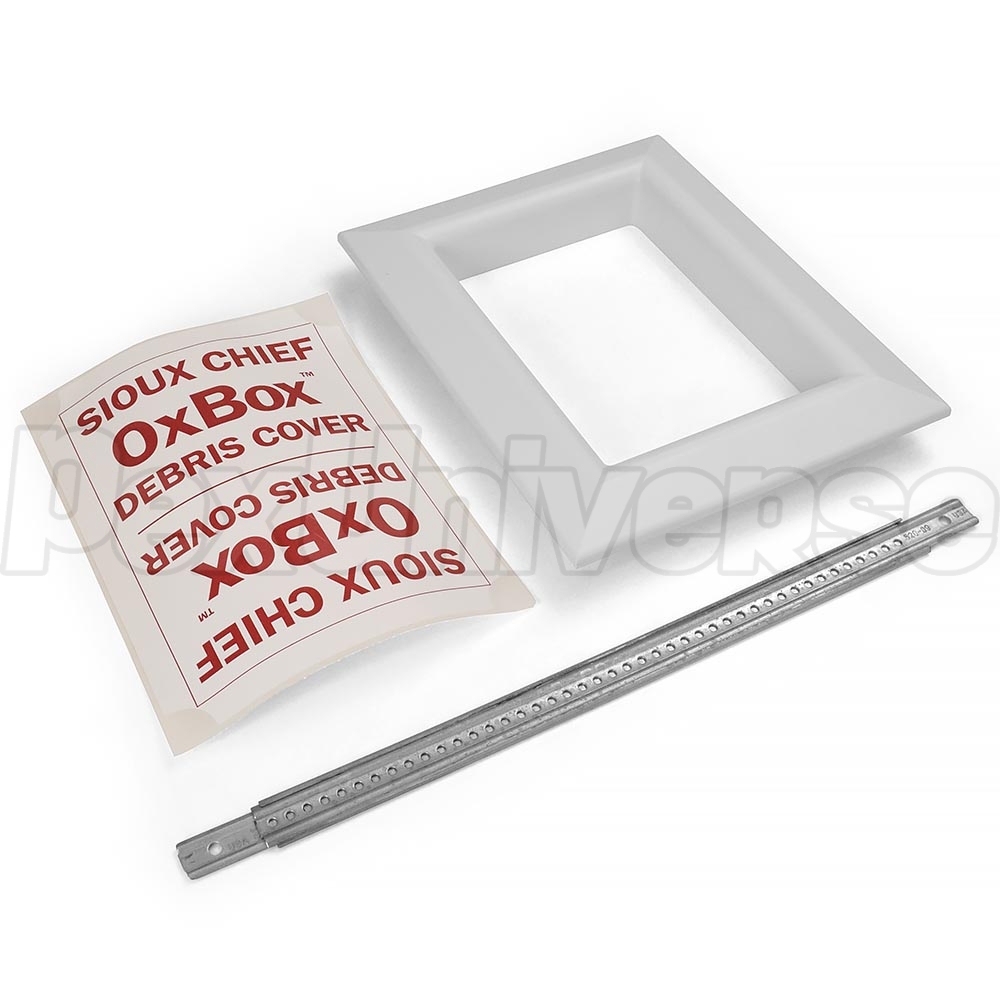

We wanted a neat installation for the appliance piping for our range and clothes dryer. This item allows the gas valve to be set behind the plane of the wall, and finished with a bezel (just like an ice maker valve box). Other nice features are the 90 degree gas valve - I like the fact that I can use a shorter CSST appliance connector, and not have to bend it awkwardly at the valve connection when I have to move the appliance. The kit comes with mounting options for both stud-nailing and mid-span perforated hanger. I used the perf, which is thick and holds the box well. It also comes with a 1/2" stainless plug, so you can plug the valve outlet and pressure test with the valve open (remember - most gas cocks have body ratings of 600psig, but the valve seats are usually only good for 3-5 psig. A 10psig test can leak through the valve seal.)I would recommend this product.
Was this review helpful?  Yes / No
